Velocars and other interesting vehicles.
- Thread starter Intrepid Wheelwoman
- Start date
RicksRides
Member
somebody put my first apartment on wheels!Can anybody make me one of these?
Suzuki Diamond Free trike
Intrepid Wheelwoman
New Member
Hey Ludwig don't be a tease. You can't post a picture like that one without telling us more about it.
Intrepid Wheelwoman
New Member
http://www.instructables.com/id/Velomobile-Three-Seat-Electric-Car/
This is a really cool velocar built in the Mochet style, but with some updates in construction.
This is a really cool velocar built in the Mochet style, but with some updates in construction.
Attachments
Ludwig II
Well-Known Member
Monet Goyon early days
http://www.monet-goyon.net/Voiturette.html

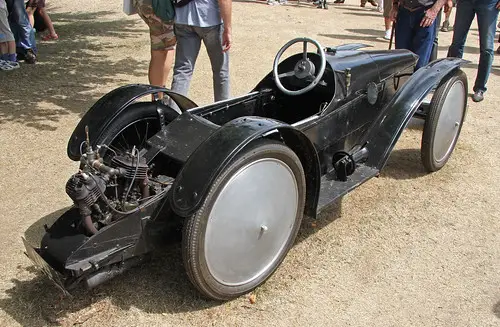

I'm still looking for the silver monocar, but haven't found anything beyond 1930s French. To keep you happy, though, here is the AV Monocar of 1920

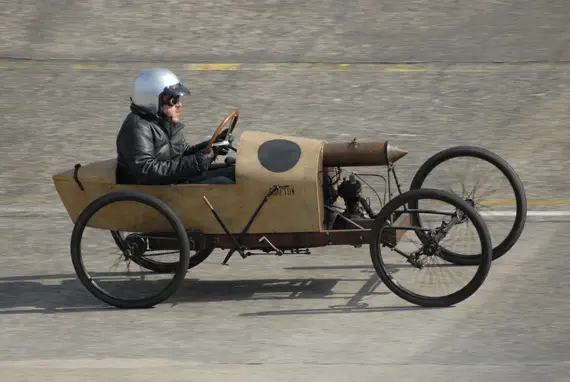

This was photographed at Montlhery, but that's all I have on it
http://www.monet-goyon.net/Voiturette.html
I'm still looking for the silver monocar, but haven't found anything beyond 1930s French. To keep you happy, though, here is the AV Monocar of 1920
This was photographed at Montlhery, but that's all I have on it
Last edited:
This was photographed at Montlhery, but that's all I have on it

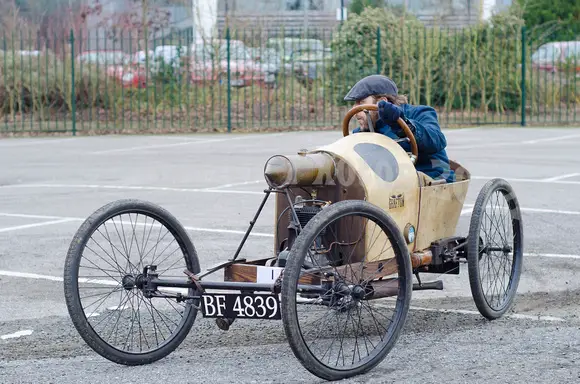

This is the "Grafton Cyclecar" which is a recreation of what bicycle shop owner Timm Gunn believes a proper cyclecar should have been, using mostly bicycle parts. Very cool, but not streetable as a motorized cycle (at least in the US due to the 4 wheels and larger displacement).
Note in the first link below there are plans for purchase from Timm Gunn.
http://www.prewarcar.com/magazine/previous-features/worlds-cycliest-cyclecar-the-grafton-019576.html
https://www.google.com/#q=grafton+cyclecar&spell=1
I have been in email contact with the creator of this velo, he suggests he will one day develop plans for this velomobile, but at the time of my email, he only had pictures with generalized dimensions.
He also said the the body work was easy; the front geometry much harder. In fact, he said do not try to copy the front suspension as it introduces bump steer. He currently has his set up with 2" tires and no suspension.
Dropbox link:
https://www.dropbox.com/sh/vy519dajgupoiva/qoHAyC_bnf/Dimensions
Last edited:
Ludwig II
Well-Known Member
Bugger! You beat me to it with more information as well. From The Vintagent:
"More fantasies! This cyclecar was built by Tim Gunn of the Old Bicycle Showroom in London, using mostly bicycle components, with a J.A.P. sidevalve engine. The steering arms are made from bike pedal crank arms, the axles are bike cranks, the steering hubs are bicycle headstocks, etc. All very simple, clever, and it works! A good look at cyclecars makes me wonder why more people don't build them just for fun...dangerous fun its true, but hey, we're bikers!"
"More fantasies! This cyclecar was built by Tim Gunn of the Old Bicycle Showroom in London, using mostly bicycle components, with a J.A.P. sidevalve engine. The steering arms are made from bike pedal crank arms, the axles are bike cranks, the steering hubs are bicycle headstocks, etc. All very simple, clever, and it works! A good look at cyclecars makes me wonder why more people don't build them just for fun...dangerous fun its true, but hey, we're bikers!"
Intrepid Wheelwoman
New Member
Excellent! Thankyou for the dropbox link
wheelbender6
Well-Known Member
The Mochet style build is beyond my skill level (the wife won't let me use a welder). However, I do plan on using some of the bracketry ideas from the article.
Intrepid Wheelwoman
New Member
He's right to advise not to copy the suspension because it's just plain terrible, Same goes for the guy who did the Instructable based on John Foster's velocar design. In fact his attempt was just plain worse! He even drew it up in CAD and one glance at the CAD image was enough to tell me that he didn't have a clue how to layout a suspension design. Talk about unsafe at any speed!
When my Dad and my brothers were building up a car they'd usually draw it out in chalk on the garage floor. It might sound primitive, but at least they knew what they were doing! At least three cars that I can remember that were bought cheap with torn up front suspensions were successfully rebuilt at home, so I got several lessons on how steering and suspension works when I was growing up. Some years ago I rebuilt the suspension and steering on my 1954 Morris Minor and that little car steered and handled just so sweetly once the job was done.
Morrie suspension and steering pivots on 'trunnions'. Good word that, - 'trunnions'. Makes guys in classic car breakers' yards sit up and take notice
When it comes to velocar replicas and front suspensions the diagrams in those French book scans I posted in another thread can't be beat. And Wheelbender, - there's no welding to speak of so you can build away to your heart's content without alarming your good lady.
Attachments
Intrepid Wheelwoman
New Member
Attachments
Intrepid Wheelwoman
New Member
RicksRides
Member
Just about finished. The customer will be here to pic it up this afternoon. just have to paint the metal top.
P.S. For some size references, Steve in pic 4 is 6'4" and 300lbs. Plenty of room. Its not the smallest car around, but its likely the most comfortable scooter around.
P.S. For some size references, Steve in pic 4 is 6'4" and 300lbs. Plenty of room. Its not the smallest car around, but its likely the most comfortable scooter around.
Attachments
Last edited:
Intrepid Wheelwoman
New Member
Eggy looks terrific
I bet you're pleased with how well it turned out.
So when will you be starting on building the next one?
I bet you're pleased with how well it turned out.So when will you be starting on building the next one?
