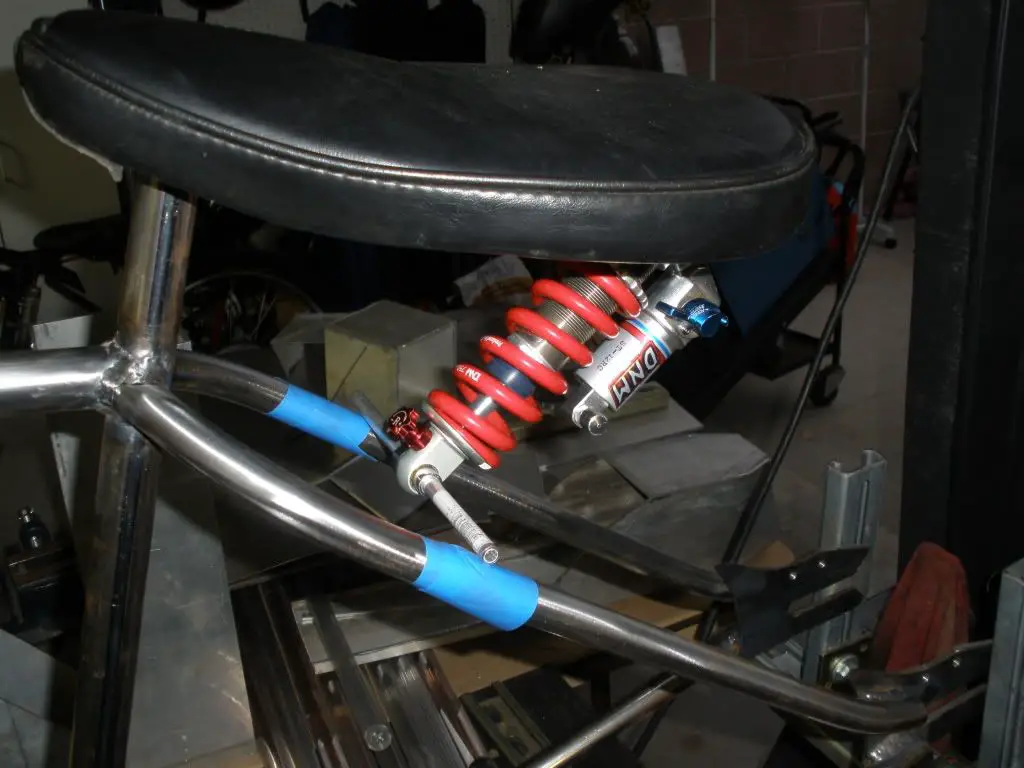

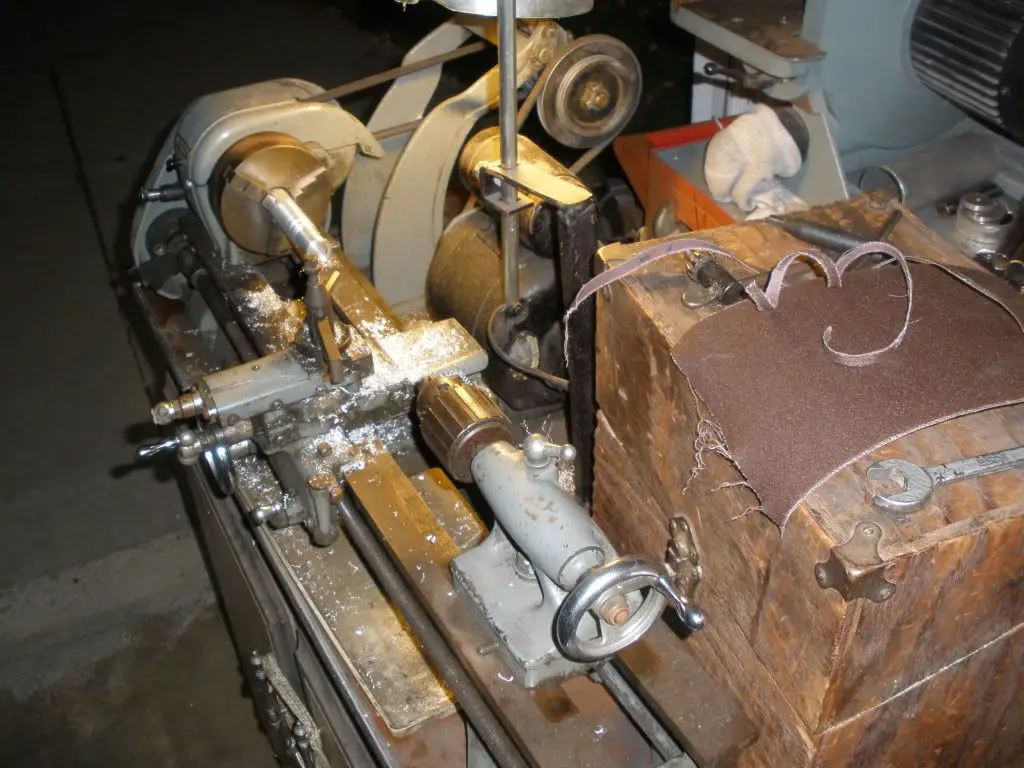

    Give me a break Dennis...big thanks for the lathe...it’s a challenge but I like it...the shocks are sweet too...not sure if it will work on the seat.

    I made the main motor mount plate, it was heavy since it was made of 3/16 so I put it on a diet and drilled a lot of 1 1/8 holes. The motor sits low and forward. Under the plate will be my drive system.

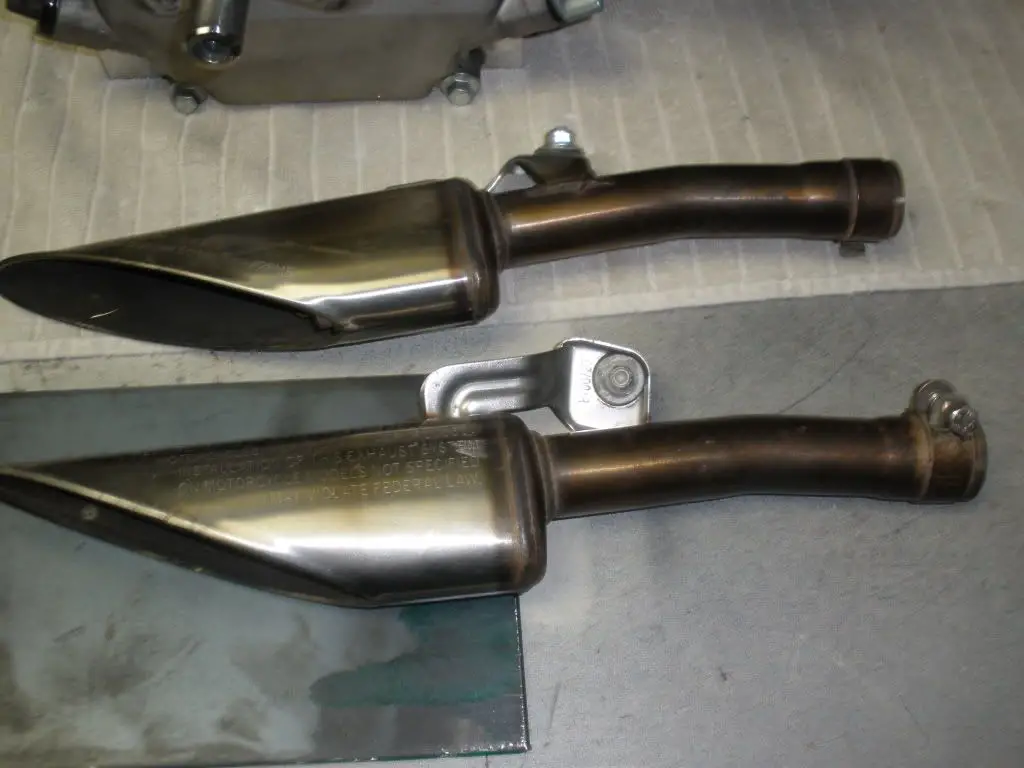

    This is the exhaust I plan to use.

    That’s it for today...CCC
    [​IMG]
    [​IMG]
    [​IMG]

  2. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    A couple more pictures:

    [​IMG]
    [​IMG]
    [​IMG]

  3. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    Don't lose that recipe bro, I'm gettin mighty hungry lookin at the main course here ;)

    .wee.

  4. dmb

    dmb Active Member

    Joined:
    Dec 4, 2010
    Messages:
    1,359
    Likes Received:
    0
    leverage on the shock. or put the spring in the oven. the lathe's got more work in a few day's than all the time i've had it. good for you.[and i still have my finger's] i know race bikes are not stinkin' chopper's although i seen some chopper's racing [not so fast]

  5. RicksRides

    RicksRides New Member

    Joined:
    Feb 22, 2012
    Messages:
    864
    Likes Received:
    0
    Jeff I love that el cheapo jig as well. If you could send me a couple close up pics as well as material list Id love to make a copy of it if you wouldnt mind. As always great job there bud. Thanks, Richard

  6. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
  7. RicksRides

    RicksRides New Member

    Joined:
    Feb 22, 2012
    Messages:
    864
    Likes Received:
    0
    Jeff, Many thanks

  8. headtrama

    headtrama New Member

    Joined:
    Jul 8, 2010
    Messages:
    889
    Likes Received:
    0
    What's wrong with a death trap ?.bf.

  9. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,001
    Likes Received:
    31
    This is AWESOME got to watch the finish. Super nice work..............Curt

  10. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    I got some time to work on the bike, trying to come up with a tank design has been yhell. Since this bike is being built as a race bike only this is the tank that I have designed for the application...purpose built..a little under a gallon and should do the trick. The front section will have a small fairing to add to the detail.


    Attached Files:

  11. headtrama

    headtrama New Member

    Joined:
    Jul 8, 2010
    Messages:
    889
    Likes Received:
    0
    Looks good jeff.

  12. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    New wheels laced up...moving along...or should I say rolling alonglaff


    Attached Files:

  13. Gbrebes

    Gbrebes Member

    Joined:
    Jul 16, 2010
    Messages:
    577
    Likes Received:
    20
    Hey Jeff,

    You really do some quality work from scratch, I really admire that. You take some straight tube, some metal plate, and turn it into a beautiful flowing machine.

    Your welding skills also impress me, I don't really weld, but I've done a little mig welding and I know how easy it is to mess it up. You don't mess it up at all, clean stuff. You should be proud.

    I have a question about those rims. What are they? They look wider than a worksman, but I don't know much about such stuff, I bought some old worksman rims when I started my first and only build, and I never really looked for another set, I love my worksmans.

    Your build is looking super cool to me, but I have one more question. You have a race bike, Iceman has a race bike, and Ryan has a race bike, are you adding racers to Team Wolf? It would be awesome to be on your race team, I think you could dominate the Motorized Bicycle Racing Cicuit for reals.

    Anyway, in my book, you da man. I really dig the work that you do.

    Gilbert

  14. headtrama

    headtrama New Member

    Joined:
    Jul 8, 2010
    Messages:
    889
    Likes Received:
    0
    Where can I get a rider application sounds interesting ?

  15. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    Application and resume already sent.....Team Wolf Pack will rule the world ! ;)

    .wee.

    scotto-wolf

  16. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,169
    Likes Received:
    17
    Those wheels look killer Jeff!! Did you lace them yourself?? (^)

  17. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47

    Thanks Gilbert for the kind words. I do know how to hide the bad welds or fix them...LOL...flap wheel is my best friend in the shop...

    No teams are in the plans since I have listed all my bikes except one for sale. The plan is to complete this build for the iceman to race and keep one of my 2 strokes to race. I want to complete another BTR to keep for myself. The problem is I enjoy building and have six bikes and no room to work in my shop anymore...get's old having to move them all around all the time...

    VMB: I had a little help with the wheels but they are a custom build.

    More work completed: I made the tank mounts that will be welded to the lower top tube. The tank is now complete with all the bungs welded in. I received the crank setup I ordered from "Sportsman" and must say it's DA BOMB. It's nice to have great quality parts and a great vendor to deal with.


    Attached Files:

  18. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    Tank looks sweet.......cranks look sweet! Can't wait to see it complete. That right there is gonna be the bike that any 4-stroke racer will want to have. A superb job Jeff, honestly.

    .wee.

  19. Gbrebes

    Gbrebes Member

    Joined:
    Jul 16, 2010
    Messages:
    577
    Likes Received:
    20
    Too bad about the race team, I was just kidding, but I think it would still be awesome.

    So I still want to find out about those rims, unless its a secret. They look nice and wide. What size tire would go with those rims?

    Gilbert

  20. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    Thanks Scotto, my biggest fan I see...lol

    Gilbert...them rims be 24x2.5 wide. I got a good friend that I hit up for some felt wheels but when I told him what the plan was he pushed me out the door with the ones I have now, he made a good choice for me and I am more than happy.

    I was able to weld in the tank mount and kinda mock the bike up, it has a lot of dead space but that will be filled up with some go fast goodies.

    I need to order some engine parts before I weld the motor mount in...

    I want to thank DMB...aka Dennis again for the lathe...I was able to fab up the bungs for the tank and had a blast doing it...

    Thats it for now...
    [​IMG]
    [​IMG]
