WCC SO-CAL Special Frame Build....

Discussion in 'Motorized Bicycle Welding, Fabrication and Paintin' started by culvercityclassic, Apr 1, 2012.

  1. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    I have started a new frame design that will be used on our race bikes. I am trying to keep it simple yet strong. The pictures show the first stage:


    Attached Files:

  2. halfevil333

    halfevil333 New Member

    Joined:
    May 18, 2010
    Messages:
    307
    Likes Received:
    0
    As always, your work excites/inspires me.
    Keep them bad boys coming!

  3. MotorBicycleRacing

    MotorBicycleRacing Active Member

    Joined:
    Jul 28, 2010
    Messages:
    5,684
    Likes Received:
    24
    What engines are you building the frames for?
    Are you including a mounting plate?
    Will you have a frame at the race this Sat 7th?

  4. rustycase

    rustycase Gutter Rider

    Joined:
    May 26, 2011
    Messages:
    2,746
    Likes Received:
    0
    Wow!

    That's MAJOR leanback on the seatpost, isn't it?
    ...it's not gonna be a seatpost, is it?

    Are you gonna give out super skunk works top secret info like wheelbase, rake, and trail?

    :)
    rc

  5. azbill

    azbill Active Member

    Joined:
    May 18, 2008
    Messages:
    3,367
    Likes Received:
    0
    cool start !!!
    I am following this thread for sure :)

  6. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47

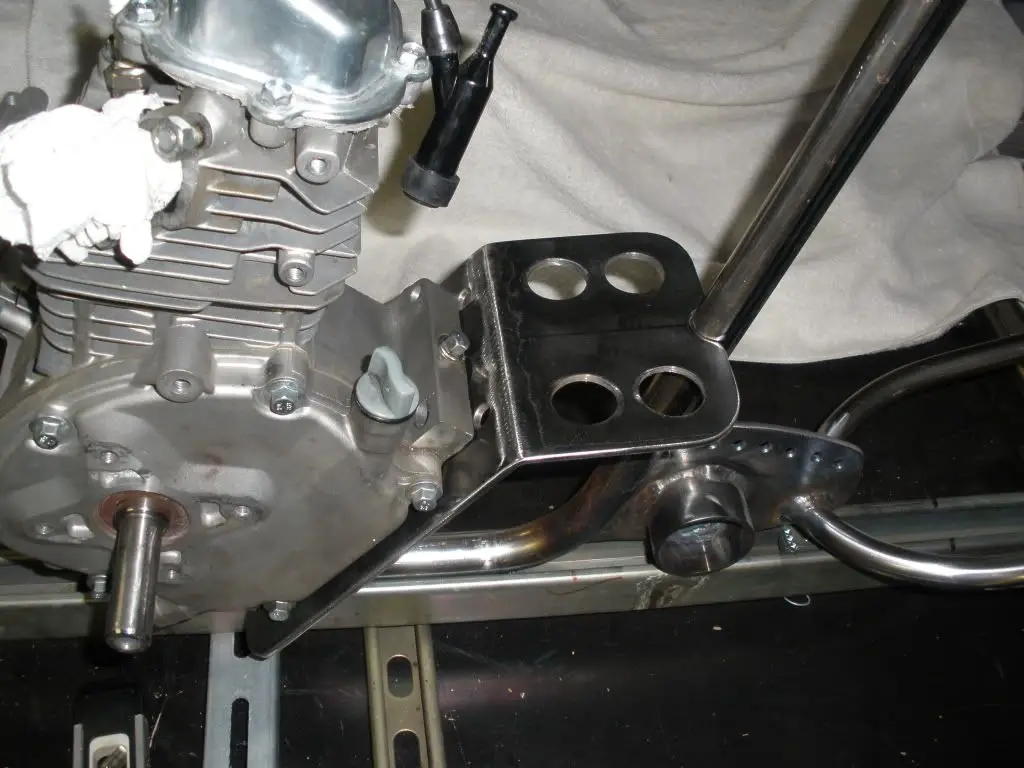

    MBR: The frames will come with a gas tank & motor plate for the HF 6.5 or 212. I am sure the smaller motors will also fit. It will be setup to use the CVT or jack-shaft.

    I tightened up the seat tube by 2 inches today; the original plan was to not use a lay-back seat post. After some thought it would be wise to add the seat-post to the customers taste.

    The bike is in the first stage of building so it won’t be at the April 7th race. But all my other ones will be....

    CCC

  7. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    AWESOME

    That's all I have to say........

    dnut

  8. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47

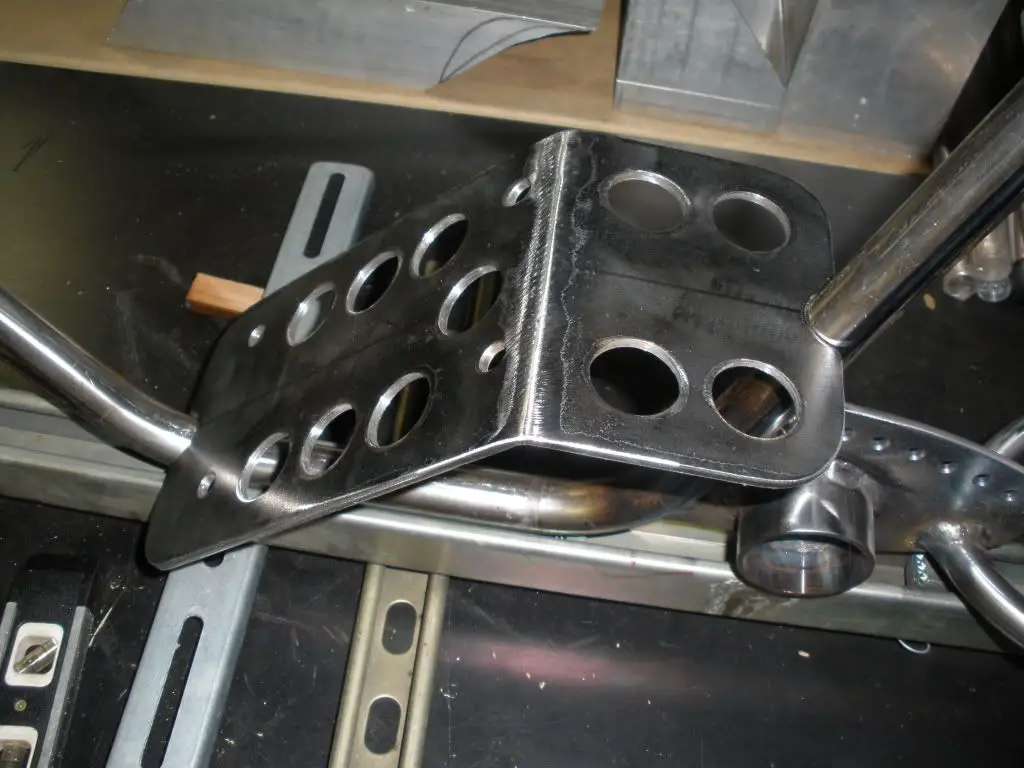

    I have come up with the bottom bracket design. I am trying to keep it simple...I hope...

    I will be using the Sportsman rear hub combo setup. Sure looks nice and made to take the power.

    This frame may just get the monster of all motors put in it....


    Attached Files:

  9. halfevil333

    halfevil333 New Member

    Joined:
    May 18, 2010
    Messages:
    307
    Likes Received:
    0
    SWEET!!!! I wish I had the machines/skills to do such nice work!
    I instead just kinda whack n bang, cromag' style... When it doesn't fit, I just grab the larger hammer..

  10. Keringkien

    Keringkien New Member

    Joined:
    Feb 15, 2012
    Messages:
    7
    Likes Received:
    0
    Very nice! I enjoy seeing how much care is taken to do everything properly, as it's already been said, I would long for the machines/skills to do so. Well done.

  11. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47

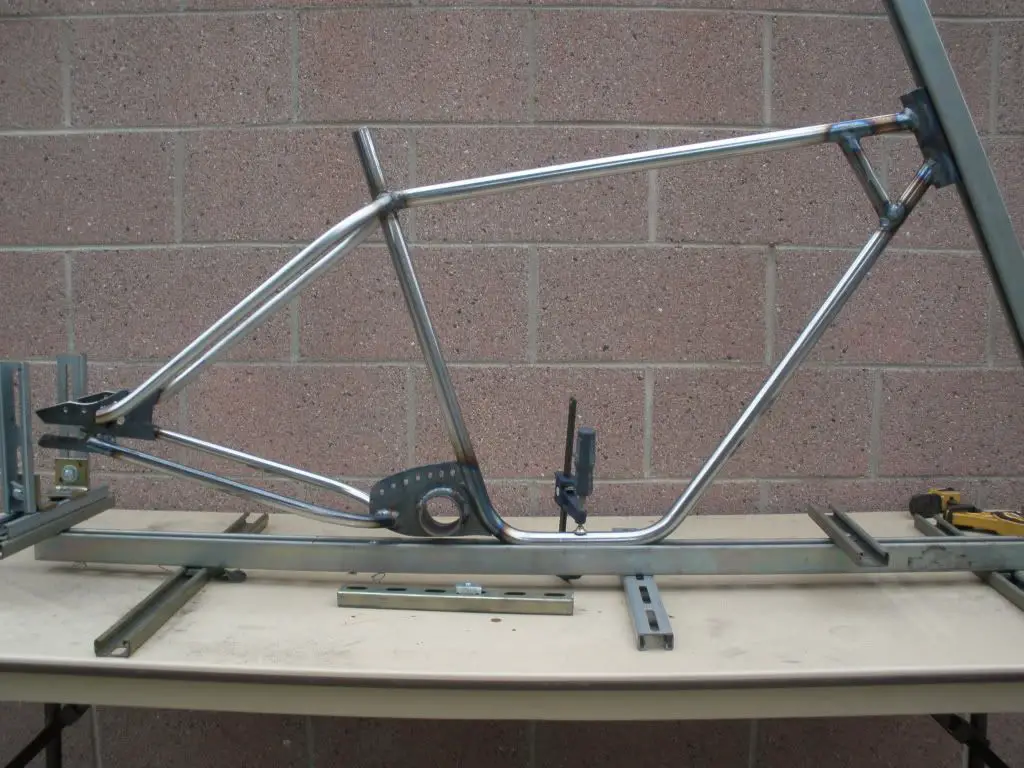

    The frame is on it's way, got the front section done and now moving to the back end. I like the way it is turning out.

    One thing for sure it's not some chopped up bike frame that gets a big block added and a death wish to go along with it... lafflaff


    Attached Files:

  12. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    Now that's what I'm talkin bout........RACE BIKE!

    .wee.

  13. superharry

    superharry New Member

    Joined:
    Mar 10, 2012
    Messages:
    129
    Likes Received:
    0
    Wow Jeff! That's gonna be a Bomber for sure! How "big" a big block you going?

  14. dmb

    dmb Active Member

    Joined:
    Dec 4, 2010
    Messages:
    1,359
    Likes Received:
    0
    ain't you got no job? sleep when you dead? wife wont let youin? nice stuff.

  15. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47
    Got a job, do get some bad sleep; kids are teenagers and no wife. So I do find some time...

    Harry: top secret motor...sorry...lol

  16. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,071
    Likes Received:
    47

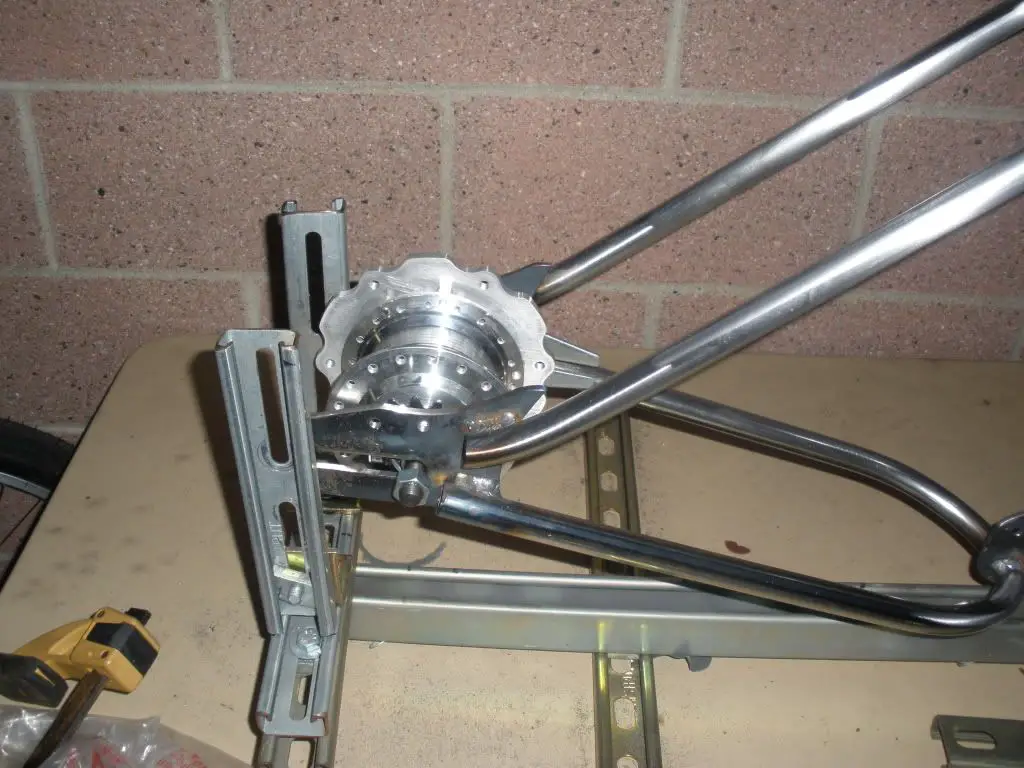

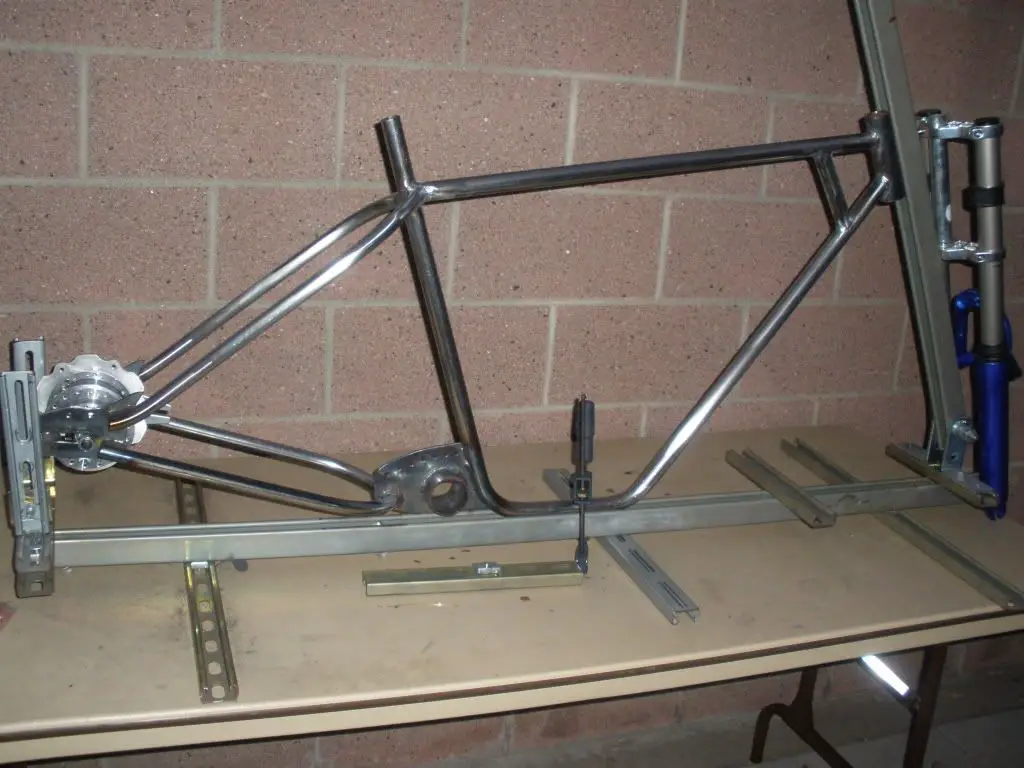

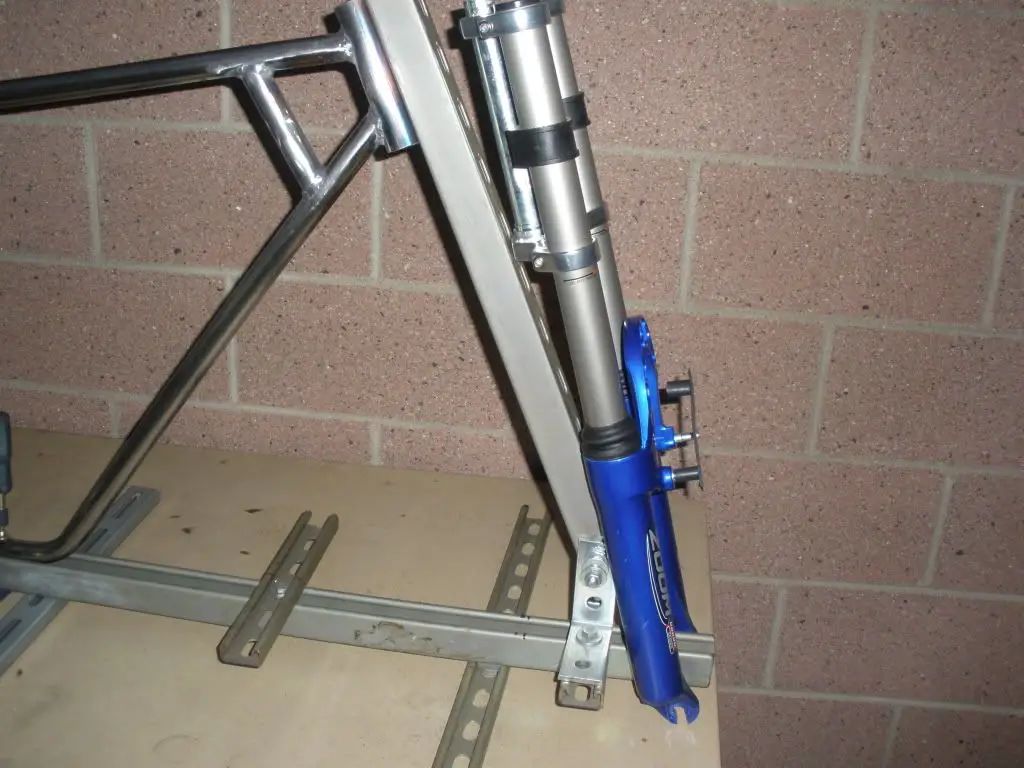

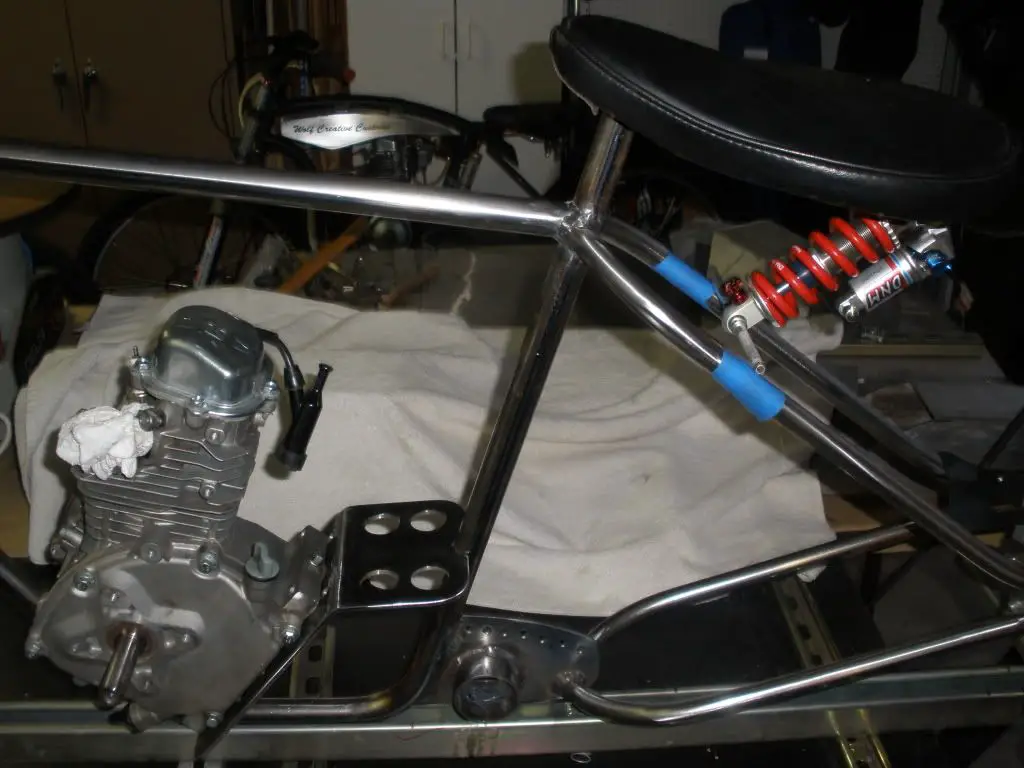

    I completed the frame today...well completed with-out the motor mount that is. I still need to add a few gussets. It turned out nice...that el-cheap-o jig works real well.laff

    I was planning to get the motor mount in this week end but the tig welder took another chit...Miller whats up....

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  17. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    All I can say Jeff is phenominal!!! Absolutely perfect. It has my name written all over it and you know I'm serious. Great job Bro.....stunning!

    .wee.

  18. Sinistar

    Sinistar New Member

    Joined:
    Dec 18, 2011
    Messages:
    70
    Likes Received:
    0
    stunningly stellar build. I love the way your cheap but highly effective jig makes sweet crank mountings like your style with 1/4" plate. Almost makes you think that the way that that was done you could make that be incorporated with a other rear structure for a shock. Love the build and that crank mounting. I've got a old frame I'm working on and just waiting on parts I'll deffinately be posting pics of my frame since I have that as my 2nd build.

    Cheers

  19. dmb

    dmb Active Member

    Joined:
    Dec 4, 2010
    Messages:
    1,359
    Likes Received:
    0
    how come you dont have spider web's, flames and iron cross's on your stuff? it look's too old the way it is.

  20. Blake84

    Blake84 New Member

    Joined:
    Jul 15, 2011
    Messages:
    136
    Likes Received:
    0
    Looks great Jeff!!!!!
