Revenge is mine! Ten minutes with a hack saw and I have floorboards roughed out. There are other things to mount first so I have time to decide how I want them mounted.



View from the other side:


Last edited:

Harold_B

Active Member
May 23, 2012
997
246
43
Grand Rapids, MI

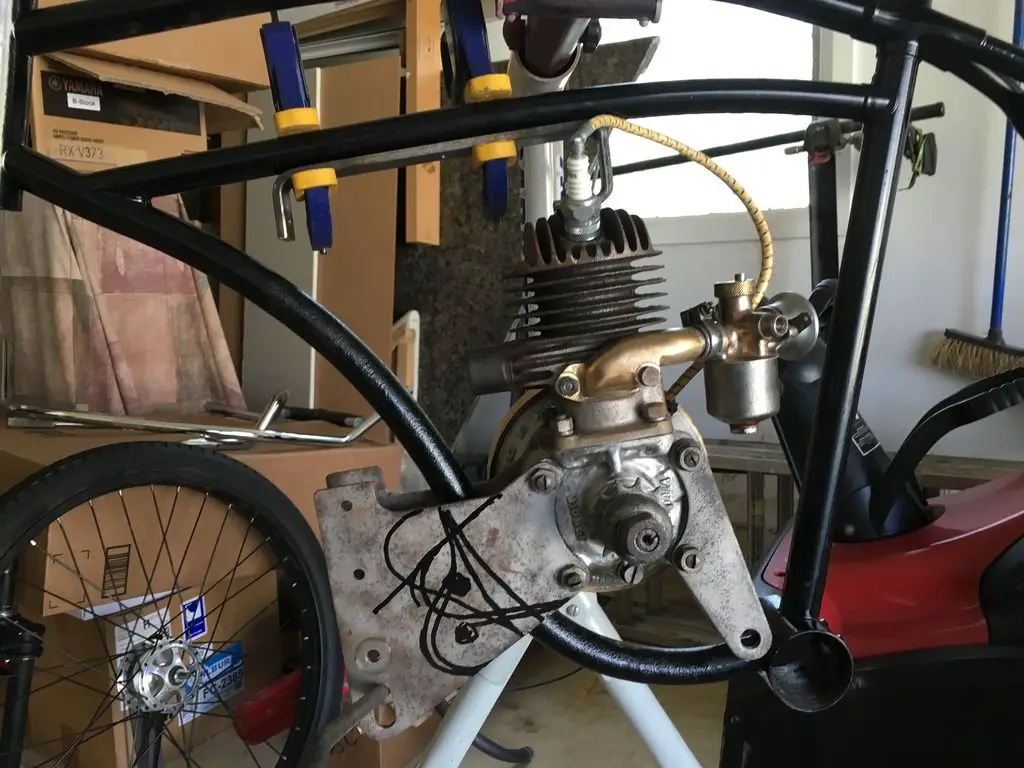

The rear triangle is not the mount for the floorboards. I took the leap and hacked that off today too. I have the engine hanging in the location that I want it. I need to come up with some steel bits to weld into place for the mounts but I'm feeling like this will work out.
