49cc's on a Schwinn

Discussion in 'Motorized Cruiser Bicycles' started by FOG, Mar 3, 2019.

  1. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204
    FOG, your beautifully crafted rear hub is a wow!
    Nice work. The bleeding is an occupational hazard we expect from time to time
    Tom .

    Whizzerd and indian22 like this.
  2. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306

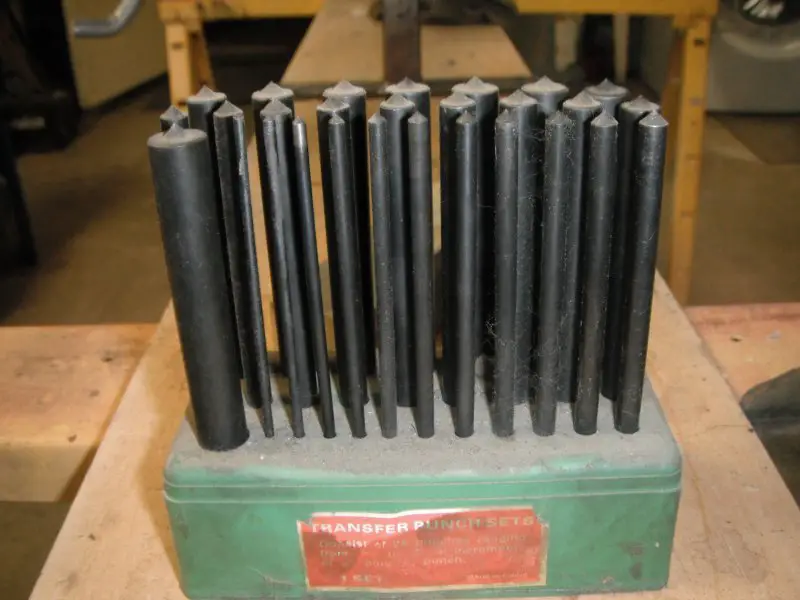

    I made a mount for my pedal chain tensioner tonight which was a remarkably easy thing to do using transfer punches. They cost something like $20 for a set which is money very well spent. Here's mine.


    The tensioner is designed to go over the back axle and hook into the the 3/8 slot in the dropout, but that ain't gonna work for me. I need to mount further up and onto the frame, but there's just the one 3/8 hole. What's gonna stop the arm from rotating on the mount?

    So I decided to add a 1/8 dowel pin between the two pieces for positive location.

    After taking the tensioner apart so I could work with just the fixed arm, I picked a spot with the most surrounding meat and drilled a 7/64 hole. Laid the arm up on the mount where I wanted it and using the 7/64 transfer punch made a mark on it.

    Drilled the mount to 1/8" for clearance on the dowel. Reamed the 7/64 hole in the arm to .124" for a press fit on the dowel, and now they mate up real nice.

    Next up was a knock thru the big hole with a 3/8 transfer punch to locate where to drill and tap on the mount ... and it was done.


    It's just hanging on with a magnet at the mo because I don't know where to put it yet! Waitin' on a longer #25 chain ....

    Tom from Rubicon and indian22 like this.
  3. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204
    Nice work FOG, I am chasing the same dog. Drive chain is now excellent but my Shadow Conspiracy Interlock v2 Chain Gold needs an idler. I worked on that when I got home from work. Not really work, I get paid to play with toolroom machines and make cool things. Transfer punches I have two sets like yours at where I get paid to play. But I am thinking of pulling the trigger on a USA made set for my home shop. The case hardened ones are not even very concentric. Good enough the imports but you get what you pay for.
    Tom

    indian22 likes this.
  4. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,207
    Likes Received:
    2,755
    Gotta' have item, transfer punches just necessary.

    Rick C.

    Tom from Rubicon likes this.
  5. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,984
    Likes Received:
    1,281
    Yep, had mine for a few years now. ........Curt

    Tom from Rubicon and indian22 like this.
  6. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306

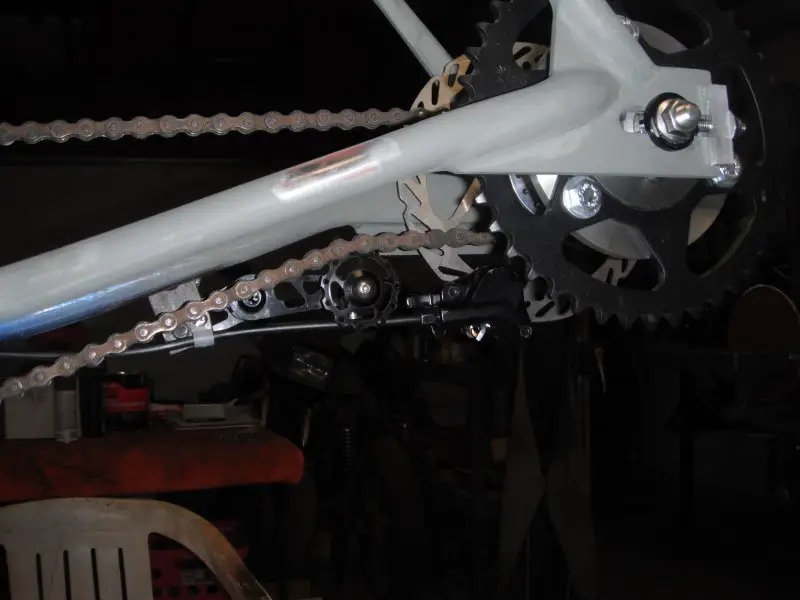

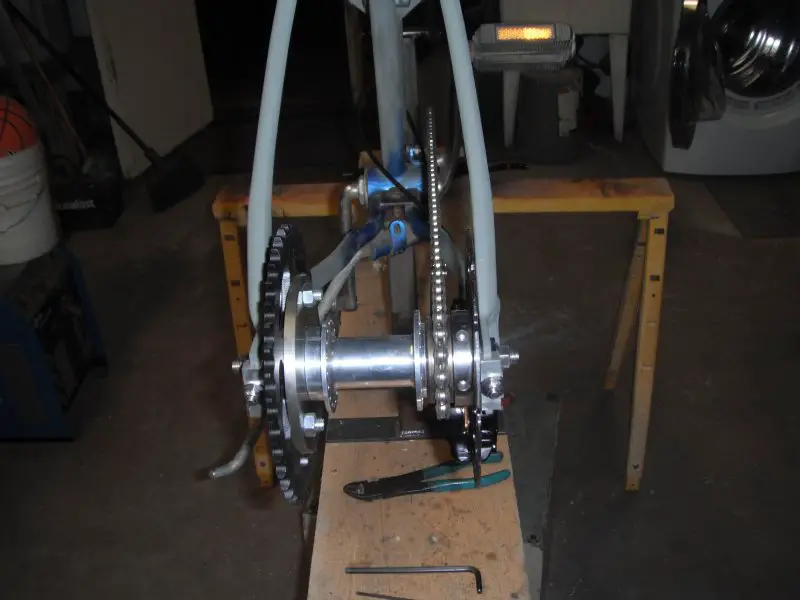

    Progress. I got my first chain done!! :) It's only the pedal chain but it's a start. 2 more to go ...

    DSCF0819.JPG DSCF0820.JPG DSCF0818.JPG

    Snaking the brake line thru is gonna be a bit tricky and it's also too short. If the caliper was on the left side and above the rotor where they normally go it'd be long enough. But it's not.

    Anybody know what bleed kit might fit these Chinese calipers?

    Tom from Rubicon and indian22 like this.
  7. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204
    Beautiful FOG! I can't believe I never thought of using a derailleur idle sprocket on pedal side, that is slick.
    I was a Schwinn mechanic in High School and still have a box of repair parts for my bicycles. Class A solution.
    Tom

    indian22 likes this.
  8. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,207
    Likes Received:
    2,755
    Six of my 7 bikes have pedal side tensioners and I love them. I took the pedal chain off the hybrid this afternoon to get it out of my way working on the hybrid took 5 seconds Lift chain off tensioner, then off pedal sprocket. No need to touch the rear axle. Always have correct tension. Use on both sides and it gets even better...I'm a fanatic on spring tensioners!

    Why 6 out of 7? I've got a cool Schwinn chain guard I'll not sacrifice on my straight bar Excelsior Schwinn Autocycle build or it would be 7 for 7.



    Rick C.

    Tom from Rubicon likes this.
  9. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306
    I can't take credit Tom. I got the idea from similar set ups I saw at the bike races. I don't think I've ever had an original thought in my entire life! :)

    Tom from Rubicon and indian22 like this.
  10. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306

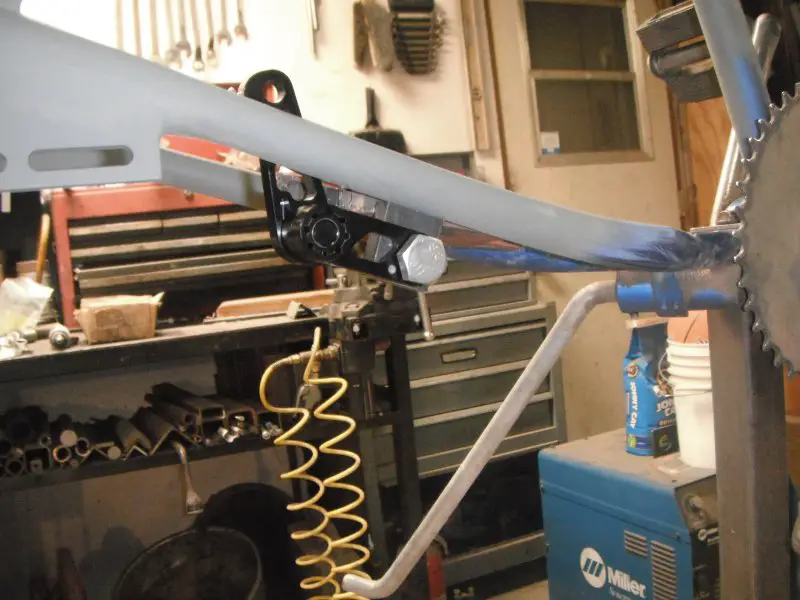

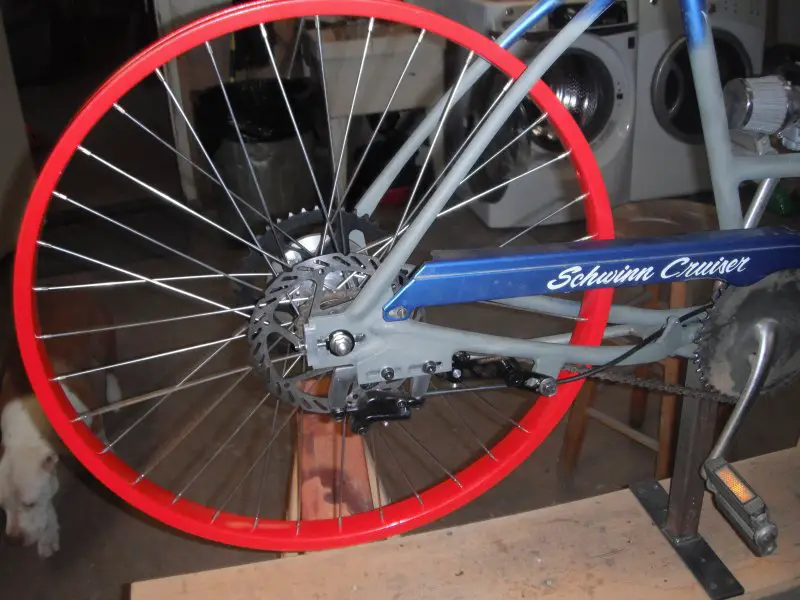

    I'm still pecking away here. Since last heard from I've carved up a piece of 3/8 steel for a rear caliper mount and laced up the back rim. What's amazing to me is how complicated the bike of this bike got along the way! When I started this project I was naive enough to think a coaster brake would be just fine. We're way past that now.

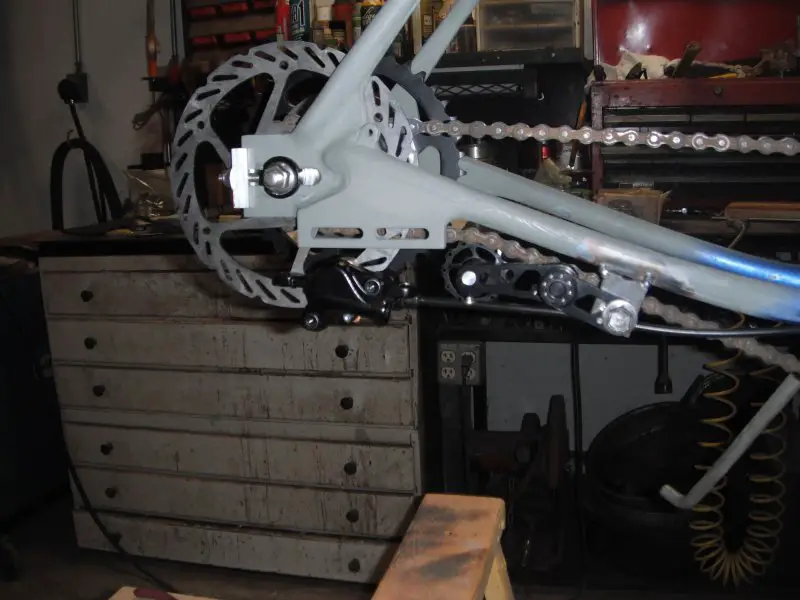

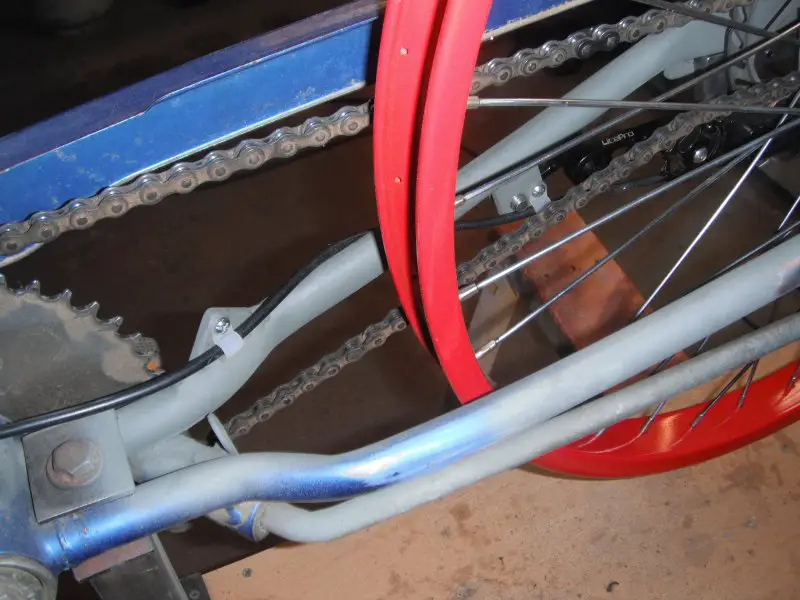

    I spent an inordinate amount of time figuring out how to safely and sanely snake the hydraulic line thru it all. It needed to be well away from the tensioner, pass thru the pedal chain, and clear what will soon be a spinning back tire. I used 2 clamps in the back. One on the back of the tensioner mount and the other on a lug I welded on.


    From here I needed to go up the front downtube and I really didn't wanna weld some big ugly lugs on that. Zip ties would work but I'm entirely too old and fussy for something that easy. :) So I messed around with brazing a bit of metal on a tube that I could thread. Here's the experiment.

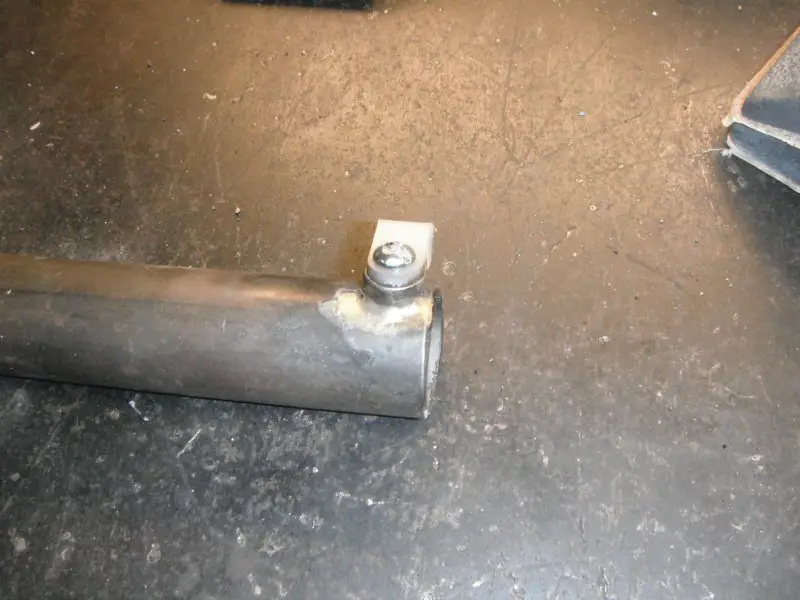

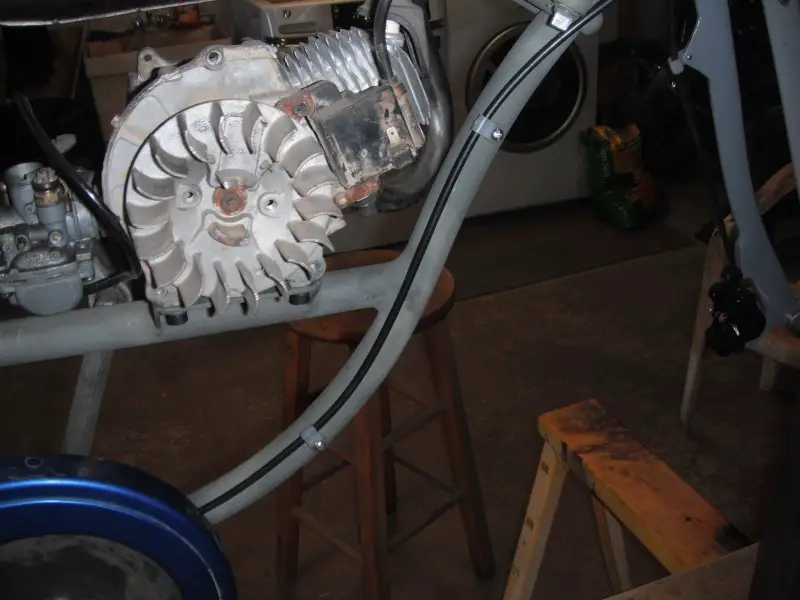

    That worked. What I actually did was drill undersize, braze, and then drill out and thru one wall of the tube with the correct size for an 8-32 tap. Here it is on the bike.


    I can live with that.

    #90 FOG, Oct 1, 2019
    Last edited: Oct 1, 2019
    Tom from Rubicon and indian22 like this.
  11. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,984
    Likes Received:
    1,281
    Like it a lot, clever clamps, may have to seal that idea...........Curt

    Tom from Rubicon and indian22 like this.
  12. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306
    I'm hoping to turn a block of aluminum into a jackshaft assy that can pivot to set tension on my primary chain. That's Plan A anyway.

    The shaft needs to be offset for reasons that will become apparent later, but that presents an issue when ya wanna get that offset bore centered up in a lathe. So here's a bit of trickery I learned on the net that does the job.

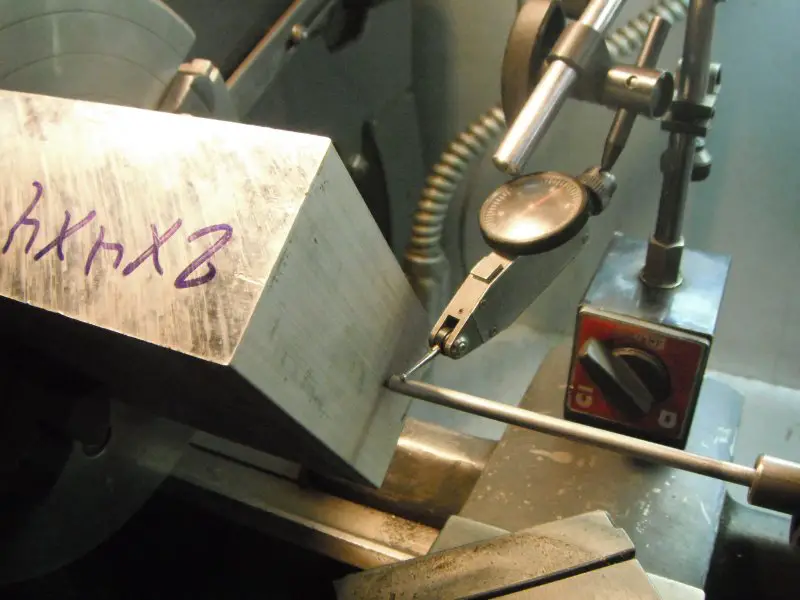

    First I used the tables on my little mill to do the layout and a center drill to mark the spot, and then plugged that little pointer you can make yourself into the hole. The pointer is just a small pointed rod welded into a tube at the far end so it can wiggle around inside the tube with the mark. A center punch works too BTW. And then you adjust the jaws until the indicator don't wiggle no more.

    Tom from Rubicon and indian22 like this.
  13. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204
    indian22 likes this.
  14. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306

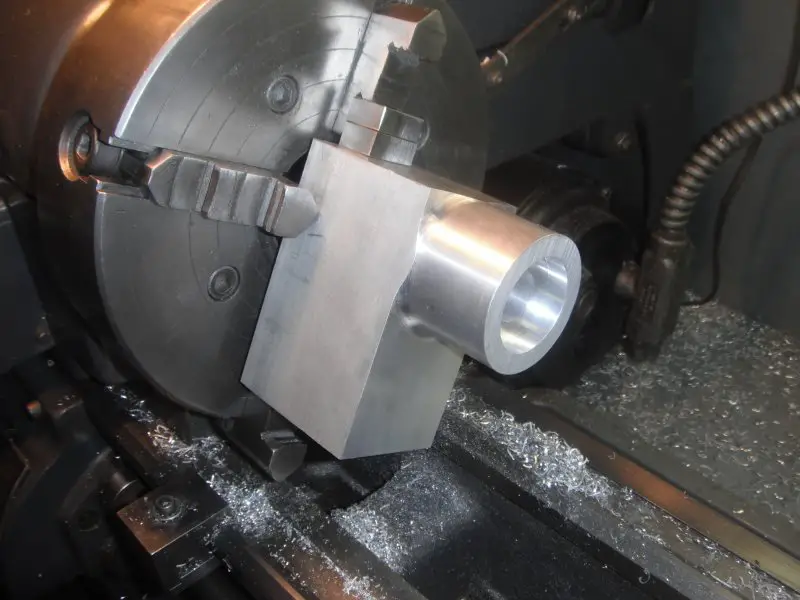

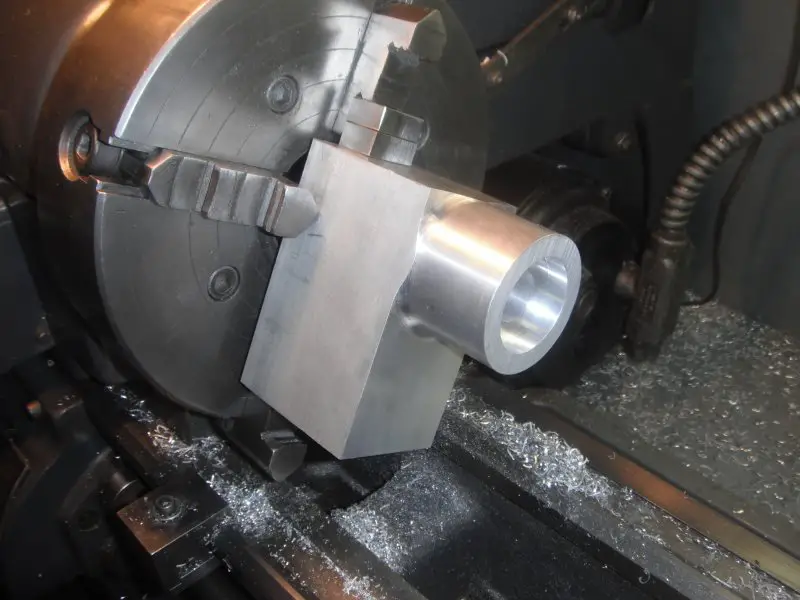

    I'm not exactly disciplined when it comes to workin' on my bike, so when I'm faced with massive interrupted nibbling on the lathe ... it takes awhile. But I've finally got one side of my jackshaft housing turned down.


    Avoiding chatter marks on that "interrupted" radius in the corner meant using some "tender" touching of the various knobs. Hardly necessary but it looks cool. I like it.

    Time to turn it around ....

    indian22 and Tom from Rubicon like this.
  15. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204
    Sweet! Reversed jaw with two pads to eliminate jaw marks on the jackshaft housing awaiting the flip.
    Great work FOG.
    Tom

    indian22 likes this.
  16. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,207
    Likes Received:
    2,755
    That's going to be a sweet Jack!

    Rick C.

    Tom from Rubicon likes this.
  17. Whizzerd

    Whizzerd Member

    Joined:
    Nov 20, 2009
    Messages:
    114
    Likes Received:
    21
    This is exactly the kind of thread I love to peruse. Craftsman with great skills and creative passions. More so perhaps because I don't have those skills. Woodworking perhaps but I don't even weld never mind do exquisite machine work. My hat's off to you FOG. Looking forward to further developments on your build. Fascinating!

    FOG, Tom from Rubicon and indian22 like this.
  18. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,207
    Likes Received:
    2,755
    Whizz one of our old guys, Steve aka "fasteddy" is a master wood craftsman who developed his skills with metal to build amazing stuff on wheels. He's finishing up on an Indian Tri-car build with a beautiful chair upfront. Check it out on the forum "Motorized tandems & trikes" top of the stack, really long thread, you will be impressed. Also check out the threads in the "board track/ classics" forum many, many fine builds of vintage style bikes over there to inspire & instruct builders.

    Rick C.

    #98 indian22, Nov 21, 2019
    Last edited: Nov 21, 2019
    Whizzerd and Tom from Rubicon like this.
  19. FOG

    FOG Well-Known Member

    Joined:
    Mar 3, 2019
    Messages:
    163
    Likes Received:
    306
    Well Thank You Whiz, but I dunno about being a Craftsman. What I seem to enjoy is not knowing what the **** I'm doing. I say that because I do it all the time!

  20. Tom from Rubicon

    Tom from Rubicon Well-Known Member

    Joined:
    Apr 4, 2016
    Messages:
    793
    Likes Received:
    1,204

    You are too modest by far FOG, so called better men have never done what you are doing. I enjoy seeing the work of another person who can think and work in three dimensions. Would you please copy and paste this in.

    https://motorbicycling.com/threads/bike-builders-that-have-machine-tools-shops.64769/
    Tom

    indian22 likes this.
