first time for this backwards top end

Discussion in 'Norm's 2 stroke repair center' started by Norman, Aug 30, 2008.

  1. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0

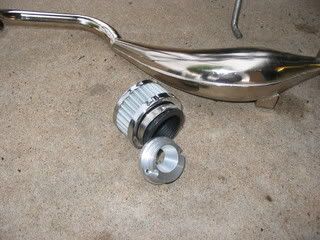

    Here is what I've been up to decided to try something a little different
    so here is what came out of the box

    [​IMG]
    bike that the pipe and aircleaner is going to go on to. notice the aircleaner has a Velocity stack
    [​IMG]

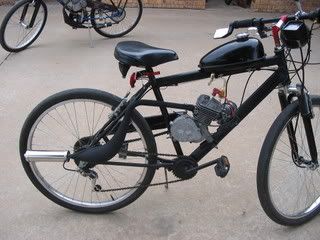

    Here is how it came out a little backwards
    [​IMG]

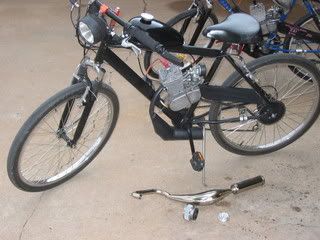

    painted
    [​IMG]

    #1 Norman, Aug 30, 2008
    Last edited: Aug 30, 2008
  2. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Re: different way to mount a tuned pipe

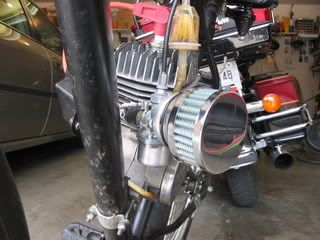

    some pictures of the carb I got it all backwards the pipe is black but I didn't get a picture of it somehow only the muffler is chrome now it runs good but not as good as it did before the changes. I need to go back and open up the transfer ports as I wasn't sure it would run with the cylinder on backwards but it does so I'll fix the ports later I've got other thing I need to do now. That intake manifold was a pain to make stainless steel is hard to gas weld.
    So how you guys like the backwards bike?

    [​IMG]

    [​IMG]

    missing pictures of the pipe painted and on the bike rear view pipe tucked in nice and close

    [​IMG]

    [​IMG]

    #2 Norman, Aug 30, 2008
    Last edited: Aug 31, 2008
  3. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    12
    Re: different way to mount a tuned pipe

    I like it (^) It sure would give me the clearence I need to fit a better air cleaner.

    rotfl I can just see someone giving that bike the double look going down the road rotfl

  4. Andyinchville1

    Andyinchville1 Manufacturer/Dealer

    Joined:
    Dec 26, 2007
    Messages:
    502
    Likes Received:
    1
    Re: different way to mount a tuned pipe

    Very innovative....definitely good thinking out of the box....I wonder why it doesn't work as well with the cylinder head "backwards"?

    Andrew

  5. Ilikeabikea

    Ilikeabikea Moderator
    Staff Member

    Joined:
    Jan 27, 2008
    Messages:
    2,323
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Wow Norm, that looks cool. But I think you shoulda turned the whole engine backwards in the frame then chain the engine to the crank chain ring and run the engine backwards........................:D:D

  6. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    the transfer ports off of the crankcase are covered up a little by the cylinder and I need to go back and match them up I didn't want to do that until I was sure it would run this way. So now that I know it will I'll take it apart and do the grinding to get them to match. I still don't like the intake and may make another one and not use stainless steel what a pain that stuff is to gas weld with out the proper equipment.
    I've found that the bike is super quiet all I hear is the intake and with the big filter its a little quieter than than the stock one I think.
    I think the cool factor went up a notch and as far as I know no one else has tried this. if a guy wants to do the ram effect all are looking for it is possible with the carb facing forwards. I'll be happy and run a filter I don't need a rock going inside the engine and doing some custom polishing and porting of the cylinder and piston. rotfl

    Norman

    #6 Norman, Aug 31, 2008
    Last edited: Aug 31, 2008
  7. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,166
    Likes Received:
    14
    Re: different way to mount a tuned pipe

    I'm wondering if there will a cooling problem with the hottest part of the cylinder not being in front of the airflow anymore?

  8. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    I'm not worried about it if its going to have a melt down it would have already done it as I've been riding it and even letting it set and idle to see what it will do. So far its running fine. The guy in Mo. who does competition chain saw racing/ cutting says he removes all the cooling fins off of the flywheel he said the more heat that the saw will build the better. I don't know about that but I guess he gets it very hot.
    I'm not recommending everyone to do the mod that I did I wanted something different. Sure looks different tho.rotfl
    Norman

  9. Jemma Hawtrey

    Jemma Hawtrey New Member

    Joined:
    Dec 29, 2007
    Messages:
    288
    Likes Received:
    1
    Re: different way to mount a tuned pipe

    Its interesting - the manifolding to the pipe looks a little long though, I'd look at that as well myself.

    If you are talking about reversing the cylinder and then replacing it on the motor I know at least one person who would be very interested in that being a functional fix because of her specific requirements.

    means a lot less welding as well if it works as well as the stock configuration

  10. Ghost0

    Ghost0 New Member

    Joined:
    Mar 7, 2008
    Messages:
    764
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    This is the same pipe I am using and what I have found to be the optimum header length is between 11 and 12 inches as measured from the exhaust flange to the beginning of the expansion chamber.

  11. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Ghosto
    When I measured the pipe from the flange to the start of the chamber mine was 13" measured on the outside of the curves it did look link of like a horse shoe. I made it 13" form the start of the exhaust flange to the start of the pipe and I do think it needs to be shortened. to 11" I just hve to do a little cutting and welding.

    Jemma
    its not real hard to do the changes even if you don't match up the transfer ports cylinder to crankcase. the toughest part was the intake manifold and that was because I used stainless steel tubing and mild steel for the flange witih only a oxy act. torch its very tough to get a good weld with out pin holes stainless is onery with the wrong welding equipment/gas.

    I'm not working on it for a while as I'm worn out from all the playing this week end doing that bike, mowing the weeds, and PMing my Harley.
    Sometimes I can change oil and never spill a drop well not this weekend every time I turned around I was sloping Royal Purple Syn oil all over the place
    even the new oil I spilled it. The worst was pouring the used oil into a gallon jug and having it tip over on me I'm not squeaking anymore.rotfl
    Norman

  12. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Any one try the turned around top end yet? Just wondering.
    Norman

  13. NunyaBidness

    NunyaBidness Active Member

    Joined:
    Jun 29, 2008
    Messages:
    1,062
    Likes Received:
    1
    Re: different way to mount a tuned pipe

    we're not all as cra... um adventuresome as you ;)
    me bro and I however had to go look at our bikes for a minute

  14. ebmvegan

    ebmvegan New Member

    Joined:
    Jul 15, 2008
    Messages:
    284
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    It looks very tempting, but I only have one bike at the moment and don't want to sacrifice ride time. :)

  15. JoeJ

    JoeJ New Member

    Joined:
    Jul 22, 2008
    Messages:
    20
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    That's the pipe I tried to order at Chinese scooter parts, wholesale scooter parts, ATV parts, dirt bike parts, 2 and 4-stroke engine parts, motorcycle parts, but it was out of stock so I ordered (got) part#190-19. cut my china muffler off and used the header upside down didn't even cut the pipe down; thought if it ran lousy I would cut an inch at a time off...but to my suprise it really brought the 70 china to life! I mean musta doubled the torqe and got about 10 mph more top end... Yes another pipe mounted up be the jewels.... Wrapped it with high temp header tape with ss clamps on each end.

  16. JoeJ

    JoeJ New Member

    Joined:
    Jul 22, 2008
    Messages:
    20
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Can't post... every time I try the site tells me to log in...right after I did!!!
    What's up with that?

  17. JoeJ

    JoeJ New Member

    Joined:
    Jul 22, 2008
    Messages:
    20
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    That's the pipe I tried to order at Chinese scooter parts, wholesale scooter parts, ATV parts, dirt bike parts, 2 and 4-stroke engine parts, motorcycle parts, but it was out of stock so I ordered (got) part#190-19. cut my china muffler off and used the header upside down didn't even cut the pipe down; thought if it ran lousy I would cut an inch at a time off...but to my suprise it really brought the 70 china to life! I mean musta doubled the torqe and got about 10 mph more top end... Yes another pipe mounted up be the jewels.... Wrapped it with high temp header tape with ss clamps on each end.

  18. Motormac

    Motormac New Member

    Joined:
    Sep 23, 2008
    Messages:
    108
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Joe, if you can show us a picture? Also is it louder or as quiet as the original muffler? Mac

  19. Technocyclist

    Technocyclist Motorized Bicycle Senior Technologist

    Joined:
    Jul 7, 2008
    Messages:
    463
    Likes Received:
    0
    Re: different way to mount a tuned pipe

    Hi Norm,

    Nice mods... I had been wondering if this was possible myself... I guess you showed us all...

    Thanks,
    :)

  20. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    Re: different way to mount a tuned pipe

    That is going on my short list of things to do. I have a bike that is big enough that I may not have to make anything new as far as intake goes.....
