Here is the drill guide Curt was kind enough to loan me so I could drill the end of the crank shaft. I added the measurements to the photos but here they are again. The 1" OD x 3/4" ID DOM tubing for the holder is 4" long. The 3/4" cold rolled steel guides are 1-3/4" long.

The pilot drill bit is 3/16". The drill bit for the tap is 17/64". The tap is 5/16-24. The set screws to hold everything in place are 1/4" rod.

The 3/4" cold rolled steel sections were put into a lathe chuck and drilled so they are centered.

To reduce the guide to use it on 5/8 shafts slide a 3/4" OD X 5/8 ID bronze oilite bearing into the end of the holder.

Steve.

http://i866.photobucket.com/albums/ab228/speedydick/Indian Tri-car Build/DSC_0006_zps57sseajh.jpg



[MEASURE TWICE]

What is the purpose of the half cut through of the circumference of the outer sleeve of the guide?

I suppose the slot is to be aligned with the end of the crankshaft.

I was guessing particles of metal could be released some from the drilling and tapping. Cutting oil added at that point also.

It is also I guess that even without doing that removing the drill and tap a few times in the process to clean particles and put cutting fluid. Although the tapping is what I remember starting the tap, best to get a fair amount before removing to clean tap. Otherwise I can see the threads really never getting a good start.

The tool must help a lot and hopefully never has been a messed up thread when used correctly.

And thanks for the pictures helps a lot!

MT



[indian22]

Hi Steve, Thanks for posting details on this super handy & simple guide. I'd guess most forum members have little or no training in machine shop techniques/concepts & haven't faced the problem posed in finding a true center & then accurately machining from that point an eccentric work piece, which can't readily be mounted in a machine tool, such as a lathe or even a drill press... so it's machine shop & spend $$ time. Most commercial shops will use a similar tool to complete the task & charge at least an hour rate. Very useful tool for axle shafts as well with a variety of proper diameter adapters. Rick C.



[MEASURE TWICE]

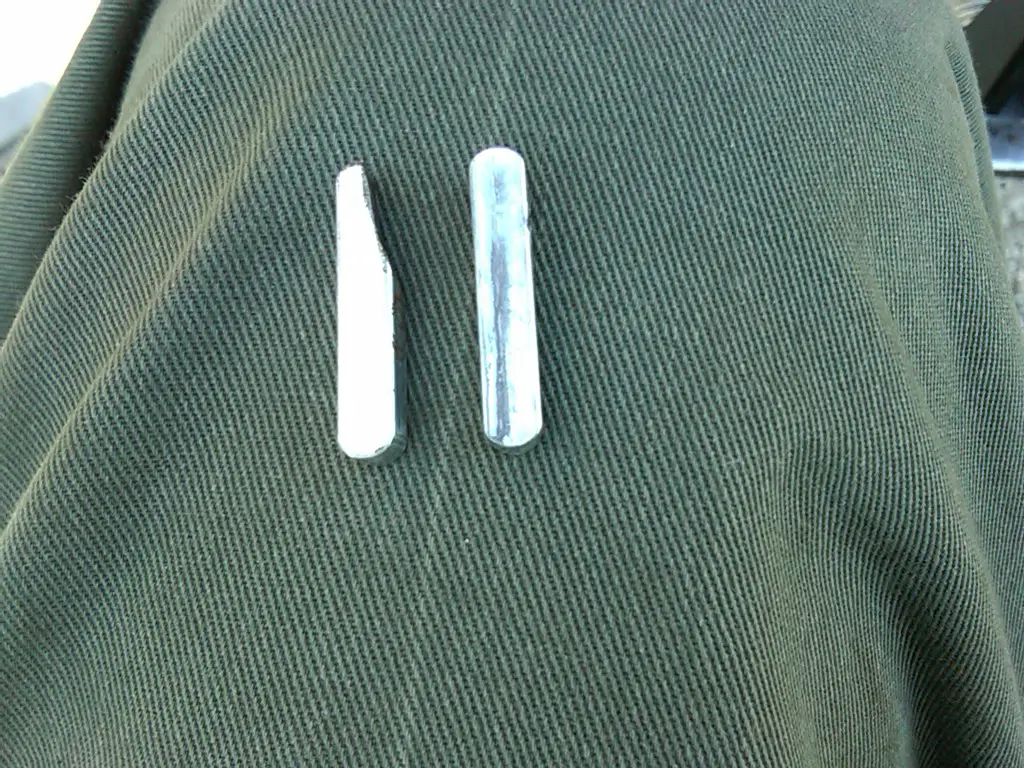

The engine I'm swapping in place now does not need a special key made for it. The older engine using the belt clutch had not a full length keyway. The only way I could fit the clutch to work with the jackshaft was to have the pulley outboard. With the clutch on the shaft that way the partial key way slot on the clutch was by the crankcase wall.

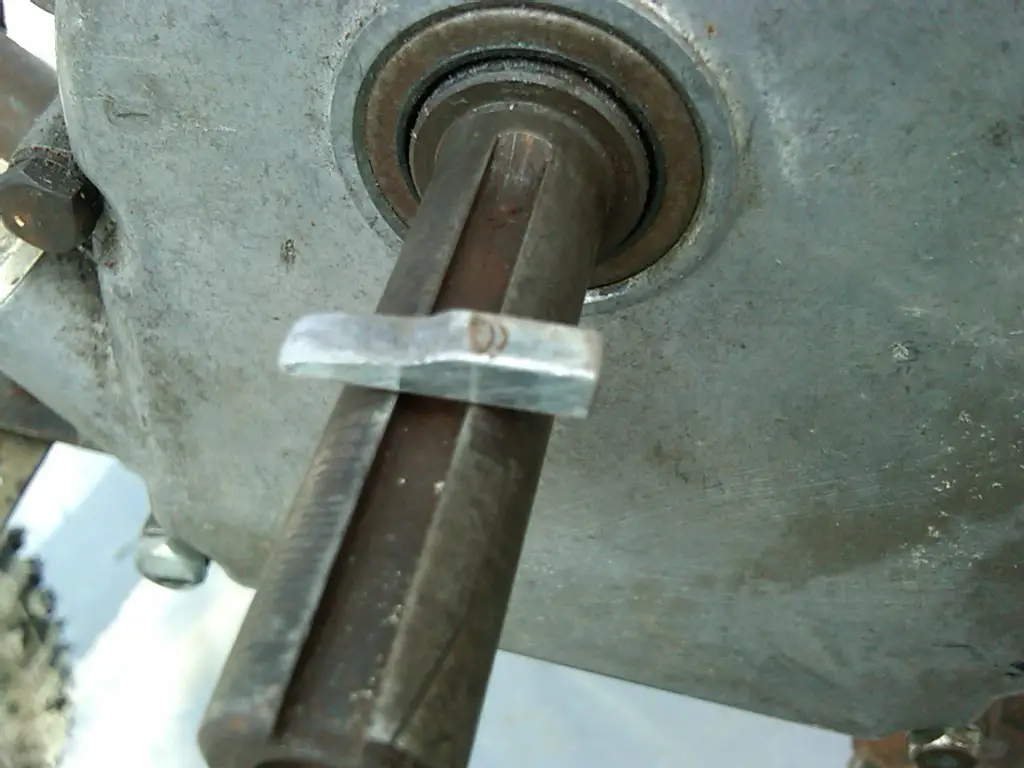

I wonder why the engine crankshaft keyway is cut mostly all the way to the crankcase wall, but the last bit is not square cut?

I do understand a mill with the smallest cutter will still leave a little roundness, but this is like more of a bevel or an arc cut. I made about half the key with a matching cut away to match it. This had almost all the strength as it would otherwise and it never sheared.

The key mod would not have been necessary if the clutch had a full length keyway or I could have had the pulley clutch pulley inboard, but it was not to be.

Dremel and file and sand paper does it.
