Dyno Mid-Drive Shifter Build

Discussion in 'Electric Bicycle Non-hub Motor Drives' started by culvercityclassic, Nov 24, 2015.

  1. dmb

    dmb Active Member

    Joined:
    Dec 4, 2010
    Messages:
    1,358
    Likes Received:
    2
    half of the big trucks turn around at the california border. more so if they have a reefer. big brother is on the other side of the river. but this is the electric section so i'm out.

  2. Easy Rider

    Easy Rider Santa Cruz Scooter Works

    Joined:
    Jan 15, 2008
    Messages:
    2,144
    Likes Received:
    3
    Glad to see the bike is still going strong. Surprised...not really. Only thing I've been changing are the tires after many years of abuse. I now mainly use mine as a pit bike at the jet ski races. ...and it's still turning heads after all these years.
    And after hundreds of charges and thousands of miles, I still get the same mileage per charge.

  3. KCvale

    KCvale Well-Known Member

    Joined:
    Feb 28, 2010
    Messages:
    3,967
    Likes Received:
    50
    Ya, SBP has some great products, Paul and Jim are a couple pretty sharp cookies I deal with all the time.

    30mph max E-shifter seems a little wimpy to me though...
    What are your battery specs?

  4. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,108
    Likes Received:
    118
    oh it goes faster but the bike path people dont like it.... 52v 13.5ah

    How ya doing KC health wise? I am concerned about your issues bud...

  5. KCvale

    KCvale Well-Known Member

    Joined:
    Feb 28, 2010
    Messages:
    3,967
    Likes Received:
    50
    Ya, 52V 13.5Ah will move ya, we have a canal system throughout the greater Phoenix area with paths on both sides where joggers run and Spanex like to ride in groups...

    I like to blow past them coasting and pedaling backwards ;-}

    Thanks bud, I appreciate it.

    I just got back from 3+ hours of testing to see if I can even withstand the surgery, shoot, I thought there for a minute the heart stress tests were going to kill me if that's any indication.
    And as a bonus, I'll have radioactive pee all day hehe ;-}

    On a bright note the whole family is quitting smoking, I have a patch on my arm right now.

    I don't know when I'll get the results, but I do know a $254 co-pay they wanted before they started kinda pissed me off...

  6. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,108
    Likes Received:
    118
    My everyday ride to work and around town is close to 1000 miles clocked, still really enjoy the ride and find it hard to ride a gas bike now...well besides the BTR Wolf bike...


    Attached Files:

    EZL likes this.
  7. spinningmagnets

    spinningmagnets New Member

    Joined:
    Jun 10, 2016
    Messages:
    1
    Likes Received:
    0
    I finally managed to finish writing about this awesome build for electricbike.com. If any of you find a mistake I made, feel free to PM me. Its easy to change any part at any time...when I have a day off work.

    https://www.electricbike.com/wolfs-dyno-cyclone/

    #47 spinningmagnets, Feb 14, 2017
    Last edited: Feb 14, 2017
  8. runnermike

    runnermike Member

    Joined:
    Nov 18, 2012
    Messages:
    936
    Likes Received:
    0
    That is a very great article! Jeff is one of the premier builders in the game! His attention to detail and craftsmanship is simply.....amazing!

  9. Velodrome

    Velodrome Well-Known Member

    Joined:
    May 27, 2011
    Messages:
    2,386
    Likes Received:
    207
    That is a really good write up. Well done SM and CCC

  10. ChrisDuke

    ChrisDuke New Member

    Joined:
    Oct 29, 2017
    Messages:
    4
    Likes Received:
    0
    Nice build!
    So that SA IGH is holding up? That's such good news! Everything I've been reading tells me that the 3 speed is the max ya want to use for a Cyclone build. Now I need to start looking for a 5 speed SA hub. IGH just looks so much nicer, and no sand issues around the beach.

    And using the chain guard bracket with the motor brackets is brilliant! I'll be borrowing that idea for my 2K Cyclone build!

    One question.
    What brand American to Euro adapter did you wind up using? I've picked up more than a half dozen so far, and none of them are that good for Cyclone (lacking BB thread engagement) or BBS02 (motor won't fit on all the way). I've found one that should give me more thread engagement for my Cyclone builds, and think I've come up with a way to solve the problem with the 02 not fitting on a beach cruiser BB all the way. Just curious what you used. I also need to get a hold of Luna to find out the brand name of the eccentric adapters they've used on the BMX BB's, because the eccentric would be much less work than my solution.

  11. Velodrome

    Velodrome Well-Known Member

    Joined:
    May 27, 2011
    Messages:
    2,386
    Likes Received:
    207
  12. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,108
    Likes Received:
    118

    Hey Chris this is the bottom bracket adapter I used: http://sickbikeparts.com/electric-bottom-bracket-adapters/

    I also used the Cyclone kit from them too. I used Luna for the battey and charger setup.

    This bike is my ride to work since it was built, motor is a noisy and may need rebuilding but its been a hard runner thats for sure.

  13. ChrisDuke

    ChrisDuke New Member

    Joined:
    Oct 29, 2017
    Messages:
    4
    Likes Received:
    0
    Wow, thanks Velodrome for that link.
    I don't know how I've missed it all this time.
    My solution to the 02B fitting all the way was to use the basic adapter you posted on the first page of that thread (I have 4 more sitting on a shelf) and then drilling and tapping the BB shell on the drive side to accept a bolt to hold it in place. Then instead of grinding on the motor, I ground off the flange of the adapter. If I wasn't so lazy and short of time today before dark, I would of drilled and tapped two holes for two bolts. I'll probably add another bolt this weekend. This dosen't put it all the way home like I would of liked, but it made it work. On the non drive side of the adapter, I was going to cut off the flange where it crossed the 02B bracket, so that the bracket would sit down inside the rest of the flange, but I didn't because the only spacers I had to go between the motor and under the bracket for the two bolts were a couple of nuts that fit perfect. I'll wind up getting/making spacers another day and grind down part of the adapter flange under the bracket so I can get more threads on the BB nut cover/lock ring in the future, but it works for now.


    Thanks for the info culvercityclassic.
    I'll check out those adapters. The ones I found that will work better for the Cyclone than the ones I already have are these from Niagara Cycle https://www.niagaracycle.com/categories/aluminum-bottom-bracket-conversion-cup-set-1-37-od . I don't know why I didn't see these before ordering all the others I have $$$.
    I picked up the 2K motor kit from Luna with the ISIS BB setup, and I see some differences in the kits (square vs ISIS) as far as fitment is concerned, but nothing that a wider adapter thread setup can't fix.

    I wound up using the BBS02B on today's bike with my adapter mods (sixthreezero 7 speed In The Barrel). Tomorrow I hope to get started on the bike in my profile pic with the Cyclone motor (Firmstrong 7 speed Bruiser) only because it has front breaks. The other bike I got as a return cheap because it had bent front forks. I put a springer on it, but haven't had the chance to lace up a SA drum or disk hub yet. Eventually I hope to have both bikes with both motors installed.

  14. EZL

    EZL Well-Known Member

    Joined:
    May 13, 2016
    Messages:
    225
    Likes Received:
    456
    Good ride and I was wondering what wattage the motor was? Some of the bigtime boys are running 70 volt on up
    for the speed and power.

    indian22 likes this.
  15. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,108
    Likes Received:
    118

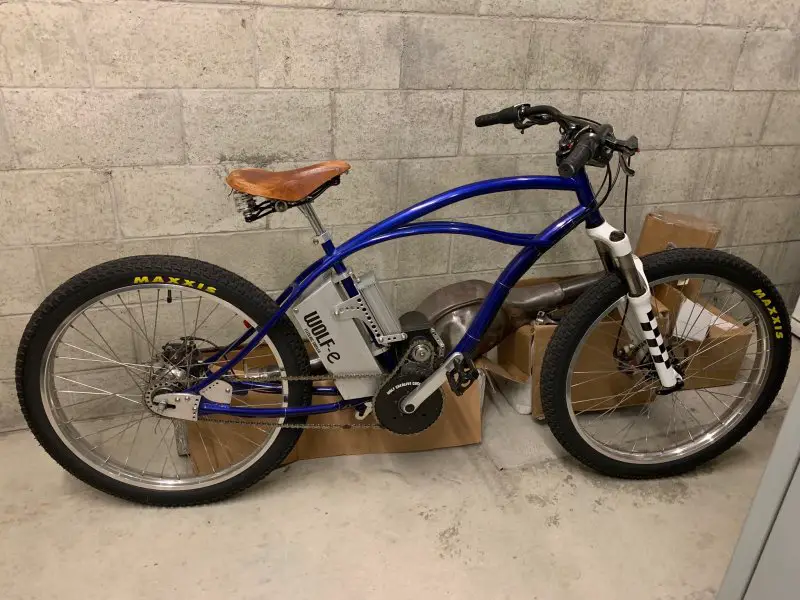

    1500 watt motor at 52 volts, trying not to explode the rear hub, so far only lost a few gears. Been riding everyday to work for 3 years I think. 65B2023D-2DFA-4D2A-8833-866684D4FD06.jpeg

    Toro1978, EZL, indian22 and 1 other person like this.
  16. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    2,641
    Likes Received:
    1,700
    Jeff is one of the "big time boys" gas or electric, lol. Love this bike Jeff.

    You are correct EZL 70 v. will push 'em!

    Rick C.

    culvercityclassic and EZL like this.
  17. elewayne

    elewayne New Member

    Joined:
    Mar 27, 2009
    Messages:
    22
    Likes Received:
    7
    I hate to be a dunce, but what is meant by the term electric shifter kit. shifter being the operative word. Also was the dyno frame wide enough in the rear to use without modifications?

    #57 elewayne, Jun 25, 2019
    Last edited: Jun 25, 2019
    indian22 likes this.
  18. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    2,641
    Likes Received:
    1,700
    It's shorthand for electric motor that can be driven through the bikes rear cassette (sprocket cluster) thus shifted. A "shifter kit" must be purchased or fabricated for this to take place Nothing dumb about asking questions, actually reveals a persons quest for knowledge and understanding of any subject.

    I hope someone that's familiar with the Dyno frame can answer the question of frame width.

    Rick C.

  19. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,108
    Likes Received:
    118
    That rear hub fits nice when you add the drop-out extensions, ends up around 130mm wide. I end up using the extension on the motorbike builds for added wheel-base too.

  20. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    2,641
    Likes Received:
    1,700
    Jeff you are one of the few who've built extended drops and it makes such great sense for not only added, and much needed wheelbase, but as you said added width between the drops. Most multispeed (and many single speed) cruiser style frames have the slanted vertical drops which can be converted to horizontal drops, which I favor, through the use of drop out extensions. I have a couple of frames that could be much improved with this simple yet elegant design element for electric or gas bikes. I've seen a few motorized Schwinn Orange county chopper style motorized builds that used these extensions as well.

    Bolt 'em or weld them on...either works.

    The extra wheelbase of just a couple of inches makes a big difference in the bikes stability a higher speeds and ride quality as well.

    Rick C.
