we will unite !! this thread go's in my fav's -- now i wil

i will try to move people from http://motorbicycling.com/f3/what-kind-metals-can-i-17936.html to here then to norms two stroke repair if yall want ? or leave it here ? its up to yall . anyways.,, i have been doing the old way for years somthing like this ( warning more stupid music ) YouTube - the Sword - documentary or this ( i like the conan theam song play it loud lol) YouTube - Aluminium and Copper Foundry but nice ta meet ya norm sounds like you have advanced into 2010 ... sell a video at the swap thread lol P.S hmmm kitty litter . it is like pure clay .. never thought of that for metal but have used it in life casting props.. arnt i childish at 53 lol not meaning to get too far off topic just a second because it is a form of casting and is a very good start now see this real pretty typ of art i do The Monster Makers - 866-521-(SPFX)7739 - Halloween Latex Mask Making Kits, Fang Kits, Special Effects Supplies and more lol latter !!
With a simple home shop made foundry you can make just about anything you would want.
It might look like heck making a home made cast part or machine but that is the fun of doing it.
If any of you guys want a lathe, shaper,drill press, or a metal mill then check out the Dave Gingery books book 1 to 7 you can make your own tools from scrap aluminum by melting the metal and casting it in green sand molds. All of the info is in the books. You don't need expensive tools or machines to make your shop tools.
I'm doing the casting of a metal shaper now then on to making the mill. I cheated a little as I have a small sears metal lathe.
Its like Christmas every time I pour a new casting I can hardly want for it to cool enough to dig it out of the sand and see how it turned out. If it don't turn out good remelt and try again, you learn from the casting what you did not do right so its self teaching if you study what came out of the sand.
I found play sand at Walmart makes good casting sand its very fine grained. I also use cat littler ground up in a blender for the clay. 10 lbs of sifted sand to 1 lb of ground cat litter add just enough water to make the stuff look and feel like brown sugar.
All of my castiing tools are home made the most expensive part was a 1/4" ball valve to control the waste oil burner. For flasks I used old wooden fence lumber.
To make the patterns I used med. density fiber board and scrap lumber. Lot of sanding to make them smooth. You can make all of your patterns with hand tools.
Casting aluminum is an inexpensive way to make parts and equipment.


Norman

LORD VADER Moderator
Jan 16, 2008
2,606
7
38
72
pampa texas
I ordered my metal (1018 cold rolled steel) for the shaper and metal mill this week just for the shaper the price was around $75.00 which is not do bad. I picked up the order and saved quite a
bit on shipping as the shipping would cost almost as much as the metal.
Here is the place I ordered the metal from (Metal suppermarkets Dallas, Tx. 1216 Dolton Dr.
Dallas, Tx.) you can order it on line or phone in your order, look them up in line they have stores in other towns so check them out.
Next on my list if thing to do is get the screws, bolts, etc.
Now I'll be machining and casting parts over the next few days.
I'll need to make a new crucible the first steel one is getting thin from all the use. I'm going to redo some of the castings I have a few that don't look as good as I think I can do so they will get remelted and done over.
Norman


kicking

New Member
Apr 11, 2010
403
0
0
mississippi
any thing that comes around this thread i will be here to check it out. i have been unemployed for over three months been looking around nothing yet, but mabey soon , oh well anyways . ill be here from time to time , thanks
I ordered my metal (1018 cold rolled steel) for the shaper and metal mill this week just for the shaper the price was around $75.00 which is not do bad. I picked up the order and saved quite a
bit on shipping as the shipping would cost almost as much as the metal.
Here is the place I ordered the metal from (Metal suppermarkets Dallas, Tx. 1216 Dolton Dr.
Dallas, Tx.) you can order it on line or phone in your order, look them up in line they have stores in other towns so check them out.
Next on my list if thing to do is get the screws, bolts, etc.
Now I'll be machining and casting parts over the next few days.
I'll need to make a new crucible the first steel one is getting thin from all the use. I'm going to redo some of the castings I have a few that don't look as good as I think I can do so they will get remelted and done over.
Norman


kicking

New Member
Apr 11, 2010
403
0
0
mississippi
sold some stuff to get me an welder / is the harbor fre

sold some stuff to get me an welder / is the harbor freight easy mig 100 an good one to learn with?


Norman

LORD VADER Moderator
Jan 16, 2008
2,606
7
38
72
pampa texas
check out some of the welding forums they are not made the best but I understand they will work
how well I don't know but the price is right for hobby use. The duty cycle is small same as my Century welder I bought at Walmart I can weld for 2 minutes straight then it needs to cool off for 8 minutes. That don't sound like a lot of using time but you weld up something then spend time cleaning the weld and setting up for the next weld it works out ok most of the time.
The harbor freight welder price is pretty good get a reader digest magazine look for the 20% off coupon and use it to buy the welder.


kicking

New Member
Apr 11, 2010
403
0
0
mississippi
Thank's for your time norm , I know you are busy an...

Thank's for your time Norm , I know you are busy and are helping people who are haveing some trouble's with there two stroke motors , which brings to mind about the tensioner's that come with these kits are junk according to the people who have bought them , I am not sure if that comes under your function , (Norm's 2 stroke repair center) , but this problem is Usually solved by modification , if you have input on this , or an proto type of an stay modification , I would love to see it . I’m going to buy an motor soon in hopes that I can sell a few in my area , this will be my first build , any Suggestions on a motor for a first build ?? . PS. How would you build the refractory to melt metal ? Material's and how to , ect. Thanks Kicking
check out some of the welding forums they are not made the best but I understand they will work
how well I don't know but the price is right for hobby use. The duty cycle is small same as my Century welder I bought at Walmart I can weld for 2 minutes straight then it needs to cool off for 8 minutes. That don't sound like a lot of using time but you weld up something then spend time cleaning the weld and setting up for the next weld it works out ok most of the time.
The harbor freight welder price is pretty good get a reader digest magazine look for the 20% off coupon and use it to buy the welder.

Last edited:

Norman

LORD VADER Moderator
Jan 16, 2008
2,606
7
38
72
pampa texas
You can get most all the info on making the refractory by searching in line.
type in green sand or aluminum casting there is a ton of info. Plus metal casting forums
that you can go to.
I used fire brick for my furnace along with home brewed refractory.
Using portland cement, silica sand, and perolite for the bottom of the furnace and the lid.
I used a large pop corn can for the main body of the furnace. rebar for the furnace frame.
home made waste oil burner with a gutted hoover vacuum cleaner motor/blower for forced air to the burner. All the casting tools are home made. casting sand is play sand from Walmart with clumping cat litter used for the sand binder.


Norman

LORD VADER Moderator
Jan 16, 2008
2,606
7
38
72
pampa texas

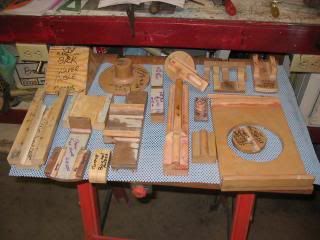

wood patterns for shaper

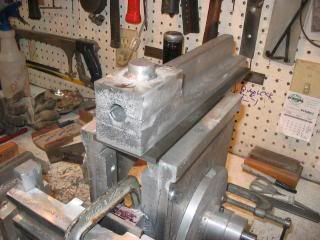

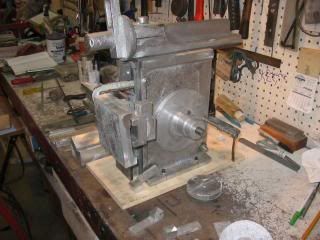

some of the parts machined and assembled. there is a few clamps holdiing some of the parts together.

this is the ram where the cutting head is to be mounted the mounting spot is the hole on the ram

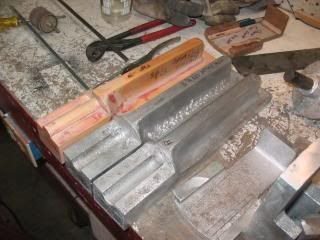

took 2 tries to get the ram casting the wood pattern by the 2 castings middle one is not a keeper and will get melted. It as gas pockets that is the rough spots it just looks bad
