A new shift concept for the engineers....

Discussion in 'Motorized Bicycle General Discussion' started by ferball, Jul 26, 2010.

  1. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    Go ahead and make it happen!...I wasn't arguing!!!

    Jim

  2. bowljoman

    bowljoman New Member

    Joined:
    Aug 7, 2010
    Messages:
    370
    Likes Received:
    0
    Dpnt discount the tranny as jack shaft. Main trouble with SBP kit is all the added weight! Of course you lose mega power....


    Never peddle, never fear a hill, and go faster than the direct-drivers while they peddle! heh heh

    tranny as jackshaft for the win!
    usflg
    [​IMG]


    anyway! I'm still rooting for your sprockets success.....

  3. corgi1

    corgi1 New Member

    Joined:
    Aug 13, 2009
    Messages:
    2,282
    Likes Received:
    2
    :confused:.................................

  4. bowljoman

    bowljoman New Member

    Joined:
    Aug 7, 2010
    Messages:
    370
    Likes Received:
    0
    ah, I misread ya

  5. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    No problem :D

    Jim

  6. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,215
    Likes Received:
    25
    Your pic is exactly what I was talking about in my earlier post!!
    Camlifter did that on his 'Biker Build Off' bike... He used a shifter hub as a jackshaft transmission! (genius) ;)
    I still believe this would be a better way to have gears. (Over a derailleur & multi sprockets.)

  7. Goat Herder

    Goat Herder Gutter Rider

    Joined:
    Apr 28, 2008
    Messages:
    6,251
    Likes Received:
    3

    Because it would rule them all...........................

  8. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    Swap it to the other side...and see what happens!

    Jim

  9. NEAT TIMES

    NEAT TIMES New Member

    Joined:
    May 28, 2008
    Messages:
    1,964
    Likes Received:
    0
    Bowl

    How Will That Facilitate A Left Side Drive Shifter ? I Take It You Have Not Used It Flipped Over!!??

    Oh, Thanks For The Pic. I Guess You Posted It Before.

    Ron

  10. bowljoman

    bowljoman New Member

    Joined:
    Aug 7, 2010
    Messages:
    370
    Likes Received:
    0
    1) buy a fixed gear 3-speed.

    2) attached sprocket to hub body.

    3) install 22 tooth fixed gear cog.

    4) mount.

    5) ride.


    SO everyone does realize that the s3x does not freewheel with a cog? And the cog does not un-thread when you drive it backwards? the s3x will drive on the left side and shift!

    Maybe that's what some of you are over looking. 'fixed gear' bicycles do not free-wheel. The s3x is a fixed gear three speed.

  11. Goat Herder

    Goat Herder Gutter Rider

    Joined:
    Apr 28, 2008
    Messages:
    6,251
    Likes Received:
    3
    Thanks for that incite Bowljoman:)

  12. ballermj23

    ballermj23 New Member

    Joined:
    Dec 3, 2009
    Messages:
    94
    Likes Received:
    0
    ok i have an idea! : D

    have you guys notice that some motor kits come with a regular BMX chain?
    i have met some guys that have them and they DON'T have any problems!

    well i was thinking why not user that system? cause of the thickness of chain. (easier to work with)


    1) we would need a BMX style chain DRIVE SPROCKET
    [​IMG]



    2) we need a 3 speed (BMX style) sprocket, something like this
    but you guys know, 3 sprockets together to mount on the spokes. Jim has a prototype
    [​IMG]



    3) we would need a modified LEFT SIDE derailleur
    [​IMG]



    4) well the chain would be the last thing. Heavy Duty BMX CHAIN
    [​IMG]





    Would the chain hold the massive 2hp?
    i think lots of members are running BMX chains (originally on there kit)

    would the 3 sprockets together be to wide? (where it would cause the chain to hit the frame)
    WAY less likely than the 415 chain would ever be. (we can even go down to a bicycle speed chain which is even less wide)

    Is that LEFT derailleur on the picture available?
    no i just flip the image, hopefully some of the guys in his forum can make one like that.



    well that's what i was thinking... am i just dreaming? haha

    or can this be one of our options. What do you guys say?

    COMMENTS PLEASE! good and bad or even improvements!

    #212 ballermj23, Aug 24, 2010
    Last edited: Aug 24, 2010
  13. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    bowljoman,

    Do you have an extra hub?

    If you're right and this hub will shift while spinning in reverse...the only thing left to do is make a larger sprocket. I would be very interested to know if this really works! If you have an extra, try it and see if you get three ratios when spinning it backwards.

    A lot of torque is required to bump start the engine...I doubt the hub will hold up...but it would be worth a try.

    I looked into using a heavy duty SRAM internal 3-speed over a year ago for the spoiler build I was working on. It was going to be set-up on a bracket behind the seat post. While playing around with it, I found out that due to the planetary set it would not work in reverse. It was always driving 1:1 no matter which gear was selected. I didn't want to jackshaft to the other side...too many chains...too messy. The customer decided to go with a Morini anyway so it wasn't necessary to set it up with the ability to shift.

    Let us know if it will shift in reverse...if it does, i'll buy one and try it.

    Jim

  14. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    ballermj23,

    You got it!

    The Stainless Steel sprockets I made are for heavy duty bicycle chain...see post #82 in this thread. Like you said, a lot of people use the thinner chain without any problems.

    The kit will include a new engine sprocket that has been machined with the correct tooth form.

    The CAD graphic at the bottom of post #13 in this thread shows the total thickness of the cluster.

    The cluster mounts directly to one of my sprocket adapters. The cluster will be positioned, (on the hub), so that the center sprocket is in-line with the engine.

    I just need to make a deraileur and it will be ready to test.

    Jim

  15. camlifter

    camlifter Active Member

    Joined:
    May 4, 2009
    Messages:
    1,034
    Likes Received:
    0
    i'm working on a project to run the nuvinci hub with left side drive, the free wheel will have to be welded solid and a 3 piece crank with free wheel fliped to the left. an idler mounted to the seat post, all using just one chain. the only draw back i see is the hub sprocket being welded on means that once it wears out you'll need to do another hub. but it should last many thousands of miles before that hapens. waiting on some hub oil and other parts but i'll start a thread on it when it's ready.

  16. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    Camlifter,

    As always, I look forward to seeing your set-up.

    It is fun messin' with these bikes...:D

    The design possibilities are endless...

    Jim

  17. silverbear

    silverbear The Boy Who Never Grew Up

    Joined:
    Jul 9, 2009
    Messages:
    8,191
    Likes Received:
    12
    Awesome!
    SB

  18. silverbear

    silverbear The Boy Who Never Grew Up

    Joined:
    Jul 9, 2009
    Messages:
    8,191
    Likes Received:
    12
    I'm rootin' for all you smart guys to come up with alternatives for us. This group is just amazing. Such creative and knowledgeable people here willing to share with the rest of us dummies.
    SB

  19. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,215
    Likes Received:
    25
    I know it won't spin backward... & obviously you didn't read the part where I said "like Camlifter did".

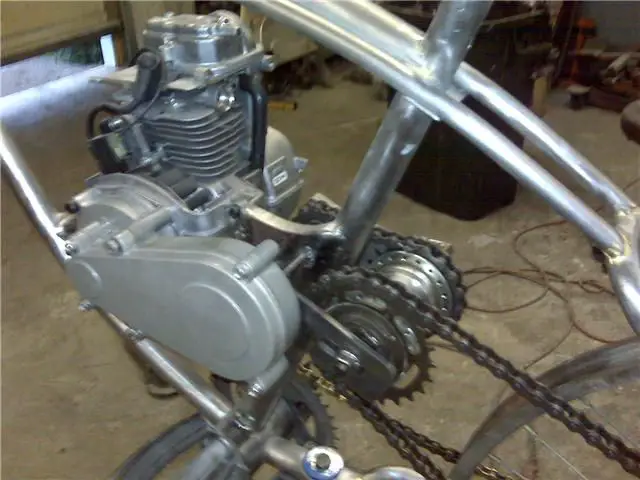

    Here's a pic of Camlifters 3-speed hub transmission... I know this can be made into a easy 'bolt on' system for HT engine kits! ;)
    [​IMG]

    #219 Venice Motor Bikes, Aug 24, 2010
    Last edited: Aug 24, 2010
  20. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    1
    Norm,

    You are several posts behind!

    Jim
