Villiers Board track racer

[Villiers]

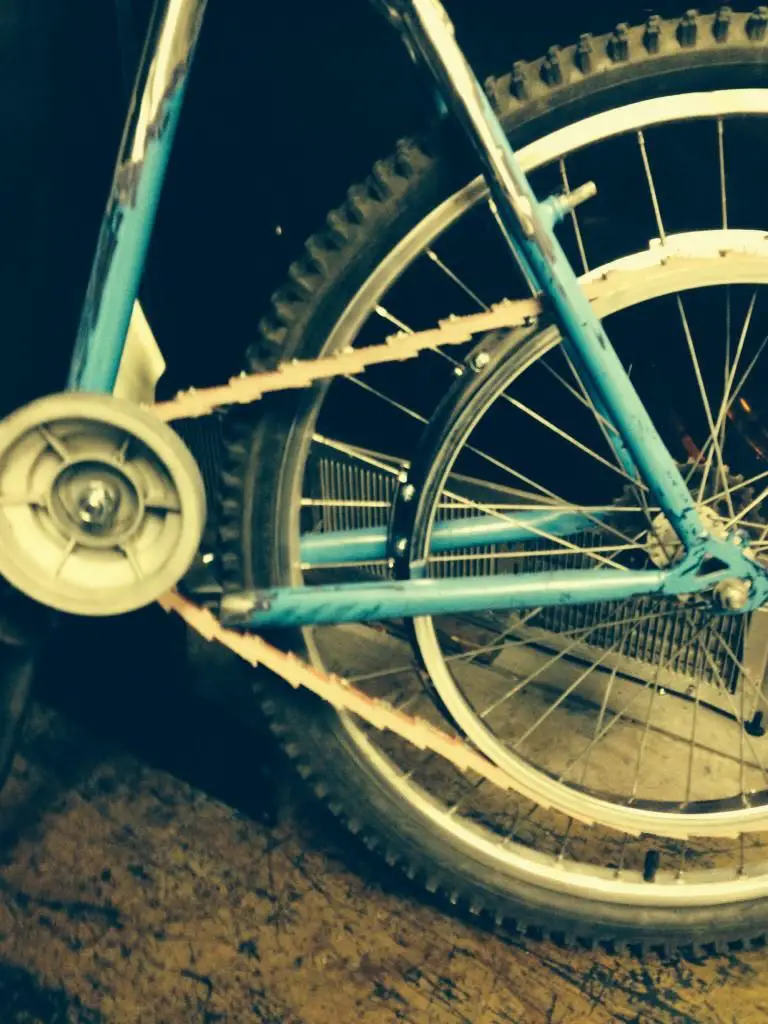

I took this one when I was mocking up, shows how far right the motor would have to be if there was one belt (clutch to rear wheel sheave) an idler/ stepped pulley now being schemed



[curtisfox]

I would run a jakeshaft then if the gearing is not right it will be easy to change..........Curt



[silverbear]

In one way a jack shaft complicates with one more thing, but it also simplifies another as Curtis says. It also becomes more important to pretty much have the engine centered in the frame the heavier it is. Seems to me, anyway.
SB



[Intrepid Wheelwoman]

Nice mockup, but I must agree about centering the engine correctly. Sometimes with a sidecar hauling machine mounting the engine off centre doesn't matter so much, but for a solo it isn't a good idea.



[Villiers]

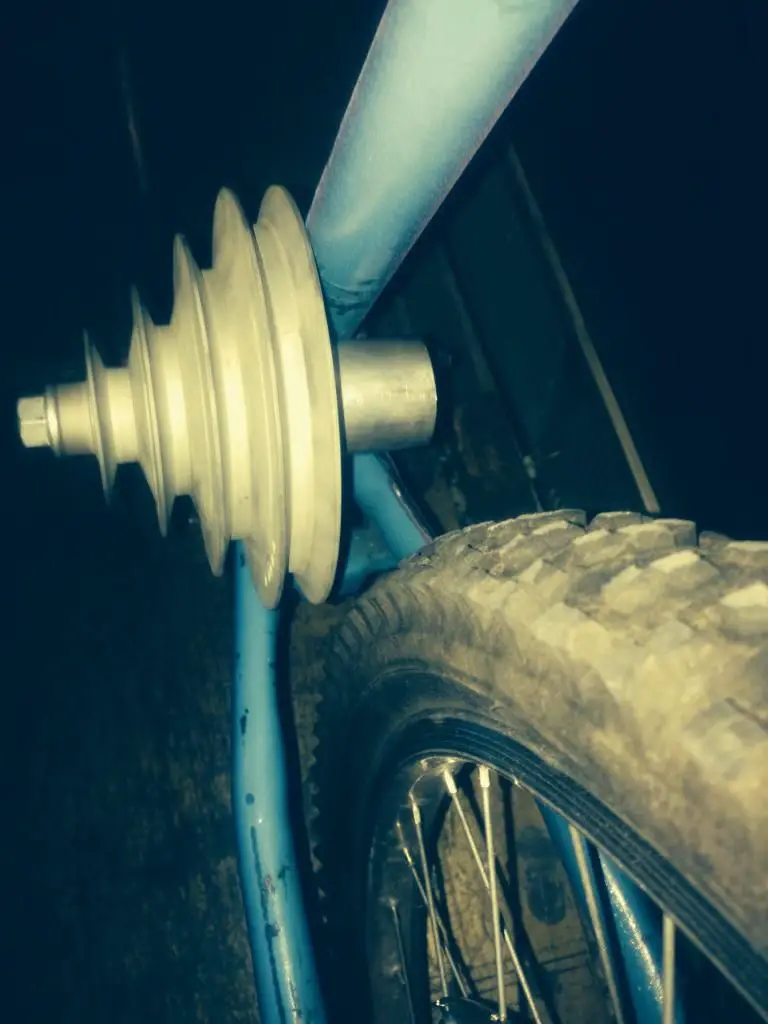

This is the pulley.

Brings the motor 90mm more central



[curtisfox]

Should be flipped so the big pulleys are on the outside,for engine gear reduction.

Have you read through Harry's " Villers beach cruiser " build? I would save you a lot of work he went through all the pulley size changing,wheel belt drive pulley.........Curt



[NEAT TIMES]

Nice build



[Villiers]

Pulleys easily flipped Curt



[Villiers]

How do you measure up for belts?



[Ludwig II]

You can still get link belts, so length isn't a real problem. Mind you, you will develop thumbs of iron splitting and rejoining them.



[curtisfox]

A old hotrodder trick take a old belt and cut it so it fits fits around the pulleys,then put a staple on it take it to the store and they can put it on the measure machine and you have it. Works really good and you can save it for reuse on shorter setups............Curt



[Villiers]

Is there a proper name for link belts and are they available in the uk?



[Ludwig II]

Hundreds of places do the stuff, here's 3.

http://www.lathes.co.uk/page4.html
http://www.hayley-group.co.uk/catalogue/belts/
http://www.brammer.co.uk/belt-drives.htm



[Villiers]

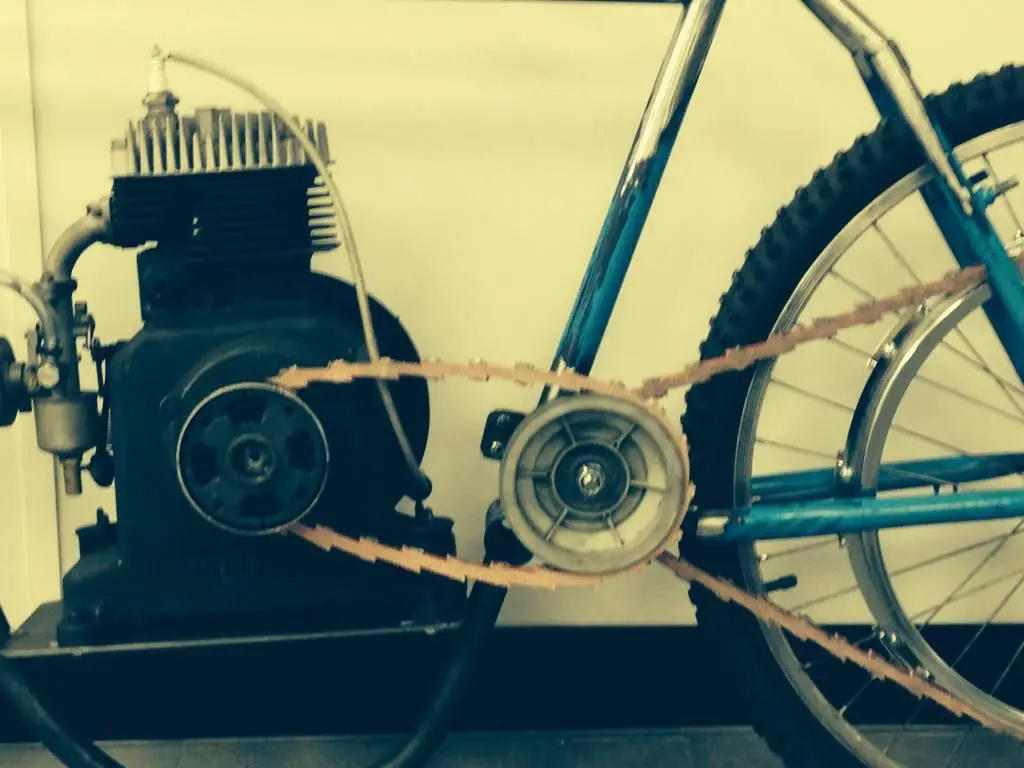

Been doing a bit on the sheave



[curtisfox]

Looking good,getting there. Love belt drives...................Curt



[silverbear]

Looks like you found your link belt...

SB



[Villiers]

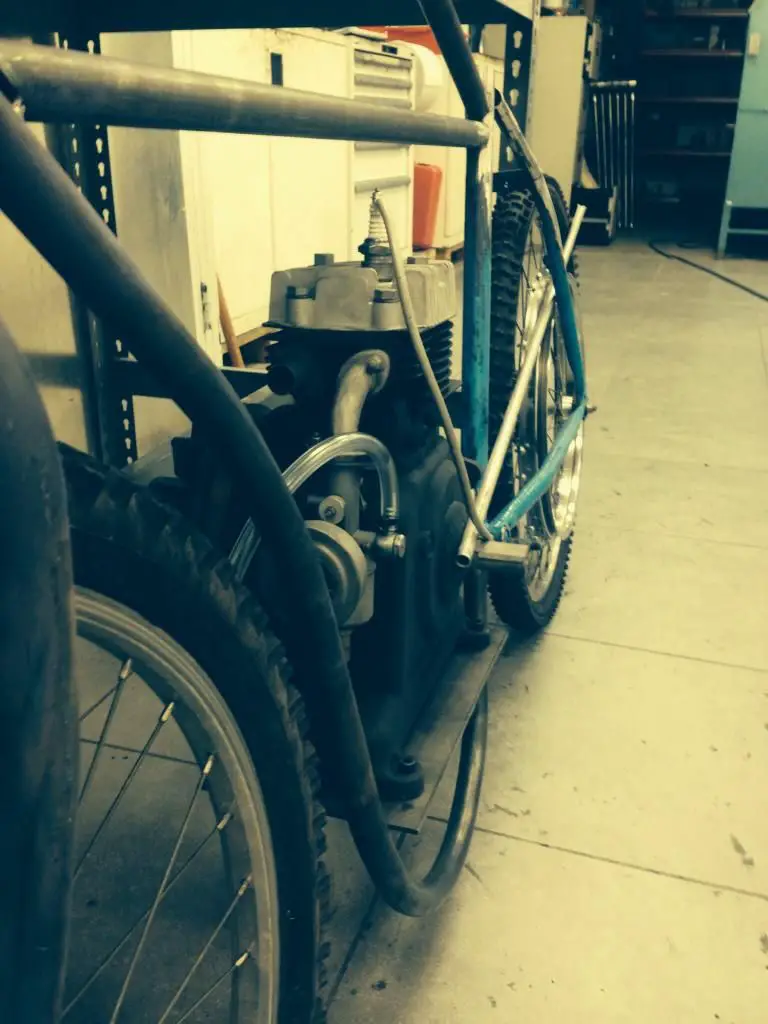

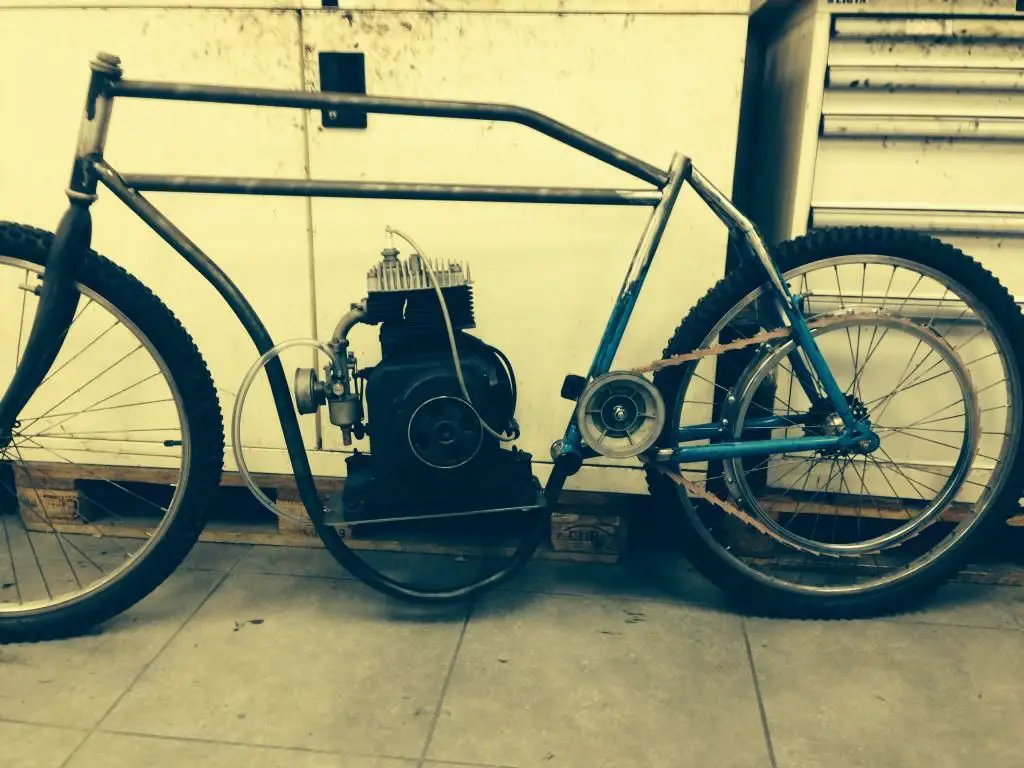

So I tacked the motor plate on today and dropped it on for a visual

I did find a link belt thanks SB, and UK



[Intrepid Wheelwoman]

The engine you're using is amazing. I wonder if I got myself a Villiers Mk 10 and looked after it carefully it might grow up to be a big engine like your one



[Ludwig II]

See if you can find a Mk40?



[Villiers]

If you look after your villiers, yes it will grow up into a mk20, 25 or 40
