The Russian engines D-4,D-5,D-6,D-8. History.

Discussion in '2 Stroke Bicycle Engines & Kits' started by Dagger, Mar 19, 2009.

  1. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    I will tell about engines of the Russian manufacture which use in Russia for installation on a motor-bicycle. These are engines D-4, D-5, D-6, D-8, at present, they are not made. The factory which made engines is called ,,Krasniy oktyabr".
    Them exhausted since 1957, till 1990... So D-4 and D-5 were similar against each other.
    These engines did not have a possibility to connect flashlights on a bicycle...
    The maintenance manual, here it is possible to see pictures http://www.moped.ee/manual/d4-57L.pdf

    And here it is possible to see comparison of the Russian engine and Chinese...

    [​IMG]

    [​IMG]

    [​IMG]

    #1 Dagger, Mar 19, 2009
    Last edited: Nov 2, 2012
  2. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    The following engine was D-6, modernised, more powerful the electrician has allowed to establish headlights on a bicycle.

    The maintenance manual http://www.moped.ee/manual/d6.pdf

    [​IMG]



    [​IMG]

    [​IMG]

    At it contact ignition, and each time should be adjusted it. But it is not so frequent.
    [​IMG]

    #2 Dagger, Mar 19, 2009
    Last edited: Nov 2, 2012
  3. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    The following engine D-8 and D-8э, almost differed nothing from D-6, except an electricity, they began to develop even more powerfully a current for headlights.
    There was an ignition coil, and other muffler...
    D-8 - 6 volt.
    D-8e - 12 volt
    The maintenance manual http://www.moped.ee/manual/d8e.pdf

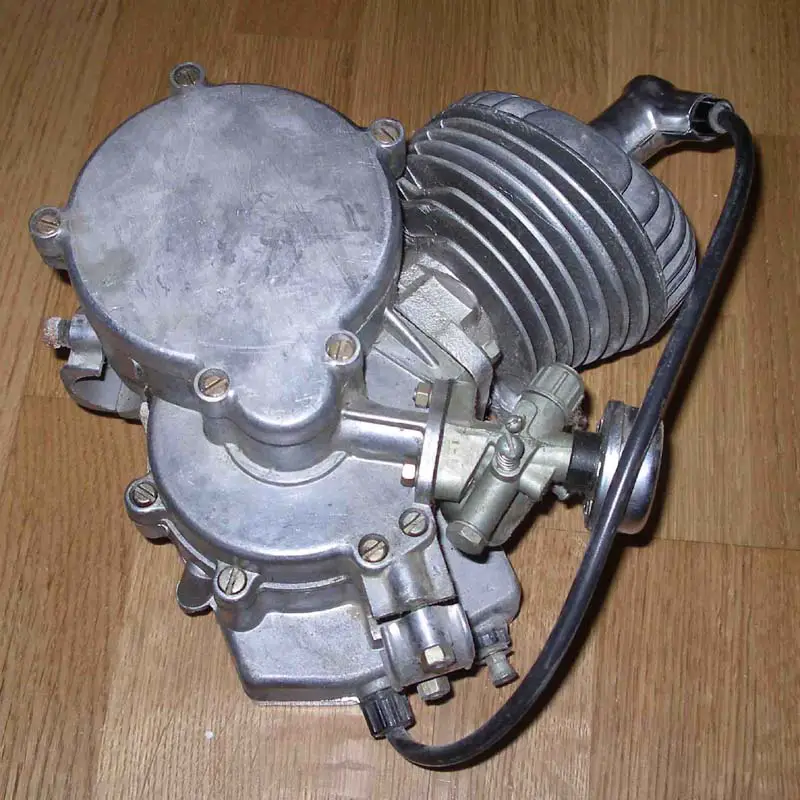

    It is my engine of 1990, without run, in an original packing.

    [​IMG]

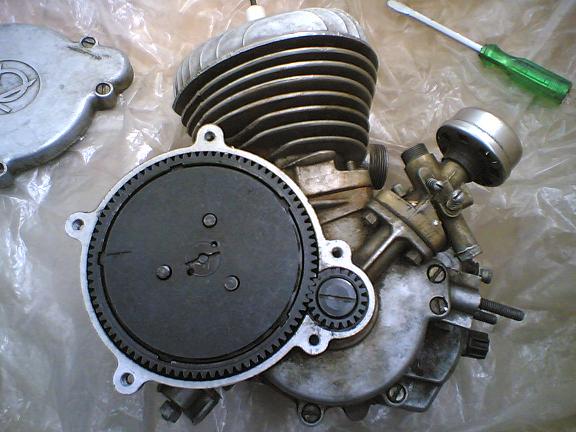

    In the disassembled condition

    [​IMG]

    [​IMG]

    It is a lot of still motor-bicycles remains with such engines.

    #3 Dagger, Mar 19, 2009
    Last edited: Nov 2, 2012
  4. mabman

    mabman New Member

    Joined:
    Oct 4, 2008
    Messages:
    258
    Likes Received:
    0
    Thanks for that Dagger. Any more information that you have to share will be welcomed by me at least. If you can find a camera pictures of your area would be nice also.

    Here's my dog. DSC01202.JPG

  5. Bob K

    Bob K New Member

    Joined:
    Mar 5, 2009
    Messages:
    16
    Likes Received:
    0
    Dagger,
    This is truly a historical post. The heritage to the "modern"
    chinese "happy time" engine is now established.
    thank you.

    Bob K

  6. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    10
    Thanks Dagger!
    dnut

  7. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,381
    Likes Received:
    37
    Very cool dagger

  8. Pablo

    Pablo Master Bike Builder & Forum Sponsor

    Joined:
    Dec 28, 2007
    Messages:
    3,648
    Likes Received:
    0
    This is a GREAT thread. What awesome shots and detail. The Russian engine does appear to be more HD.

    Dagger thank you VERY much!

  9. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    It is a little more statistics from history of the Russian engine.

    1956 - Release small-displacement (to 50сс) series engines «D»;
    1959 - the Beginning of manufacture of small engines to Borovichi;
    1974 - It is exhausted 5-milionnyj the series engine «D»;
    1982 - It is exhausted 8-milionnyj the series engine «D».

    [​IMG]

    And who knows, how many makes engines China?

  10. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0

    Good dog (^)

  11. deacon

    deacon minor bike philosopher

    Joined:
    Jan 15, 2008
    Messages:
    8,119
    Likes Received:
    0
    Well I was sure that the china engine. like everything else made in china. was a knock off of someones else's engine that they knew would work. I don't think they spend much on research and development.

  12. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    VERY COOL! thanks for the info and pictures. Keep it coming.
    Norman

  13. Creative Engineering

    Joined:
    Sep 20, 2008
    Messages:
    1,668
    Likes Received:
    0
    Excellent Dagger!!!!

    I am sure the Russian engine is far superior when compared to the Chinese copy. I want one!!!

    Best Regards, I hope this translates properly, наилучшими пожеланиями

    Jim

  14. mabman

    mabman New Member

    Joined:
    Oct 4, 2008
    Messages:
    258
    Likes Received:
    0
    While I see similarities between the two the Chinese engine is not really a copy. The intake on the Russian engine for one thing is way different and when the Chinese copy something they don't often bother to re-engineer it much. There have been a few posts on the boards by folks with the Russian engines and they report that they are in fact superior in every way IIRC.

    Speaking of copies has anyone ever noted the similarities between the six cyl in early Toyota Landcruisers and sixes of the 40's from the states? Toyota Land Cruiser - Wikipedia, the free encyclopedia

  15. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    Norman I am glad that my information is interesting to you and a forum...


    Jim Спасибо! Thanks!
    It is very pleasant to see Russian words!
    Yes, on quality of manufacturing the Russian (USSR) the engine, much more surpasses Chinese because it was made at the enterprise which exhausted accessories for military aircraft.
    But the engine design has become outdated, between 1956 and 2009 too a wide interval.
    But people, such as I, till now go for a drive on motor-bicycles with engines D, because at it the big resource... I very much regret that the factory has stopped manufacture of these s.

    Now and to the Russian fans of motor-bicycles it is necessary to buy the Chinese Kits . At us them name КД (Китай+"Д") China+engine "D"..

  16. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0


    Here you are right, there are many differences, an admission, the ignition system and many other things. But the idea remains Russian.)))

  17. FlyJSH

    FlyJSH New Member

    Joined:
    Feb 10, 2009
    Messages:
    40
    Likes Received:
    0
    Talking about similarities...

    When I was a child, I had some Russian model airplane engines (about 1-5 cc). Those engines looked similar to the D4 (same fin shape) and worked well, but I could not get spare parts.

    Thanky you for the information

  18. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,381
    Likes Received:
    37
    Dagger, you should send some of your pics to Fairacing. He does a windows movie maker thing thats really great then posts em on youtube. Your builds would be an awesome addition. Don't know if you have seen it but here is the link; http://motorbicycling.com/f15/motorbicycling-com-montage-6360.html

    Spasibo, nostrovia!

    (I worked in the Ukraine years back in my well spent youth)((I applaud your English. 2 very different languages and difficult to learn the other))

  19. mabman

    mabman New Member

    Joined:
    Oct 4, 2008
    Messages:
    258
    Likes Received:
    0
    The D engines are really good and as you say it is a shame they no longer manufacture them. I am sure that they could be made again though and perhaps it will be necessary to do so there in the future?

    Thanks for the video's. Here is one of my home town. YouTube - Mall MABness 12:05:08 The Beginning

  20. Dagger

    Dagger New Member

    Joined:
    Mar 13, 2009
    Messages:
    39
    Likes Received:
    0
    Re: The Russian engines D-4,D-5,D-6,-8. History.

    FlyJSH

    I still had such engines MARZ, МК-17, КМД-2,5. Engines has bought, and model and has not made.


    Dan

    Yes, I saw video Fairacing , very interesting. I will necessarily send the pictures of Fairacing...

    It will be pleasant to me to see the motor-bicycles together with yours.

    Thanks for council.



    mabman

    To engines of series "D", there was an alternative. But this engine and did not begin to make. I will tell next time about it.
    Has looked your video.
    Cool! the Bicycle very interesting!
