HI All,

As many of you may know, the boost bottle's purpose is to enhance low to
mid RPM power....the theory behind this can be readily located on the net but in a nutshell, the boost bottle helps low to mid range power by basically smoothing the flow of the air fuel mixture into the carb and preventing it from reverting back into the carb / intake tract when the piston closes off the intake port abruptly.

Much research has been done to determine the optimum size for the bottle
but it seems that the optimal size for the bottle and connections (yes you must include the volume of the fittings and hose which connects actual bottle to the intake manifold) is such that the engine's displacement must be matched to the volume of the bottle/hoses/fittings.

Out of curiosity, I decided to open up my lab equipment (photos attached) to
determine the actual volume of the boost bottle and fittings to see how closely it matches engine displacement.

The bottle I own (yellow item in pic) came from Boost Bottle Industries. It is
Rated as the 70/80 CC kit.

Because the bottle is unvented (only 1 entrance and exit), it would be difficult to pour the liquid (in this case water) out of the bottle (without it spilling and throwing off the measurements) to measure the bottle's volume.....What I did was a 2 step process. First, I filled the bottle only with water. Then I used the hypodermic syringe to extract the water from the bottle and squirt it into the graduated cylinder.

When all was said and done, the bottle itself had a volume of approximately 67 CC.

Next, to measure the volume of the provided fittings, I pushed both hose barbs as far as they would into the supplied tubing.....I filled the entire assembly with water and then poured its contents into the graduated cylinder to measure its volume. This was found to be 17 CC.

In summary, as provided by the factory, the bottle and fittings have a volume of approximately 84 CC....What does this suggest?....the measurements seem to indicate that if one is looking to optimize boost bottle efficiency
(assuming that optimal is exactly matching the engine's displacement) that one would need to run a minimal length of hose....Furthermore, it may be of benefit actually tap another port to the bottom of the bottle (use a nipple along the long edge of the bottle) to minimize hose length when connecting the bottle to the engine manifold. The remaining factory hole could be filled with a bolt of known displacement (of course must be custom made for length for each different engine brand) that can be used to adjust the system volume so that it exactly matches the engines displacement.

Is such accuracy really needed?....well, given the degree of accuracy and engineering required to make an effective tuned pipe / expansion chamber it would seem to suggest tha the answer be "yes"....After all, we are basically tuning the intake system so to speak.....a lot of wave theory applies to both intake and exhausts.

Will the boost bottle work as is?.....I have heard more good things than bad but I plan on doing a test of all this when my custom intake manifold is finally done.

Hope this helps all you tinkerers out there!....Comments, questions, and other findings / views are always welcome.



Andrew


Attachments

paul

Well-Known Member
Dec 23, 2007
5,548
39
48
63
Kalamazoo, MI
wow andy. i am wondering if the problems people have with the idle which is the only draw back i have heard about the boost bottle if it was identical in volume those problems would be gone. i am looking forward to hearing more and can't wait till you have a tuned pipe. my checkbook is ready soon as you do my friend for i want one:D


Andyinchville1

Manufacturer/Dealer
Dec 26, 2007
502
1
18
Scottsville, VA
HI Red,

yes, I saw the manifolds....that would be great for people who want a quick and easy way to attach a boost bottle...It looks to be modeled after the factory piece which has some serious flow restricting bends in it tho.....I have been tinkering with making a manifold that would increase power by being of the proper tuned length and having
freer flowing smooth bends (also, by offsetting the carb to the side, this would allow many more people to use a freer flowing better air filter such as the oiled open element K&N style filters....(possibly an optional cover for those who ride in the rain).
Getting there slowly but surely.
Andrew


Andyinchville1

Manufacturer/Dealer
Dec 26, 2007
502
1
18
Scottsville, VA
Hi Paul,

While I have not yet hooked up my boost bottle, it is a common for the idle speed to increase fairly substantially when using the boost bottle. This ultimately requires an adjustment to the idle speed screw (RPM's increase because the air/fuel flow is "smoother" and the reversion wave is lessened allowing for more air/fuel into the engine for a given thottle setting)).

The other problem I have heard with the boost bottle, is when the air/fuel in the boost bottle condenses into just a liquid fuel and eventually runs back into the intake manifold.....obviously this can cause problems with running (and possible even after running depending on the amount of fuel pooled) and is one of the main reasons the outlet of the boost bottle must or should be pointed down to the intake manifold....More often than not this is not done and problems can result.

In thinking of the problem more thoroughly, perhaps the ultimate shape for the boost bottle is a somewhat stocky triangle (narrow in profile...relatively squat in height) with the outlet at the very point on the bottom.....this would ensure that any condensed fuel in the bottle itself would always drain out almost immediately....something that the current cylindrical bottle shape may be a little slow at doing at times unless mounted in the vertical position (which for most practical purposes will not happen due to the need to commonly mount it to the top tube of the bike).

Andrew


Andyinchville1

Manufacturer/Dealer
Dec 26, 2007
502
1
18
Scottsville, VA
Hi Dan,

If / when you try the boost bottle, please let us know your results....Then more info we have the better things get! ;-)

Have fun tinkering!

Andrew


Norman

LORD VADER Moderator
Staff member
Jan 16, 2008
2,605
2
38
68
pampa texas
Guys I've made a few boost bottles and my finding are well I'm taking them off. I've even made an adjustable one varied form 40 to 90cc and I can't find anything that great by using one. Sure it will idle with the idle screw turned out more and they make a funny sound when you come off the throttle. To me the idle will stay high then go to so slow a idle speed the engine will die. I've had long connection tubes and short. Big fat and short long ones. and in different cc ranges.
Some of you may like them. I don't, to me I'm glad I made my own and didn't spent the bucks to find out what I did. If you want to argue send me your bottle I'll try it and let you know what I think and teturn it to you I'll pay return shipping. You want to try mine, send me your address and the money to cover the postage, you can have mine. I still have 3 and will soon be cutting them up to make something else.
That is my opinion only, they may be just the ticket for you.
Norman


Easy Rider

Santa Cruz Scooter Works
Jan 15, 2008
2,144
4
38
Nor*Cal
I have to admit I bought one. I really didn't see an increase in power, However I didn't see a decrease in performance either.

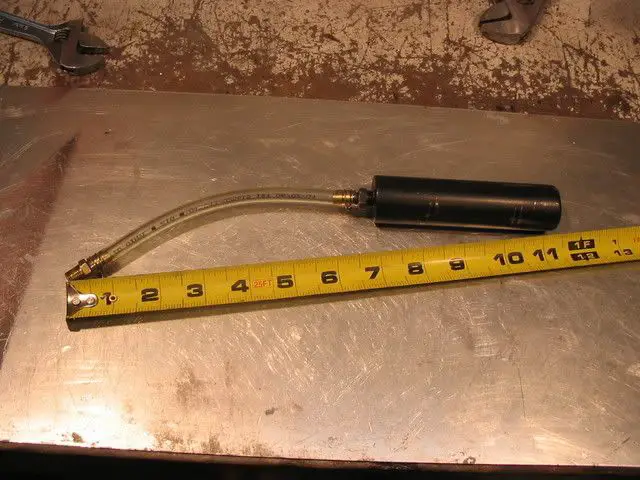

Is there a certain length you recommend the hose I should? Here's a picture of mine. (After my 40+ mile ride in the rain)
Do you think it's too short?

Thanks...


Last edited:

Norman

LORD VADER Moderator
Staff member
Jan 16, 2008
2,605
2
38
68
pampa texas
Easy
I don't have a good answer for you I tried a combo of different sizes and lengths dia. What I found is what I posted. The only thing I didn't do was the diaphragm bottle and I think that might have been different. I pulled my bottle off today and plugged the hole with an aviation 1/8" pipe plug( anodized aluminum) I also smoothed out the inside of the manifold where the plug stuck out in the bore. I would recommend you try for a 69 to 70cc including the hose as that seemed the best. I did find that if the bottle was up over the head( mine were made out of steel) I never collected liquid in the bottle. I also found that it smoothed out the low rpm what I did not like is it takes a long time for the idle to stabilize after riding and coming to a stop. To me the bottle was not worth the trouble, but was fun to experiment with.
I didn't answer your question very well but I tried to.
norman


Easy Rider

Santa Cruz Scooter Works
Jan 15, 2008
2,144
4
38
Nor*Cal
Thanks Norm,
When I bought the Boost Bottle, the instructions said to have it higher than the carb.


Norman

LORD VADER Moderator
Staff member
Jan 16, 2008
2,605
2
38
68
pampa texas
Easy
Something you might try and that is drill out the barbed fitting for a larger inside dia. both ends but you will need to take them off the bike. You do not want the shaving in the engine. Your line looks close to the same size as mine..I drilled out the barbed fitting. This might give you some hidden extra, or it will screw it up, but you can get new fitting as they aren't expensive. I drilled out the inside of the barbed fitting to .189 or a #12 drill you can try and go larger if you want to I settled on that dia.

This is the bottle I rermoved off my 70cc its at 68cc for bottle and close to 69.8 cc with fittings


This is a 69cc bottle on my so called 80cc

Last edited:

nogoodnic

New Member
Jan 29, 2008
509
0
0
Shelby MI
forum1.freakbikenation.com
I just found this thread and have been meaning to ask you guys about these things. How does the boost bottle work? Do you need a tuned pipe for it to do any good? Where can they be found? Will one work with a 48cc? Sorry for all the questions, as I've said, I've been out of the loop for a year or so and the technology has deffinatly gotten alot better...Kelly


Bikeguy Joe

Godfather of Motorized Bicycles
Jan 8, 2008
11,843
236
63
up north now
There are no magic speed products or mechanics that come in a bottle, can, or other....except nitrous, and that's not for these engines.


Easy Rider

Santa Cruz Scooter Works
Jan 15, 2008
2,144
4
38
Nor*Cal
I've played with a wet nitrous kit on my 2 cycle motors and its scary! I found that after you depress the button...expect that motor to scream for another 3-5 seconds. Plus I've blown up a few motors and reed cages.:oops:


paul

Well-Known Member
Dec 23, 2007
5,548
39
48
63
Kalamazoo, MI
my understanding is the boost bottle helps on low end which if it does great. if not won't be the first nickel i waisted


Autocycler

New Member
Feb 14, 2008
153
1
0
Metro Washington, DC
THe boost bottle works great on my 70cc motor. You'll need to adjust the idle screw after installing the bottle, but it does smooth out the low end and increase low end torque....in my case at least. I highly recommend them.

FYI, the volume of the boost bottle should match the displacement of your motor. They make 48cc and 70cc bottles for the Chinese kits.
