I See Springers...

Discussion in 'Motorized Bicycle Welding, Fabrication and Paintin' started by UncleKudzu, Nov 8, 2008.

  1. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0

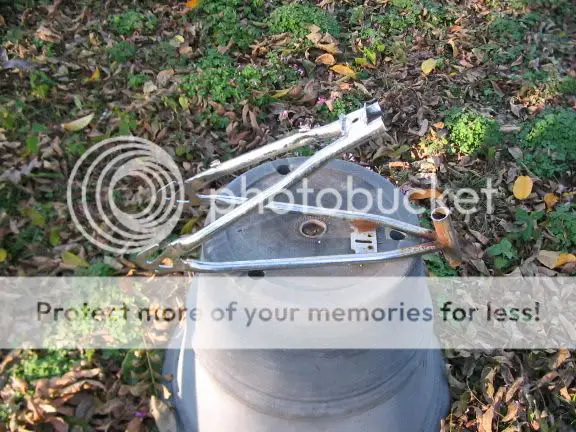

    OK, below you will see the hind quarters of a 20" BMX bike that fell under the influence of my jig saw this afternoon (yes, it's upside down). now, i see parts for some homemade springer fork parts there; does anyone else see potential there? maybe cut off the bottom tubes and save the other part, complete with dropouts? (that rusty section is part of the seatpost tube)

    feel free to help me visualize.

    [​IMG]

    #1 UncleKudzu, Nov 8, 2008
    Last edited: Nov 8, 2008
  2. wheelbender6

    wheelbender6 Active Member

    Joined:
    Sep 4, 2008
    Messages:
    3,816
    Likes Received:
    10
    That sounds like fun. I was considering a simpler version, a soft tail for an old cruiser.
    I want to cut out a 2" length of the seat stays near the seat post and replace with springs. Instead of creating a pivot, I would just rely on the flexing of the chain stays to yield an inch or so of wheel travel. I have a KHS mountain bike that has an elastomer sof tail like that. LOL.

  3. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,169
    Likes Received:
    18
    I love the spirit of invention that everyone has about customizing their MB's... but I really want to caution everyone about trying things like welding your own frames & forks, (or anything else for that matter)

    DON'T TRY THIS UNLESS YOU REALLY KNOW WHAT YOU ARE DOING!

    Having the fork (or frame)break @ 35 MPH is very serious...

    I don't want to stomp on anyones fun here, & I love seeing all the new crazy inventions everyone here comes up with, but seriously... be careful! (& post a lot of pics when they're done!!) (^)

    #3 Venice Motor Bikes, Nov 9, 2008
    Last edited: Nov 9, 2008
  4. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0
    thanks, VB, for your concern and good advice.

    i'm really just thinking out loud in this post. i wouldn't trust anything that i put together :)

  5. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0

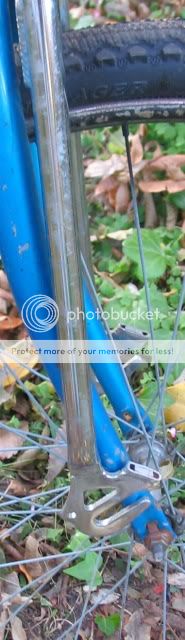

    OK, below shows the top rear triangle (with section of seat tube still attached) from the 20", separated from the chainstays.

    20" frame is a bit short, but can you see where my thinking is going on this? ideas from the fab geniuses are welcomed.
    [​IMG][​IMG]chainstay removed.

    #5 UncleKudzu, Nov 9, 2008
    Last edited: Nov 9, 2008
  6. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,169
    Likes Received:
    18
    First thing I would say is, use a different BMX frame; one that has the rear dropouts that face towards the rear. (This way they will face down on your new fork!)

  7. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0
    good point, VB!

  8. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0
    AussieJester, thanks for your input.

    i was thinking of something like a cross between forum member Jak Stoll's homemade fork (see attachment) and the old Sears Spaceliner forks.

    i'm thinking seat stays or chain stays would be plenty strong. i found a rear suspension spring from a junked thrift store kid's bmx bike (only $2.99USD!) and i'll take some more pictures when i get the mock-up further along.

    thanks again for your interest!


    Attached Files:

  9. Saddletramp1200

    Saddletramp1200 Custom MB Buiilder

    Joined:
    May 7, 2008
    Messages:
    1,420
    Likes Received:
    0
    But, But, where's the length, the rake, springers are for choppers. well cheap suppension for bikes. Man I would listen, Front forks are nothing to play with!
    We don't have a "Obit" thread, yet. Front forks are not a game.

  10. UncleKudzu

    UncleKudzu New Member

    Joined:
    May 26, 2008
    Messages:
    353
    Likes Received:
    0
    man! how am i ever gonna have any fun with you and WalterF always going around concerned about my well-being? sheesh! senior citizens... can't live with them, can't shoot 'em... what's a fella to do? ;)

  11. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,169
    Likes Received:
    18
    If you look on ebay, theres a guy selling reproduction "Monark" springer forks that look really cool!!

    I don't know how to add a link to the listing, but here's the item number: 120331345670

  12. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    13
  13. trackfodder

    trackfodder Member

    Joined:
    Sep 8, 2008
    Messages:
    347
    Likes Received:
    2
    If I might suggest--Take an old front fork and turn it backward. Make a pair of bottom pieces to carry the axle with shoulder bolts for pivots. Whack the stem off a Schwinn blade fork and mount a horizontal clamping table atop it for a blade spring (coming from the backward main fork where the fender would normally attach) It would resemble an Indian fork from about 1937 and shouldn't weigh TOO much. There are places that custom build leaf springs for trailers, etc. that should be able to furnish a 1" X 1/8" blade that would be a good starting point and shorter pieces can be added as necessary to adjust the carrying capacity/action. (as opposed to actually engineering something. It's called Edisonian engineering.) Keep trying until something works. The longer the better for good travel. KW

  14. sojudave

    sojudave New Member

    Joined:
    Oct 18, 2008
    Messages:
    189
    Likes Received:
    0
    Springers aren't always for choppers. So you could add springs with out jacking without having to chop and rake the frame.

  15. Saddletramp1200

    Saddletramp1200 Custom MB Buiilder

    Joined:
    May 7, 2008
    Messages:
    1,420
    Likes Received:
    0
    6 inches of rake? Ya' mean 6 inches over stock? Rake is in degrees, forks in inch, over.
    or something like that.

  16. eDJ

    eDJ New Member

    Joined:
    Jul 8, 2008
    Messages:
    531
    Likes Received:
    0
    I've been looking at springer & girder suspensions for awhile now. Just waiting.

    Cyclone started a thread about 1900 era builds and that's been on my mind too.
    But sticking a chromed springer pyrimid fork on it just wouldn't have the look I'm wanting. I've seen some nice Schwinn "Beehives" that I liked but the one I almost bid on (till I called my welder buddy to have him look at it and he told me it would be best to forget it) was this old wrecked & bent 1940's RollFast. (photo below) It even had the mount for the headlight just ahead of the spring.
    So, we're now looking at building this fork. I see the stamped spring Yoke-Krate that goes under the spring for sale on ebay from time to time on ebay. It wouldn't be that hard to modify and fab.

    Schwinn NOS Bicycle Front Springer Fork Yoke-Krate etc - eBay (item 110229369463 end time Nov-26-08 05:43:56 PST)

    I would think there could be a brisk aftermarket for spring front suspensions for motor bikes traveling at 30 mph. I remember as a kid riding some old springer front fork bikes over the country roads which were one constant pot hole and riding a bike with rigid forks and the difference was day and night. I want my build to have some suspension on the front beyoned just big balloon
    tires.

    These forks had been in a wreck and would have had to be straightened out and possibly welded on some to refurbish them. I would have bought them just for their "look". But, good things come to those who wait. Perhaps someone in a small fab shop will look back over the old forks sold on ebay and think...."Hey ! We can copy that" ! (and make it look just as vintage)


    Attached Files:

    #16 eDJ, Nov 25, 2008
    Last edited: Nov 25, 2008
  17. trackfodder

    trackfodder Member

    Joined:
    Sep 8, 2008
    Messages:
    347
    Likes Received:
    2
    If you want a kicked-out front end, make a leadiing link out of a trailing link like I accidently did on my 50's Monarch springer.. Incidentally, since I assembled it RIGHT the tire hits the fender fixing screw at the top of the stationary member when I hit a significant bump ZZZZZZZZZZ ! Keith (trackfodder) Williams

  18. eDJ

    eDJ New Member

    Joined:
    Jul 8, 2008
    Messages:
    531
    Likes Received:
    0
    Thanks Kim :)

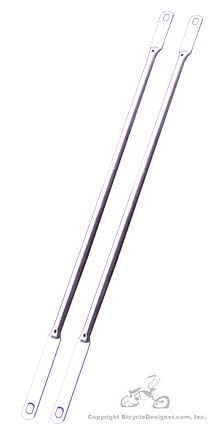

    I figure that with one of the Fork Head Accessory kit's and a pair of the 26" flat
    bars that I could just about fabricate the Rollfast springer forks in my last post. With the templates below welded into the bottom of the forks (made of 3/16" plate and the axle links made of 1/8" metal it would take a few fastenings and some welding. For about $30 dollars.

    [​IMG]

    [​IMG]

    It would be nice to get the chrome/cadnium plating off the pieces so that they could be painted. Too bad they don't offer them in black.


    Attached Files:

  19. trackfodder

    trackfodder Member

    Joined:
    Sep 8, 2008
    Messages:
    347
    Likes Received:
    2
    Just for fun make up a vat of salt water or vinegar water and stick a car battery jumper cable on the part(+) and a chunk of metal (-) and see what happens

  20. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,169
    Likes Received:
    18
    For about $50. (shipped) you can get a chrome springer on Ebay... Or for about $100. or more, you can find a "real deal" Schwinn springer!!! Or one of those Monark replicas.

    Your time is worth money... Sometimes (I think) it's better to pay a extra bit of money to buy something, instead of spending 80 hours designing & building it yourself. (but if you enjoy it... go for it!)
