Engine top end rebuild and an engine stand

Discussion in 'Motorized Bicycle General Discussion' started by Norman, Jan 25, 2008.

  1. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0

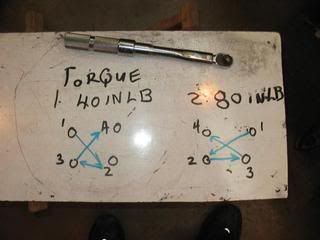

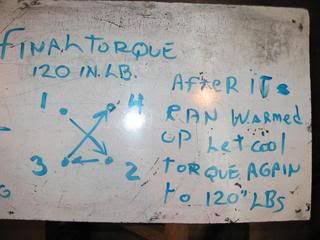

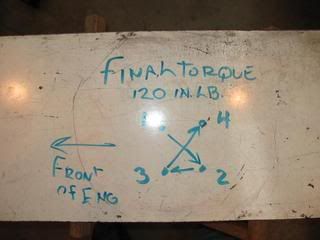

    torque pattern that I used and I forgot to show me putting on the head.

    [​IMG]

    [​IMG]

    [​IMG]

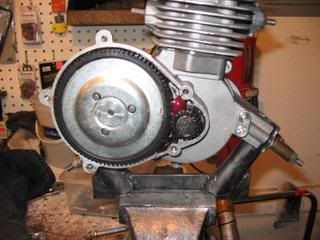

    A little dab of grease on the gears for good luck

    [​IMG]

  2. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0

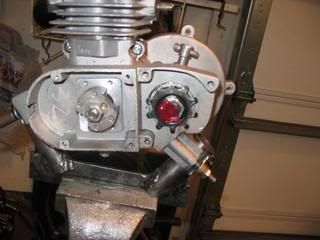

    Grease the other side it will help hold the ball and short rod in place. I don't know if you noticed or not but I don't like to work on shlty things I have to at work but not here I've been so greasy and oily I could wring out my underwear form rolling in oil and grease while doing an industrial engine/compressor, so I take the time to clean stuff up.

    [​IMG]

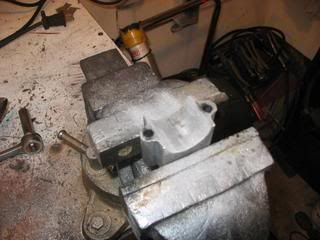

    something I forgot a light sanding on the engine mounts helps to smooth them out, knocks off any rough raised areas that will later wear down and cause your engine to jump ship. doing the front mount. emery cloth and frame tube of proper size well its kind of close to the right size.

    [​IMG]

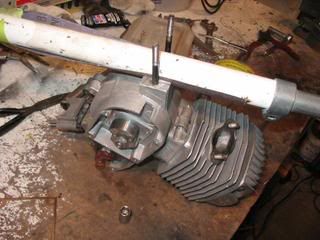

    rear mount getting it as well and I hate sanding ask me about building a composite airplane what a sanding contest that was 2years of it and I quit and stuck my homemade engine on it and been flying it since 1985 and still works and hasn't killed me YET got some skid marks in the shorts tho form some of my festivity's

    [​IMG]

    the end hope this helps and doesn't confuse you more if it does don't work on an engine take it to someone who can. Naw! Jump in there and get NASTY.
    Norman

    [​IMG]

  3. paul

    paul Active Member

    Joined:
    Dec 23, 2007
    Messages:
    5,536
    Likes Received:
    8
    very nicely done norman(^). gonna tear down my engine when i get back from hawaii and rebuild it. one quick question. any special grease you recomend? also what kind of oil on piston and cyclinder? i want to make my motorized bicycle purr like a kitten

  4. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Use what you have for grease a good auto grease works for me. The oil I used to assemble the engine was penz 10w/30 I think its been in the engine assembly can for a while might even be a syn. Don't know for sure oil is important no oil is a disaster looking for a place to happen. you could use the mermix oil but I'd most likely use engine oil and weight / grade to me is not important if I'm building and starting it the same day or in a day or two. For longer storage there is an assembly lube to use but I don't have any on my shelves so I use plain engine oil.
    Norman

  5. deacon

    deacon minor bike philosopher

    Joined:
    Jan 15, 2008
    Messages:
    8,119
    Likes Received:
    0
    Hey im glad to see that drive gear box open. I need to open and lube mine tomorrow after i ride it I think.

  6. Pablo

    Pablo Master Bike Builder & Forum Sponsor

    Joined:
    Dec 28, 2007
    Messages:
    3,652
    Likes Received:
    0
    Wow - thanks for the clutch arm-vise grip trick!!

    I need to replace my clutch handle, adjust the clutch internally and I have a sneaking suspicion there is zero lube on the little ball.

  7. paul

    paul Active Member

    Joined:
    Dec 23, 2007
    Messages:
    5,536
    Likes Received:
    8
    i read all the motorized bicycle forums. i have to say your instructions and pictures you provided us is by far the best i have ever seen. again nice job norman(^)

  8. deacon

    deacon minor bike philosopher

    Joined:
    Jan 15, 2008
    Messages:
    8,119
    Likes Received:
    0
    Norman is not only knowledgeable he is also generous with his time and knowledge. If it weren't for Norman I would still be sitting around staring at my bike parts. I like Norman's can do attitude. He always helped me feel that, in spite of the fact I had little experience with these things, I could do it without any problems at all.

    Not many people really do want you to succeed. Most want you to succeed if it benefits them. I have to say Norman is the purest teacher I have met on a forum yet. That in no way diminishes what anyone else has done to help me. I appreciate all of your advice I really do.

  9. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Aww your making me blush again. I'm at it again I did a tear down of the clutch and working on pictures and such how to adjust etc. Man my poor engine is getting the RED headed stepchild treatment being tore apart and nothing is wrong with it. I will need to look for replacement bushing for the rod as the bushing in my rod are getting loose so if some one has bushing or bearing at a reasonable price pm me please?! I'll do a picture and text story on the replacement and sooner or later I'm going to take one of these little booger down to the bare bones if I can I think I'll have to make some tools to disassemble the crank I hope I can.

  10. paul

    paul Active Member

    Joined:
    Dec 23, 2007
    Messages:
    5,536
    Likes Received:
    8
    do a seperate thread for the clutch please norman and i will make it a sticky also. i can't wait to see it :D

  11. Ilikeabikea

    Ilikeabikea Moderator
    Staff Member

    Joined:
    Jan 27, 2008
    Messages:
    2,323
    Likes Received:
    0
    Wow, that norman he a real good guy. It would be handy to live close to him. I bet he has the fastist bikes.

  12. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Doing a clutch how to.

    Its being "done as we speak" as some people would say, that I used to work with good bunch of guys, we all were growning one leg longer than the other then. We all worked in the mountains and thats what happens.

  13. RedB66

    RedB66 New Member

    Joined:
    Dec 28, 2007
    Messages:
    1,023
    Likes Received:
    0
    Excellent post Norman....Truly an assett to the Forum.

  14. MikeJ

    MikeJ New Member

    Joined:
    May 3, 2009
    Messages:
    82
    Likes Received:
    0
    Hi Norm -

    New guy and new purchaser here. A question about head nut torque, please... I was checking the new 66cc Nantong engine, fresh from factory (unpainted model). The head nuts are 10mm. I used my own moment-arm and weight system as a calibrated torque socket wrench: A rachet handle with light copper pipe extending horizontally outward. I have read that head torque should be 12 ft-lbs (8 pounds at 1.5 feet). But I measure the headbolts and I don't even think I am getting 6 ft-lbs of torque resistance. I tightened each headbolt nut about 10 degrees and stopped. I am not getting the resistance I am expecting. I have to wonder if the studs are stretching, the head gasket is compressing, or the crankcase threads are stripping. What has been your experience when tightening down headbolt nuts?

    Thanks,
    MikeJ

    #34 MikeJ, Jun 20, 2009
