Any Welders For Hire in L.A.? It's Almost Time.

Discussion in 'Motorized Bicycle Welding, Fabrication and Paintin' started by miked826, Dec 4, 2013.

  1. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Final clearance between chainstay tubes is 7.5". :) dance1

    #81 miked826, Jan 19, 2014
    Last edited: Jan 19, 2014
  2. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Front half of frame is completely welded up with welds that are ugly as sin but that's a non-issue at the moment. It's one thing to weld up a bunch of straight tubes, but if they have a curve in them, then it's a whole other story aligning them on 2 axises without any type of jig. PITA!

  3. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4

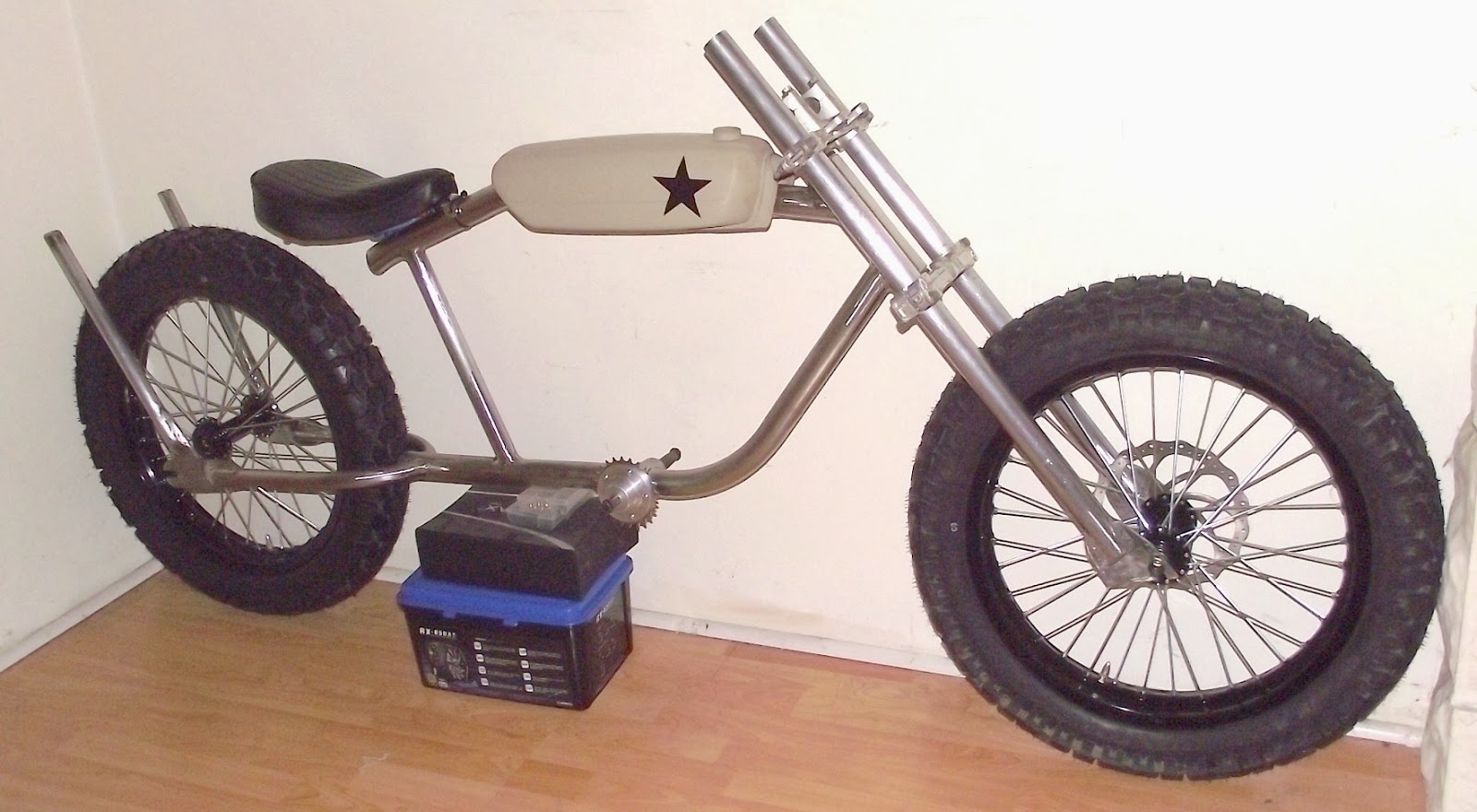

    It's not perfect, but it is straight. It looks like I haven't done squat yet. Very slow process or maybe I'm just slow? I'm guessing $500 worth of bike is shown in this pic.

    [​IMG]

  4. runnermike

    runnermike New Member

    Joined:
    Nov 18, 2012
    Messages:
    936
    Likes Received:
    0
    That thing is gonna be a beast!!!

  5. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    The beastliness really doesn't sink in without the forks being mounted, which I'm working on the dropouts for today. Then you really get a good idea of the wheels girth. Seat height will be between 28" to 30" with tire height at 25.5".

  6. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Seat stays are the last thing to weld to this odyssey of a bike frame. With .065 tubing throughout the bike frame weighs in at 20 lbs. Wheels and tires weigh in at 40 lbs. Forks weigh 10 lbs.

  7. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4

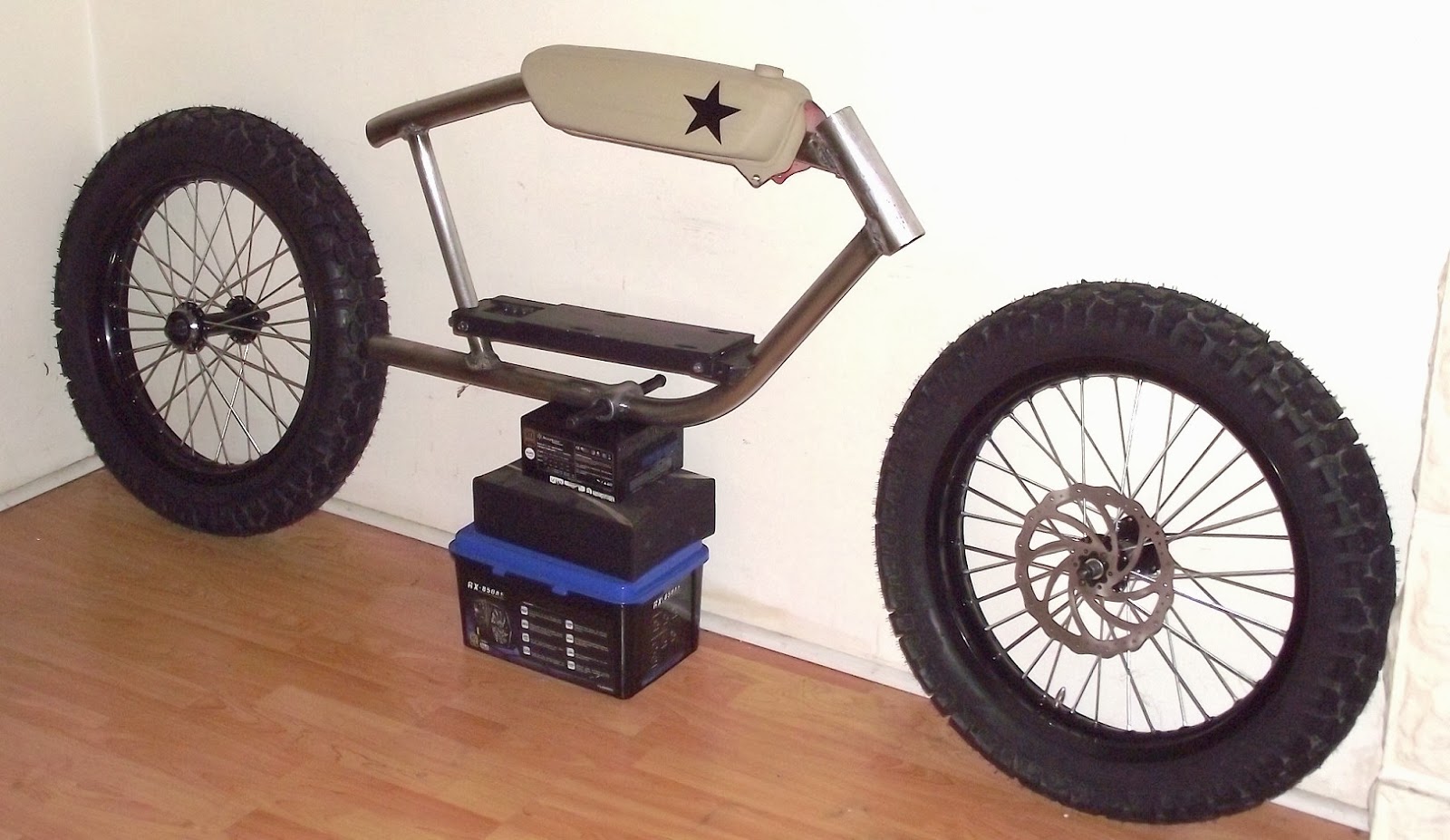

    Ain't nobody gonna notice me rolling down the road on this thing. I'll look just like any other bicyclist out for a leisurely ride. I'll blend right in.

    [​IMG]

    #87 miked826, Jan 25, 2014
    Last edited: Jan 25, 2014
  8. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4

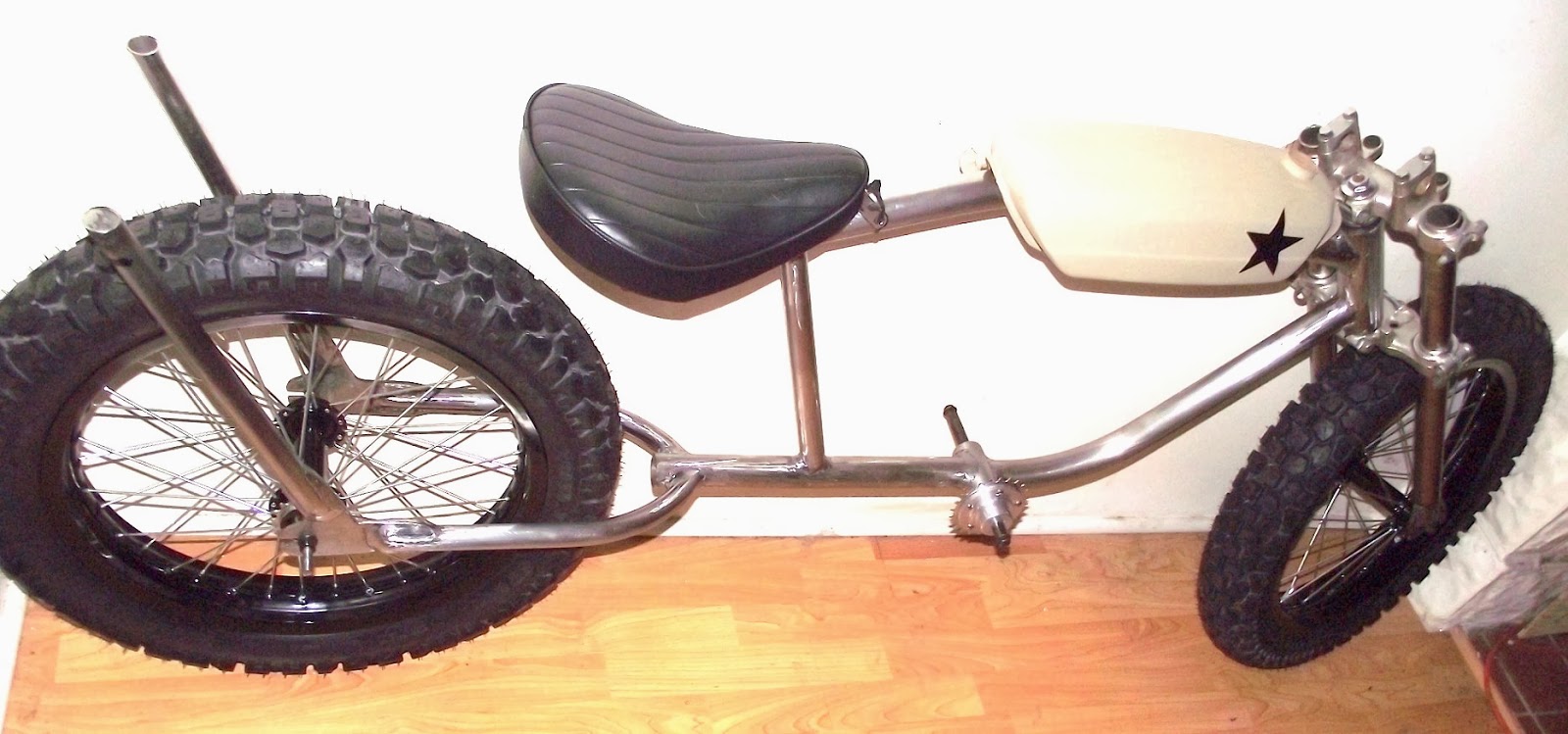

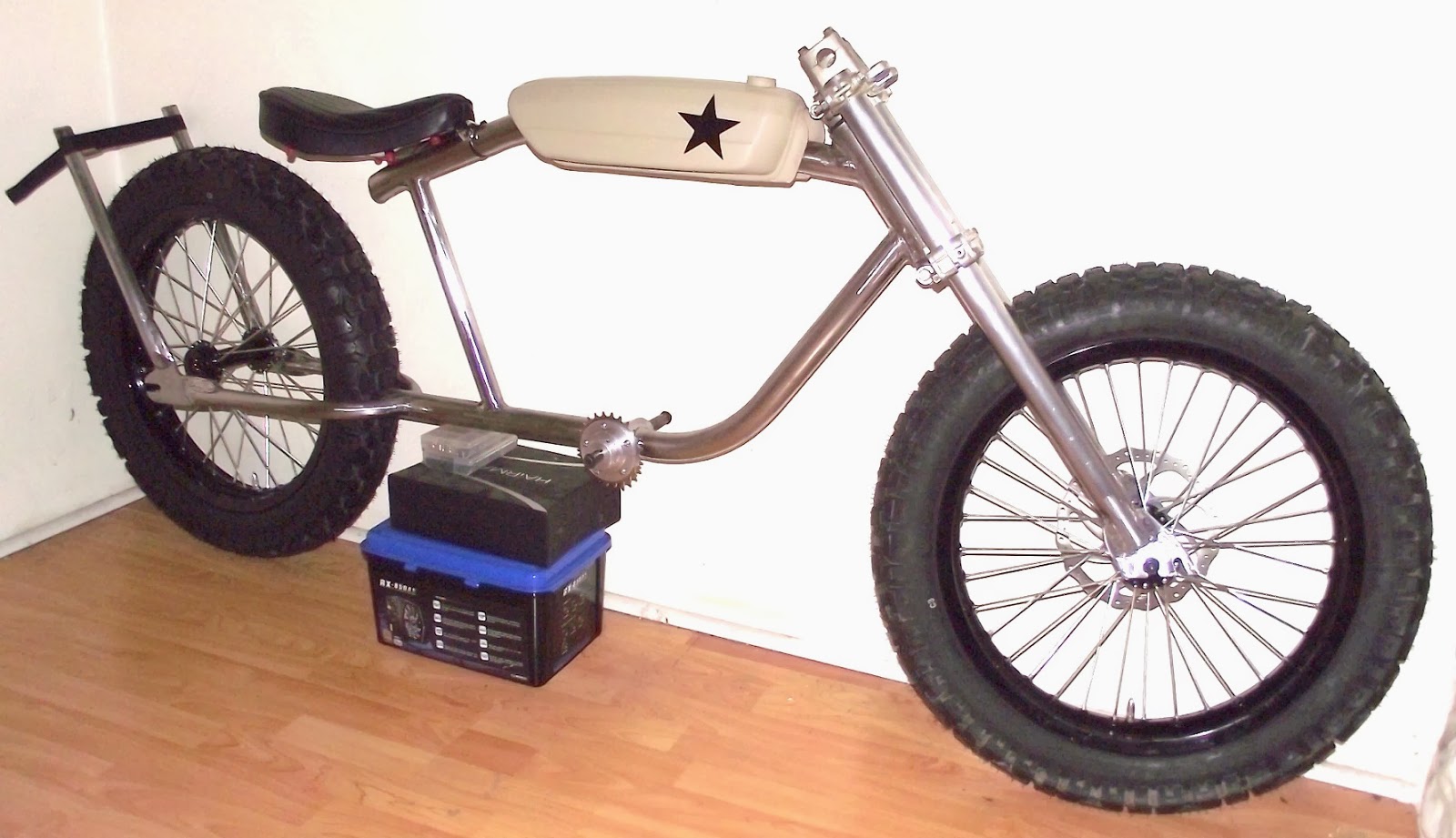

    [​IMG]

    [​IMG]

    #88 miked826, Jan 25, 2014
    Last edited: Jan 25, 2014
  9. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,646
    Likes Received:
    65
    Man! She is looking gorgeous. Great lines.

  10. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Thanks much. I tried to keep all vertical posts at the same angle but had to sweep the headtube a little farther back. I did the best I could do for not having a bike jig or any serious cutting tools.

    Still waiting on the last 2 seat stay tubes and a tap to re-thread my 11" wide rear axle's bearing race cup. brnot

    #90 miked826, Jan 25, 2014
    Last edited: Jan 25, 2014
  11. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,646
    Likes Received:
    65
    JMHO but the swept back sort of stance gives her a sort of aggressive appearance. Not "sporty" but aggressive. LOL or to be PC, "assertive"

    Is a jig all that necessary for a one of a kind build? Really am asking. If every thing is st8 and good, then all good, me thinks.

    My favorite looking store bought frame is the riverside. Really, really cheap bike from Kmart. Much more sedate then your frame but was thinking of making a jig using that frame as a templet. But liking the look of yours much more.


    Way OT but every time I see your avatar, "I'm Mr. Heatmiser. I'm Mr. Hundred and One" starts playing in my head. Now we just need some one with a Mr. Snow Miser avatar.
    (hehe, so we can race em)

    #91 Dan, Jan 25, 2014
    Last edited: Jan 25, 2014
  12. Intrepid Wheelwoman

    Intrepid Wheelwoman New Member

    Joined:
    Oct 29, 2011
    Messages:
    2,831
    Likes Received:
    1
    Your frame looks seriously impressive. Very nice work considering that you weren't using a jig. This bike is going to be a beast.

  13. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    You don't need a jig at all. You do need a laser or lasers, a protractor, a saw horse, a vise and some bubble levels. All can be had at Home Depot. You also need a lot of patience because it can be a bit nerve racking without a jig. You need to step way back from the bike frame and check it for straightness from multiple views.

    I had no drawings, no sketches, no blueprints, and very few concrete measurements at all. I knew I had 13" from the ground to the center of the bikes hubs. I also knew the overall length from front tire to rear tire edge I was going for was 84". Seat height was to be no higher than 30" and the seat tube tube and down tube angles were already predetermined by the motor mount. That's all I knew going into this.

    I said I was bringing "The Heat" on this build and nobody brings the heat quite like Heatmiser does. He's a timeless classic. LOL

    #93 miked826, Jan 25, 2014
    Last edited: Jan 25, 2014
  14. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    I made a few mistakes but they are really only visible to me cause I know exactly where they are. It ain't easy with rudimentary tools but it can be done with a lot of patience and stubbornness.

    "Beast" seems to be the 1 word that comes to people minds. Looks like it will weigh 80 lbs. with no engine installed.

    All I know is with only 16 PSI in those tires, it will haul nearly 500 lbs. of people and machinery down the road.

  15. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4

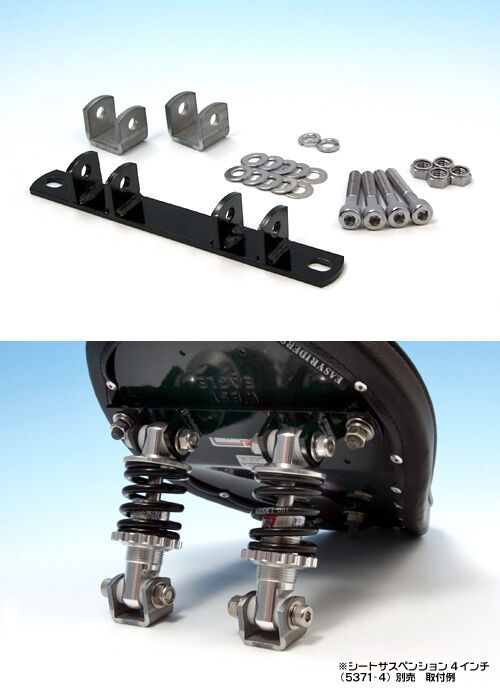

    Next task on my checklist are some dual seat shocks, cause I've already more than earned it.

    [​IMG]

  16. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,646
    Likes Received:
    65
    That is a really serious looking seat!

    Hey, dumb thought. Stores like Staples and the like sell printable magnetic sheets that work with home and office printers. Heat Miser would look really cool adorning your tank.....

    (Heat Miser looks an awful lot like my 9th grade english teacher and has a similar manner, snork)

  17. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    It is a serious seat indeed that is normally found on a chopper.

    I likes the Heat Miser (Mr. 101), but not enough to ride around with his mug stuck on my tank. LOL

    Here he is!

    http://www.youtube.com/watch?v=wbfgVEk-mxQ

  18. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Added another slot to the fork dropouts to push the front wheel back a bit to get rid of the chopper-ish rake I created. It think it did the trick.

    [​IMG]

    I'm Mr. Heat Miser, I'm Mr. 101! LOL

    [​IMG]

    #98 miked826, Jan 26, 2014
    Last edited: Jan 26, 2014
  19. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    All weld seams will be blended and reinforced with Kevlar impregnated fiberglass. Cause I don't want or need any surprises. A 1/4" plate gusset will hopefully keep the head tube right where it is. I really need that tube to stay put.

    [​IMG]

    #99 miked826, Jan 27, 2014
    Last edited: Jan 27, 2014
  20. miked826

    miked826 New Member

    Joined:
    Aug 6, 2011
    Messages:
    1,748
    Likes Received:
    4
    Bike now suspended by nothing but the wheels! Sounds trivial, until you realize there is no axle made that's remotely wide enough to give 8" (200mm) of clearance between the dropouts. It simply does not exist. Neither does a 3/8" threaded rod with 26 TPI. Who's the @sshat that came up with the 26 TPI idea? I'd like to have a word with him. 24 TPI can be had anywhere but not 26. What an ordeal I had to go through because of that.

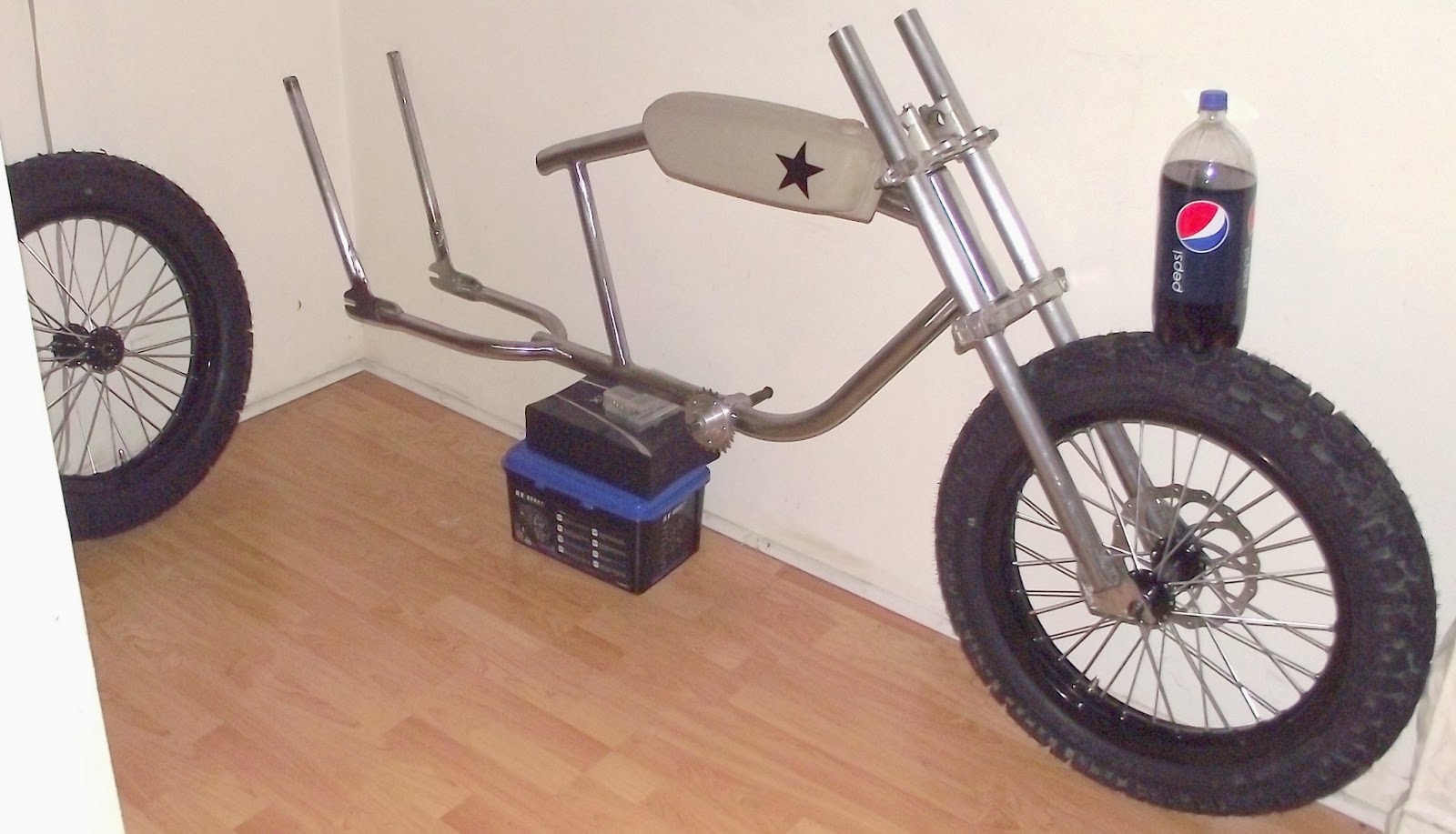

    I've now, Crossed the Rubicon. LMAO

    [​IMG]
