54 Schwinn 24'' DX My Next Race Bike

Discussion in 'High Performance Bicycle Engine Tips and Motorized' started by msrfan, Jul 30, 2011.

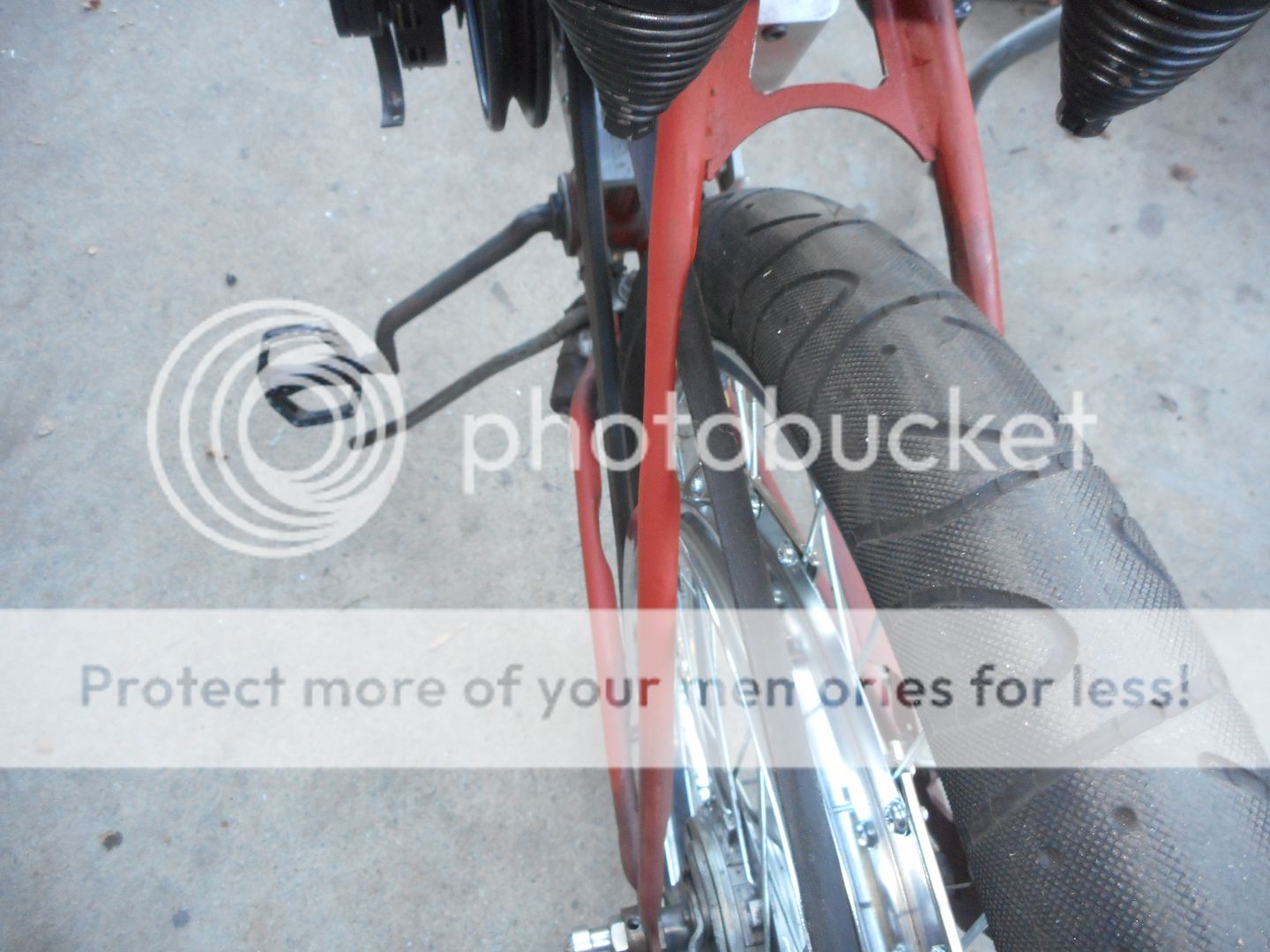

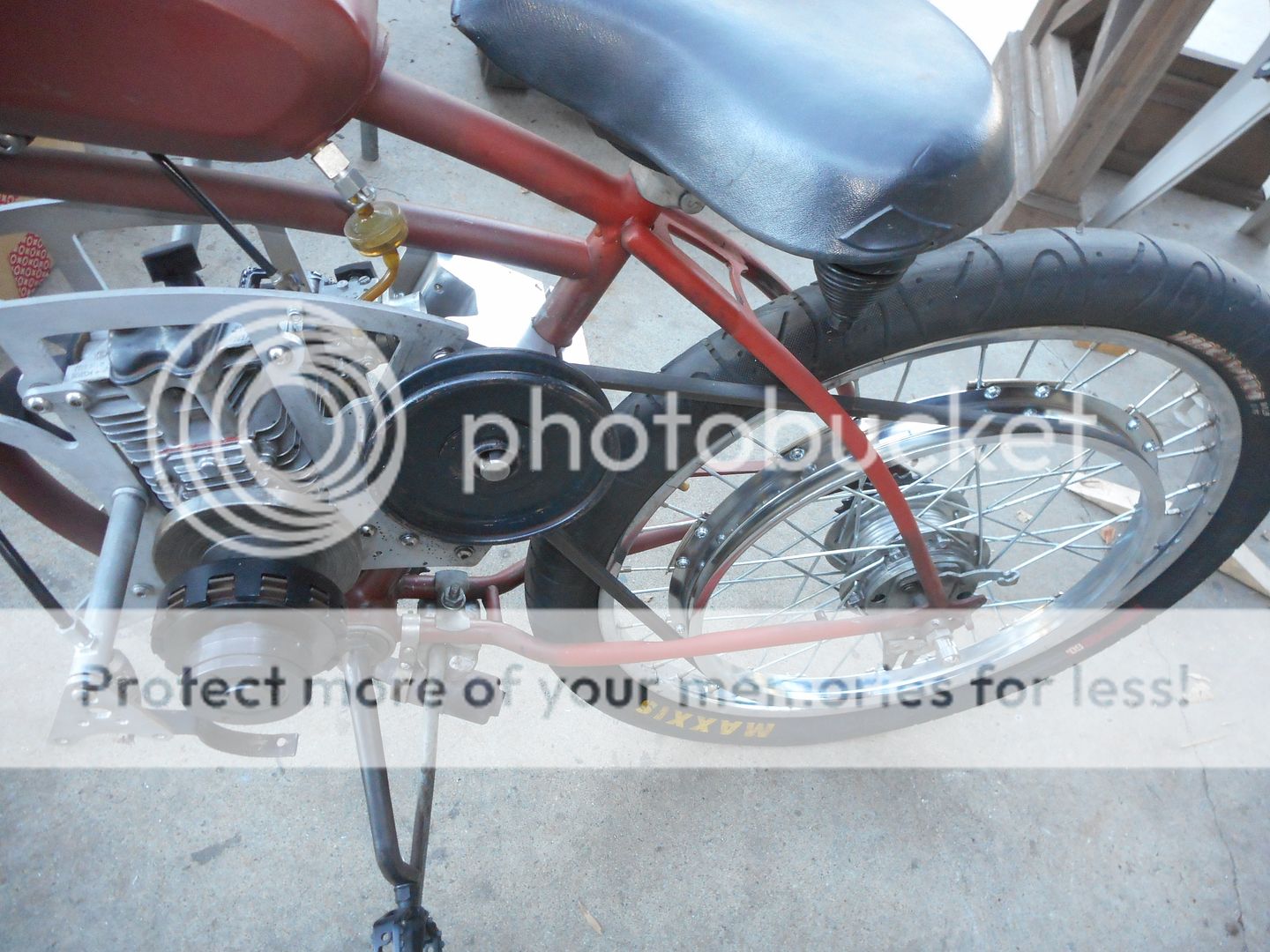

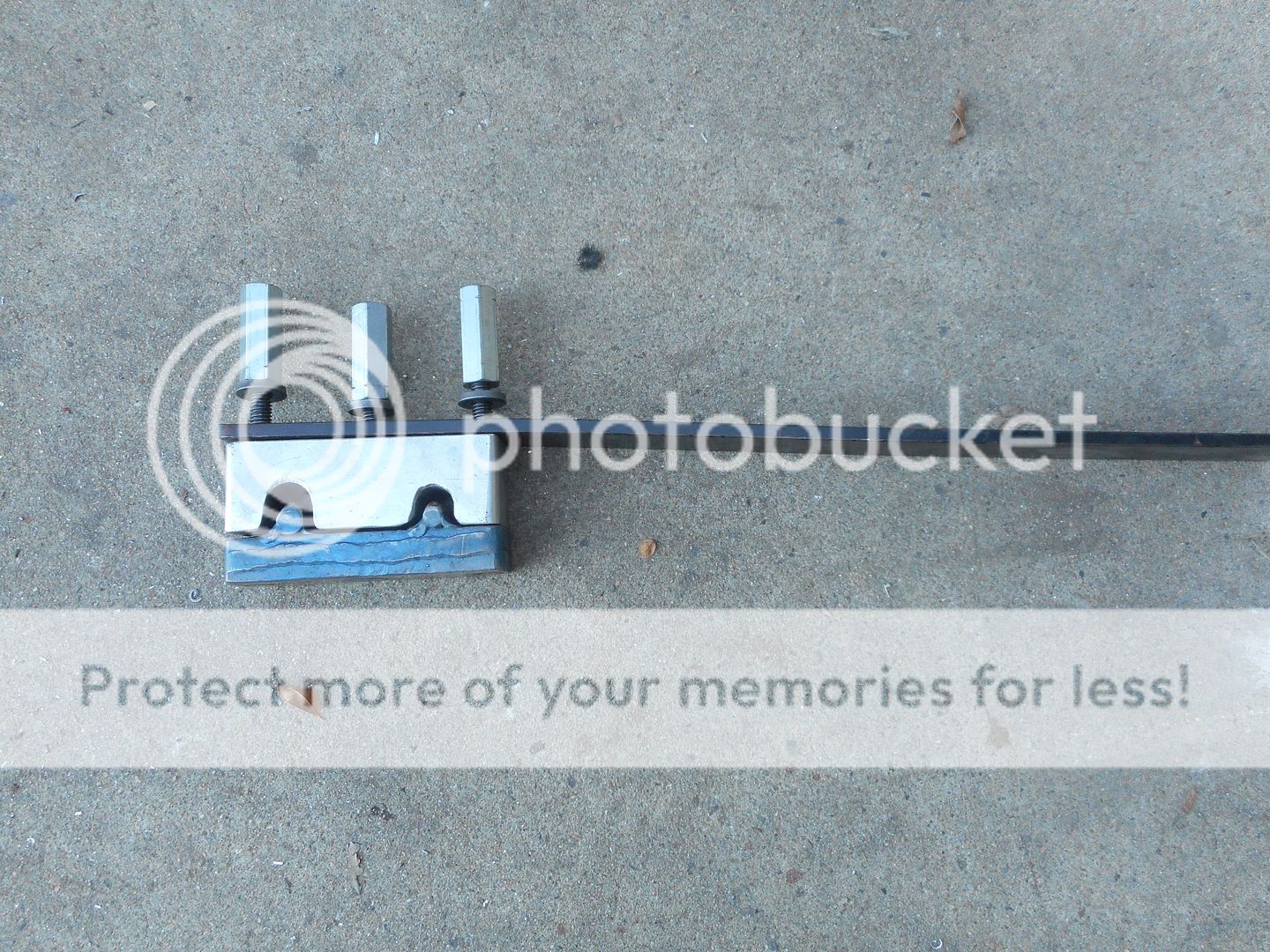

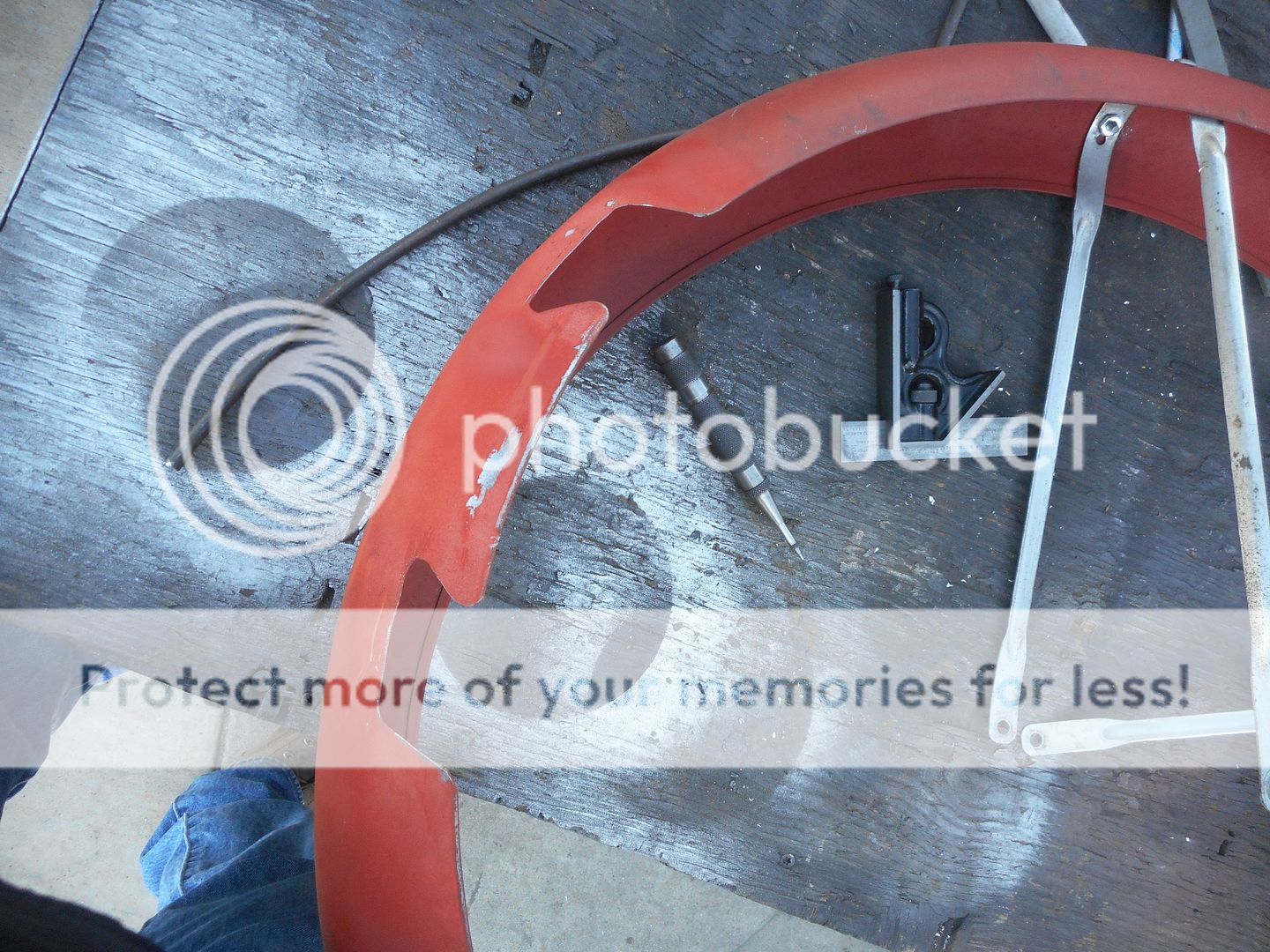

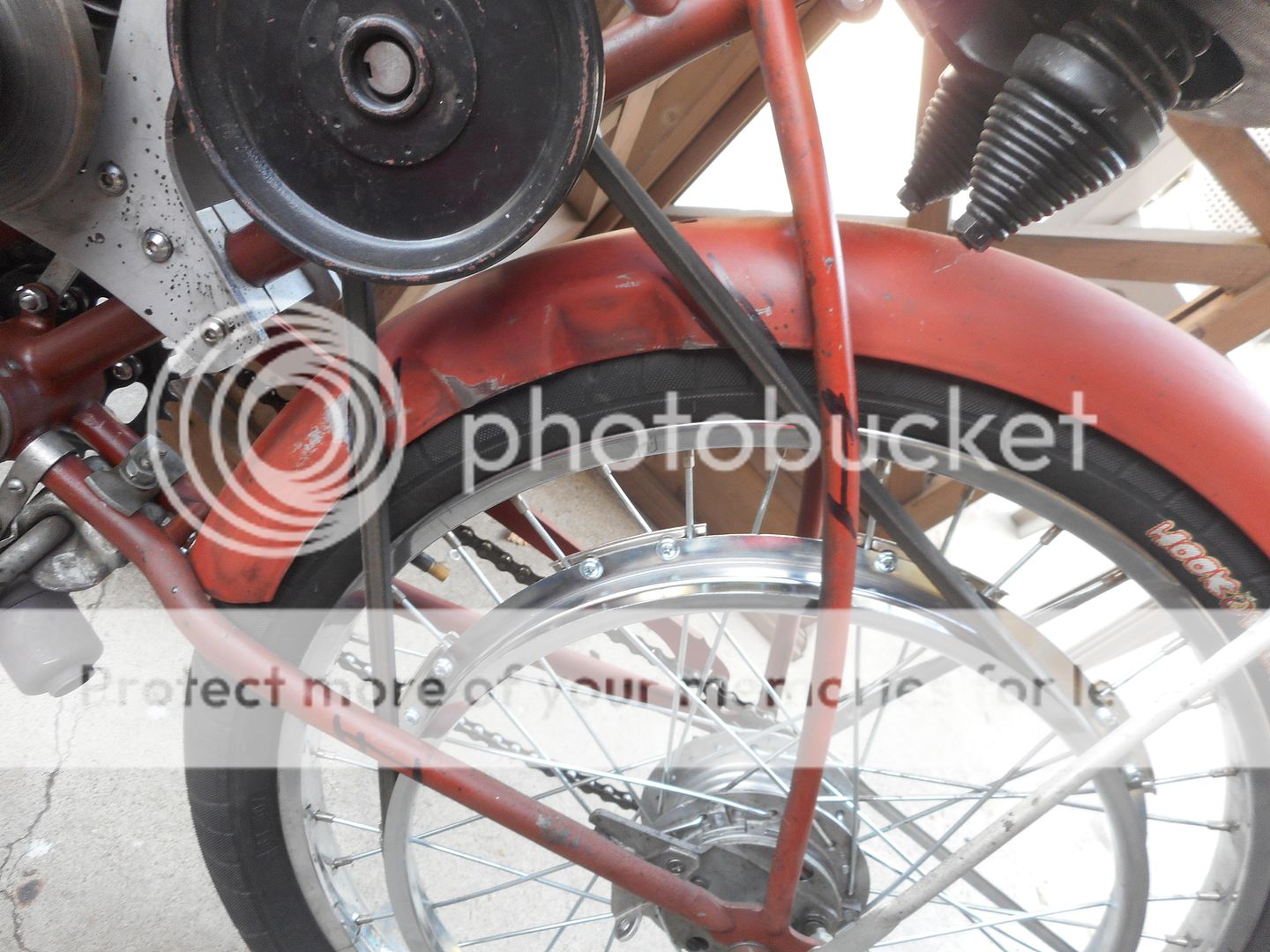

  1. Venice Motor Bikes

    Venice Motor Bikes Custom Builder / Dealer/Los Angeles

    Joined:
    Mar 20, 2008
    Messages:
    6,165
    Likes Received:
    14
  2. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,912
    Likes Received:
    12
    KOOL BEANS! will remember that. ................Curt

  3. 3dmotorsportLLC

    3dmotorsportLLC New Member

    Joined:
    May 13, 2016
    Messages:
    33
    Likes Received:
    0

    Real nice job on the modification. Would you be able to tell me what the ratio's of your current clutch lever are? I'd like to know distance between the pivot and the cable barrel, and also distance between the pivot and right around where your ring finger would be on the lever. Curious to know how close your ratios are to the EZ pull lever we sell.

  4. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8

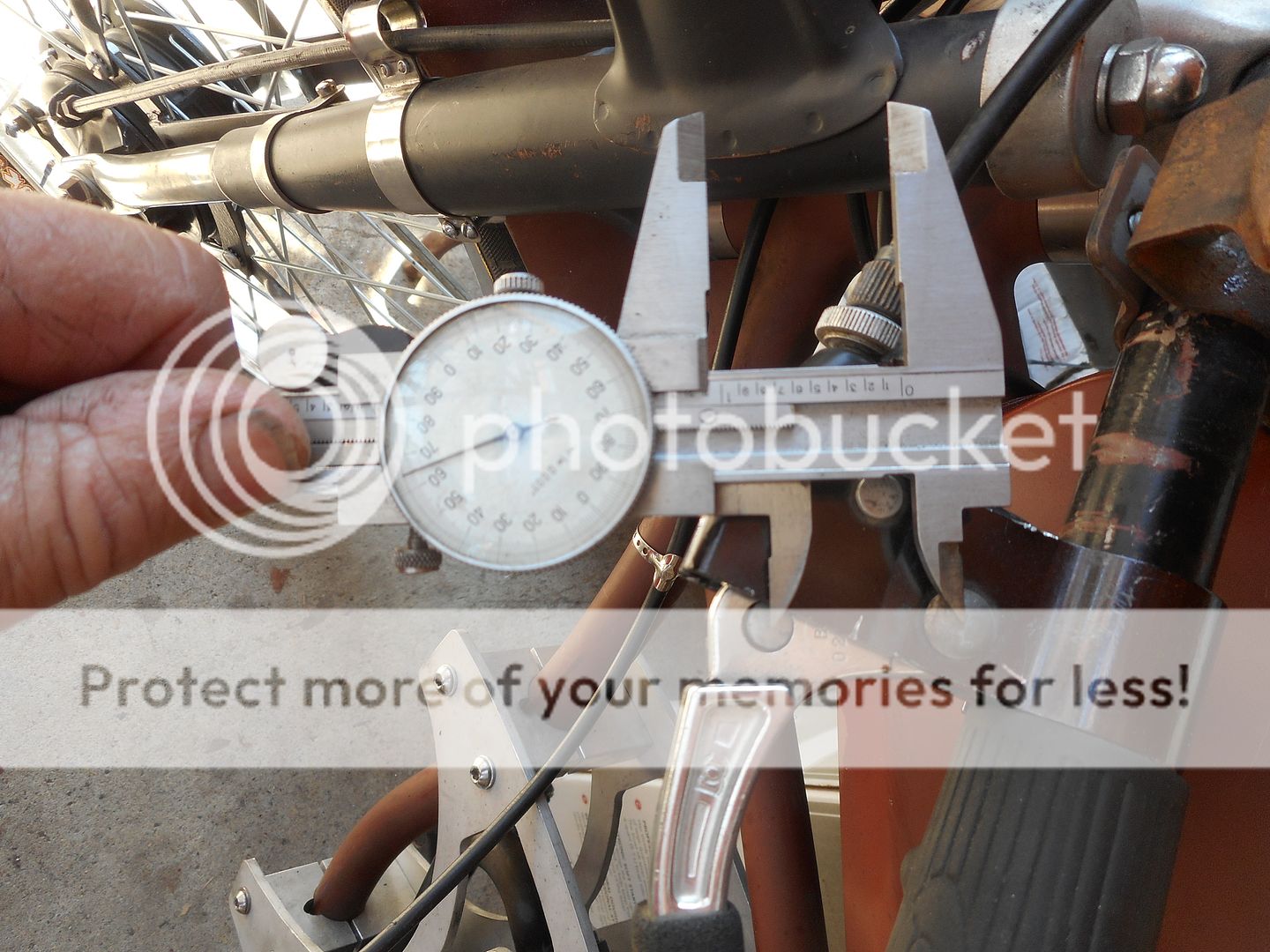

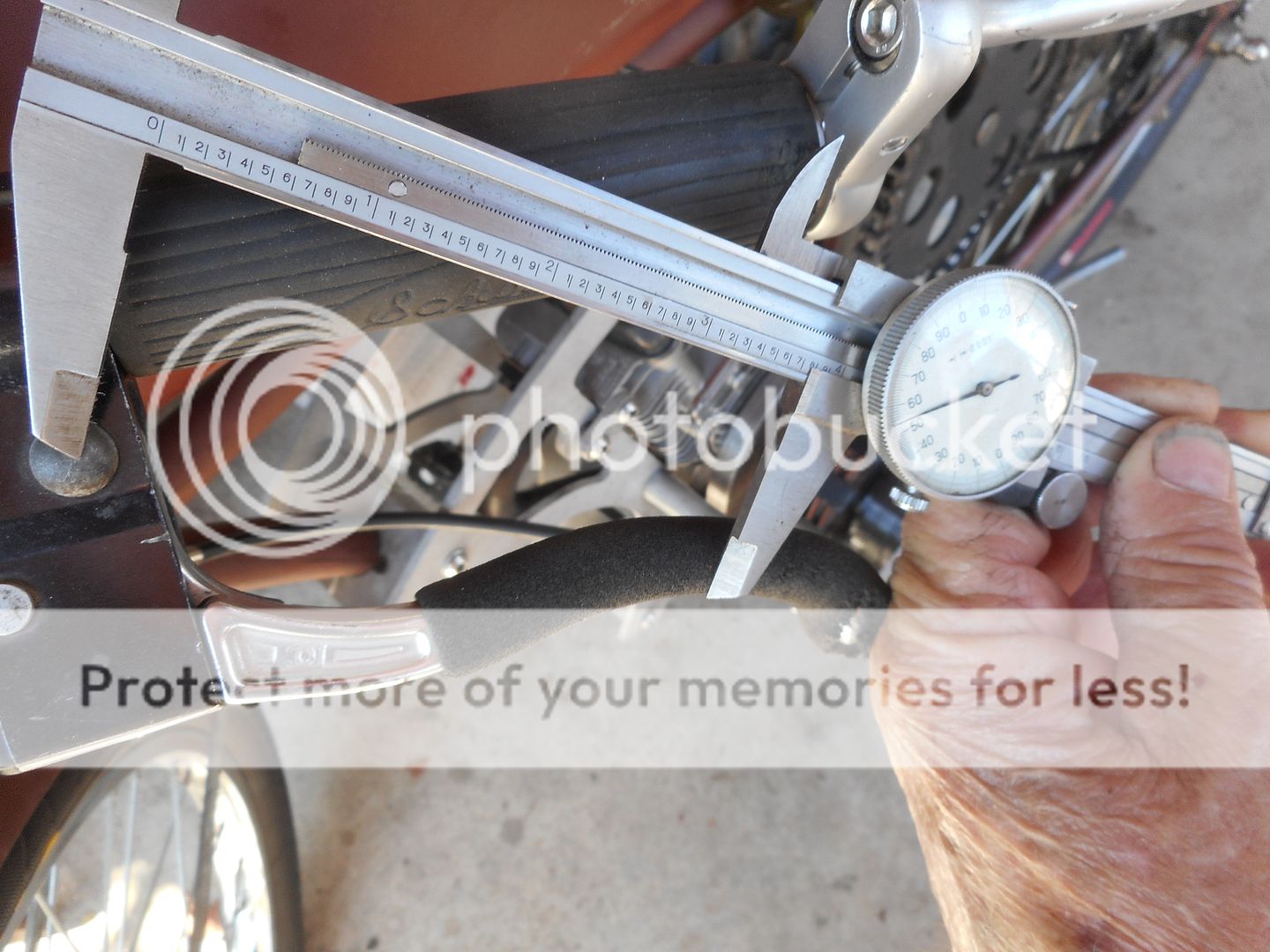

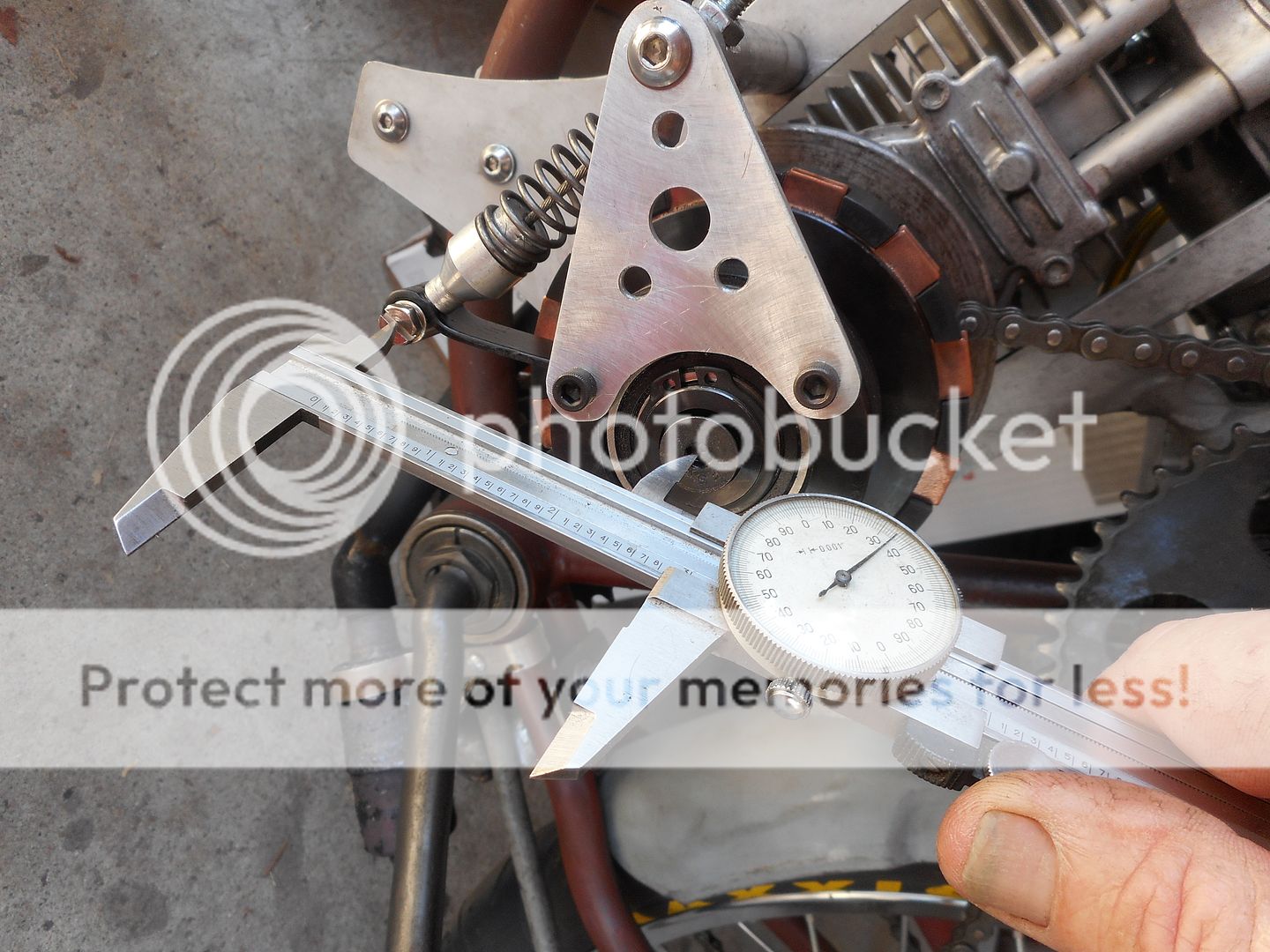

    Sure. Lever pivot to cable barrel around 1.065, pivot to ring finger 3.753 or so and clutch center to cable stop barrel approx. 2.835.



    [​IMG]



    [​IMG]


    [​IMG]

  5. MotorBicycleRacing

    MotorBicycleRacing Active Member

    Joined:
    Jul 28, 2010
    Messages:
    5,661
    Likes Received:
    20
    Dale, Awesome bike!!!

  6. 3dmotorsportLLC

    3dmotorsportLLC New Member

    Joined:
    May 13, 2016
    Messages:
    33
    Likes Received:
    0
    Thanks for the info. Here is the specs for our EZ pull lever:

    Distance between pivot and ring finger: 5"
    Distance between pivot and cable barrel: 3/4"

    The EZ pull lever gives about 6.6:1 ratio between movement of the lever and rotation of the actuator.

    Your setup without the extension provided a 3.5:1 ratio. With the extension, you're at 7.7:1.

    I'm sure that given your low power output, the 7.7:1 ratio is a huge advantage.

  7. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8

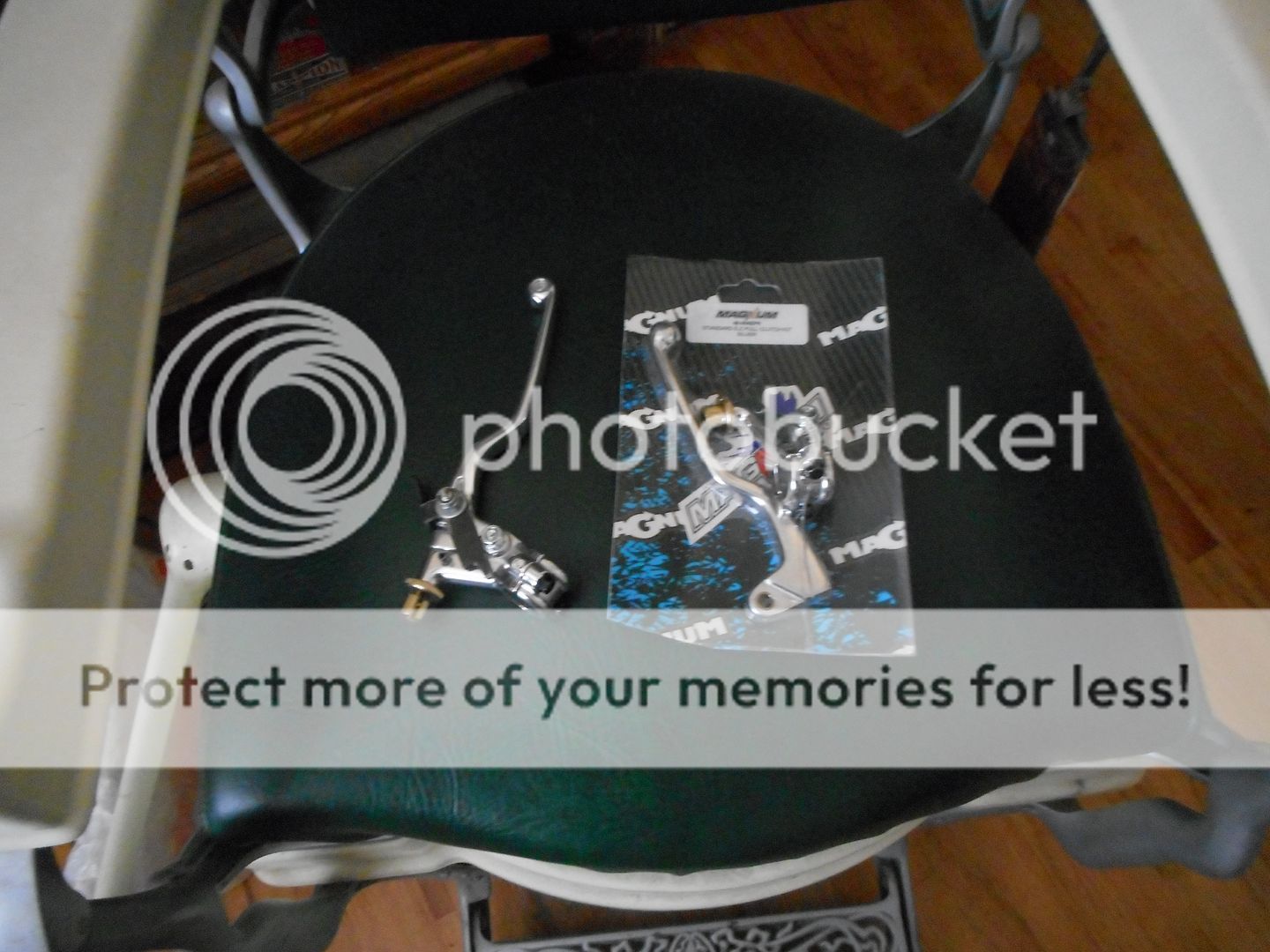

    I just received my new levers from 3D Motorsports. Quality is tops. One has a locking button for the clutch and I'm using the regular one for more leverage on my front brake, plus they match. I'm going to try to install a spring on the lock out lever to return it to unlocked position so it will snap back on it's own instead of having to push it the opposite way to release.



    [​IMG]

  8. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8

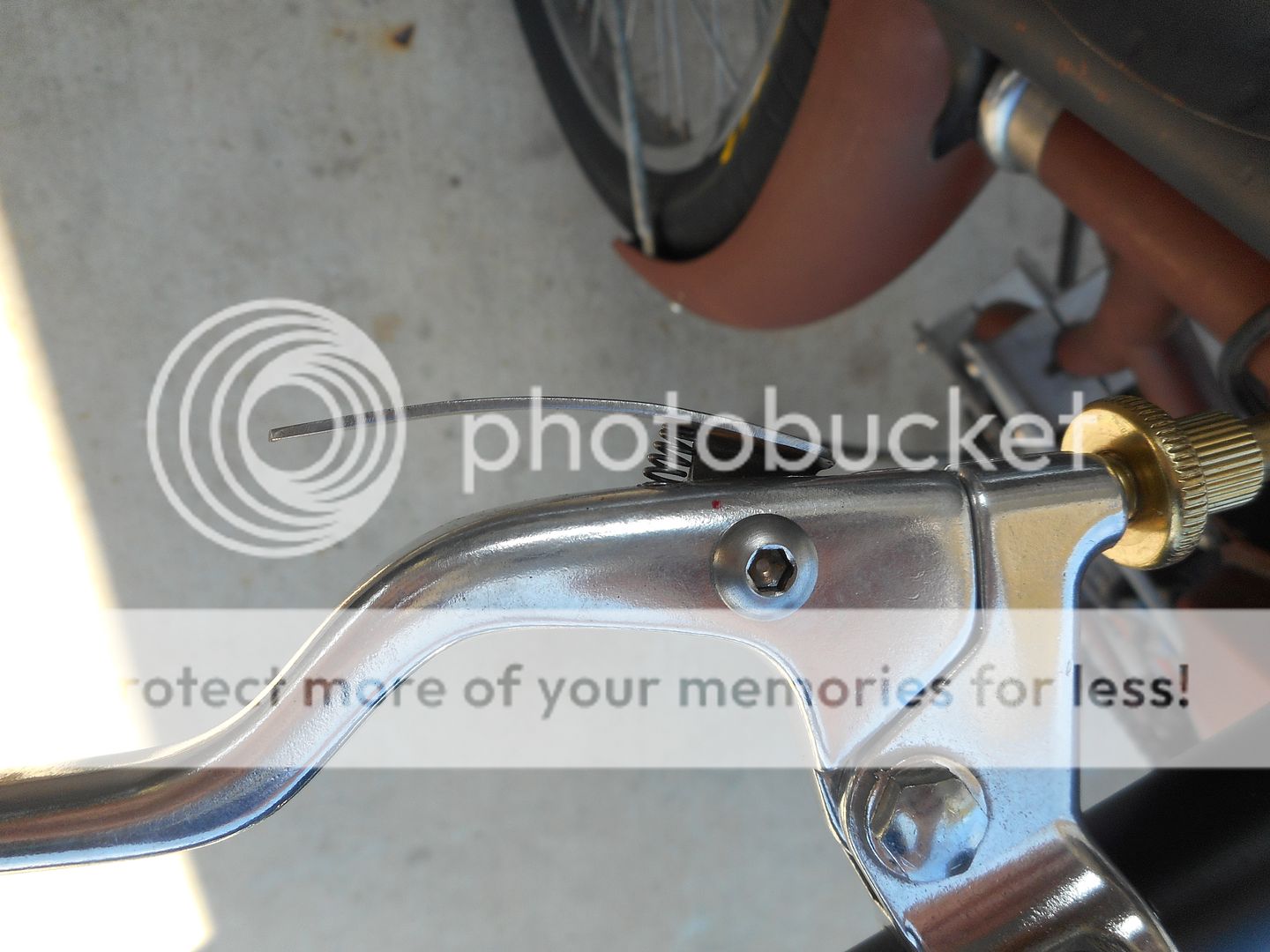

    I modified my new lockout clutch lever with a return spring and will be installing it soon.




    [​IMG]

  9. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8

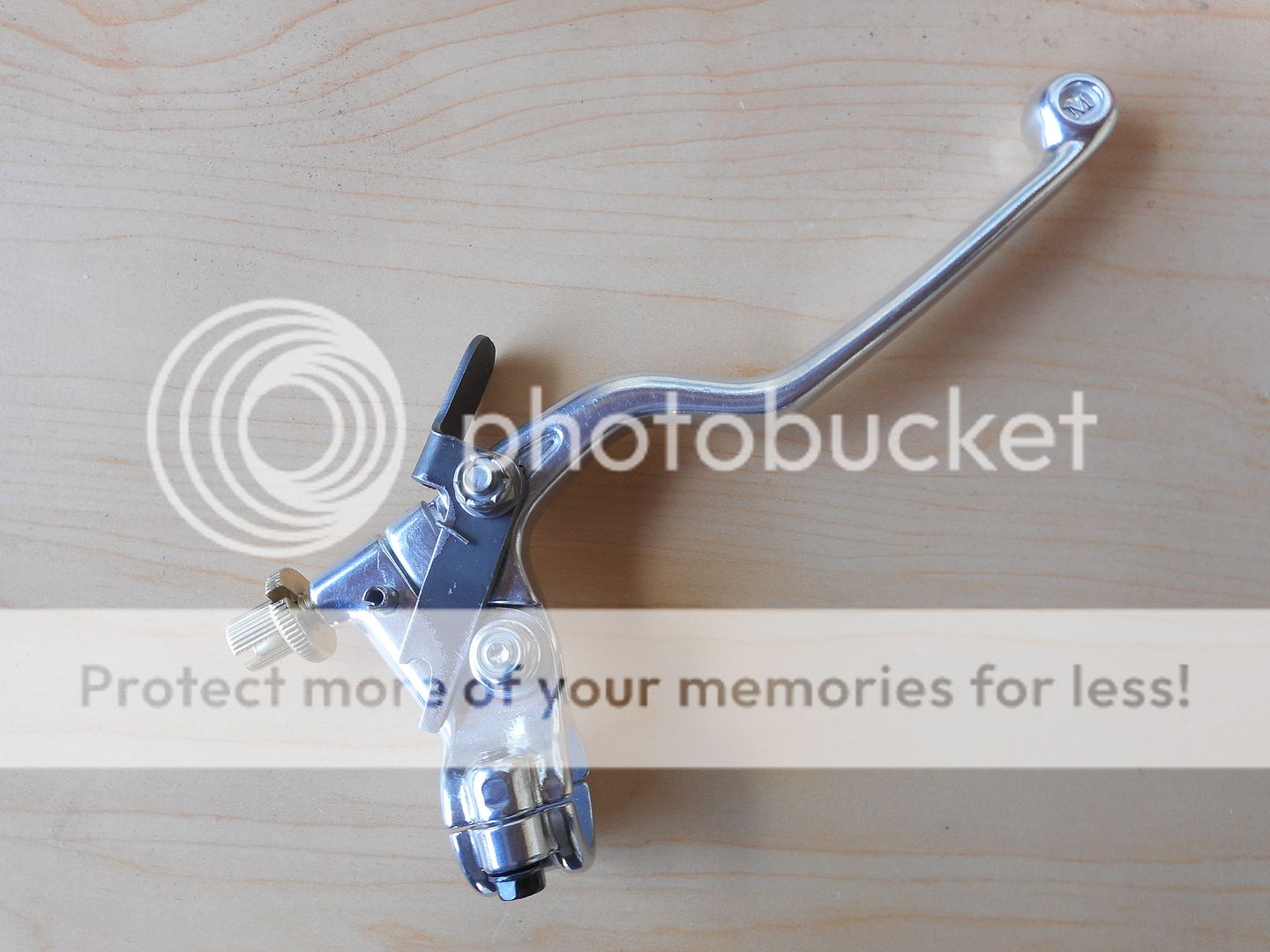

    Here's my new lever. Much better fit and improved spring return.


    [​IMG]


    [​IMG]

  10. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,912
    Likes Received:
    12
    KOOOOOOOOOOOOOOL like it a lot better ...........Curt

  11. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8
    Thanks Curt, and it's feels soooo good on the finger.

  12. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,912
    Likes Received:
    12
    I bet it does, have to remember this if i get a 3 D. Mighty cool stuff you do...............Curt
