4 stroke with sickbikeparts jackshaft

Discussion in '4 Stroke Bicycle Engines & Kits' started by toker_ace, Nov 2, 2013.

  1. xXNightRiderXx

    xXNightRiderXx Active Member

    Joined:
    Jan 12, 2017
    Messages:
    383
    Likes Received:
    54
    There should be an aluminum block with four threaded holes, and four allen head bolts. That block goes between the two sides of the jackshaft mount.

  2. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,400
    Likes Received:
    3,219
    Guys I'm getting confused with the terminology used for rear drop outs. Vertical dropouts allow the rear axle to be removed like the front fork, pretty much straight down. It's the axle style used for 21 speed etc. bikes with derail. drive trains for which it's wonderful, but it's lousy for single speed motor powered bikes p.m. me if you want to read the book of why this is.

    The horizontal rear axle drop slot is parallel to the ground and the axle slips out by pulling straight to the rear of the frame. This allows easy wheel removal and allows two chain adjustment by simply altering the rear axle position. The slot for this is cut horizontally relative to the ground and the vertical drop is at 90 degrees relative to the ground. Chain adjustment can't be made by moving the axle in the vertical drop design as the axle is always locked into the drop slot.

    Terms now defined: it's literally impossible for the rear axle to slip off on the vertical slot drop out. The axle could fall out if the bike got airborne and the axle was very loose, but it can't slip off unless the drop plate fractures and separates from the frame.... one in a billion chance that happens.

    The horizontal slot that is preferred for motor bike construction, can come loose if not properly tightened, but as for the wheel falling off, not going to happen: if the chains are on and properly adjusted they will hold the wheel in the slot, and in addition if you are using a coaster brake the brake lever frame band will keep the wheel on. If you're not riding under the influence you should notice something is wrong back there long before damage occurs, the first major event would be chains breaking or one or both chains jumping sprocket. You should feel the bike getting wormy long before these things occur though.

    Components located on the seat post that deal with drive train can't be allowed slip, twist or break. If you're not an accomplished welder hire one, some bolt on stuff is fine but typically pricy as well. Study forum builds that are designed like what you want to use and learn stuff, ask these builders what they used etc. Private message is usually the best way to get a response from forum members.

    Have fun,

    Rick C.

  3. MotoMagz

    MotoMagz Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    1,641
    Likes Received:
    628

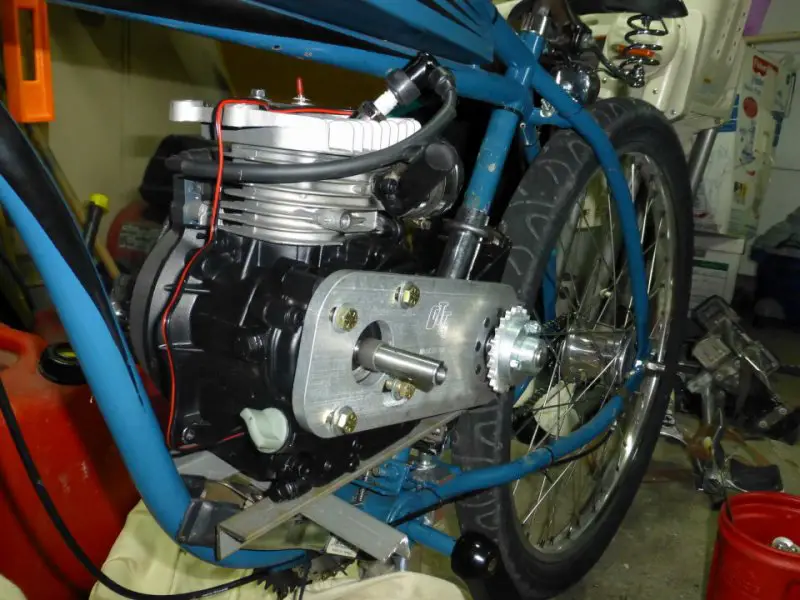

    Yes Rick welding is best! But there are a few things u can do if you can’t get the welding done. Instead of the U bolt use another muffler clamp (s) base and some nice bolts lock washers and nuts.. the clamp is now 2 bases then if you can find a old fork or pipe you can cut in half the long way. Put these 2 pieces of pipe under clamps and you can tighten the **** out of it without crimping your seat post tube.Heres a picture of pipe under a normal clamp


    Attached Files:

    waynesdata and indian22 like this.
  4. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    5,009
    Likes Received:
    1,370
    Another way, but would have to be welded, or soldered, is like you said 2 pieces of pipe split. If it is in permeate location, weld one half to the post, then clamp. It still can move up and down some, but can't twist........Curt

    #84 curtisfox, Oct 17, 2019
    Last edited: Oct 17, 2019
    indian22 likes this.
  5. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,400
    Likes Received:
    3,219

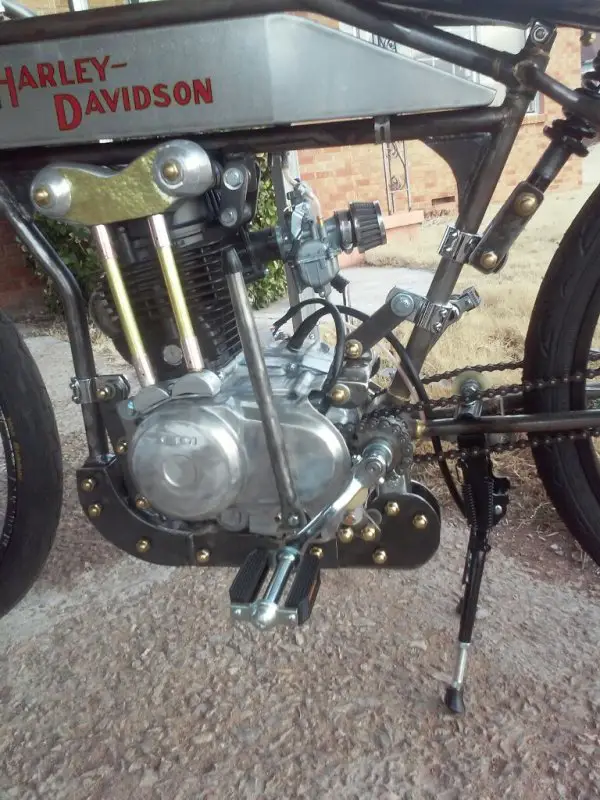

    Harley 3 piece tube clams.jpg

    Good tip Moto and tube crushing is what needs to be prevented using clamps the method you describe works really well, looks nice and is economical.

    I typically insert and extra length of saddle tube inside the seat post to give added strength to the seat post and also prevent crushing of the post. I use a lot of Harley Davidson 3 piece tube clamps on 7/8", 1",1 1/8", 1 1/4" & 1 1/2" tubing with no kinking, but on the seat post I still use the extra saddle tube dropped inside the seat post for additional strength for the post. These clamps are 'kinda pricy but won't ever slip and because of their design won't crush even thin bike tubing. They really look nice as well.

    So yes welding skill isn't always necessary to make a secure tube frame connection. If you have the equipment and skill it is the least expensive...and it's also quite strong.

    Many solutions to a lot of our construction questions, just select one and do it.

    Rick C.

    #85 indian22, Oct 17, 2019
    Last edited: Oct 17, 2019
    waynesdata likes this.
