Sportsman 80 because it has a 79cc Harbor Freight engine. I have floated pictures of this bike around while it's been going through development, but after the lastest couple improvements I can say it's (possibly) finished! I have added a simple clutch guard, increased the size of the second primary drive sprocket, and added a real exhaust pipe. Ever stuff a set of headers on a muscle car? Same effect here. Louder and faster! Just the pipe alone has increased the cruising speed by 8-10 mph. So my internally stock HF79cc engine with 19mm Mikuni and performance intake and exhaust can cruise at 40 mph. It is really a go anywhere bike! It's fast, smooth, very easy to start, handles great and is super strong.

Sportsman 80 by Sportsman Flyer, on Flickr

Clutch guard, exhaust system, and modified gearing so it will rev. My calcs at 40 mph show 6000 rpm.

Sportsman 80 by Sportsman Flyer, on Flickr

Probably the coolest feature is the entire engine package is a bolt-in. The engine cradle straps to the frame and carries the engine and the engine mount bracket has about 1 1/2" of adjustment for chain tension.

Sportsman 80 by Sportsman Flyer, on Flickr



[azbill]

very nice, as usual, for anything out of your shop !!!



[wheelbender6]

Your HF engine looks a lot like a Jawa speedway engine the way you mounted it with the cylinder vertical. Beautiful build.



[silverbear]

A+, as always.
SB



[RicksRides]

I concur with the bear. SB, I was listening to the radio the other day they were playin an old Jim Croce song " Hard time losing man" 1 of the lyric is "Sometimes you eat the bear sometimes the bear eats YOU.

Pat as always FANTASTIC work!!!!



[curtisfox]

This is a AWESOME build, proof you don't need a big engine to build a good bike. Is that exaust pipe strieght through or do you have baffles in it?............Curt



[culvercityclassic]

Nice clean reliable ride Pat. I like that exhaust setup. Single disk 5/8 Bully clutch?



[sportscarpat]

Thanks for the comments, guys. I agree about not needing a big engine. With my bigger bikes I kind of limit where I ride, staying out of the busy areas. This thing is so legal I ride it anywhere and don't worry about it.
Exhaust is a couple long elbows so they have straight sections on either side of the 90. Welded together they are a perfect length for a forward facing pipe. Just roll each 90 where you want it to point and then weld together. I used a 1" kart muffler that is straight through with a couple perforated screens inside and no packing material. A little loud but acceptable. Actually sounds really cool!
I did find after some extended runs at 40 mph that the engine vent hose would drip a little oil. I mounted a catch can in the tool box last night. I also went back to the stock 12 oz of oil. I was running 14 oz. I hate oil drips on my driveway. I think we have put the vertical cylinder and oiling issues to rest. I have never had a lack of oiling issue. I know, long rant. Just trying to share what I have learned. That's why were here, right?
Oh, the clutch, yeah it's a custom single disk Bully with 5/8" bore made special for the HF79cc engine. Set at about 3000 rpm engagement to let the little engine spin up a bit before lock. Works great!



[curtisfox]

so you must be useing 1" pipe, what size is the engine port hole? or did you hone it out? Use old north woods guys have to learn to



[sportscarpat]

so you must be useing 1" pipe, what size is the engine port hole? or did you hone it out? Use old north woods guys have to learn to

No porting on this engine. 1" o.d. .065" tube for the exhaust. Pipe is too heavy wall.



[runnermike]

What tooth is that clutch?



[curtisfox]

What tooth is that clutch?

how about all the sprockets teeth count, thanks.........Curt



[fasteddy]

My thought when I first saw it was that the motor was a perfect size for just riding around and enjoying it. For my way of thinking and my needs I could add a sidecar to it and it would still have plenty of power to carry two people I would imagine.

Of course it would require all stops being pulled out to make a sidecar that would be equal in beauty to this bike but I may be up to the task. Then again if my son heads out to South America on his motorcycle this fall as he plans he may find someone who does wicker and rattan and I could get a flashy wicker sidecar built and shipped.

I think a Sportsman bike from Worksman is in order this fall and then work from there and just when I thought it was the right time to retire.

Steve.



[silverbear]

My thought when I first saw it was that the motor was a perfect size for just riding around and enjoying it. For my way of thinking and my needs I could add a sidecar to it and it would still have plenty of power to carry two people I would imagine.

Of course it would require all stops being pulled out to make a sidecar that would be equal in beauty to this bike but I may be up to the task. Then again if my son heads out to South America on his motorcycle this fall as he plans he may find someone who does wicker and rattan and I could get a flashy wicker sidecar built and shipped.

I think a Sportsman bike from Worksman is in order this fall and then work from there and just when I thought it was the right time to retire.

Steve.

Oh boy! I can see it now with a wicker sidecar...
SB



[runnermike]

Hey Pat

What type of tubing is that you used for the exhaust? I know its 1" O.D., but it almost looks like copper.....

The exhaust looks sweet!



[sportscarpat]

Hey Pat

What type of tubing is that you used for the exhaust? I know its 1" O.D., but it almost looks like copper.....

The exhaust looks sweet!

I was a pipe fitter and welder for a few years working with thin wall stainless tube. The 1" o.d. tube is 304 stainless in .065" wall. I tig weld it. Here is a close-up of the pipe on my bigger bike. Lot's of joints here so this one takes time to fit and weld.

Keystone Flyer by Sportsman Flyer, on Flickr

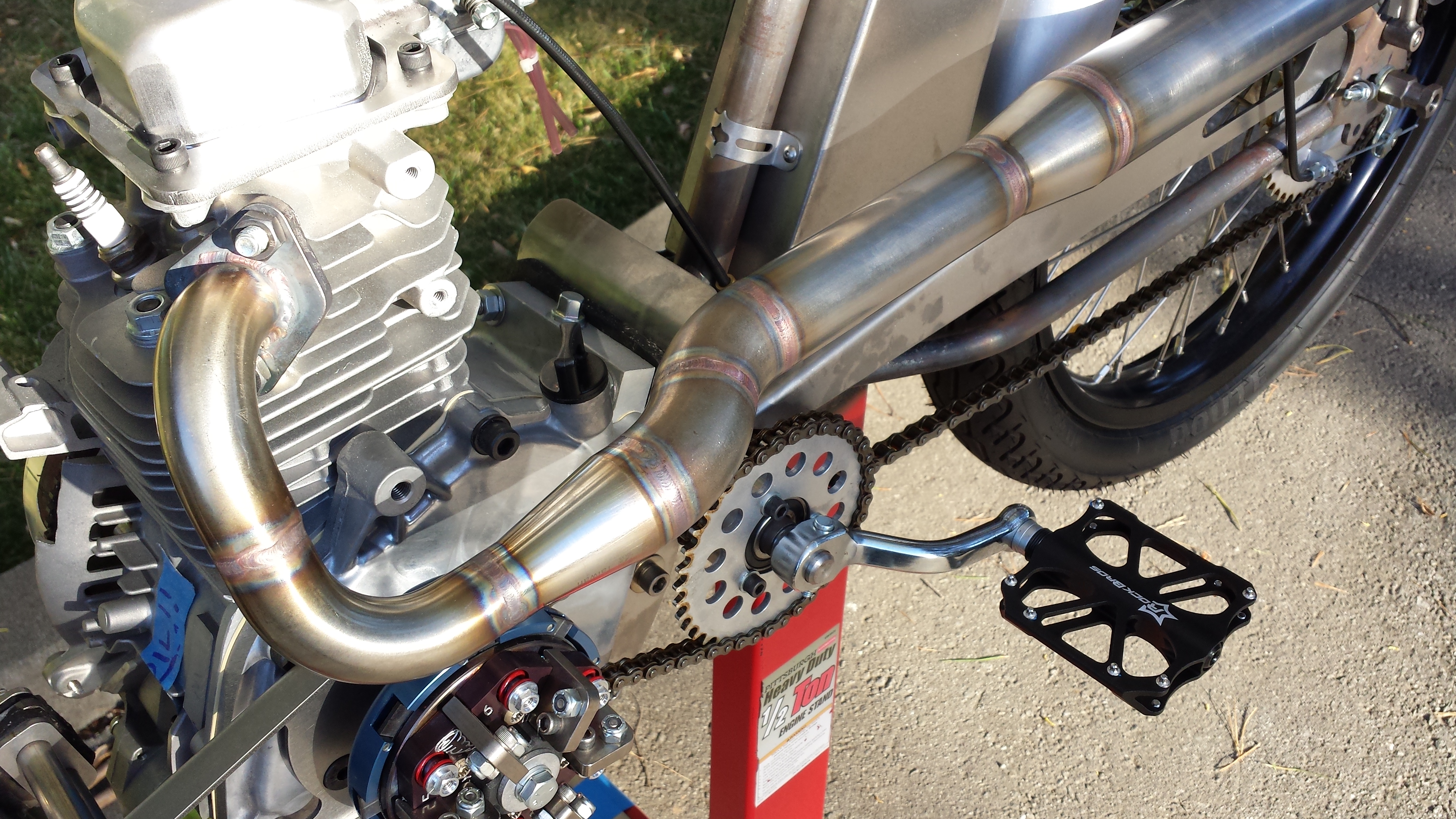

The copper color shows up after a few heat cycles. Here is the 80cc pipe. Short but sweet. One weld at the flange and one butt weld between the two fittings. Doesn't get any simpler than this!

Sportsman 80 by Sportsman Flyer, on Flickr



[runnermike]

Thanks Pat!!



[Mr.B.]

I aspire to possess those welding skills someday!!!

-Kirk
