Alright guys. Today was my birthday and I woke up to $200 of my debt being forgiven and the promise of a set of ape hangers for this build. I spent some time, and some effort mocking up where I would put the various bags and military items I bought on the bike. I started purchasing hardware for mounting the bags and the canteen fuel tanks. I had some trouble finding the fittings that I needed to merge two fuel canteens into one line. I found a source online and will get the fittings, and a whole bunch of other parts for the bike tomorrow. Sorry if my thoughts are a little scattered right now, it's been a long day. Here are some pictures of the mock up with all the things more or less where I want them but hung with twine. Hope you like
Alright guys. Today was my birthday and I woke up to $200 of my debt being forgiven and the promise of a set of ape hangers for this build. I spent some time, and some effort mocking up where I would put the various bags and military items I bought on the bike. I started purchasing hardware for mounting the bags and the canteen fuel tanks. I had some trouble finding the fittings that I needed to merge two fuel canteens into one line. I found a source online and will get the fittings, and a whole bunch of other parts for the bike tomorrow. Sorry if my thoughts are a little scattered right now, it's been a long day. Here are some pictures of the mock up with all the things more or less where I want them but hung with twine. Hope you like
Looking good Luke.. Cant wait to check it out in person. What size apes are you planning. I have 2 brand new sets hanging in the basement. they are the size that I used on the 53 Schwinn, Im looking for a set of cruiser bars if youd want a trade.
Canteen gas tank mount
Hi all, this morning I started fabricating my mount for the canteen gas tanks. I used the propane torch and some flat stock, and I rigged up my vice so I had a 15/16" socket wired to one jaw, and a carved out wood block wired to the other. I heated the metal until red and then I clamped it so that I made bends in the metal half the diameter of the bikes downtube. Then I just bent the rest to shape and put some screws in it, it isn't finished or painted but it's getting there. Enjoy
Hi all, this morning I started fabricating my mount for the canteen gas tanks. I used the propane torch and some flat stock, and I rigged up my vice so I had a 15/16" socket wired to one jaw, and a carved out wood block wired to the other. I heated the metal until red and then I clamped it so that I made bends in the metal half the diameter of the bikes downtube. Then I just bent the rest to shape and put some screws in it, it isn't finished or painted but it's getting there. Enjoy
This might be overdoing it a lil bit, and they are expensive, but thought you might enjoy:
Amazon.com: Sweetskinz 26 Signature Mountain Bike Tire: Sports & Outdoors
Amazon.com: Sweetskinz 26 Signature Mountain Bike Tire: Sports & Outdoors
Go ahead and build a military bike, I'm in love with military design and would never be the one to discourage someone who also likes that look Glad you like him! His name is still Cogsworthy even though he has changed A LOT since the original Cogsworthy. I had a dog tag made for him that is on the seat post

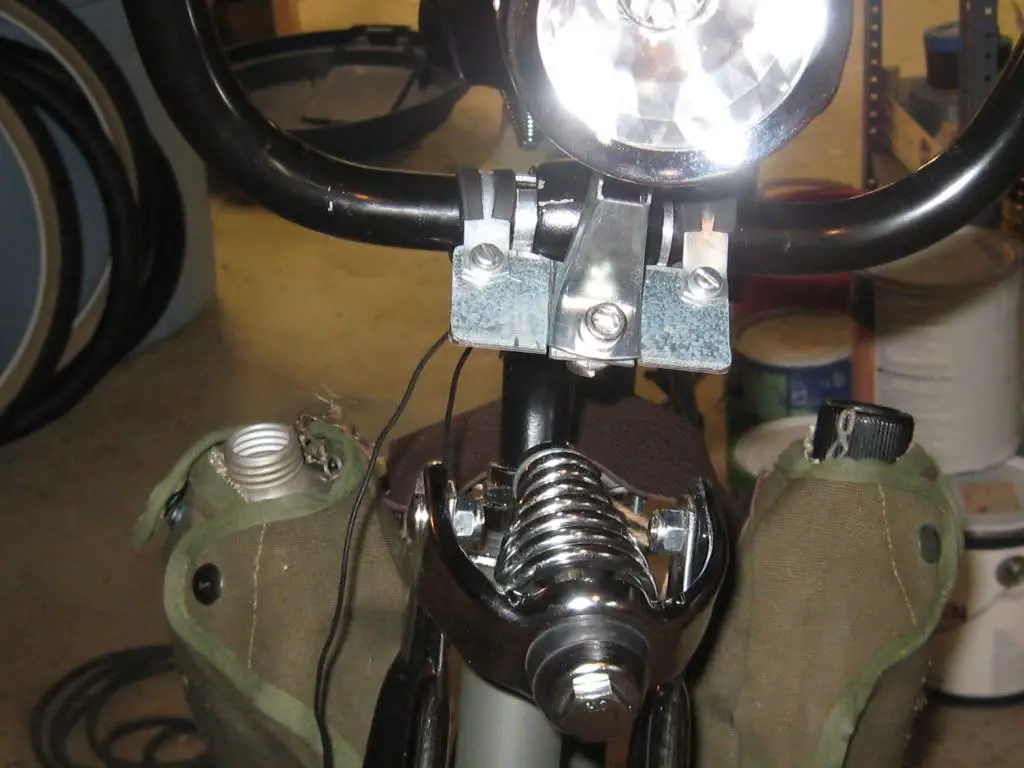

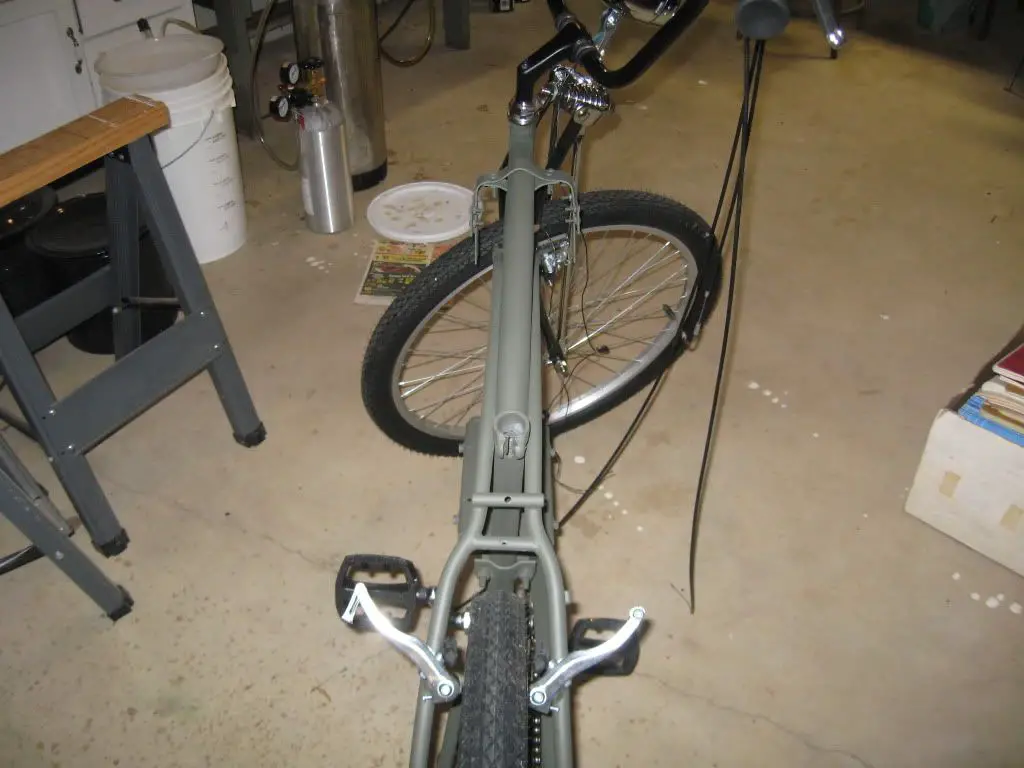

Glad you like him! His name is still Cogsworthy even though he has changed A LOT since the original Cogsworthy. I had a dog tag made for him that is on the seat post Well, I've been doing more work on the bike and things are finally starting to come together. I got my apes from pirates and my elbows are FINALLY lower than my hands which will mean comfortable riding. I made myself a plate that I could mount my headlight to. It took a bit of creativity but I'm really happy with how it came out. Just a suggestion to any new people reading this, the stainless steel rubber lined P clips you can get at the hardware store are amazing for these builds! That's what I mounted my head light plate with. The plate and the gas tank mount will be painted before the final installation. I also installed slime tubes and my brand new cheng shin c241's which give the bike a look like a giant Schwinn stingray. I drilled a tiny hole in the underside of the apes and went through a lot of trouble to feed my wire through, I'll make it flow nicely with the lines of the frame soon. The grip and brake handle are on and the kill switch assembly I made is glued to the bar end with hot glue. I made a clean looking little pvc cap so you can't see the ugly assembly underneath. It's not done, but it's looking good, and I feel really cool sitting on it! Here are the pictures, ask questions if you have any.

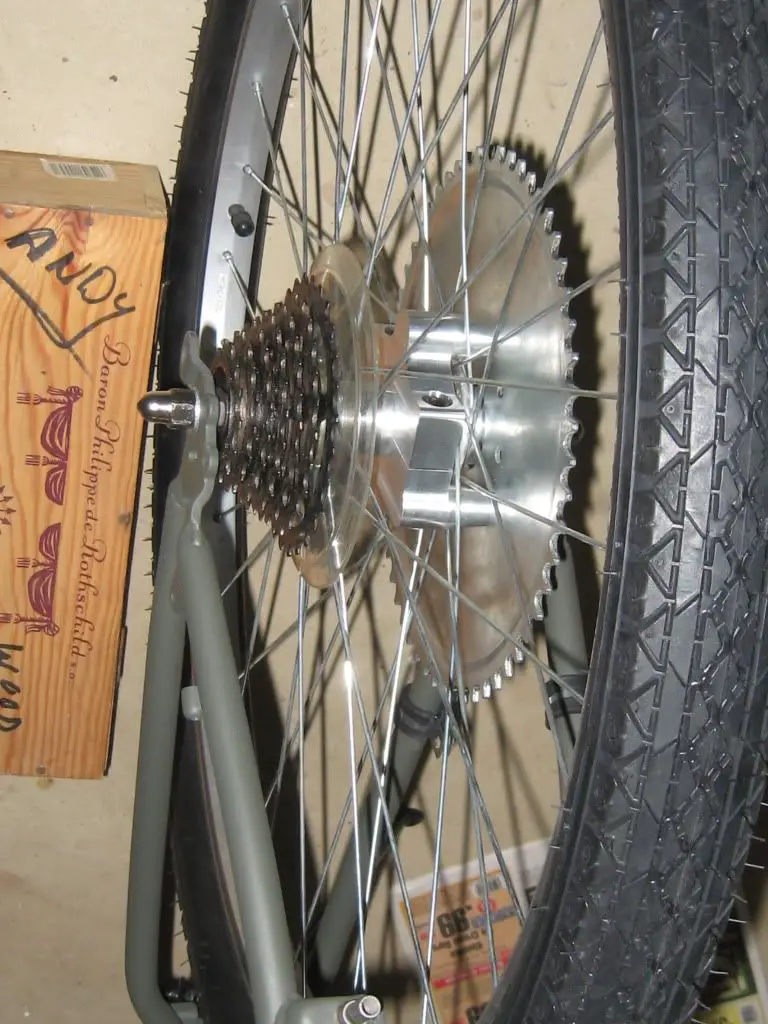

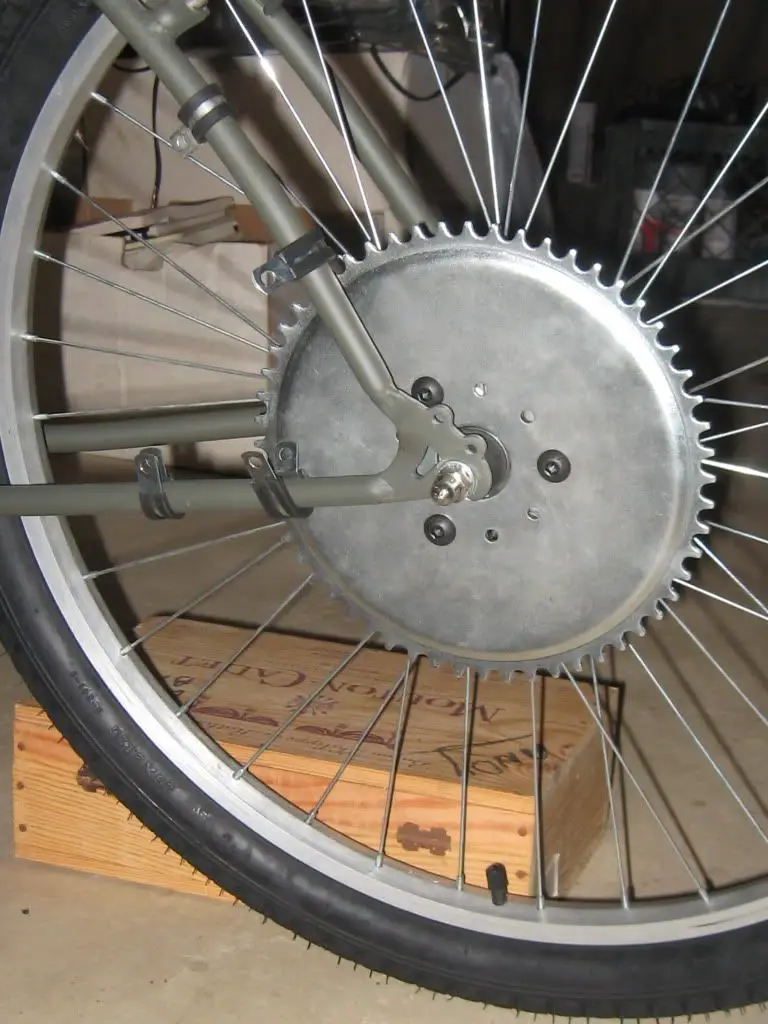

Alrighty, after more than 6 weeks of waiting, my hub adapter got here today. Sound the bells of joy !!!!! It was just what I expected, cleanly machined, light weight, and way better than a rag joint! The one big problem I faced is that I was told that the cheaper chinese made steel sprocket simply needed to be drilled out to fit the adapter right. THAT IS NOT TRUE. I drilled out the holes to stat, but then I had to go through a lot of trouble filing the holes outward so the wide reach of the adapter would work. My final thought is, pay an extra 20 and get the aluminum sprocket that you need, it's worth while. It looks very good on the wheel, it feels like I'm building a factory moped or something, it's all so clean and nice, only difference is, it is WAY cooler than a moped. Enjoy the pics
!!!!! It was just what I expected, cleanly machined, light weight, and way better than a rag joint! The one big problem I faced is that I was told that the cheaper chinese made steel sprocket simply needed to be drilled out to fit the adapter right. THAT IS NOT TRUE. I drilled out the holes to stat, but then I had to go through a lot of trouble filing the holes outward so the wide reach of the adapter would work. My final thought is, pay an extra 20 and get the aluminum sprocket that you need, it's worth while. It looks very good on the wheel, it feels like I'm building a factory moped or something, it's all so clean and nice, only difference is, it is WAY cooler than a moped. Enjoy the pics

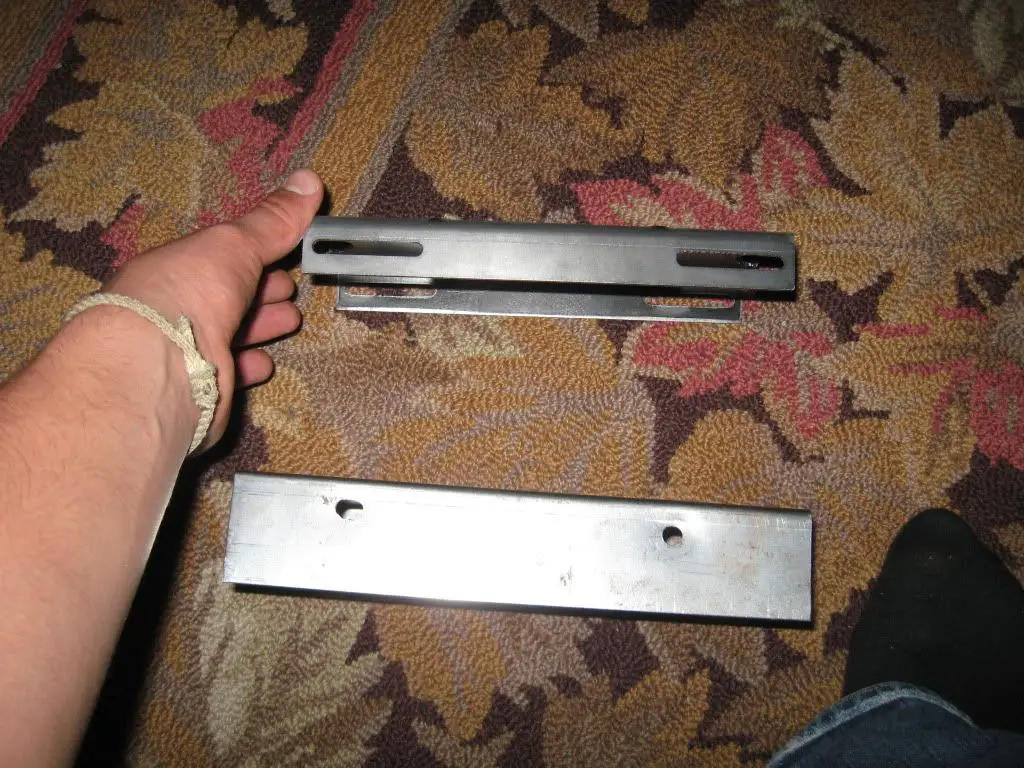

well, update, the mount I made sucked, lol, so, I went ahead and ordered one from AGK. He is a super nice guy and makes some quality products. I ordered on Wednesday I think and my parts got from CA to CT in two days. The mount is sturdy and beautiful, and I decided that I wanted a straight pipe that would swoop backward at an upward angle so I bought his exhaust flange and 90 degree header for the HF too. I need to re-adjust my mounts that the plate attaches to before I put on the engine because I pushed both upward with jb stik to make them level front to back, but there is a severe left to right angle that I did not consider, and I obviously want things as level as possible. I took some comparison shots of the mounts, it's clear which one is AGK's
