H Whizzer on Schwinn-Older Restoration

Discussion in 'Whizzer Motorized Bicycles' started by msrfan, Dec 8, 2016.

  1. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Got the bike up on the table, cleaning cleaning cleaning, waxing waxing.



    [​IMG]



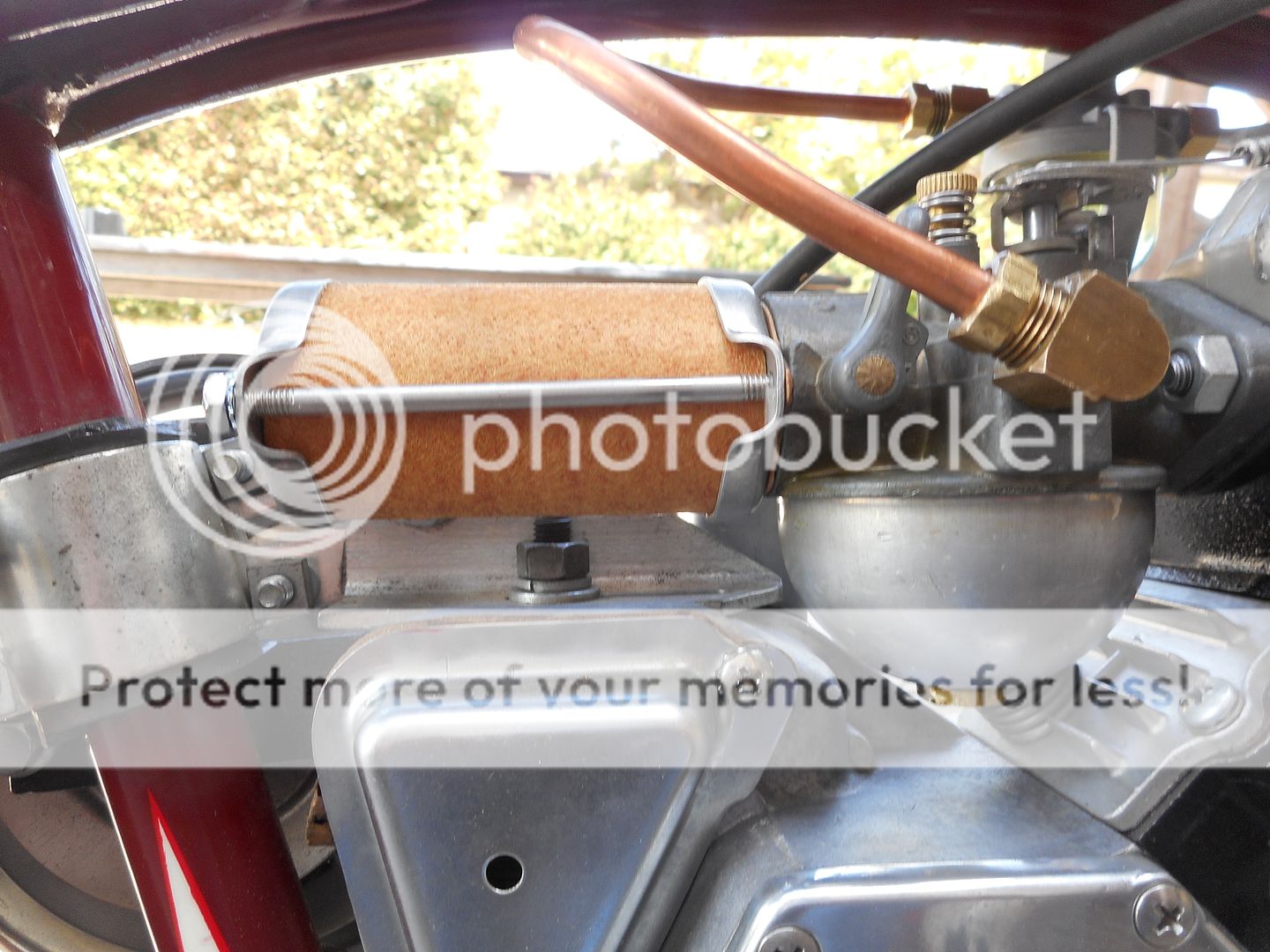

    The Whizzer didn't have an air filter and original units are very hard to find, so I made one from brass automotive freeze plugs, 10-32 stainless all thread and misc. other hardware, plus a Techumseh engine lawn mower air filter element. Topped it off with a shiny acorn nut.



    [​IMG]


    A little larger than a Whizzer filter, but same basic shape. Shined up real nice and my customer will appreciate the use of soft plugs.

    [​IMG]

  2. culvercityclassic

    culvercityclassic Active Member

    Joined:
    Sep 27, 2009
    Messages:
    3,013
    Likes Received:
    5
    Looks so clean and nice, great work. Always impressed

  3. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Thanks Ray and Jeff, always good to hear from you.

    I took the fuel tank to the owner with a new mounting bracket to attach. He said he has some super strong compound used to hold corvette bodies on their frame and will hold it securely.

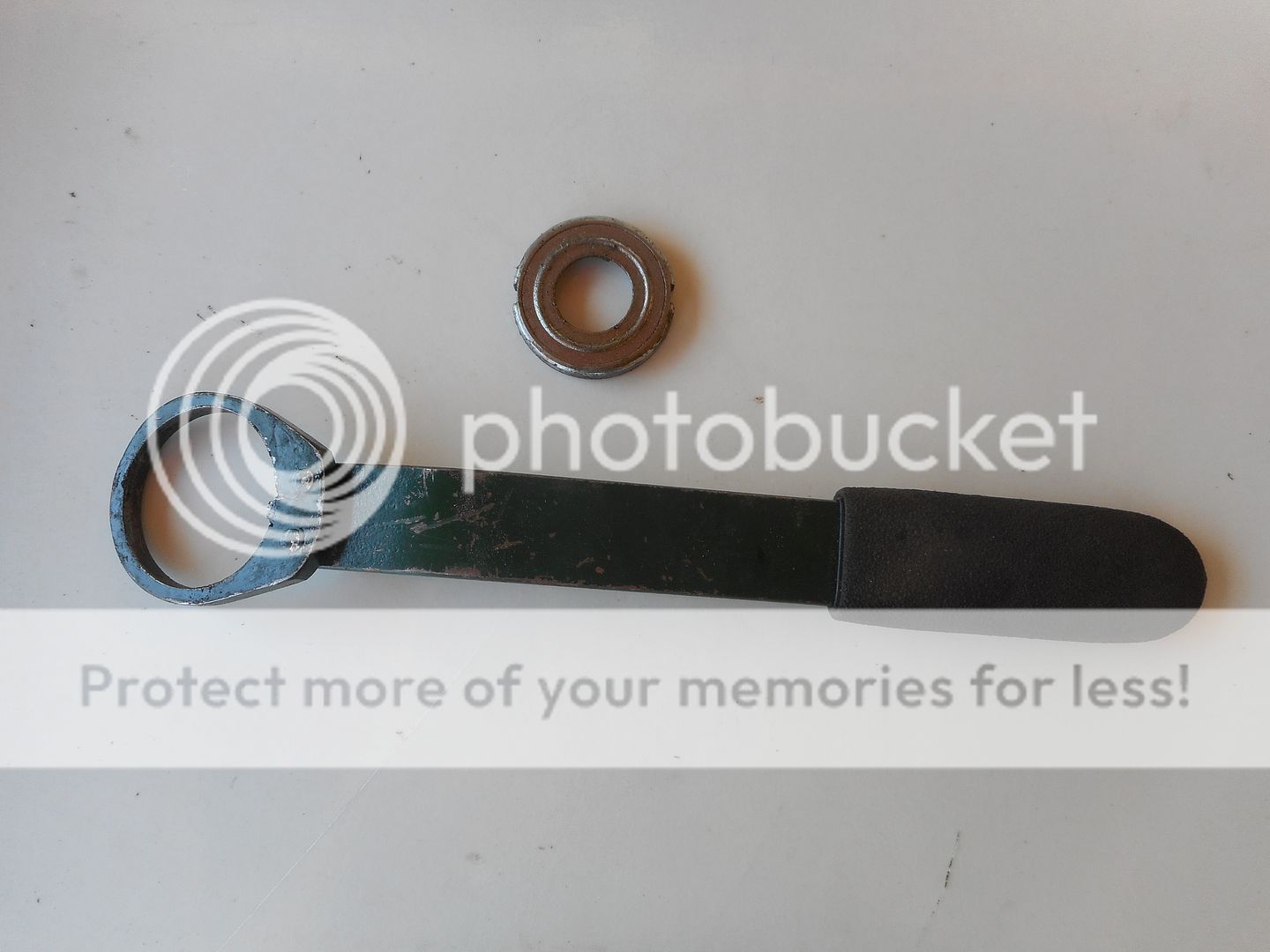

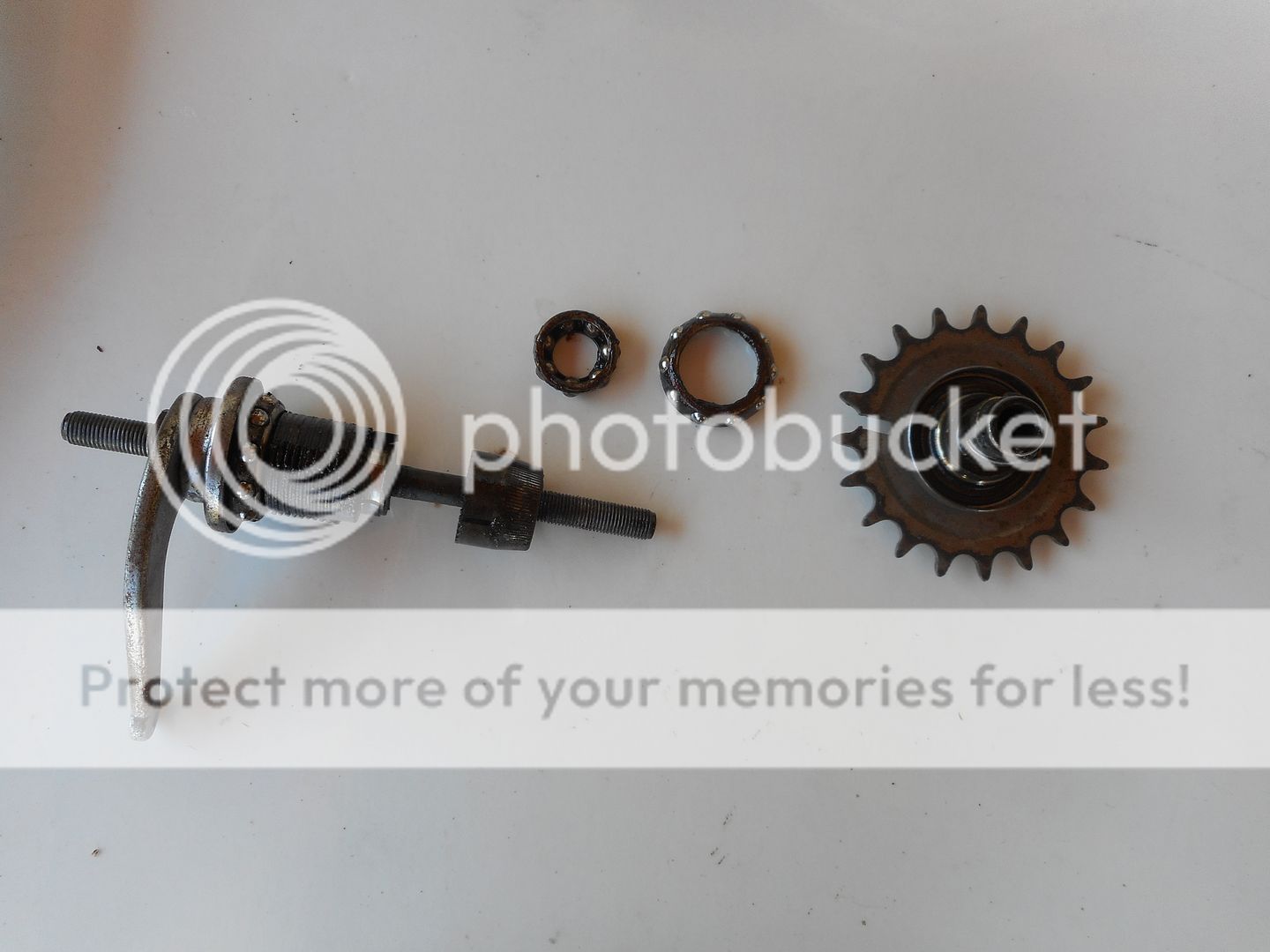

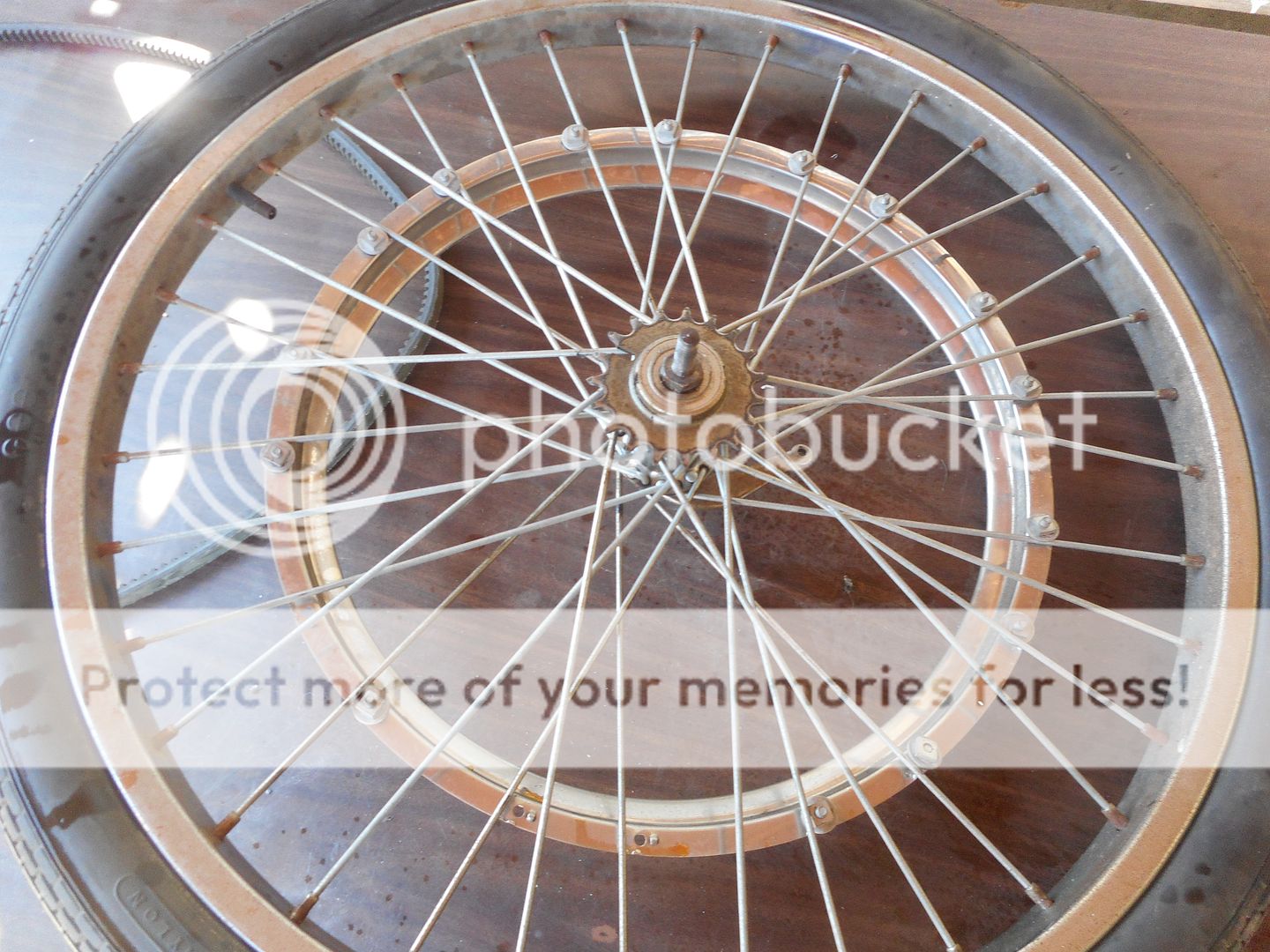

    While I'm waiting on the tank i'll address the rear wheel. The pulley was missing hardware and, like the front hub, the rear was locked up with old grease. I made a tool for removing the retaining ring on New Departure hubs that reveals the outer bearing so I can clean it.



    [​IMG]



    [​IMG]


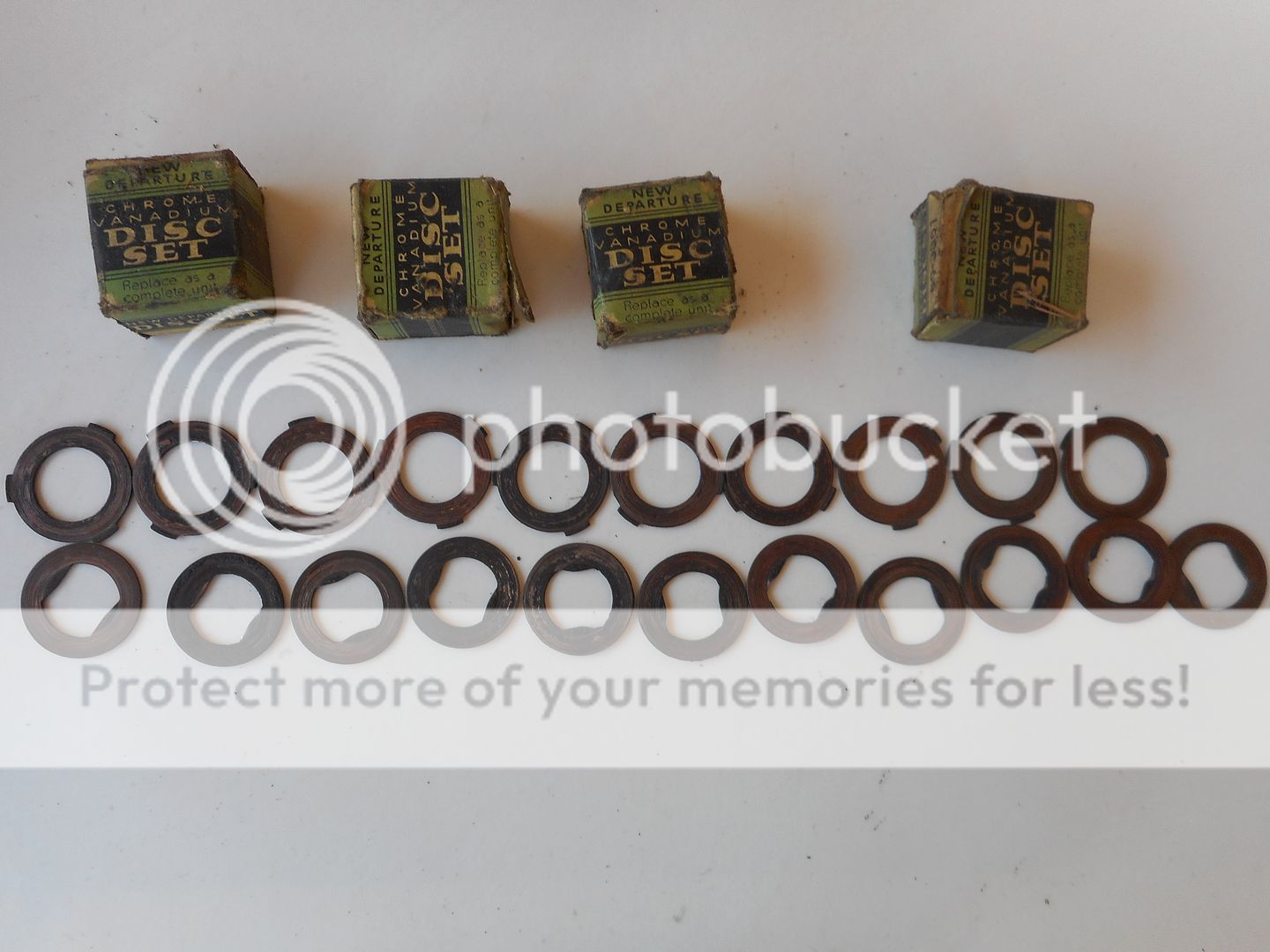

    Upon disassembly I found the brake pack was totally worn out, probably because the front brake was not usable. Everything cleaned up nicely.

  4. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    [​IMG]

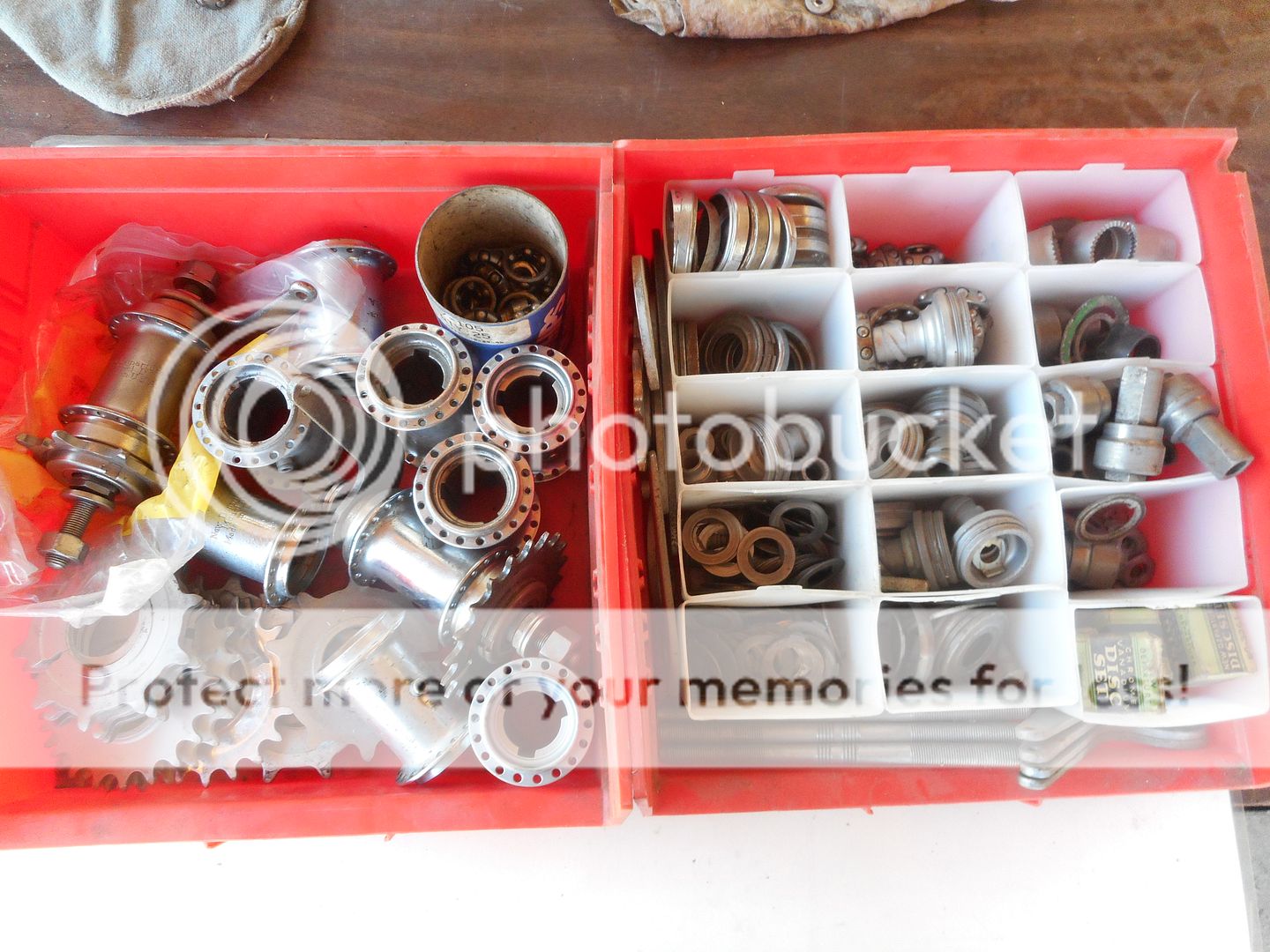

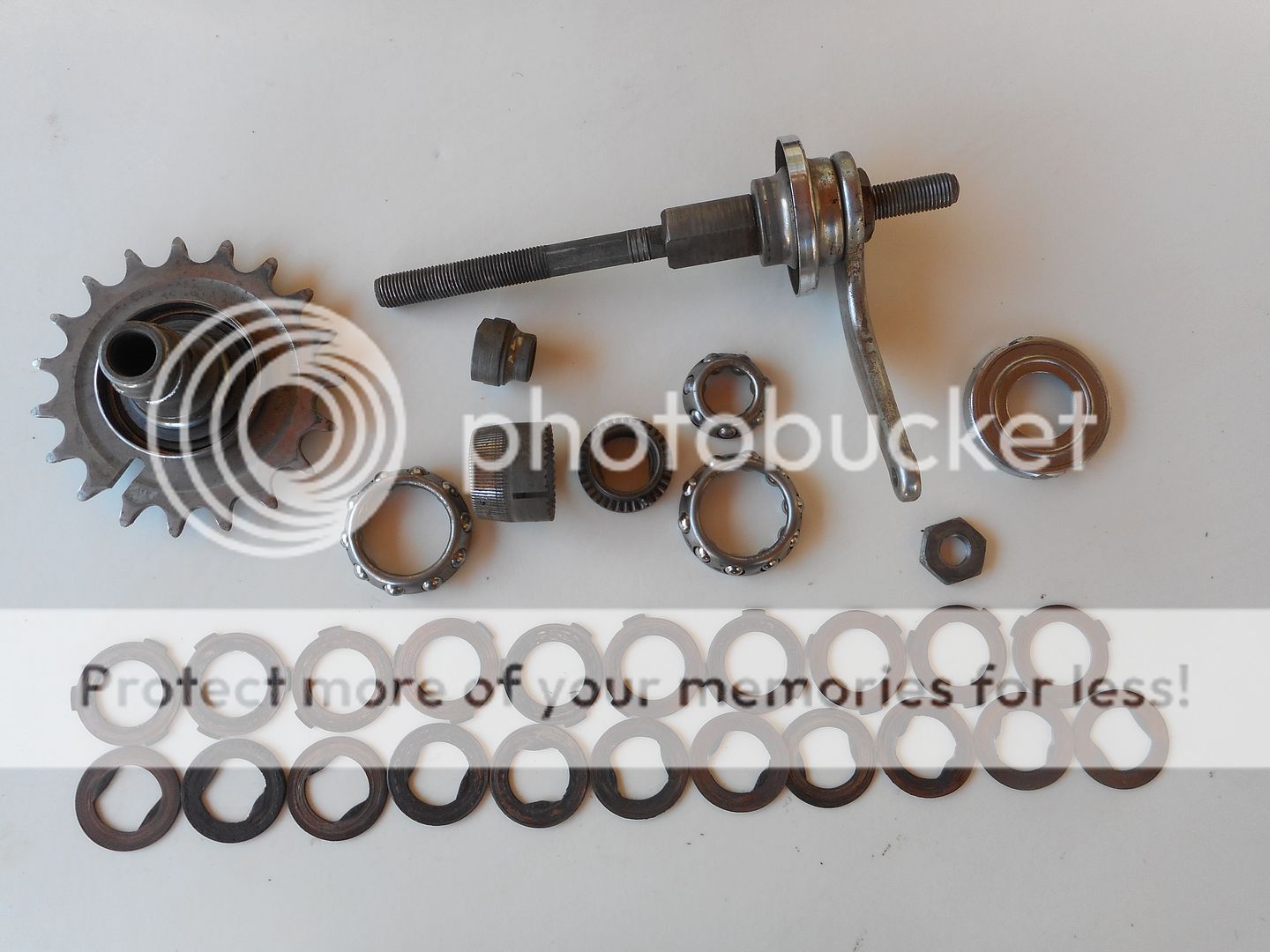

    Luckily I have a modest stash of ND hubs and parts.

    [​IMG]



    [​IMG]





    [​IMG]

  5. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1

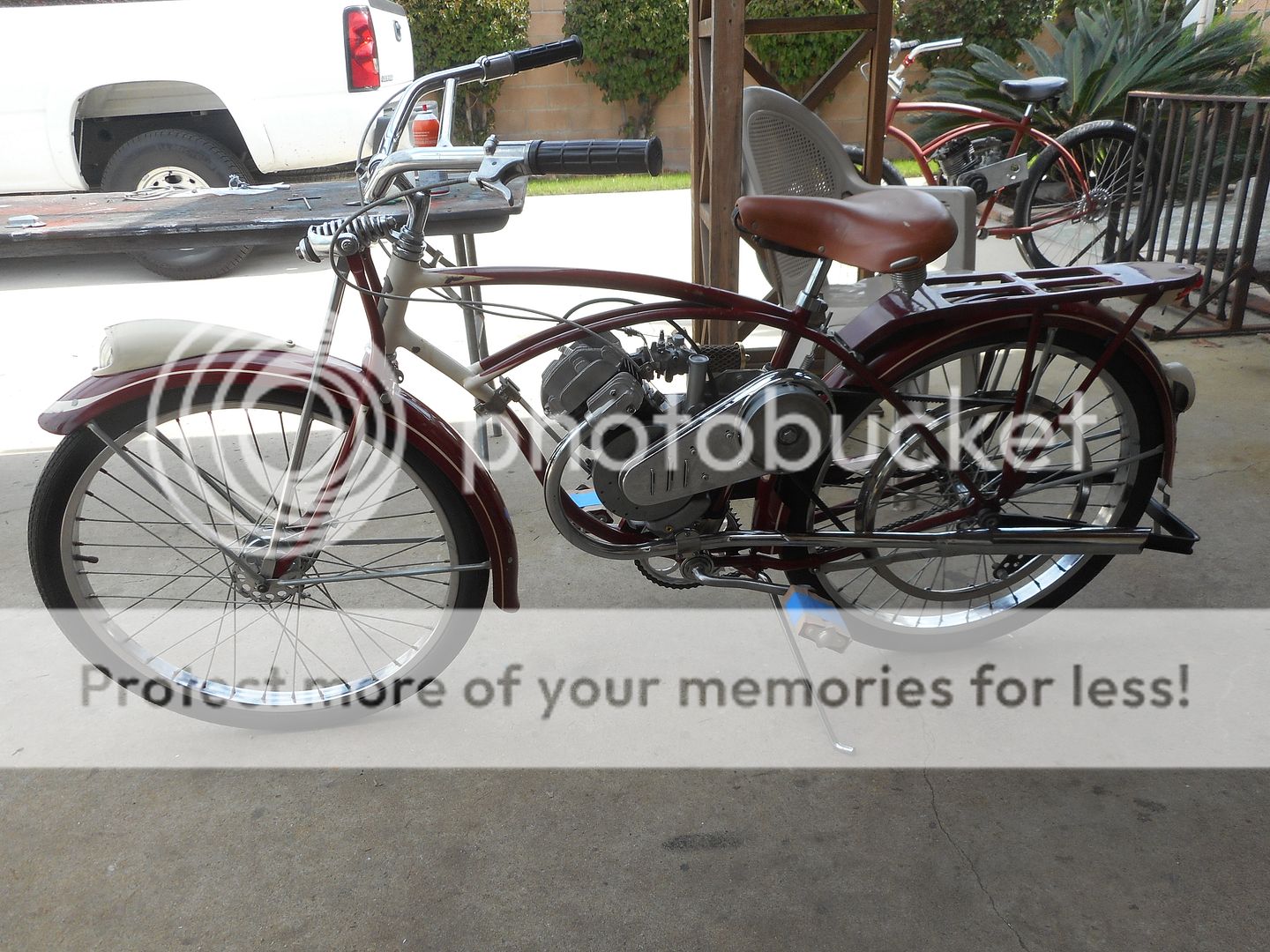

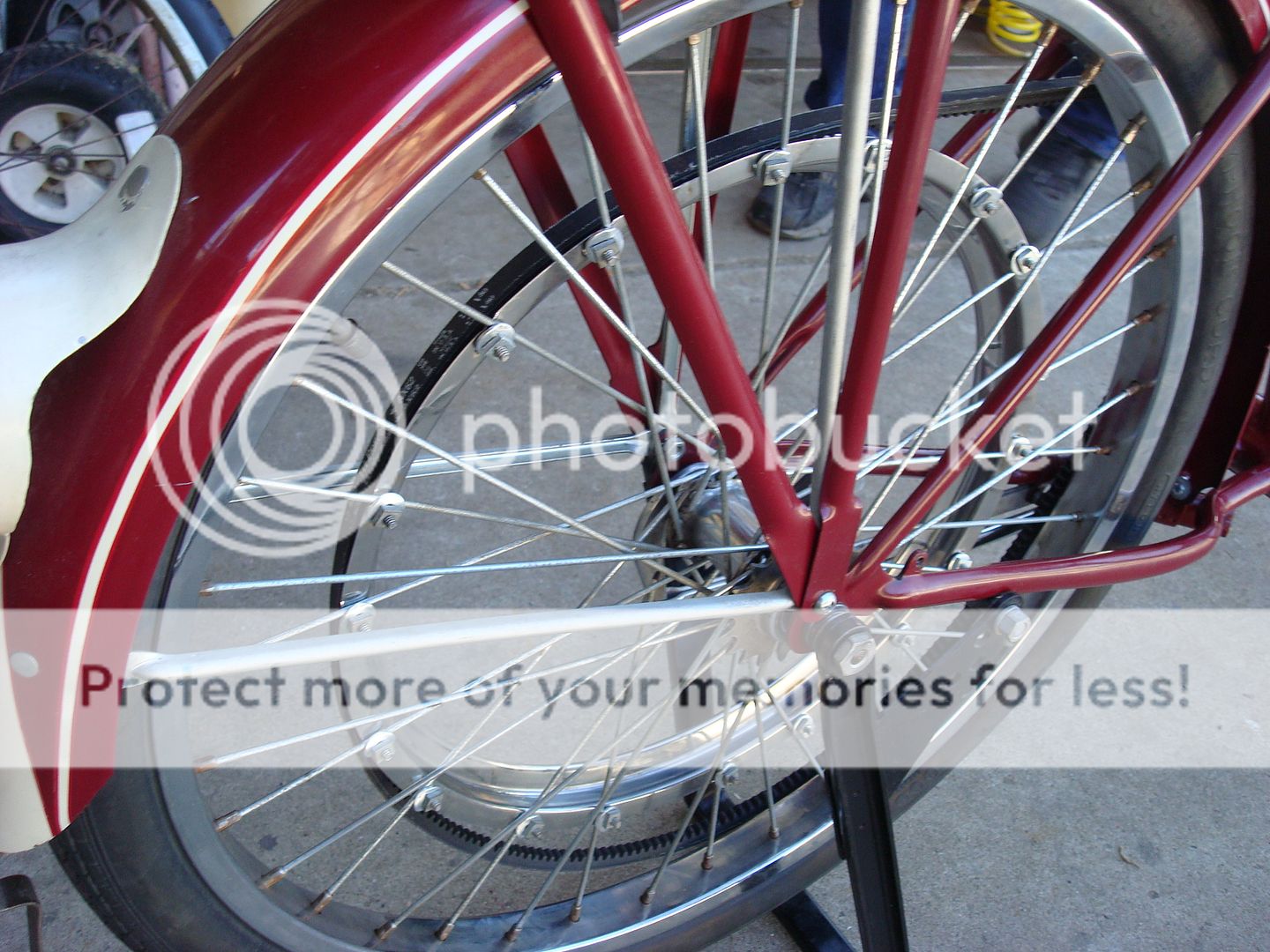

    The rear wheel is back on and the engine is in the frame.



    [​IMG]



    [​IMG]


    Lots of stuff left to install and adjustments to make. If the tank is ready tomorrow and I get it on the road without too many bugs, I'll ride it to Donut Derelicts Saturday.

  6. Gbrebes

    Gbrebes Member

    Joined:
    Jul 16, 2010
    Messages:
    560
    Likes Received:
    2
    Dale, you are a treasure to this forum as far as I am concerned. I am very grateful for your knowledge, extensive pictures, and basically schooling the rest of us on bike and motorized bike restoration.

    You have quite the collection of spare parts as well.

    Thank you for this thread and countless other threads that you have contributed to this forum.

    Your home made air filter is super cool. The use of freeze plugs and a different air filter element go beyond kit building.

    I am glad you are a member of our forum, and I am excited that now you have retired, we can look forward to much information and how-to's regarding our hobby.

    You da Man,

    Gilbert

  7. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Well, thanks for the kind words Gilbert. You know over the years I've learned a lot from you guys as well. And what's knowledge, parts and experience good for if you can't share it with your friends.

  8. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1

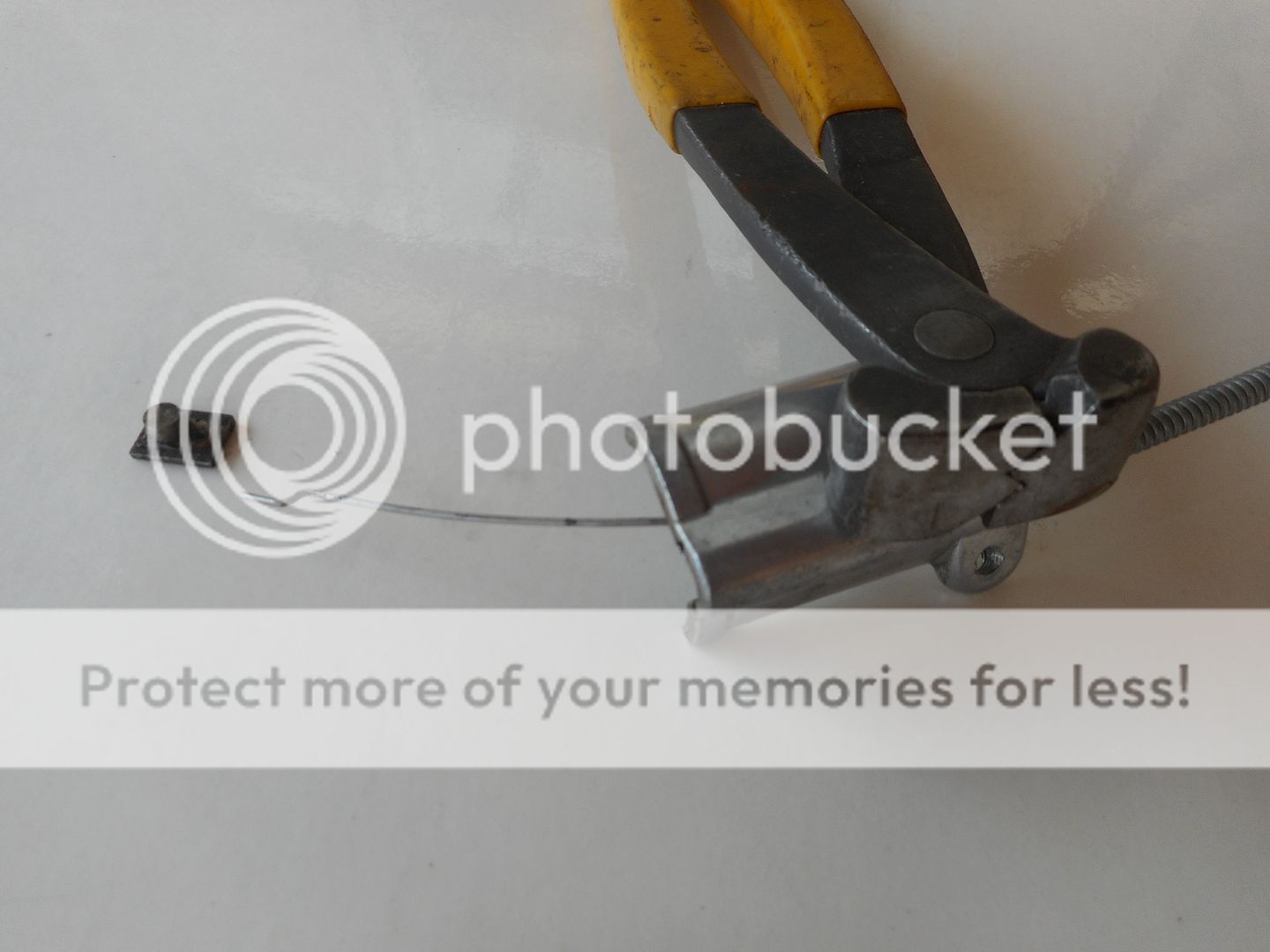

    I broke out my "Z" bend pliers for the control wires. I bought them 35 years ago for RC car servo linkage. Been using them on Whizzers and such ever since. The wire that came on this Whizzer is way too stiff, so i went a couple of gauges smaller music wire from McMaster Carr and everything works a lot easier and smoother.



    [​IMG]


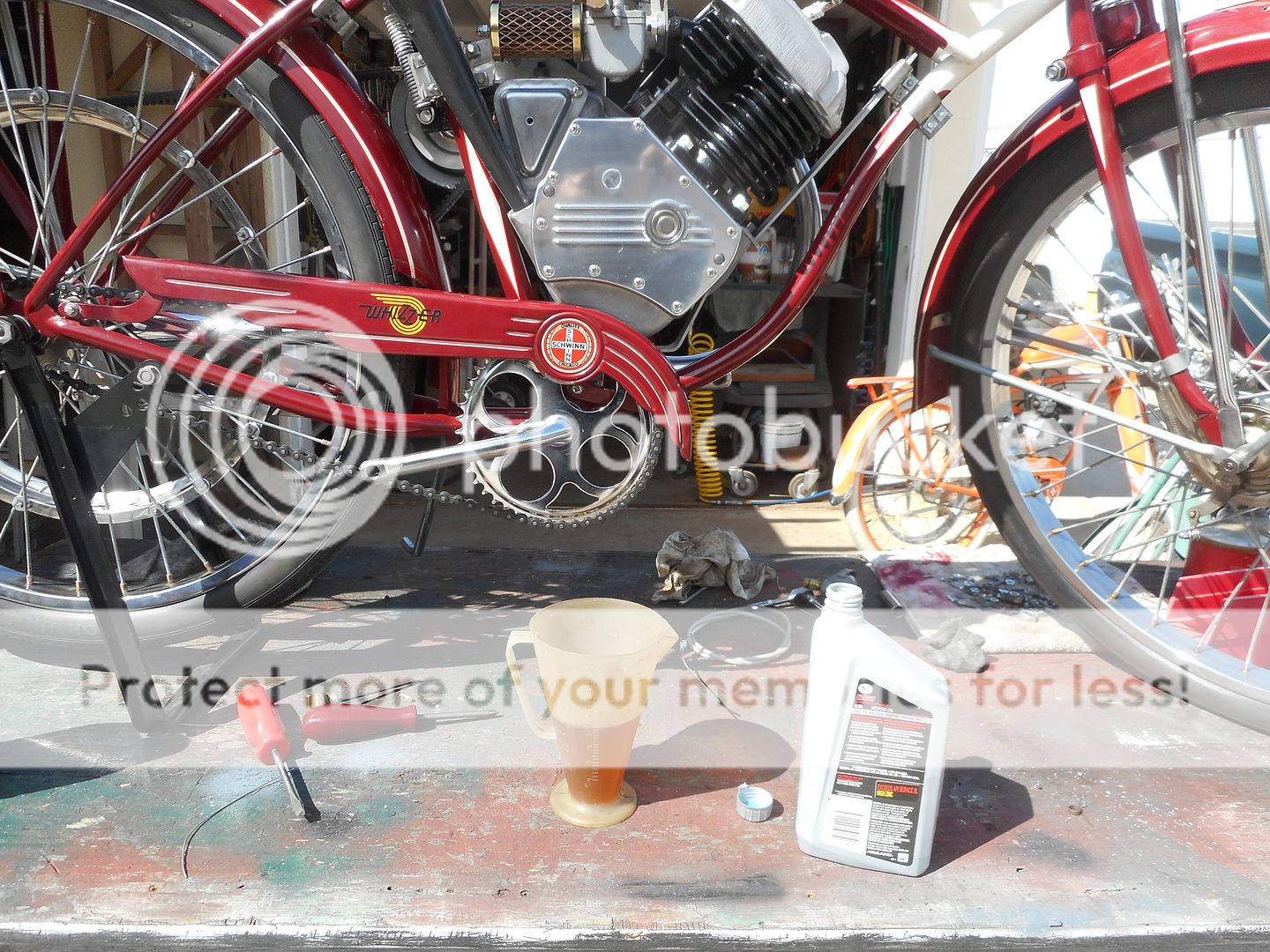

    Then I put the chain guard on and lubed her up with racing oil with zinc. Ray says zinc is the way to go. Got the belts all adjusted up and I'm just waiting on the gas tank for a test run. I guess I can pedal it and check for spark.


    [​IMG]

  9. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    She runs. A little gas down the hole and fired right up. Echo pipes sound great. I wrapped the pedals to keep them clean until I give it back to the owner. He said the tank will be ready later today.



    [​IMG]


    When you use a 2 wire point eliminator, they're marked + and -. If the spark is weak they may need to be switched.


    http://www.ebay.com/itm/ELECTRONIC-TRANSISTORIZED-IGNITION-MODULE-NOVA-II-Small-Engine-/250831136597


    That's what I ran into with this unit. I have a spark tester with an orange light that is brighter with better spark.


    http://www.ebay.com/itm/EASY-TO-USE...hash=item414c75a1e3:m:m0z97Yg5M8OIwHjOrFL7_bA

  10. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Looks like the tank won't be ready tonight in time for me to install it and get a test ride in, so I'll take my orange Whizzer to the donut shop tomorrow.



    [​IMG]

  11. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    I took a couple of weeks off working on the Whizzer to get caught up on other projects.

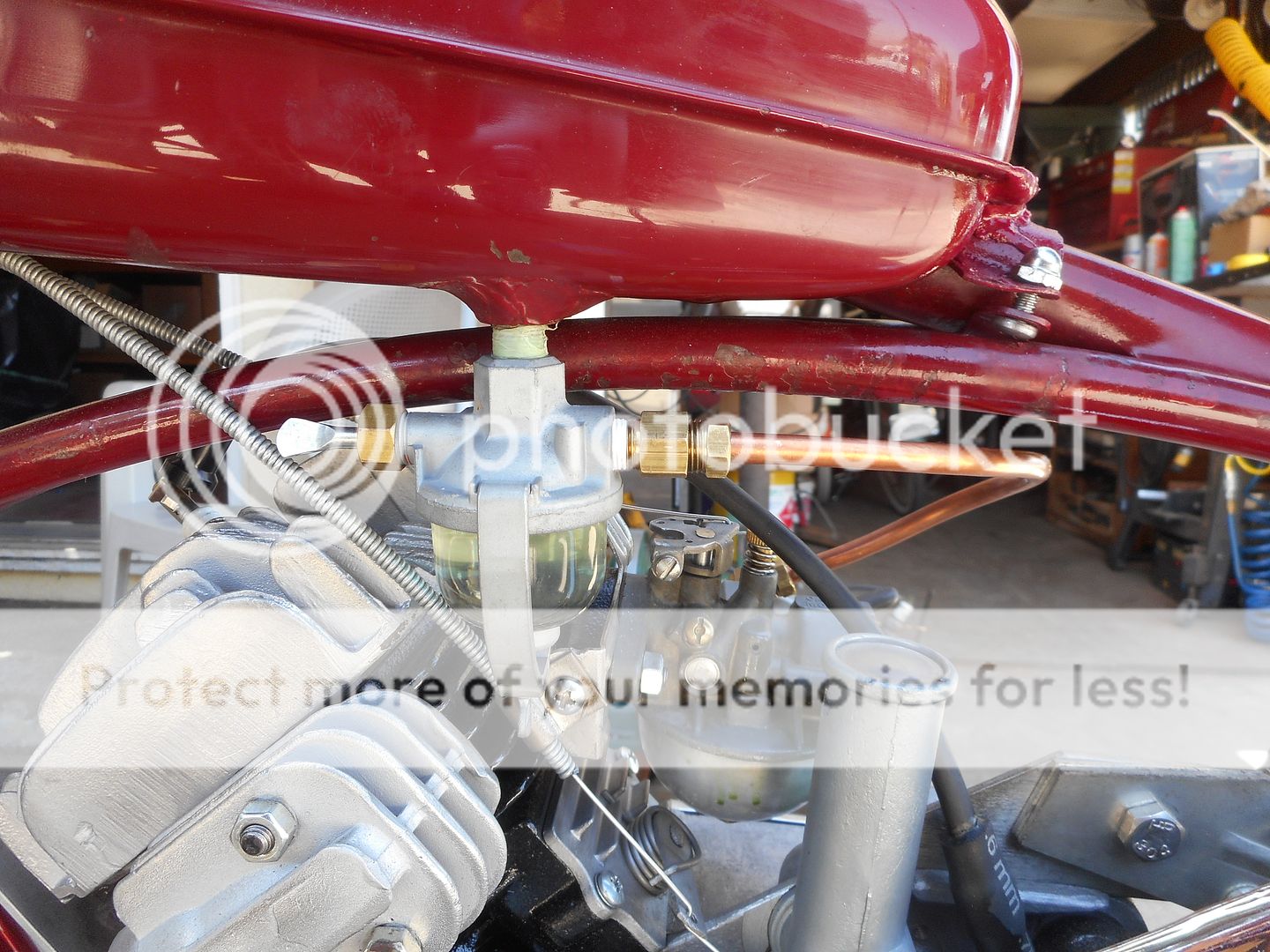

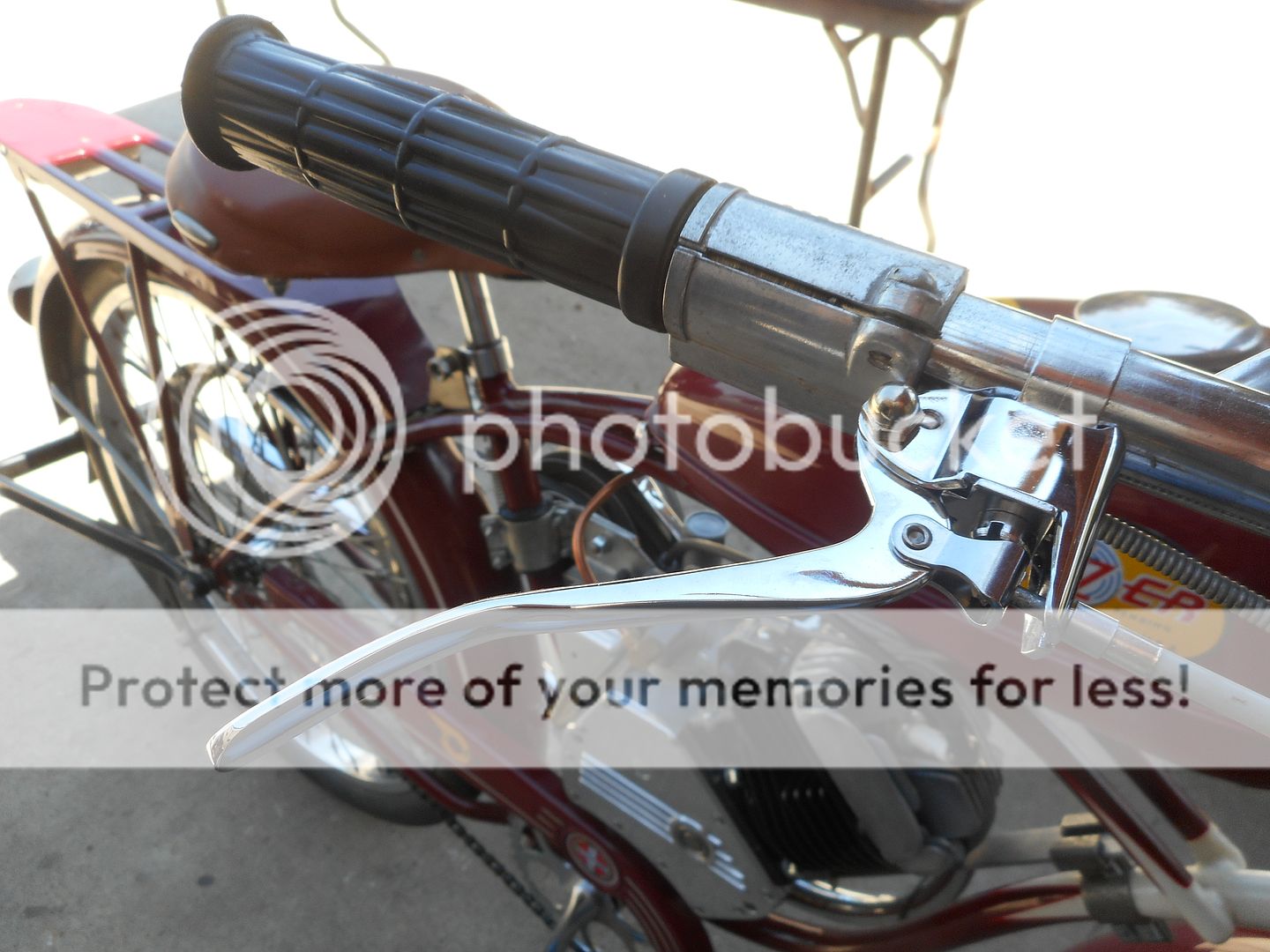

    I got the new sediment bowl gas filter installed as well as a new Schwinn front brake lever I found on ebay.




    [​IMG]


    [​IMG]


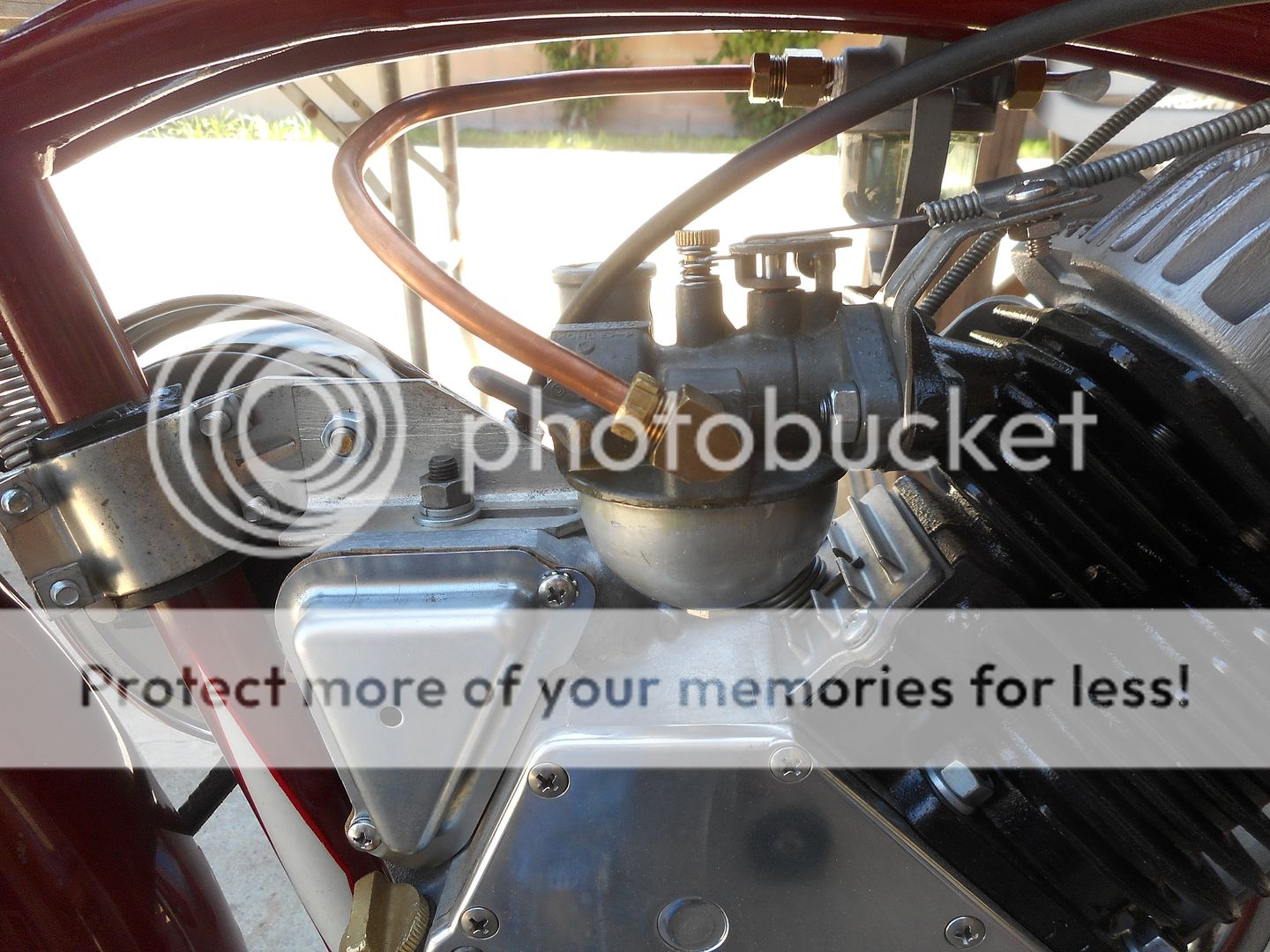

    Ray pointed out this H motor has a J Cylinder, so I exchanged the Tillotson carburetor for a larger Carter to accommodate the larger ports and valves. Now I need to find the proper air filter as my homemade one only fits Tillotsons.


    [​IMG]


    Couldn't make it run consistently and suspected the coil. Upon removing the old coil I saw my splice on the plug lead looked a little shaky. Sure enough the strands broke and were only giving me spark when it felt like it. after a good repair it started right up and ran great. I've been riding around the neighborhood for a few days and really enjoying it.
    If everything works out with the weather, I'll ride it to Donut Derelicts Saturday. They say it may rain. I'm sure my customer is looking forward to getting it back in running condition.


    [​IMG]


    [​IMG]

  12. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    I had to shine up his badge a little. Added some Krylon clear coat.



    [​IMG]

  13. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1
    Went to Ron Houk's place and picked up the last part I needed for the Whizzer. A new original style air filter. Now I can call it complete and finish the test rides. Of course we all know they're never done. Always some accessories to add.



    [​IMG]

  14. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,671
    Likes Received:
    1

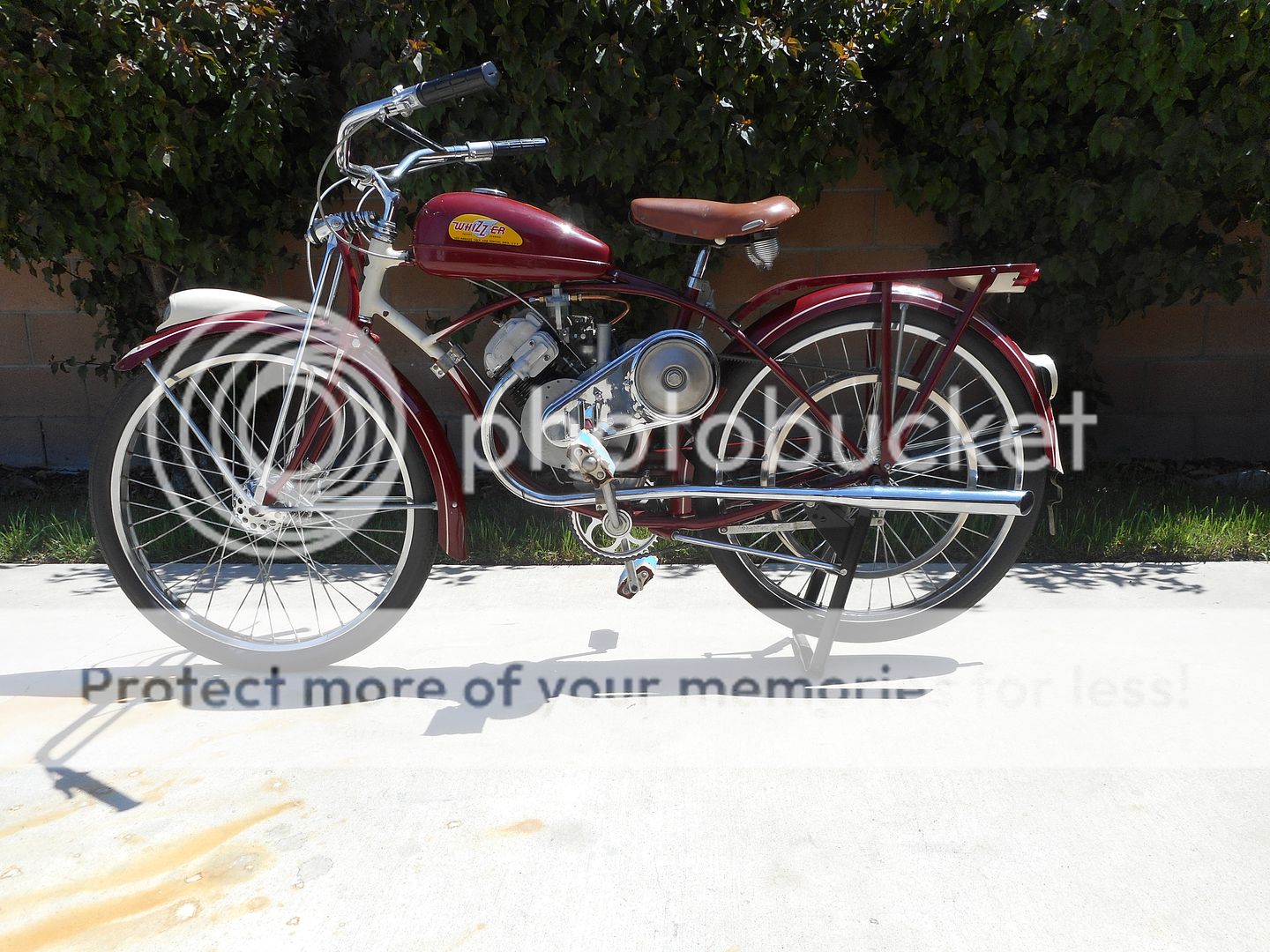

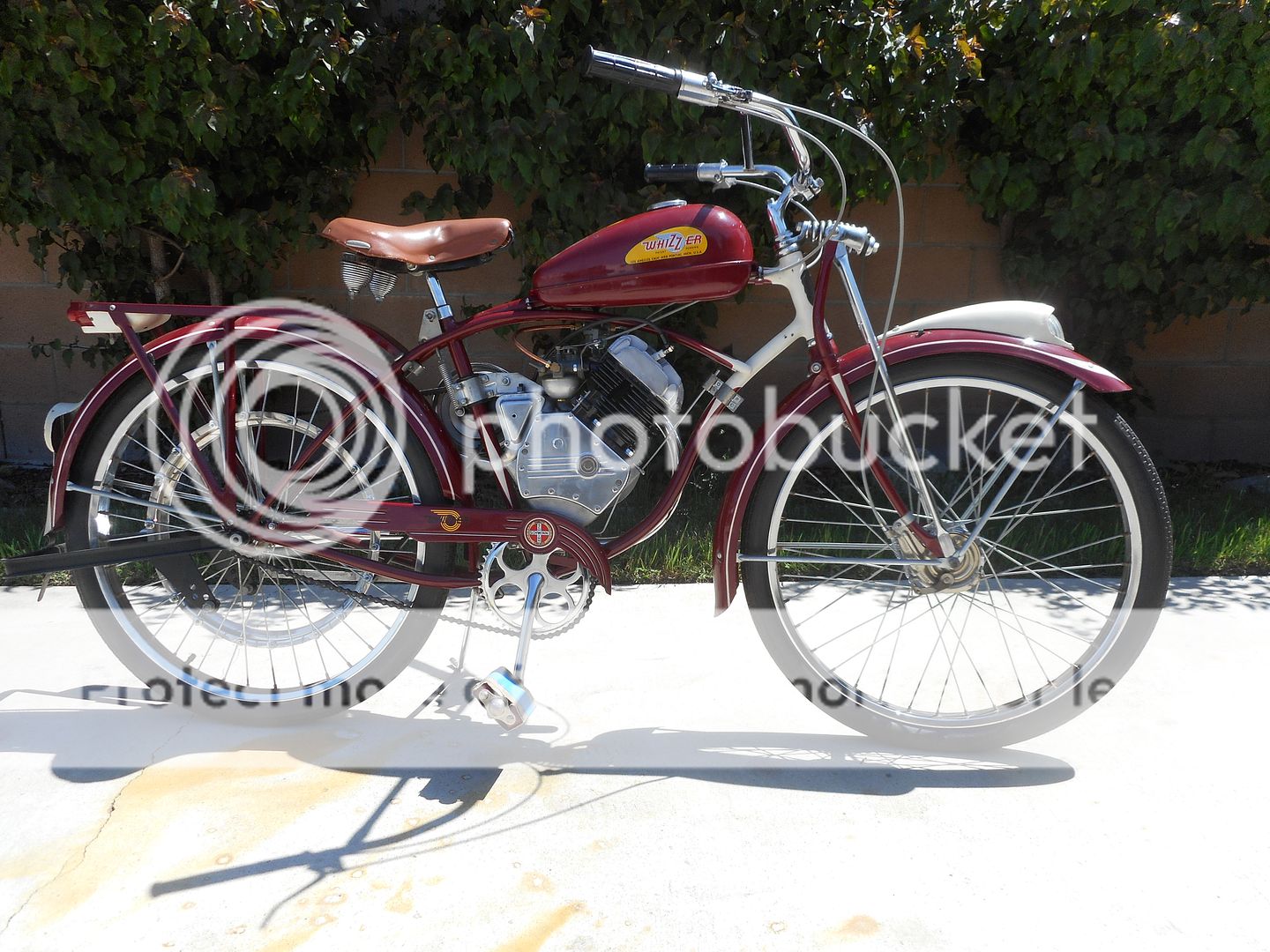

    I finally got the Whizzer to Donut Derelicts and it was a big hit. Then took it to Chip Foose's shop and he test rode it. Chip's real happy with the way it turned out and was glad to have it back.




    [​IMG]



    [​IMG]



    [​IMG]

    #54 msrfan, Apr 15, 2017
    Last edited: Apr 21, 2017
