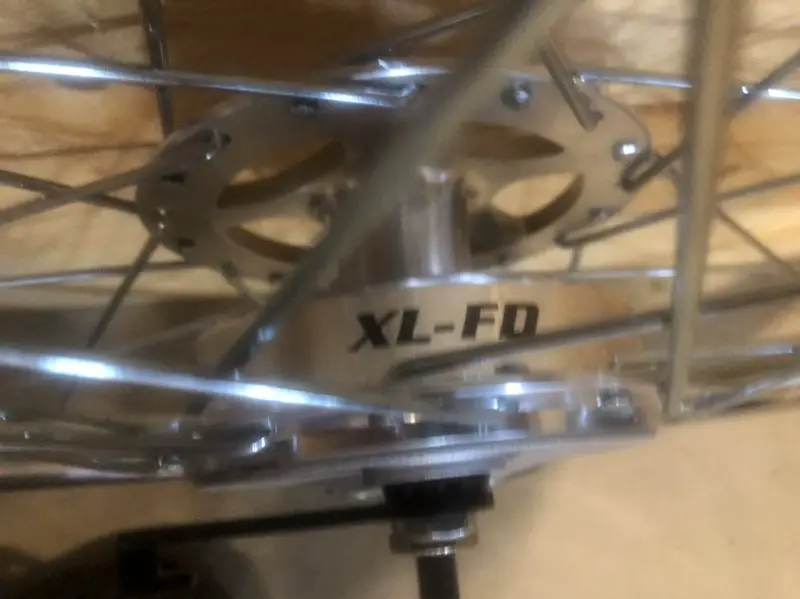

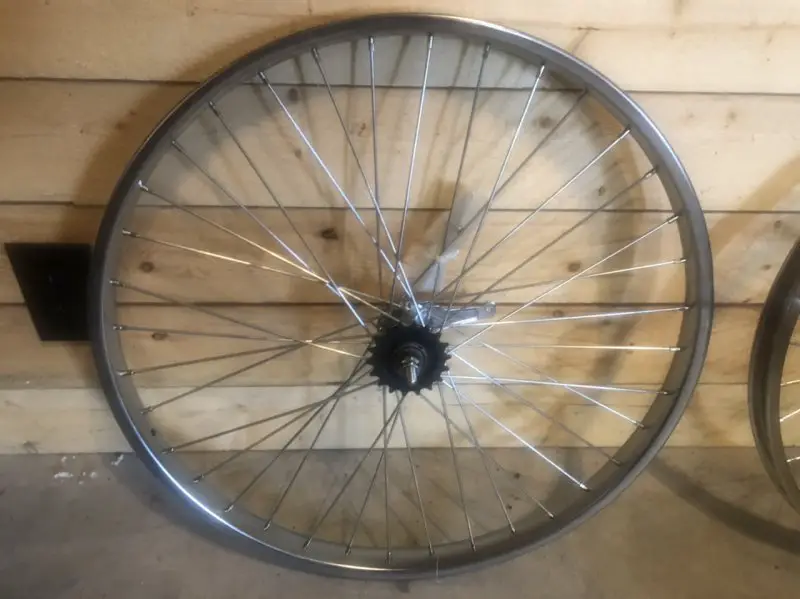

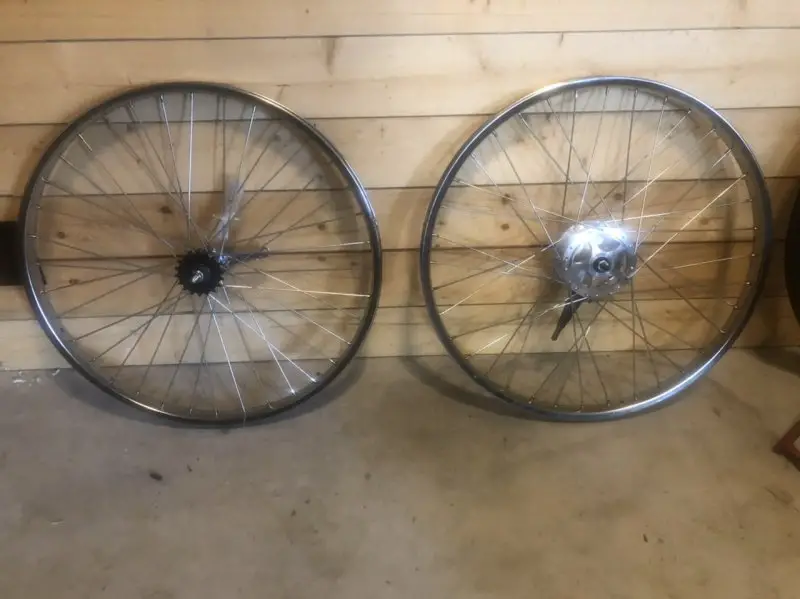

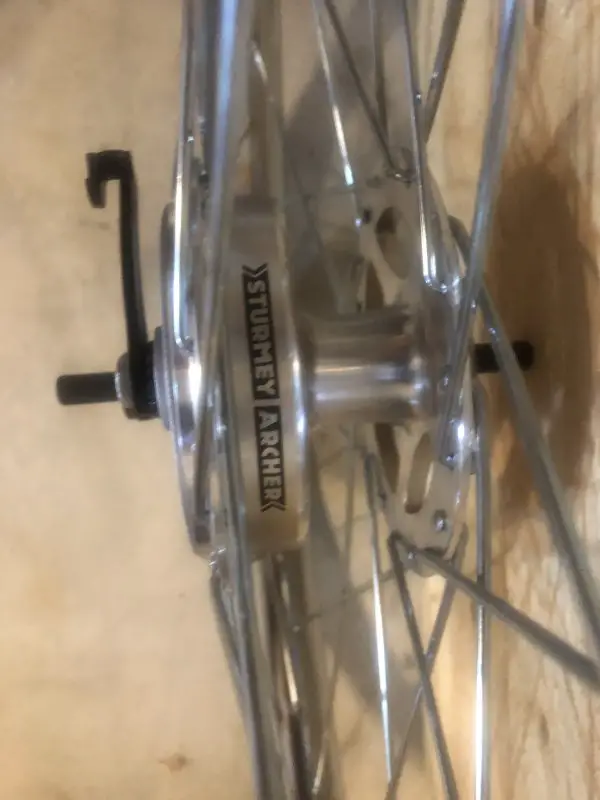

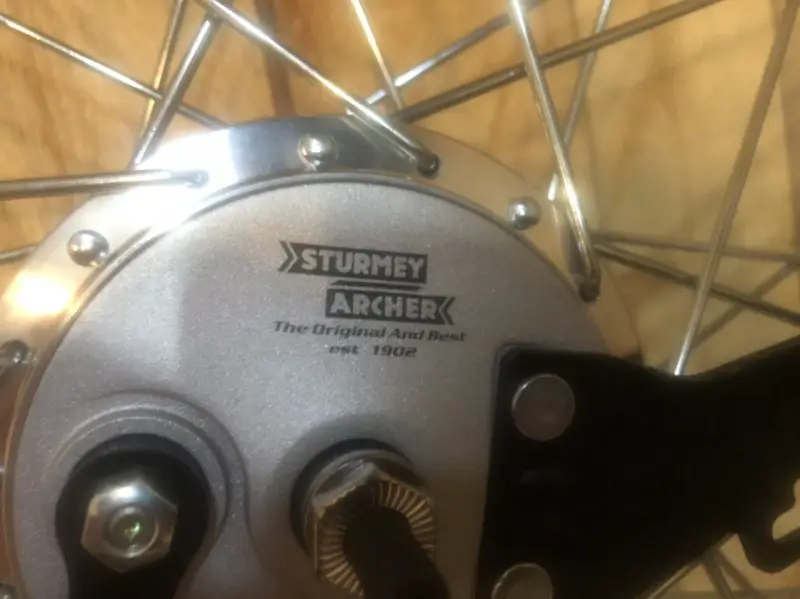

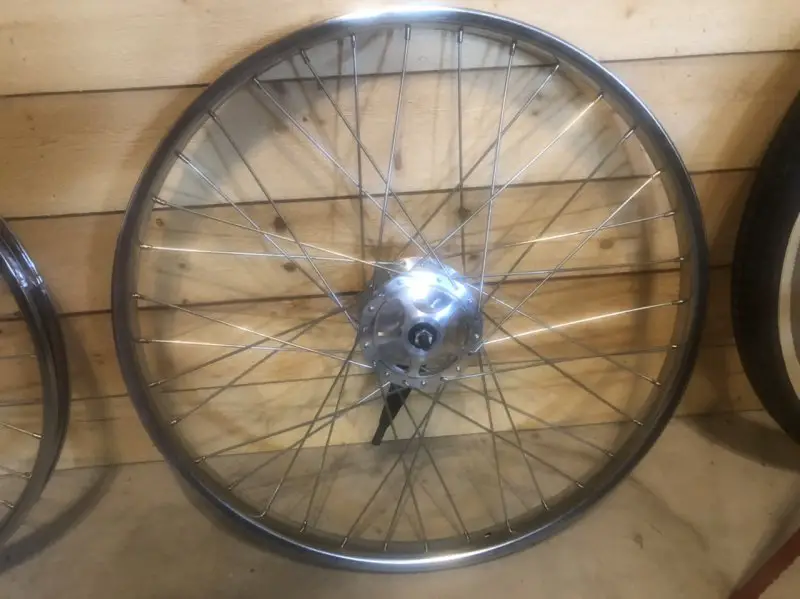

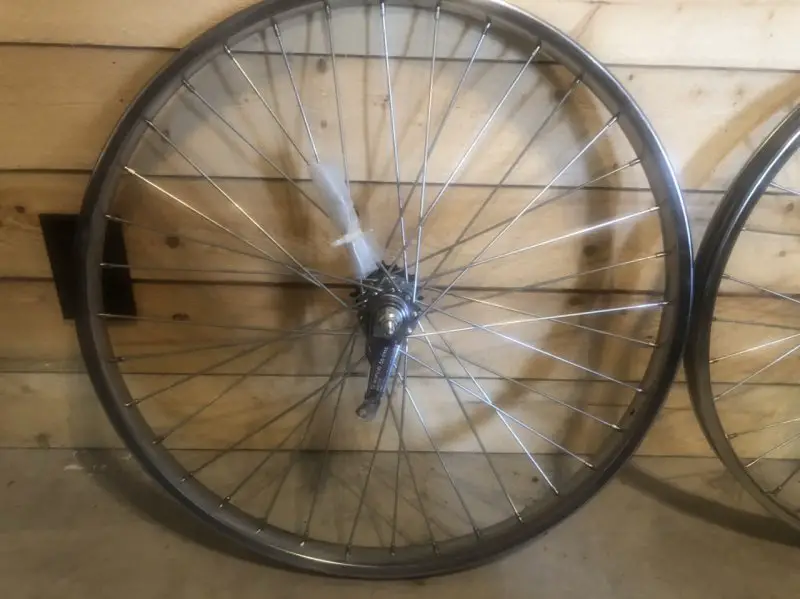

Wheels came in today !!!! They sure look nice. 11 gauge spokes. Woohoo !!!
Attachments
When you get to it we got to talk coaster arm attachment.
You have your wheels, do you have a drive sprocket picked out? Chances are you have to off set the brake arm
Which causes the brake arm to deflect laterally. In your application. you can weld on a brake arm hanger.
The brake strap that comes with the wheel is unlikely to hole the brake arm in place.
You need a photo of the one I pretzeled?
Tom
Which causes the brake arm to deflect laterally. In your application. you can weld on a brake arm hanger.
The brake strap that comes with the wheel is unlikely to hole the brake arm in place.
You need a photo of the one I pretzeled?
Tom
Ok and sure would love to see a pic. I’m planning on buying a sprocket and adapter from Pat.

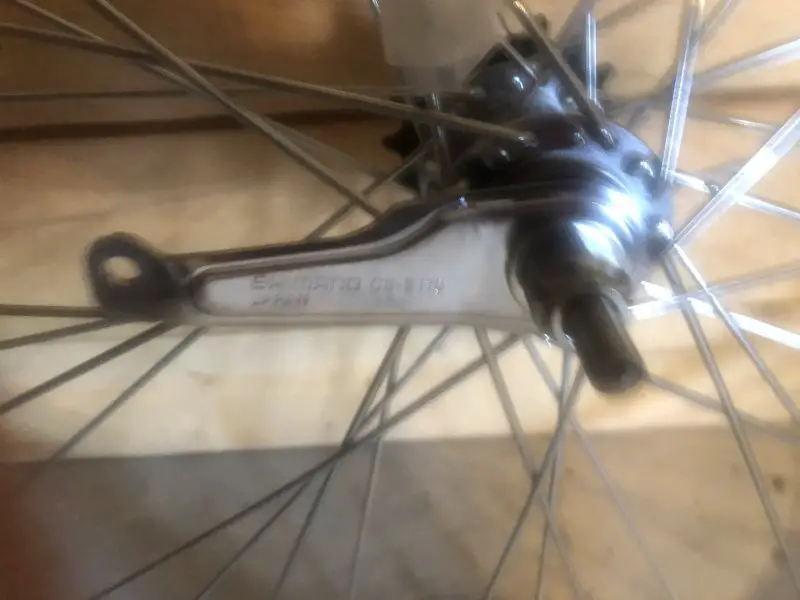

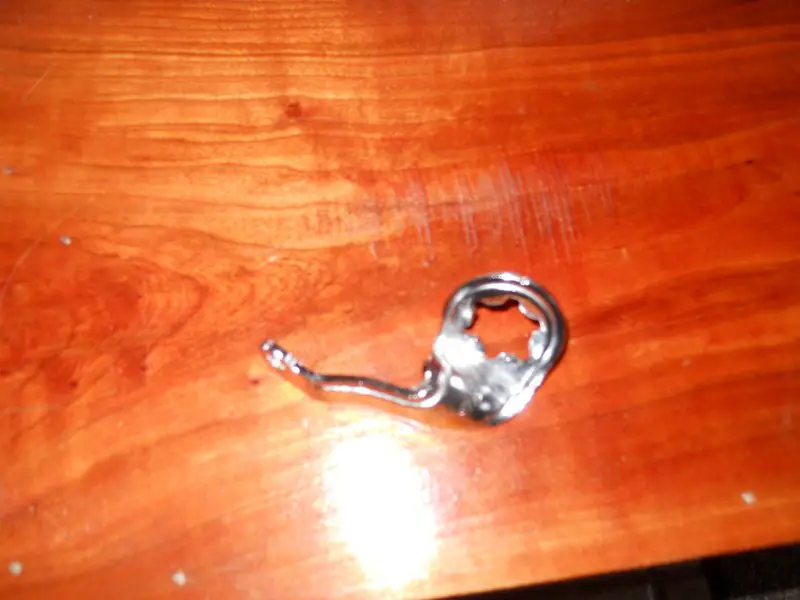

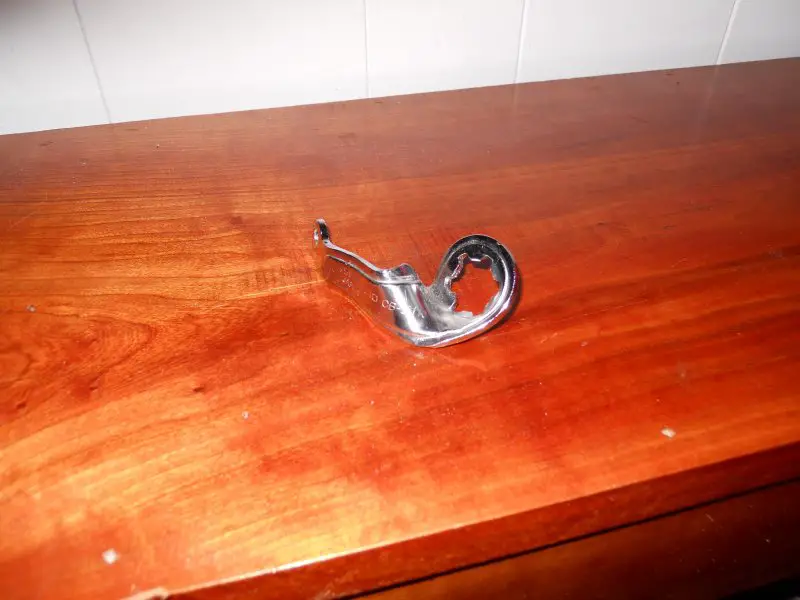

This is what you don't want to. Locked up the back wheel rapid stop. Rode fine for a while until the cone nut backed and the rear wheel got all wobbly.
Attachments
Damn !!!! Definitely don’t want that to happen.
The inside dropout dimension is 4 15/16" or 125.5mm. to accommodate the Shimano coaster hub.
The brake arm has an offset of 3/4" accomplished by two 45 degree bends which gets the brake arm to the center of the chain stay. /the bend locations is kinda fussy to clear the drive sprocket I.D.
Fussier yet is achieving a perfect chain line. Get your rear drive done first.
Pat's sprocket adaptor allows some in - out movement but having a sprocket to line up with will tell you where your engine output sprocket needs to be as it relates to engine left-right location. Fun thing is you get to be the Mechanical Engineer.
Tom
The brake arm has an offset of 3/4" accomplished by two 45 degree bends which gets the brake arm to the center of the chain stay. /the bend locations is kinda fussy to clear the drive sprocket I.D.
Fussier yet is achieving a perfect chain line. Get your rear drive done first.
Pat's sprocket adaptor allows some in - out movement but having a sprocket to line up with will tell you where your engine output sprocket needs to be as it relates to engine left-right location. Fun thing is you get to be the Mechanical Engineer.
Tom
Lol well here I come!!!

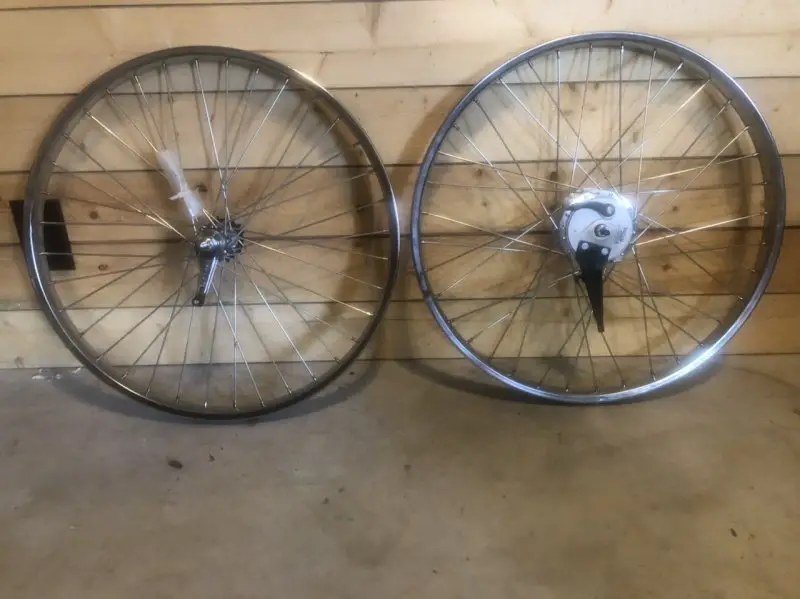

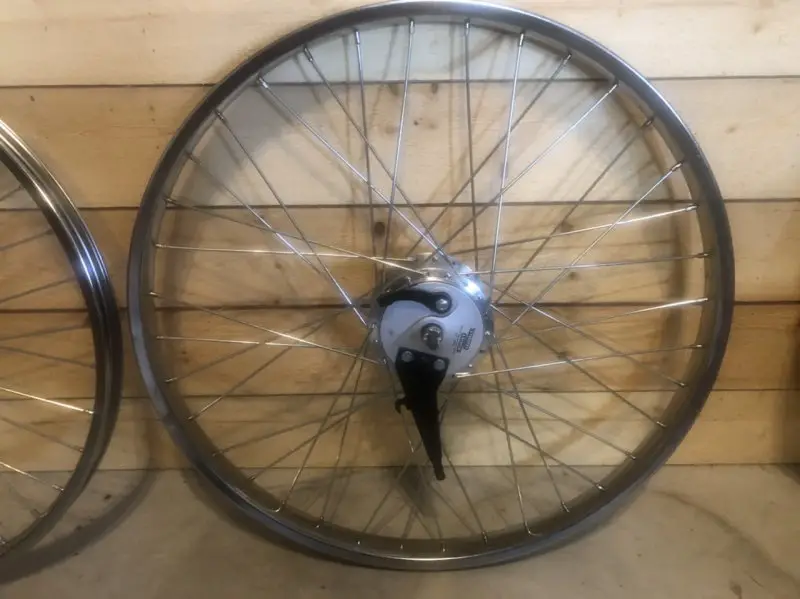

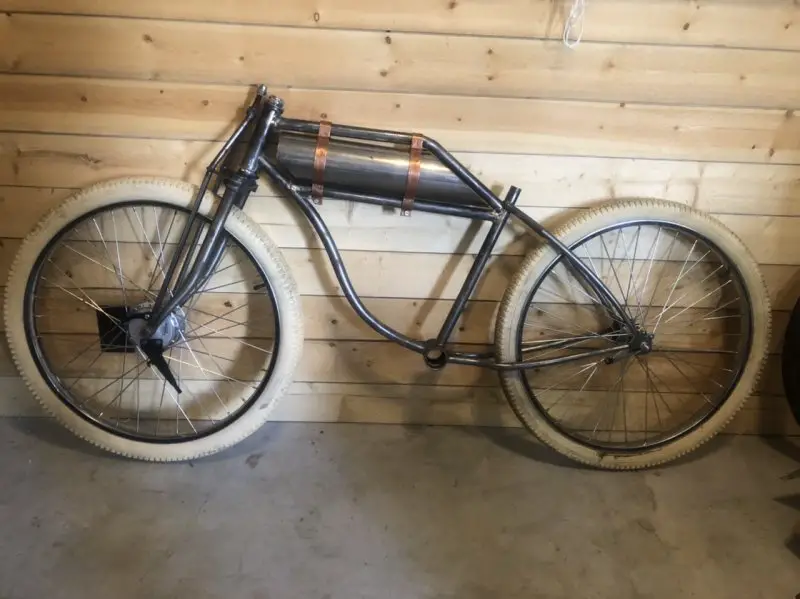

couldn’t resist mounting some old tires on my new wheels to see what they look like.
I’m really liking these wheels. Will need to put another order in soon for my next build
Huffy Davidson WLA Build
I know I already have a build thread going, why not another one lol. so I’m starting with a Huffy Deluxe. I plan on converting it to a WWII Harley WLA. I plan on adding a rifle scabbard, faux rifle, saddlebags, an ammo can, headlight, taillight and a blackout headlight & taillight. I will...
motorbicycling.com
Attachments
OK, so the small oxygen and acetylene tanks suck. they just don’t last very long. I was making some really nice progress this afternoon brazing and my oxygen ran out. My acetylene is already back down to 500 pounds too, so I’m rushing to the welding store before 5pm.
Next time you got to the welding shop check the price difference in filling big tanks and the ones you have, you will find out for a couple bucks more to fill the big one then the small ...............Curt
Will do, and check ALL my supplies before going next time lol. As quick as they go, I’d be better off with the big tanks.
All right, I have built the brass up quite a bit on these joints. I’m going to give it at least one more go around before I call the brazing done.
besides my angle grinder and my round hand files what else can I use to grind this brazing down? My Dremel just broke on me two nights ago so I need to replace it but that is a good option, I think. Some type of rounded grinding stone for it.
Ugly but getting there
besides my angle grinder and my round hand files what else can I use to grind this brazing down? My Dremel just broke on me two nights ago so I need to replace it but that is a good option, I think. Some type of rounded grinding stone for it.
Ugly but getting there
Welcome to the club of dead Dremel's Danny. I am on my third in fifty years. Not counting a Ryobi, no longer available, and a plethora of Dumore's.
Half round files, 6 and 8 inch have the best radius profiles. A dull file can cut ferrous metal, only a new sharp file can efficiently cut nonferrous metals. Be it Aluminum, brass. bronze, or copper. I have dozens of cast off files from a investment casting Co. whose aluminum wax casting molds I serviced and repaired.
MCS MSC Industrial Supply - Metalworking tools and MRO Supplies (mscdirect.com)
Or McMaster-Carr my personal favorite supplier.
Sculpting a radius with a file. It is a natural inclination to push the file from low to high. The opposite form from high to low gives the best control of the file strokes. ( From my Master Ray Nystrom, wounded at the Battle of the Bulge)
There after. Nick named Nine Finger Nystrom. In the heat of a Fire Fight Ray took a $hit, balanced with the aid of his M1. His middle finger of his right hand was shot off. One of the Nurses who cared for him became his wife.
Ray had a disadvantage, not being able to give a proper middle finger.
Memories.
A generous application of gorilla tape to isolate the adjacent tubing, while whittling away and fairing the brass joints may be useful. Mind you, everything I have said about metal working is not recommended, except the file remarks.
Tom
Half round files, 6 and 8 inch have the best radius profiles. A dull file can cut ferrous metal, only a new sharp file can efficiently cut nonferrous metals. Be it Aluminum, brass. bronze, or copper. I have dozens of cast off files from a investment casting Co. whose aluminum wax casting molds I serviced and repaired.
MCS MSC Industrial Supply - Metalworking tools and MRO Supplies (mscdirect.com)
Or McMaster-Carr my personal favorite supplier.
Sculpting a radius with a file. It is a natural inclination to push the file from low to high. The opposite form from high to low gives the best control of the file strokes. ( From my Master Ray Nystrom, wounded at the Battle of the Bulge)
There after. Nick named Nine Finger Nystrom. In the heat of a Fire Fight Ray took a $hit, balanced with the aid of his M1. His middle finger of his right hand was shot off. One of the Nurses who cared for him became his wife.
Ray had a disadvantage, not being able to give a proper middle finger.
Memories.
A generous application of gorilla tape to isolate the adjacent tubing, while whittling away and fairing the brass joints may be useful. Mind you, everything I have said about metal working is not recommended, except the file remarks.
Tom
Last edited:
A nice air driven hand held belt sander works good for sculpting metal. Get one with a 3/8 or 1/2 wide belt .
After some more research sounds like I want to most of this by hand. Medium and fine round hand files. And emery cloth.
Well I laid down another coat of brass and have started filing. This is a tedious process. I’ll post pics when I get it more cleaned up. Probably a day or two, work is really busy.
