BlowByU Full Belt Drive Felt Magno Build

Discussion in 'Motorized Cruiser Bicycles' started by Terry Blow, Jan 20, 2011.

  1. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,530
    Likes Received:
    6
    Yeah, I just saw the mock-up pics and see that it is the tank and not the seat......whew, had me worried for a sec. Was thinkin you were gonna have to change the name of the build to the "Hemi-Special" or "Pile-o-Piles" er sumpin like dat laff

  2. buzbikebklyn1

    buzbikebklyn1 New Member

    Joined:
    Jun 3, 2009
    Messages:
    208
    Likes Received:
    0
    Exactly what i was talking about, it looks good, between the 4 stroke, belt drive and that long pipe and muffler it should be very quiet.
    BBB

  3. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    :) :) :) :)

  4. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    That is going to be all pipe no baffles and if it turns out too loud I will remove the end cap and add some baffles

  5. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Here are a few pics of the brake levers I bought for Rare Bird.

    SANY0398.jpg These are the ones I am going to use

    SANY0400.jpg These are the ones I bought first but are way to short

    SANY0399.jpg This shows the size difference between the two

    At first I thought the old school levers would be right but as soon as I saw them I knew I had to get larger ones. So I bought mini bike levers, both are for the left so one will be upside down. The adjusting adjusters are a little big for the bike cables I will try to find some that will work better with bike cables.

    Cheers
    Terry


  6. aquileus

    aquileus New Member

    Joined:
    Jan 24, 2011
    Messages:
    51
    Likes Received:
    0
    Awsome build Terry! I'm sure is gona be a nice and smooth ride.

    (^)
    Antonio.

  7. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Thank you Antonio
    I will be spending the next few days Re-organizing my shop and when that is done I will be finishing this build.
    I can't wait to put it all together and take it for a ride

  8. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    HI Everyone
    Well here are some pictures of my shop after buying some racks to help organize it so I can work on bikes.
    Before this you had to walk sideways to get through I now have plenty of room and this is one of the reasons why I have not worked on Rare Bird.
    I just have some final organizing to do and I will be right back at it hopefully next Monday.
    These pics are not to show off just to show what $200 bucks for racks and 30 hours of hard work.
    Special thanks to my best buddy Adrian with out him it would have taken 70 hours to get this far.



    SANY0416.jpg This sheet of plywood will get painted white and some of my tools will be hung here.



    #88 Terry Blow, Feb 22, 2011
    Last edited: Feb 22, 2011
  9. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Heres the last ones

    SANY0419.jpg The two tool boxes on the right will get reorganized

    SANY0420.jpg This is my welding table it will get cleared off and I am going to put Castor wheel on the legs & it will be getting one of those 360 degree vises.


    shop pic.jpg

    #89 Terry Blow, Feb 22, 2011
    Last edited: Feb 22, 2011
  10. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,199
    Likes Received:
    76
    You got everything but a metal leath you could be turning your own shafts? I have that same little drill press. Nice shop lots of shelf's

  11. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    All the shelves where put in on Saturday the green ones where free and the large racks cost me $170.
    I am going to get a better welder first and then a lathe my shop has a little ways to go but it is getting there.
    Cheers
    Terry

  12. Greybeard

    Greybeard New Member

    Joined:
    Feb 8, 2011
    Messages:
    336
    Likes Received:
    0
    I was just reading through this for the 11th time, but who's counting. I saw the pics of the engine sitting in the frame and it looks TIGHT. True, or camera angle?

  13. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Yes those where mock up pics and if you look closer at the those pics you will see that I have the mount set really high about 2 inches high. The reason I did that was I was not sure what the clearance would be for the belt so I just set the mount as high as I could just for the moch up. When the mount is put in place for good I will have it just above the pedal chain guard. I think I have a pic of my MP some where and you can see the difference.

    Felt MP.jpg

    That picture is what the clearance will be like when Rare Bird is done

    #93 Terry Blow, Mar 3, 2011
    Last edited: Mar 3, 2011
  14. chainmaker

    chainmaker New Member

    Joined:
    Jan 19, 2010
    Messages:
    2,597
    Likes Received:
    1
    Hey Terry,
    Hows this bike coming along, and where did you get the sheaves for the wheels?

    Cheers

  15. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Hey chainmaker
    I have not done anything lately my self and my family have been battling a nasty cold.
    I have ordered the Abraham linkage front end that should be here next week.
    I am going to offer this belt drive as a kit so I don't want to make the info public so I will PM you that info
    Cheers
    Terry

  16. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    OK Everyone
    Time to get back on track here the Abraham Linkage front end came in yesterday and I have it installed now. It fit like a glove no changes where needed just bolt it on here are a few pics





    On Sunday I will make this bike so it is ride-able and then I will start work on the mount and the painting the engine and transmission

    #96 Terry Blow, Mar 25, 2011
    Last edited: Mar 26, 2011
  17. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,530
    Likes Received:
    6
    Is the tank finished yet, I don't see a gas cap?

  18. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    scotto

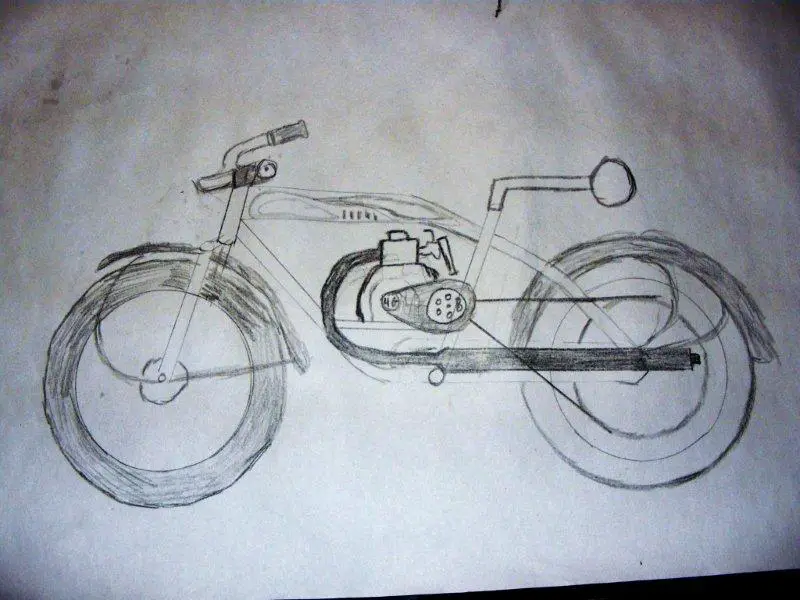

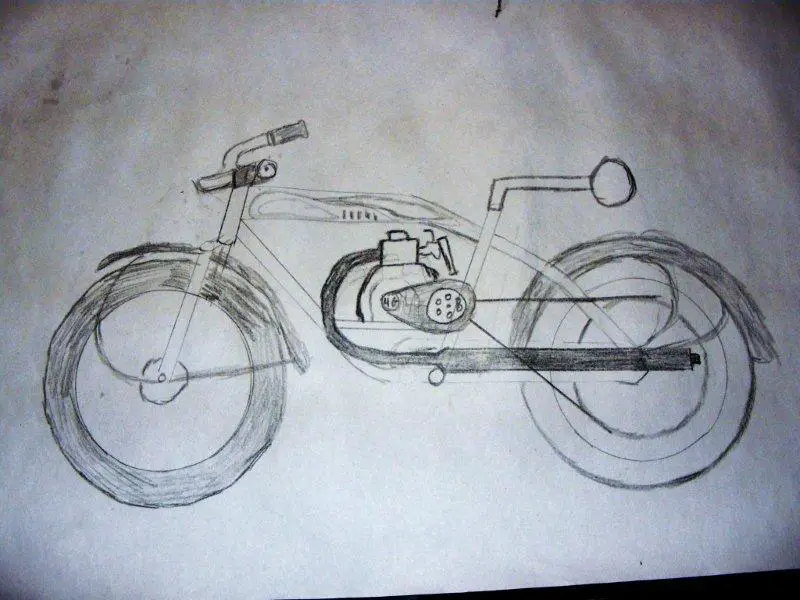

    I think your mind is slipping don't you remember my pencil drawing and how my seat was going to be a pain in the butt. But then you looked back at the photos and saw the fuel tank on the lay back seat post LOL it sucks to get old you know. The steel frame felts top tube is so small it is not worth doing a tank in them.

  19. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Scotto
    This picture should jog your memory

    Magno Mock.jpg

    Well anything ??? LOL

  20. AzToker

    AzToker New Member

    Joined:
    Feb 28, 2010
    Messages:
    78
    Likes Received:
    0
    Wow That a awesome build!. Ihope you don't mind me asking question about the lay back seatpost/gas tank. How long is the seatpost from the top to the tank? I really like to add this to my build later on but wasnt sure if the post is long enough. Again awesome build!
