    Hi Az
    Here is a picture of the tank and seat post out of the bike


    From the weld to the tank is 8 inches and from the bottom of the seat post to the weld is 9 inches.
    Hope this helps you
    Cheers
    Terry

  3. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Hi All
    Have been working on Rare Bird and here are a few pictures.

    SANY0492.jpg This picture is a mock up of what it will look like when the new Abraham Linkage is installed.



    I will have more pics later today as Rare Bird now a ridable bike with the wide crank and it's new wheels.
    All that is really left to do is customize the mount, paint and install the engine.
    Oh and I have re done the 3 piece wide crank installation videos so when they are done uploading to youtube I will post them here for your viewing pleasure LOL.
    Cheers
    Terry

  4. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
  5. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    OK here is a photo bomb





    SANY0523.jpg This shows the shifter but I still have to shorten the hand grip

    These pics show my 5 speed combo for the HD axle kit

    #105 Terry Blow, Apr 7, 2011
    Last edited: Apr 7, 2011
  6. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0



    SANY0525.jpg Here is a picture of my sweet sliding engine mount


    SANY0530.jpg This pic is of the disassembly of the engine before painting it

    #106 Terry Blow, Apr 7, 2011
    Last edited: Apr 7, 2011
  7. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0






    SANY0538.jpg This is a pic of the wash I am using before painting it is Marine Clean and Metal Ready

    #107 Terry Blow, Apr 7, 2011
    Last edited: Apr 7, 2011
  8. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0


    SANY0540.jpg Disassembly of the 4G too as it is getting painted as well





    Not everyone is going to like the idea of painting the entire engine and trans Gloss Black. The engine cover and mounting paint will get base coat black and 3 coats of clear coat and will turn out real shiny and deep looking.
    My idea is to try and make the engine disappear or look less noticeable

    #108 Terry Blow, Apr 7, 2011
    Last edited: Apr 7, 2011
  9. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0





    All of the parts are ready for paint and I will paint it all tomorrow weather permitting

    #109 Terry Blow, Apr 7, 2011
    Last edited: Apr 7, 2011
  10. azbill

    azbill Active Member

    Joined:
    May 18, 2008
    Messages:
    3,367
    Likes Received:
    0
    looking good Terry :)
    I like your mount design a lot !!!
    (I may borrow your idea in the future);)

  11. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Yes bill that is why I post it, once you do that to your mount you will not need and idler but for your stretch you can keep your chain tight very easy
    Cheers
    Terry

  12. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Here are some pics of the parts painted






  13. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    And more


    I want this whole engine to blend right in with all the black and be as invisible as much as possible

    #113 Terry Blow, Apr 9, 2011
    Last edited: Apr 9, 2011
  14. MaxPower

    MaxPower New Member

    Joined:
    Jul 1, 2009
    Messages:
    552
    Likes Received:
    0
    what kind of paint did you use?

  15. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    Hey MaxPower
    On the engine mount and engine cover I used automotive paint PPG 3 coats of Black base coat and then 5 coats of clear.
    For the engine I just used engine enamel

  16. scotto-

    scotto- Custom 4-Stroke Bike Builder

    Joined:
    Jun 3, 2010
    Messages:
    6,527
    Likes Received:
    5
    I thought everyone did that to their Grubee engine mounts....it keeps them from shifting too.


  17. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    You bet it is, it's the best way to get the most out of this mount

  18. fishface5

    fishface5 New Member

    Joined:
    May 18, 2010
    Messages:
    1
    Likes Received:
    0
    terry where can i find the chain tensioner for felt bikes and the custom engine mounts
    and that cool cylinder gas tank

  19. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0
    You can get them from my good friend Justin at pirate cycles
    Cheers
    Terry

  20. Terry Blow

    Terry Blow Dealer & Custom Builder

    Joined:
    Oct 29, 2009
    Messages:
    1,117
    Likes Received:
    0

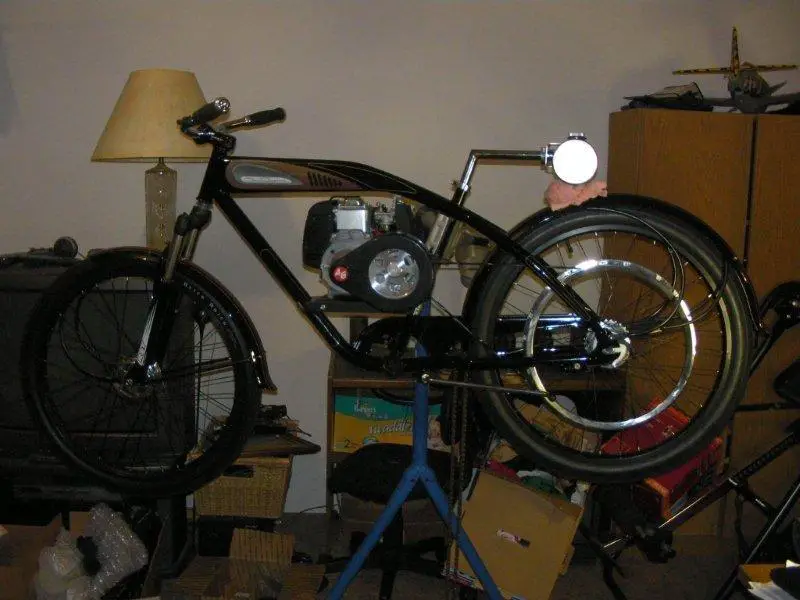

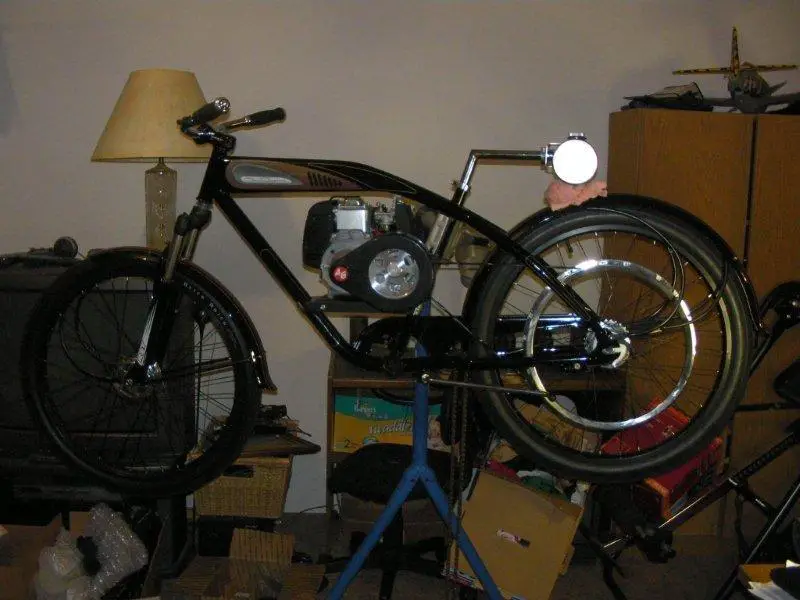

    Hi All
    Well Rare Bird is finally coming together should be done by the end of the week I hope.
    I have a few pics to show BUT the back ground is cluttered and it takes away from the pictures. At this point it is not easy to take off and put back on the bike stand so you get what you get right now.
    I will do better pics when it is all done.






    Here is what is left to do, install the throttle, front fender, cut the rear fender for belt clearance, build the exhaust, mount the tank, find the right size of belt and install it.
    I am think of changing the name slightly to Rare Black Bird as this is a very Black bike.
