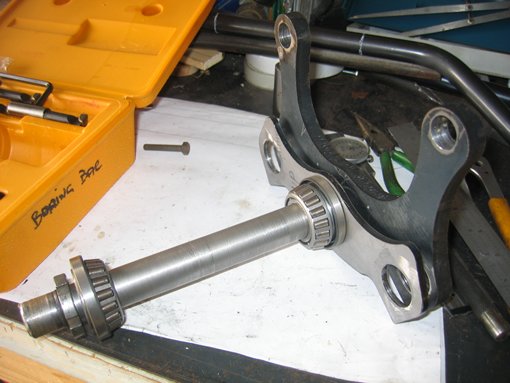

Steering head is from a suzuki 500...its 1" in diameter and has tapered bearings....
Next
Prev
Marking positions of the fork sleeves
Main fork tubes ... bent in pipe bender useing mandrels....pipe is 1" x .125 wall....used a lumber profile to get correct bends
Tube steel used for the forks...profile for the correct curve required for forks
Steering head is from a suzuki 500...its 1" in diameter and has tapered bearings....
Upper fork profiles with holes cut for fork legs
Fork head profiles with drill dimples for drilling
Handlebars bent to shape in pipe bender...made out of 7/8" x .125 seamless pipe
