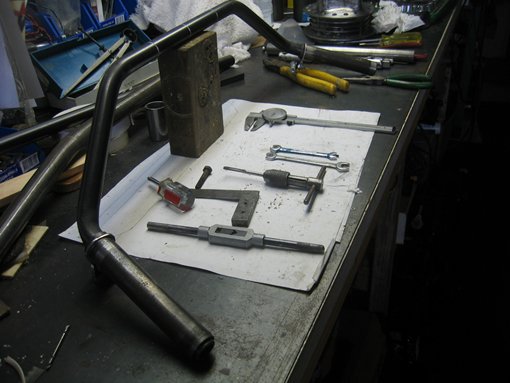

Marking positions of the fork sleeves
Front wheel sitting with the rocker in place...make sure it sitting correct..before going and further
Handle bars are 7/8" and have been set up in jig to weld sleeves in place for the forks.....have also welded cross tubes for pivots for the mechanical
Welding in outside fork ends...simple jig to hold every thing in place
Marking positions of the fork sleeves
Main fork tubes ... bent in pipe bender useing mandrels....pipe is 1" x .125 wall....used a lumber profile to get correct bends
Tube steel used for the forks...profile for the correct curve required for forks
Steering head is from a suzuki 500...its 1" in diameter and has tapered bearings....
DareDevil

Marking positions of the fork sleeves
