kill switch malfunction

Discussion in 'Motorized Bicycle General Discussion' started by crabdance, Jul 8, 2008.

  1. crabdance

    crabdance New Member

    Joined:
    May 16, 2008
    Messages:
    162
    Likes Received:
    0
    ok... I finally got my bike to where it will idle good now so I decided to go ahead and install the kill switch. I connected it to the blue wire. I took the bike out for a trip around the block and when I came home I tried the switch. I worked perfectly. At least I thought so until the next time I tried to start it. The bike would not start at all. I undid my kill switch connection on the blue wire and the bike started just fine.

    My question is; What did I do wrong? I'm not mechanical or electrical and don't understand why it would not start again. Can someone please shed some light on this subject?

    thanks.

  2. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    The kill switch (99% of them) are junk.

  3. crabdance

    crabdance New Member

    Joined:
    May 16, 2008
    Messages:
    162
    Likes Received:
    0
    So can you recommend a course of action? I really don't like killing the engine by letting the clutch out. I'm not sure what to buy as a replacement for the kill switch. I don't want to make things worse, which is possible (for me).

  4. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    Go to a motorcycle/moped/mower shop and ask for a kill switch that can be mounted on the handlebars.

    It doesn't hurt the bicycle motor to kill it with the clutch.

  5. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    Or remove the wire from the switch and when you want to shut it off, just ground it out to the handlebars....do not straddle the tank while doing so.

  6. jasonh

    jasonh New Member

    Joined:
    Jun 23, 2008
    Messages:
    1,590
    Likes Received:
    0
    any momentary pushbutton switch should work. Hello RadioShack :)

  7. stude13

    stude13 New Member

    Joined:
    May 28, 2008
    Messages:
    404
    Likes Received:
    0
    hi; car parts and radio shack have toggle switch that you can hide.

  8. deacon

    deacon minor bike philosopher

    Joined:
    Jan 15, 2008
    Messages:
    8,119
    Likes Received:
    0
    I use a toggle switch I leave it set to off when I park the bike. It might give me a minute to reach a thief before he figures it out. You could even hide it under the seat if you wanted. It makes no deference where it is.

  9. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    13

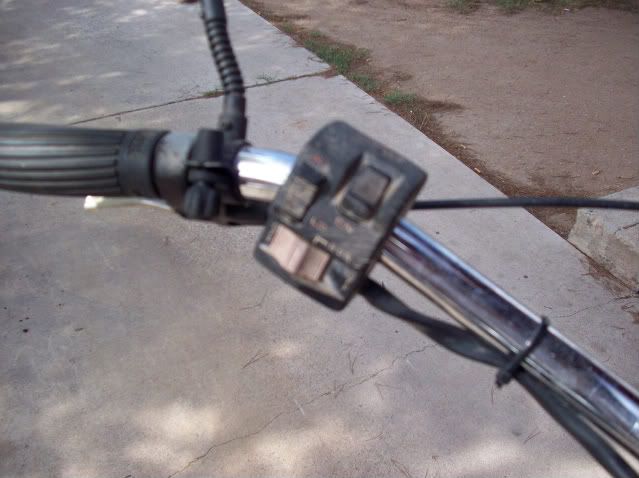

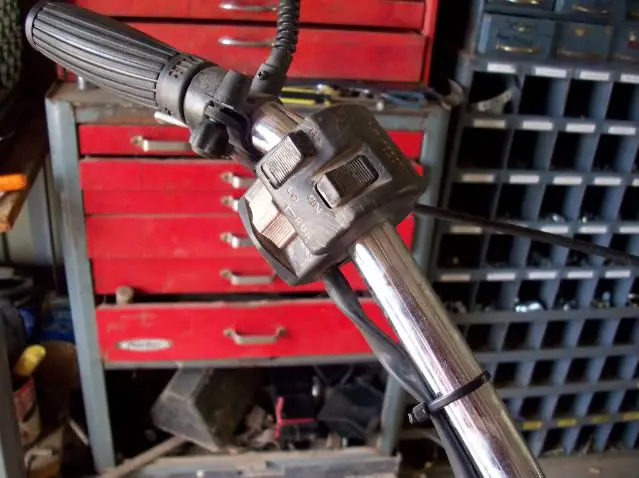

    I'm using a old motorcycle switch...it also has a on/off for light's that I keep saying I'm going to get but never seem to get around to it. It also had a HI/LOW for the light's that I could use for something else...maybe turn signal's?

    [​IMG]
    [​IMG]

  10. crabdance

    crabdance New Member

    Joined:
    May 16, 2008
    Messages:
    162
    Likes Received:
    0
    Thanks for all the help, everyone. I think I will get me a toggle switch and use that. Wonder how much they cost? Shouldn't be too much I would think. I will find out today and if I have enough pocket change I will get one today. I will let you all know about how it goes once I get it on.

    Again, thanks for all the help,
    cd

  11. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    Under 2.00.....

  12. MarcPhotoMan

    MarcPhotoMan New Member

    Joined:
    May 21, 2008
    Messages:
    258
    Likes Received:
    0
    when i am testing the bike without the kill switch wire i use the choke to kill the engine.

  13. Scotty

    Scotty New Member

    Joined:
    Jul 5, 2008
    Messages:
    32
    Likes Received:
    0
    I use the choke too, with a little rev. Besides all the switches i've seen look crappy and fail constantly due to rain.

  14. crabdance

    crabdance New Member

    Joined:
    May 16, 2008
    Messages:
    162
    Likes Received:
    0
    Well, I got me a toggle switch from the auto parts place this morning. I've got it hooked up and it works great. So now I don't have to try and kill my engine with the clutch anymore.

    So far it's working really well. I'm about to go take a ride and I will let you know if anything vibrates off (lol).

  15. Kulana Kruiser

    Kulana Kruiser New Member

    Joined:
    Jul 8, 2008
    Messages:
    7
    Likes Received:
    0
    White and frame ground is stupid - who turns off an engine by a controlled short?

    Just do this, if you haven't already:

    Get rid of the yellow button kill switch - buy a $2.00 switch as seen in pic, dremil a space for it in the throttle handle, and make it a kill switch that connects/splices to each side of the BLUE wire. The yellow switch used w/ the white wire is notorious for creating a short which will eventually fry the magneto. = $30.00 + shipping to replace.
    Now you have a real kill switch that you can control easily when riding. I like to let my bike idle for a moment before shutting it off. And this makes it very easy to do so.
    I got my switch at Autozone for $2.00.

    Kruisin Style,

    Troy Fitz.

    [​IMG][/IMG]

    #15 Kulana Kruiser, Jul 10, 2008
    Last edited: Jul 10, 2008
  16. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    13

    rotfl What do you think the switch does? It turns the motor off with a controlled short rotfl

  17. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    fo' sho'! The mag is not going to be ruined by shorting it to kill the engine. If it were, then it would "fry" it the first time you hit the kill switch.

  18. Kulana Kruiser

    Kulana Kruiser New Member

    Joined:
    Jul 8, 2008
    Messages:
    7
    Likes Received:
    0
    Yeah, and that's why so many people with posts on these forums change it out,- because it works so well.:rolleyes:
    Using an in-line toggle switch on the blue wire simply disrupts the power by turning off the source- (no positive and negative contact between the the two sources made at all)- you have a very strange definition of what an
    "electrical short" is.
    It is not the same as using the a wire which contains a small amount of current, and then pushing a button which transfers that current into the grounded frame to "short" out the power that was being generated. - which conducts heat which can eventually in time- not always- lead to failure.
    But whatever, you do what you want and I'll do it the way that will never fail.(p)

    Keep on Kruisin,

    Troy Fitz.

  19. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    1
    You are correct about the interuption of current. That will kill the engine too.

    Mags have been grounded out to "stop the engine" since the early part of last century, so what works for most is just as viable a way as your "never fail" philosophy, without the attitude.

    So, yes, you do it your way and everybody else can do what works for them.

    Everybody wins.

  20. Norman

    Norman LORD VADER Moderator
    Staff Member

    Joined:
    Jan 16, 2008
    Messages:
    2,605
    Likes Received:
    0
    Gee I thought the kill switch that came with the kits worked fine maybe I'm doing it all wrong? I guess I'd better disconnect it before it blows the plug out of the head or worse yet burns out the mag or something.
    Man all those mags on the industrial engines and my airplane are being shorted out every time I kill them.
    Thanks for the update.


    I don't think I'll change anythingrotfl
