Home built full suspension custom frame pics!

Discussion in 'Motorized Bicycle General Discussion' started by StevenMain, Dec 22, 2016.

  1. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    The donor bike and a sketch of how ill cut it up and re weld it.... an old used Next suspension bike.. they typically sold well under $100, this one was free.

    [​IMG]

    [​IMG]

    Wheelbase and ride height look funky.. before the rake, and swing arm mods
    [​IMG]

    [​IMG]

    after a rake, and swingarm is cut up and modified for the new rear shock position.
    [​IMG]

    in front of my beach cruiser to check how the motor will mount



    Stay tuned, next I will add the downtube and motor plate and gussets. Then, tear it all down, and shoot it before final assembly.. Total money invested so far.. $0, and about 4 hours or work.. not bad. I'm pleased :)

    #1 StevenMain, Dec 22, 2016
    Last edited: Dec 22, 2016
  2. crassius

    crassius Active Member

    Joined:
    Sep 30, 2012
    Messages:
    3,202
    Likes Received:
    10
    looks good

  3. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,776
    Likes Received:
    1
  4. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    Nah, I just Wing it lol and see how stuff goes, learn from doing :).

  5. scratchbuilder

    Joined:
    Jan 17, 2015
    Messages:
    546
    Likes Received:
    2
    Awlright, another dual sus. build. 'Wing' on!

  6. cannonball2

    cannonball2 Active Member

    Joined:
    Oct 28, 2010
    Messages:
    3,472
    Likes Received:
    0
    That thing begs for a Honda Cub clone engine. If you have 17+" clearance from the frame to the tire.

    Curt is right rake and trail is important. Rides like crap if wrong. Ask me how I know.

  7. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    I actually have an uniquely different genious plan for the 66cc "doll" motor. This bike is serving as a test mule to see what I can get away with to be drastically different. I guarentee you all haven't see nothing yet so stay tuned !

  8. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,813
    Likes Received:
    3
    Cool, I like soft tail builds.

    [​IMG]

    [​IMG]

    [​IMG]

    Comfort is important, good luck with your custom frame!

    Save

  9. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    Thanks I actually changed my mind on the seat position and cut and angled the rear tube much further down. Now I have the exact same dimensions as my beach cruiser with a low setback seat.

  10. ultralight01

    ultralight01 New Member

    Joined:
    Oct 30, 2016
    Messages:
    338
    Likes Received:
    0
  11. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    A reed valve china doll. I've stuff the case, tried every porting configuration imaginable, run a YZ85 modified expansion chamber and it runs 39 mph on a 44 tooth on the flat. With a shift kit over 50 should be cake I'd imagine. How I do the shift kit is the genius part... stay tuned lol

  12. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    [​IMG]

    I changed the seat post angle to allow for a lower seat.

    If this bike BELOW doesn't sell in a few days for $475 I will use its built engine as a donor.

    [​IMG]

    I will be mounting the engine.... upside down and backward, to the frame with welded motor mounts. I will have to run the engine in reverse to power the bike but it allows me to run a shift kit without a power robbing jackshaft and 3 chain setup. if I mount the engine to welded motor plates, upside down and backward it will also serve as the frame's downtube just like on a sportbike. If it works on the prototype Im going to transfer it to this bike

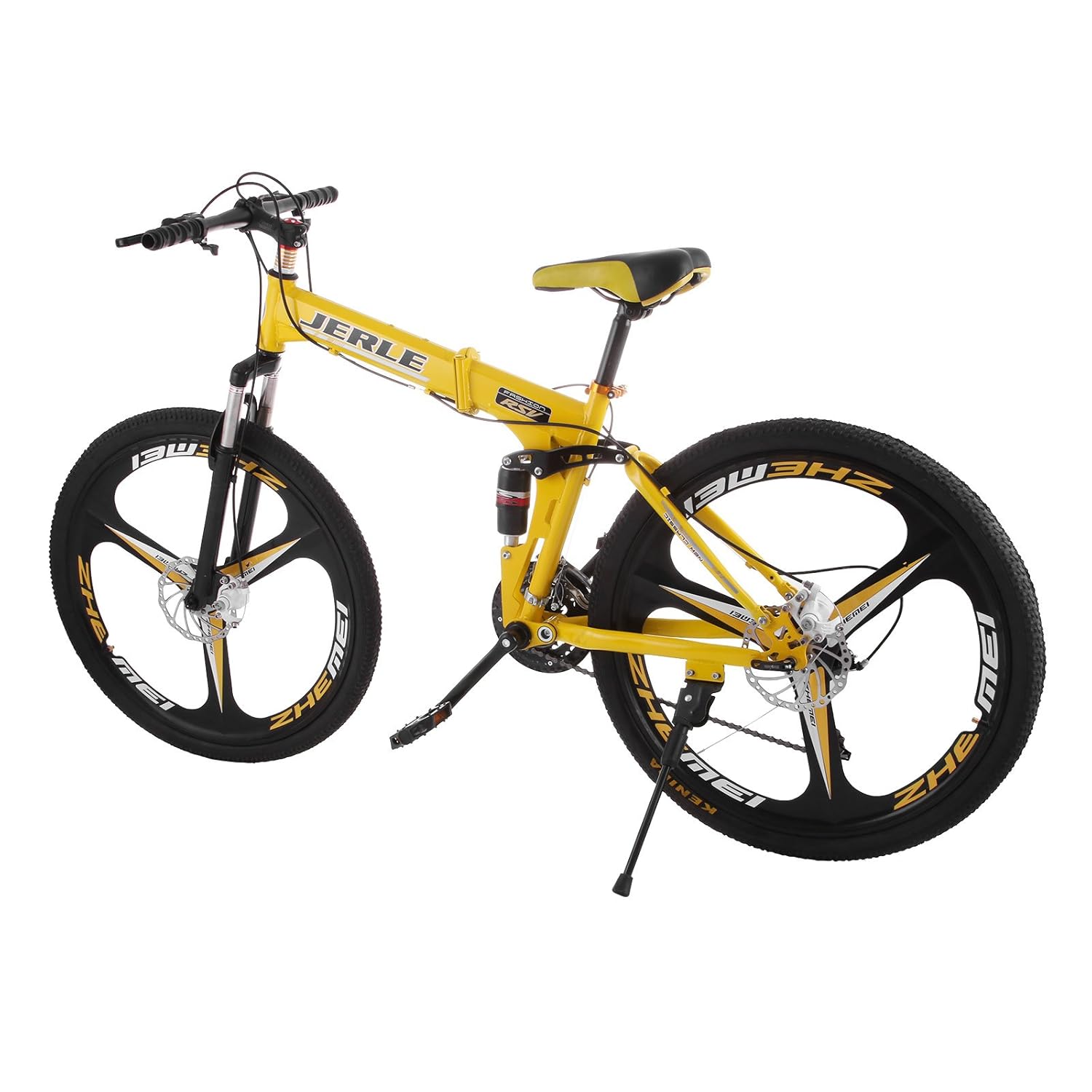

    [​IMG] which ill buy specifically for this purpose.

    #12 StevenMain, Dec 28, 2016
    Last edited: Dec 28, 2016
  13. KCvale

    KCvale Active Member

    Joined:
    Feb 28, 2010
    Messages:
    3,813
    Likes Received:
    3
    Wow, that is some plan you have there Steve...
    Re-Engineer everything so you don't have to suffer the devastating loss from one extra short chain!

    A bicycle has 1 chain, a direct drive kit has 2, a shifter has 3.
    When you have gears losses mean nothing bud ;-}



    Save

  14. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    You're sort of missing the point. It's really easy to make the engine run backward... litterally one mod. I can avoid the extra chain and complication and maintenance. Also I won't need a down tube because the engine will serve as the frames downtube. I won't need an expensive shift kit either, just the freewheel and sprockets and crank arms.

    Less cost, less complexity, and thinking outside the box to utilize new frame styles and such.

  15. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    Update, frame mocked up after sandblasting and smoothing the joints out with Epoxy for that seamless one piece frame look. Gave me an idea.. Going to paint the frame Digital Urban MultiCam

    [​IMG]

  16. ultralight01

    ultralight01 New Member

    Joined:
    Oct 30, 2016
    Messages:
    338
    Likes Received:
    0
    Sweet. It needs a better front shock in my opinion. If you lengthened the top tube things would be much easier to fit and it would ride and look better. That or a long swinngarm and a long/tall shock

  17. scratchbuilder

    Joined:
    Jan 17, 2015
    Messages:
    546
    Likes Received:
    2
    My first dual suspension I had to redo also. The #2 got cut and redone also. Now I'm thinking along the lines of this type(pic) but, mine will not look as sweet as this one does.

    #17 scratchbuilder, Jan 2, 2017
    Last edited: Jan 2, 2017
  18. ultralight01

    ultralight01 New Member

    Joined:
    Oct 30, 2016
    Messages:
    338
    Likes Received:
    0
    Because it's electric... and electric is so clean and hideable.

  19. StevenMain

    StevenMain New Member

    Joined:
    Jul 18, 2016
    Messages:
    108
    Likes Received:
    0
    [​IMG]

    Ok, I got the motor mount plates welded on, then I cut my chamber head pipe and made it fit the new bike, added 1" to lower the power band some too since it takes a very high RPM to hit the YZ85 pipe. I have to route the exhaust after the chamber still, and make an intake that will hold the carb level to the reed block.. Then make the engine run backward and link it to the freewheel. :)

    Fuel tank isn't decided on yet it's just sitting there.

  20. ultralight01

    ultralight01 New Member

    Joined:
    Oct 30, 2016
    Messages:
    338
    Likes Received:
    0
    Disc brakes, my man
