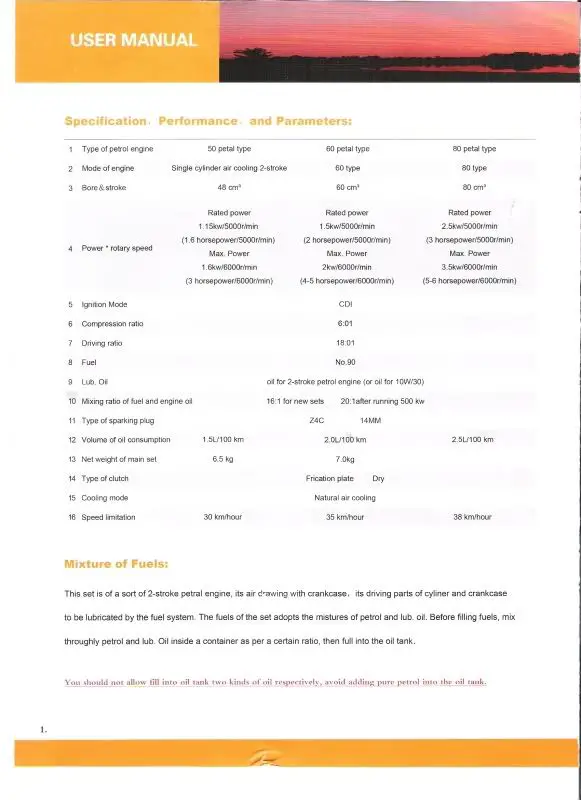

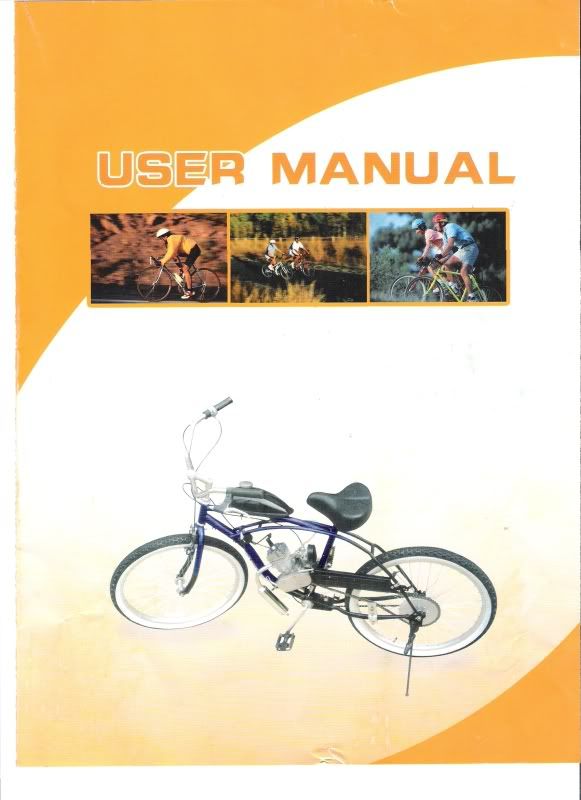

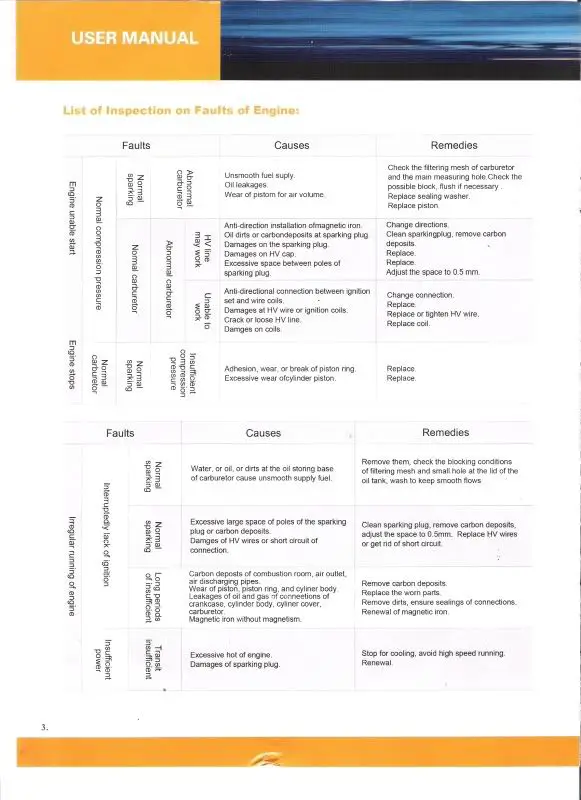

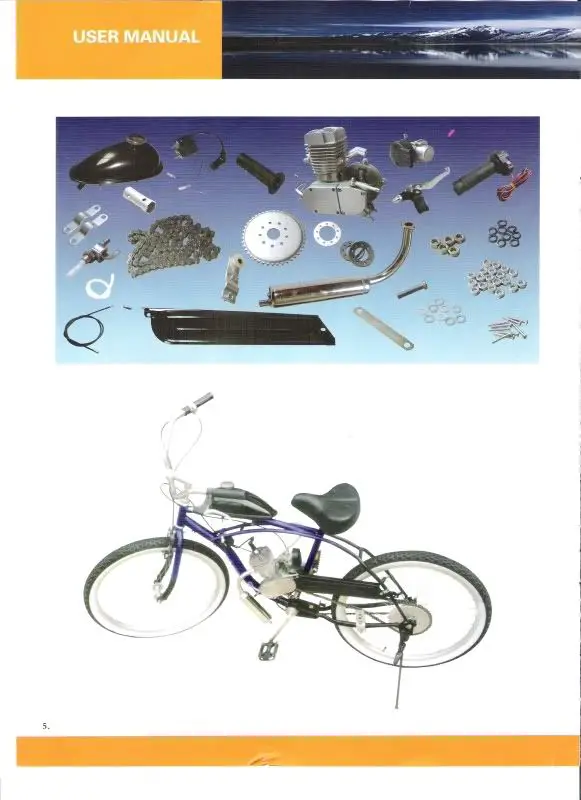

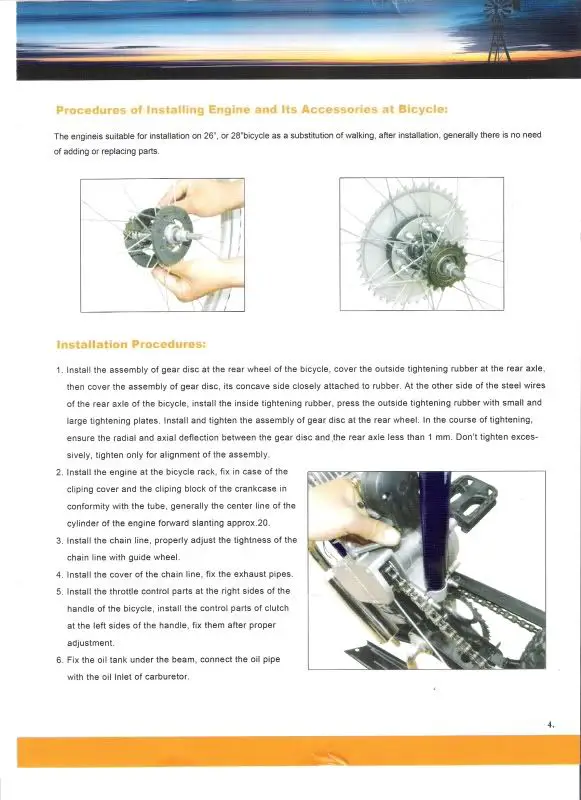

Frame mount user manual scans..

ibcnya

New Member
Oct 29, 2008
220
0
0
Concord NC
Vague to say the least but still a reference point IMO...







the rest in next post....

Last edited:

mechanickid

New Member
Aug 7, 2008
419
0
0
nh
wow thats a whole lot more than mine had in it! my manual explained things like this: "install engine, install rear crank, install carburetor, install "oil tank", install throttle and clutch."


Technocyclist

Motorized Bicycle Senior Technologist
Jul 7, 2008
463
0
0
Asia

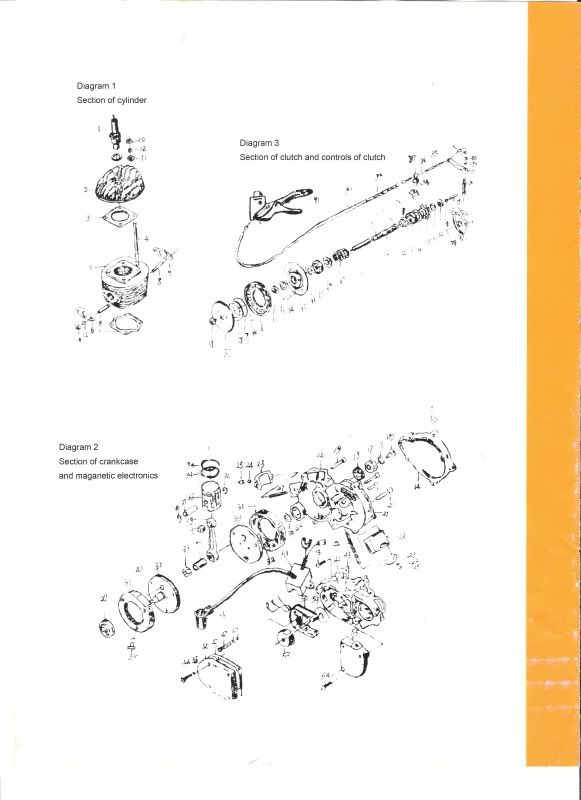

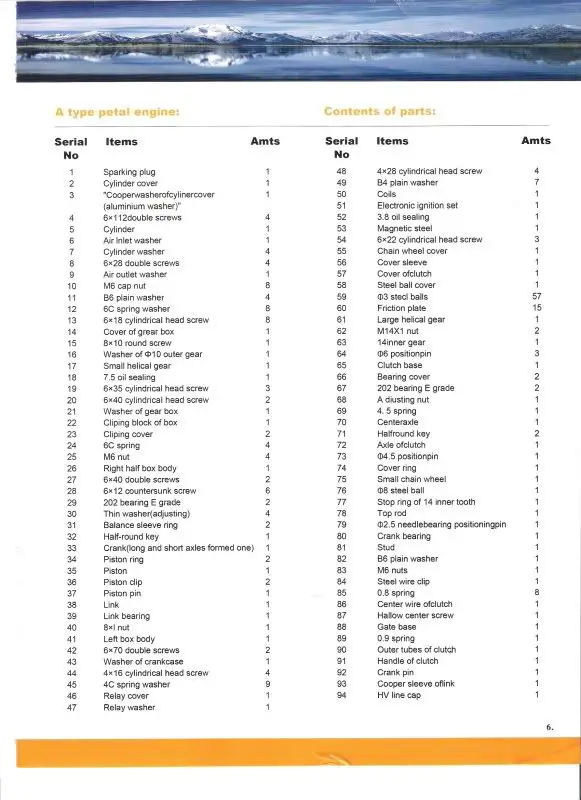

yup, it even has an exploded view of the whole engine... parts and everything... Thanks for sharing this... :)


Bikeguy Joe

Godfather of Motorized Bicycles
Jan 8, 2008
11,843
235
63
up north now
I just love the butchered English....

"You should not allow fill into oil tank two kinds of oil respectively, avoid adding pure petrol to oil tank."

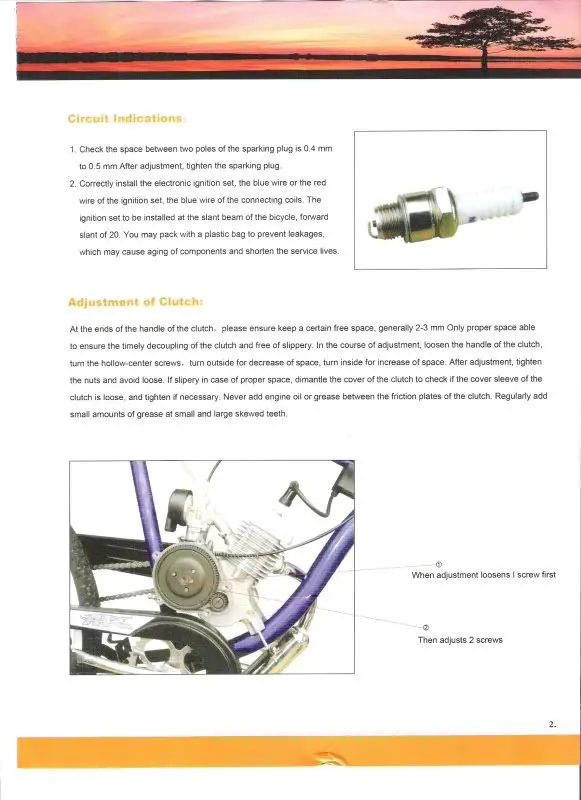

Or- "When adjustment loosens, I screw first."

Sep 20, 2008
1,668
2
0
Clearwater, FL
web.tampabay.rr.com
Oh I know the Engrish is fun to read...My engine came with the same brochure. I read it out loud to the guys in the shop so we could all have a good laugh.

Then again I'm sure if I offered a product to them, they'd get a kick out of my version of Mandarin.

Considering they have a global market...I'm sure they could justify, (cost-wise), having somebody write them a good installation manual.

I thought about doing up a really good installation manual that would include a CD. It would be a lot of work. Probably just get ripped-off and bootlegged.

Jim


Walter F.

New Member
Jun 4, 2008
326
0
0
Connecticut
Boy I bet the newbies would love that, a CD of how to put the kit together!Can't you put your name or logo in with the making of the CD. I don't know, it's all I can do to get a CD to play. Still I like the idea. Happy Hills & Trails Walter F.


old motorbike

New Member
Sep 21, 2008
352
1
0
74
Fl.
I laughed at that (instruction manual) when I attempted to build mine.
It's a good thing, I've always been a junkyard rigger, so it was easy without instructions.
