Frame Jig on the cheap

Discussion in 'Motorized Bicycle General Discussion' started by culvercityclassic, Feb 25, 2011.

  1. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,089
    Likes Received:
    59
    Harry

    The jig works good, for something I made out of left over material you can't beat it. It folds up nice and can be stored with ease. If you do some research, jigs are not cheap...the bottom line this one works.

    Give it a shot...

  2. harry76

    harry76 New Member

    Joined:
    Apr 16, 2011
    Messages:
    2,557
    Likes Received:
    1
    Thanks CCC.... i did make a wooden jig when i stretched my Indian build frame but id like to start making frames for myself so a metal jig would be a good investment.

  3. sportscarpat

    sportscarpat Bonneville Bomber the Salt Flat record breaker

    Joined:
    Jun 25, 2009
    Messages:
    1,752
    Likes Received:
    66

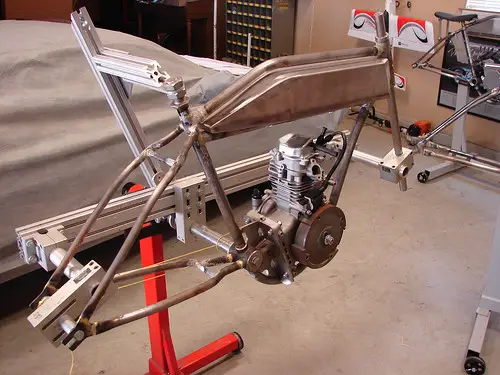

    Here we go. Took a few minutes to find this picture. Man, the bike frame design has changed, but the frame jig is tried and true. Rotates at the bottom bracket. I had a few engine stands around and cut them all up. This one supports my frame jig and the others are now build stands so I don't have to bend over all the time. Besides, space is always at a premium so now I can roll things out of my way.

    [​IMG]
    Sportsman 200 by Sportsman Flyer, on Flickr

  4. harry76

    harry76 New Member

    Joined:
    Apr 16, 2011
    Messages:
    2,557
    Likes Received:
    1
    Thanks for the pic Sportscarpat. I love the jig, and the bike and the clean workshop. The floor in my house isnt that clean.

    I can now see why you do such phenomonal work, i guess you dont do much without first having a very thought out plan.... i could learn a lot

  5. thegnu

    thegnu New Member

    Joined:
    Sep 15, 2011
    Messages:
    982
    Likes Received:
    0
    Venice an I think alike .
    nice jig the one I am working on is very similar , the only concern I have is with heat as it can tourqe the tubes as you weld , I am probably going to make my L brackets out of some heavy 1/4 inch .

  6. RicksRides

    RicksRides Member

    Joined:
    Feb 22, 2012
    Messages:
    864
    Likes Received:
    0
    Jeff, thanks for sending the link for this, I made my jig a copy of yours and am very pleased with it. I will post pics this evening Its a great jig for less then 100 bucks

  7. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,089
    Likes Received:
    59
    Cool I am glade to hear that you made one, you will be surprised how well it works.

  8. Artificer161

    Artificer161 New Member

    Joined:
    Sep 17, 2012
    Messages:
    31
    Likes Received:
    0

    #28 Artificer161, Oct 17, 2012
    Last edited: Oct 17, 2012
  9. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,089
    Likes Received:
    59
    Purchase 10 feet of 3/4" and 10 feet of 1 1/2" uni-strut channel, that should be enough. You are going to need a bunch of sprig nuts and bolts with washers, 3/8" and some "L" brackets. If you can use a chop saw all the cuts will turn out real clean after you de-bur them.

    http://www.plccenter.com/Shop/UNIST...ogleShopping&gclid=CM6GkKG8iLMCFQ7hQgodYzQALA

    The best place to find the right stuff is an Electrical Whole-sale house.

  10. Crazy Horse

    Crazy Horse Dealer

    Joined:
    Feb 20, 2009
    Messages:
    1,155
    Likes Received:
    0
    BIG BUMP, on your thread Culver all the way to the Chop Shop, Fabrication & Painting Forum Section. Well this thread is related to Welding and Chopping our frames, and what better way to weld / build them than using your bicycle frame jig.

    Ditto, flybytaco can't help myself I'm always torching, cutting, ginding and welding my own frames.

    Culvercityclassic, PM sent to you.

    Thanks,
    Crazy Horse.

    #30 Crazy Horse, Feb 10, 2013
    Last edited: Feb 10, 2013
  11. culvercityclassic

    culvercityclassic Well-Known Member

    Joined:
    Sep 27, 2009
    Messages:
    3,089
    Likes Received:
    59
    The jig is still being used. You will be happy after you make it, frame building made easy. The other item that works well is a tubing notcher...a must if you are building frames.

    Glad I could help,
    Jeff
