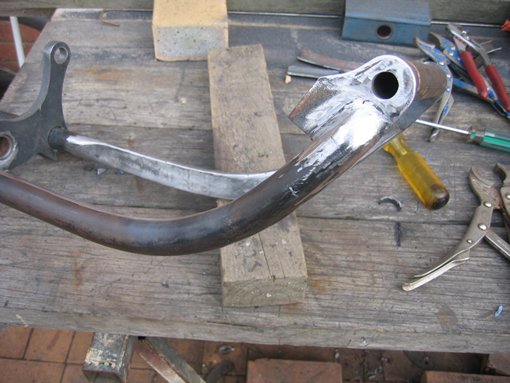

Inside of the forks cleaned up with flapper disk
Leaf spring..hand made by spring maker...dont make your own springs as there is a 3 stage proccess in heating and cooling...Your looking for trouble i
This is a mock set up with the wheel in place to position rocker pivot and the wheel ...had to make the width spacers to center the wheel in forks...
Suspension axle rockers...with adjustable clevis points for the spring rods
Inside of the forks cleaned up with flapper disk
The inside of of fork tubes cut down the middle for wheel and spring lever movement and clearance..shaped 1/8" flat to fill the inside of the fork
Handlebars in place ..these help to keep the forks in alignment...dummy spring in place for lenght before I get the spring made
Settin up the braces on the front of the forks
DareDevil

Inside of the forks cleaned up with flapper disk
