Warning to those port matching intakes

Discussion in 'Motorized Bicycle General Discussion' started by ibcnya, Feb 2, 2009.

  1. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0

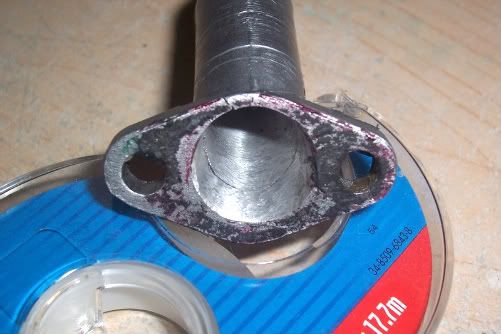

    My 50 mile ride turned into a Epic Fail today. Half way there I was kicked in the nuts hard....bad part was I left the spare at home...

    [​IMG]

    How many of you has this happened to? Looks like the result of thinning the metal out, heat and high vibration. I need a bracket to hold the intake/carb stable. Im gonna figure out how I can rig something to brace them off and keep the vibrations down. It should also control the foaming of the fuel in the float bowl some.

  2. Ghost0

    Ghost0 New Member

    Joined:
    Mar 7, 2008
    Messages:
    764
    Likes Received:
    0
    I would get one of the steel ones. The diameter of the tube is larger and they are much stronger even after matching the intake port.

  3. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0

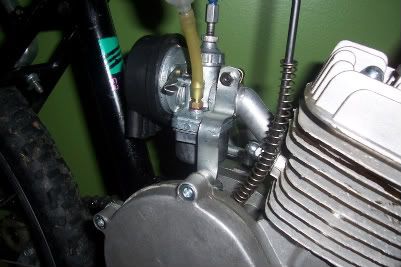

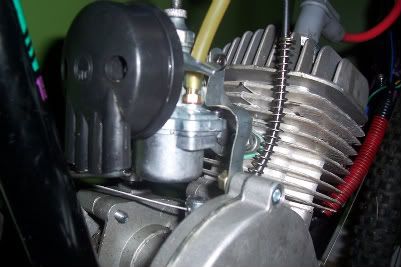

    Ive been looking for one but cant find a supplier....Ive got my spare on and even made a weak attempt at bracing the carb a little but i dont think its gonna help.

    [​IMG]
    [​IMG]

    Maybe itll help, but probally wont. Im gonna keep trying different things though. Im thinking change the bend where i can drill a hole and run the float bowl bolt through it to.

    #3 ibcnya, Feb 2, 2009
    Last edited: Feb 2, 2009
  4. Pablo

    Pablo Master Bike Builder & Forum Sponsor

    Joined:
    Dec 28, 2007
    Messages:
    3,658
    Likes Received:
    5
    A stiffer bracket may help. Is your spare ground on as well?

    The regular engine suppliers should have the steels ones, no:confused:

    I used to think the cast pups were the HiPo units....until I found out they are actually smaller ID. Now I guess here's another reason....

  5. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    3
    Interesting, never seen it happen.

  6. azbill

    azbill Active Member

    Joined:
    May 18, 2008
    Messages:
    3,367
    Likes Received:
    0
    thatsdax sells steel intakes

  7. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    Hes not listing them...

  8. jasonh

    jasonh New Member

    Joined:
    Jun 23, 2008
    Messages:
    1,590
    Likes Received:
    0
    I was trying to decide whether to port the aluminum intake, or the chromed steel. I noticed the steel seems bigger, and I figured it would hold up better. If you're going to port the aluminum version, it might be a good idea to have the outside of it welded up to add some extra material to compensate for what you're taking out.

    Sorry to hear that happened on a ride.

    Honestly I'm not sure how much a bracket is going to help. I think if you thin the material out too much, it will fail no matter what.

  9. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    The new intake wasnt ported, I just put it on. It was a spare i had. To bad I didnt have it with me on my ride, but ill wait till I find a better chrome one before attemting to port again.

  10. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    No my spare is completely normal aluminum cast. I pieced the broken one back together so you guys can see the extent of my porting. The only thing i can think of is a crack began at the top and worked its way around the seam...

    [​IMG]

  11. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    The bracket does seem to be working as far as keeping vibrations of the carb/intake down. While testing the bike out today. I did a slight port on my spare intake, couldnt resist. While testing though i noticed the fuel filter didnt bubble up from vibrating and fuel flow stayed consistent in the filter. Bike ran alot better to, could i have stopped severe vibrations in the float bowl as well? The piece of metal I used came with the kit and I couldnt find a use for until now. I guess ill keep it that way.

    [​IMG]

  12. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    3
    Looks like the crack may have started at the flange.

  13. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    Yep im thinking around the top, When I caught it was cracked, it was hanging on one side. Id say it started on one side and worked its way around.

    STILL HUNTING FOR A STAINLESS CHROMED ONE

  14. eDJ

    eDJ New Member

    Joined:
    Jul 8, 2008
    Messages:
    531
    Likes Received:
    0
    Would it help to shot peen the base of the manifold so surface cracks would be
    slowed from forming. I agree supporting the carburator would be a big help if there
    were points that would lend themselves to assisting that. The bracket shown is better
    than nothing but seems in a way to be calculated to the life expectancy of the motor.
    (which doesn't seem to be long)

    Without the support the carb and fuel are like a free weight on the end of the manifold
    where with the harmonics the base of the manifold would begin to crack. I'm not sure
    that a harder material would solve the problem as heat will build in the same area no
    matter what.

    Even if one only takes a punch and hammer and peens it himself before setting up the
    induction and installing the support brackett.


    Attached Files:

  15. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    Same thing ppl do to piston rods to make them stronger. Could prove useful with the steel intakes, but seriously doubt it would work on the aluminum ones....

  16. Bikeguy Joe

    Bikeguy Joe Godfather of Motorized Bicycles

    Joined:
    Jan 8, 2008
    Messages:
    11,529
    Likes Received:
    3
    It would work for aluminum...glass bead treatment.

  17. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    We need to figure something out on this because number two just took a crap on me today. Brokoe rite in half.....:c

  18. 2door

    2door Moderator
    Staff Member

    Joined:
    Sep 15, 2008
    Messages:
    16,308
    Likes Received:
    32
    Ibcn,
    Did you ever get that steel intake or is the one that broke today still the cast aluminum?
    I have to feel that you are experiencing some unusually high vibrations to be be breaking these parts. I have the chrome steel intake on my first bike and have never had a problem but the second one has the cast intake. This engine has a little more vibration that my first but only time will tell.
    I'd certainly try the steel intake if I were you or if you're handy with metal, fabricate your own. Might not be chrome but...so what, if it doesn't break?
    Tom

  19. ibcnya

    ibcnya New Member

    Joined:
    Oct 29, 2008
    Messages:
    220
    Likes Received:
    0
    The intake that broke today is infact another the cast one. I have just made a purchase of one of the steel ones from Livefastmotors. It cost me 15bux and is chrome plated, flange welded steel. Like the one pictured above.

    I have considered vibrations and heat as a contributing factor and have placed rubber between the seat post and engine, havent done the lower mount as of yet. The rubber subsided the seat vibrations amazingly well. I just think we are dealing with cheap parts and garbage metal. Well ill try the new intake in a few days. Such a shame though since its so nice out :(

  20. stuartracing

    stuartracing New Member

    Joined:
    Dec 9, 2008
    Messages:
    488
    Likes Received:
    0
    Mine broke too...I don`t think it`s verry clean alum. doesn`t take a weld very good...Steel one is a better idea....
