    i realize now the cranks must be fixed together! not the output sprocket or the clutch.


    so stack the engines like you have done allready and weld a sprocket to each small bevel gear. thus a chain to connect the two added counter shaft sprockets locking it at 180 degrees.

    like this a single carb will be excellent.

    #21 frank66, Mar 11, 2015
    Last edited: Mar 12, 2015
  2. frank66

    frank66 New Member

    Joined:
    Jan 15, 2015
    Messages:
    207
    Likes Received:
    0
    i suppose just one clutch then.... if timed at 180 degrees means the torque wont be doubled up but rather more often... deleting one engines complete clutch and sprocket would be wise as its not needed!

    with only one output now/ a single chain to the rear wheel.

    #22 frank66, Mar 11, 2015
    Last edited: Mar 12, 2015
  3. frank66

    frank66 New Member

    Joined:
    Jan 15, 2015
    Messages:
    207
    Likes Received:
    0
    an extra stock chain and one or two extra stock countershaft sprockets will work great if you cut the front half of the clutch covers away. thats all you need to complete.

  4. irishpowerjunkie

    Joined:
    Jan 24, 2012
    Messages:
    115
    Likes Received:
    0
    what about 2 jackshafts running 1 from each engine linked with a bmx type freewheel on 1 and regular keyed sprocket with 2 and have with different ratio a direct connection through second set of cogs to main jackshaft, i don't if anyone would be able to follow my thinking on it but if you can make sense of way i mean, why not try it?

  5. Dom

    Dom New Member

    Joined:
    Mar 4, 2015
    Messages:
    8
    Likes Received:
    0
    Thanks for all the more comments/advice, me being my usual self have managed to come up with something that will work well out of bits I had lying about similar to what I had originally planned timing wise as I didn't really want to run a jackshaft.

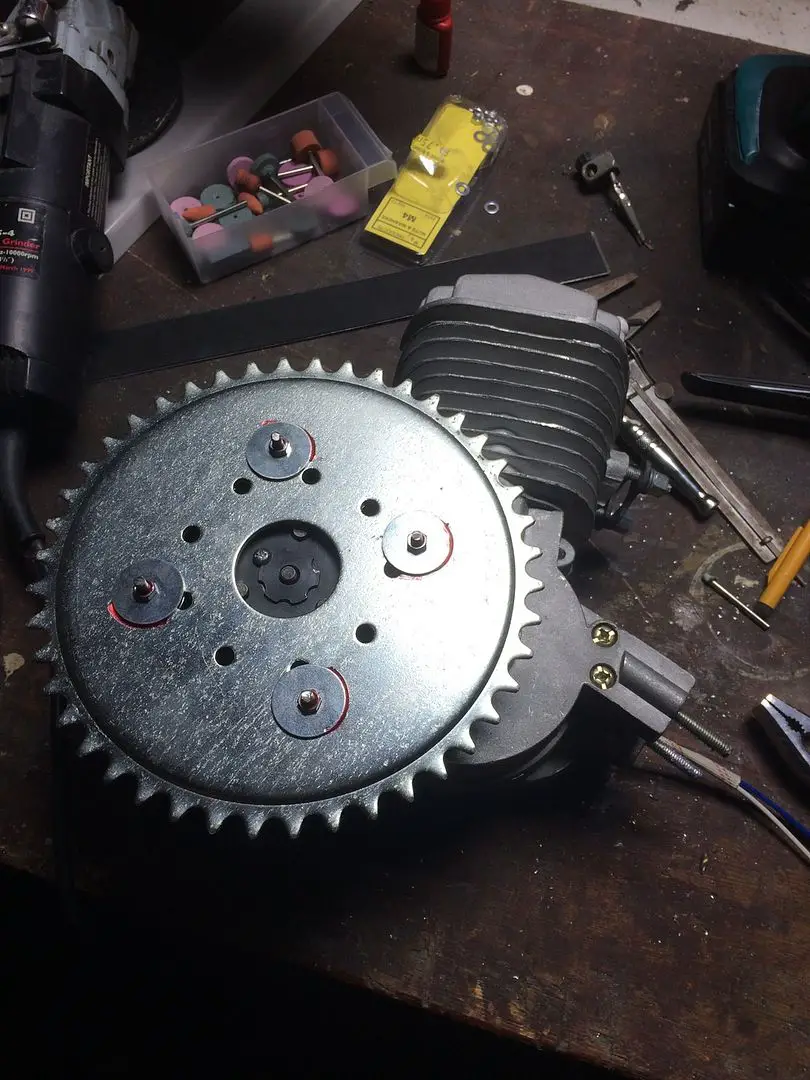

    I've welded 4 M4 threaded rods to the flywheel/drive wheel and then using nuts and washers either side I was able to adjust the standard 44t sprocket to make it run straight and true, as said earlier I'm still going to run two chains as I don't think the rods would hold up under a lot of stress. Now to make the other one up!

    [​IMG]

    [​IMG]

  6. frank66

    frank66 New Member

    Joined:
    Jan 15, 2015
    Messages:
    207
    Likes Received:
    0
    im listening but im concerned the drive ratio used to be 4 to 1. all you needed to do was match the crankshafts up to a single output clutch.... i will leave you to it and pop in later to see your progress. twin jackshafts or whatever does nothing but over complicate a simple proceedure. requiring two 2 stock items. good luck with whatever you choose. i realize this is your dream so good luck again.
    frank

  7. joey1320

    joey1320 Member

    Joined:
    Jul 15, 2014
    Messages:
    67
    Likes Received:
    0
    I'm trying but failing to understand your objective here. What now? You welded the studs and added the 44t sprocket, but you are kind of in the same place you were before, just with a bigger output sprocket.

    [scratch head]

  8. Dom

    Dom New Member

    Joined:
    Mar 4, 2015
    Messages:
    8
    Likes Received:
    0

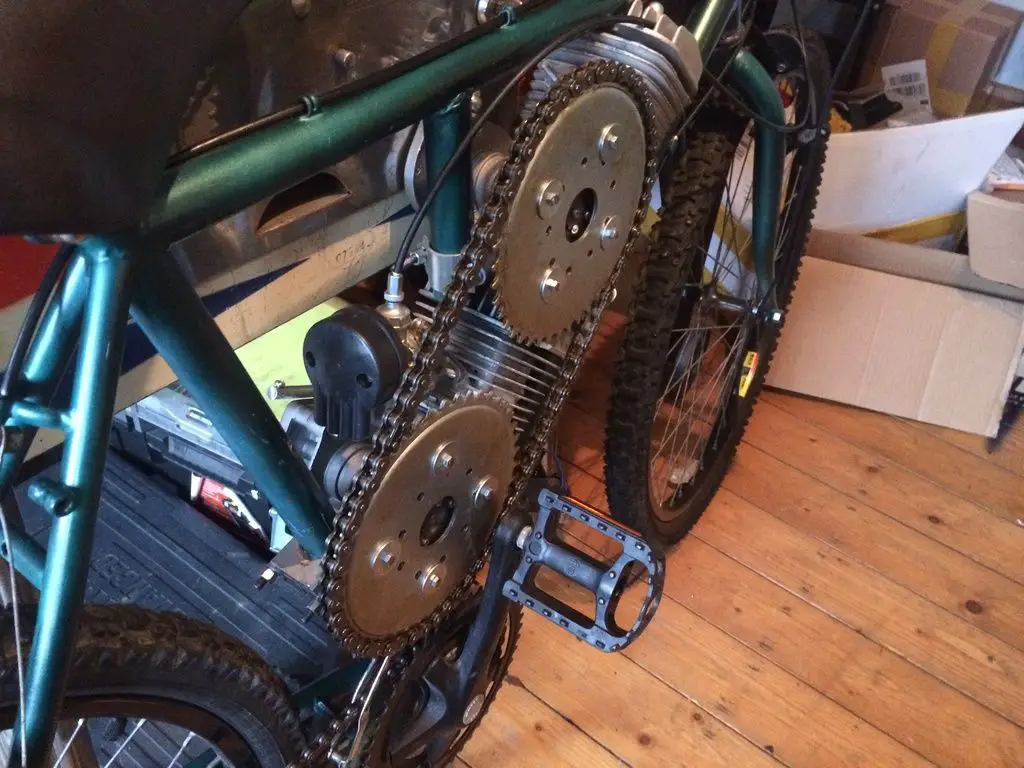

    There's a sprocket on each engine in the same place and they will be linked by a chain this will be keep the engines perfectly timed, then there will be another big chain in the usual side around both engines driving the wheel, hope this makes sense?

  9. boxcar

    boxcar New Member

    Joined:
    Dec 18, 2014
    Messages:
    358
    Likes Received:
    2
    It's going to fly apart.
    I'm not trying to flame you or be mean.
    Think balance.... The 44 tooth sprocket mounted the way you did has very little.
    I understand what you are trying to do.

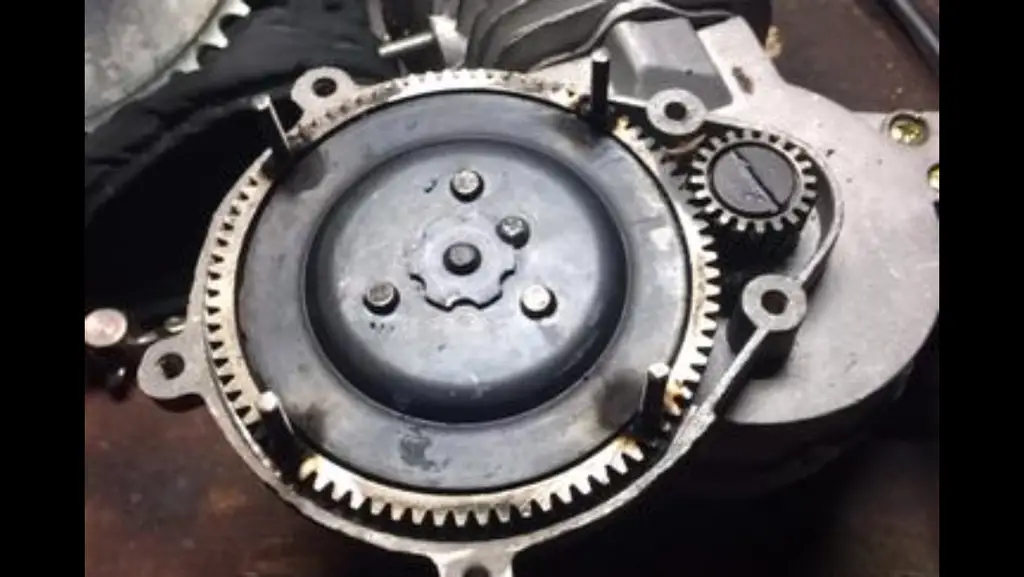

    But , welding studs to the clutch basket gear is a bad idea. Its a fairly delicate part to begin with.
    If you want to link the two engines at the output shafts you will need to do it at the primary sprockets.
    It's going to require a machine shop.
    You will need to extend the output shafts on both motors for chain clearance.
    Fabricate a dual sprocket for the lower engine and then add outrigger bearings to hold the extended shafts on each engine.
    By doing this you will be able to link the two engines with a short chain then drive the rear wheel from the second sprocket ( duel sprocket) of the lower engine.
    Realize that I'm spit balling here. I have done no calculations , and am not claiming to have done any proper engineering on this idea. ( disclaimer )

    #29 boxcar, Mar 14, 2015
    Last edited: Mar 14, 2015
  10. Dom

    Dom New Member

    Joined:
    Mar 4, 2015
    Messages:
    8
    Likes Received:
    0
    I guess we'll wait and see what happens, you never know until you give it a go. Like I say I've balanced them as best you can it's just whether it's enough / the threaded bar holds up.

    Today I got the timing chai fitted, was a bit of a pita to get on but got there in the end! Bit annoying how they've started greasing the chains from factory now it gets everywhere. haha

    [​IMG]

  11. YesImLDS

    YesImLDS Member

    Joined:
    Jun 29, 2013
    Messages:
    951
    Likes Received:
    0
    I gotcha that makes sense. As long as the welds hold I don't see what the problem would be except that giant spinning death machine next to your leg. I'd think about getting some smaller sprockets as well as some sort of a shroud to keep yourself from being a new amputee.

  12. cannonball2

    cannonball2 Active Member

    Joined:
    Oct 28, 2010
    Messages:
    3,501
    Likes Received:
    16
    So what happens when the clutches slip?

  13. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,006
    Likes Received:
    31
    Getting interesting got to watch this closer,see what the out come is..............Curt

  14. Dom

    Dom New Member

    Joined:
    Mar 4, 2015
    Messages:
    8
    Likes Received:
    0
    There will be another chain on the other side around both engines for the drive which should keep most the stress off the timing chain.

    Yeah I'm going to make a cover for it don't worry. haha

  15. Yume

    Yume New Member

    Joined:
    Jun 13, 2015
    Messages:
    15
    Likes Received:
    0
    Is this project still active? I'm interested in following the progress!

  16. GoreWound

    GoreWound New Member

    Joined:
    Dec 1, 2014
    Messages:
    480
    Likes Received:
    0
    I just took a look through the thread...
    I think his bike ate him.

    Just came to life, screamed "you made me unwhole!" and consumed him in it's roller-chain jaws.
    *takes off hat*
    Let us have a moment of silence for our fallen brother, may his entrails evermore lubericate the drivechains of the Afterlife.
    *21 backfiring straight pipe salute*

  17. Dom

    Dom New Member

    Joined:
    Mar 4, 2015
    Messages:
    8
    Likes Received:
    0
    ^ hahah that made laugh way too much. Yes it is still going just progress has been a bit slow as I'm building a Turbo MX5 (Miata to you) and blew my first engine up so that is taking my time and interest!

  18. GoreWound

    GoreWound New Member

    Joined:
    Dec 1, 2014
    Messages:
    480
    Likes Received:
    0
    someone once told me that blowing up a miata engine is a right of passage for gearheads
    so...
    Mazheltov!

    also congradulations of being alive, honestly though your bike is the kind of scary that makes me want to keep watching. good luck out there.

  19. Slogger

    Slogger Member

    Joined:
    Sep 8, 2014
    Messages:
    545
    Likes Received:
    3
    That reminds me of the porto-band saw we had at work.
    <shudder>
    Has your wife seen this?
    ;)
