Specs for my Trek 930 mountain bike

Discussion in 'Motorized Mountain Bikes and Road Bikes' started by Rusty_Nail, Oct 21, 2019.

  1. Rusty_Nail

    Rusty_Nail Member

    Joined:
    Oct 11, 2019
    Messages:
    42
    Likes Received:
    13

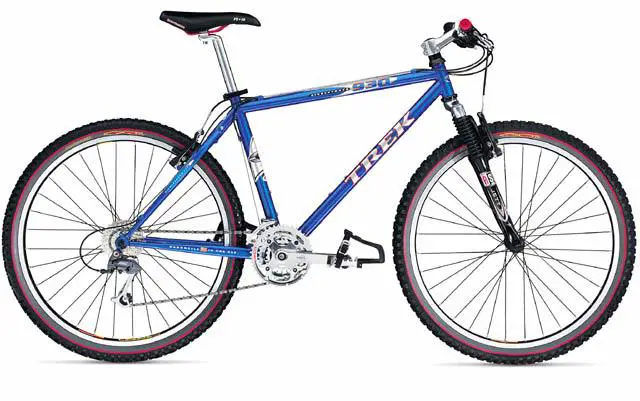

    Hey everyone, I'm not sure if this is the right place to post my bikes specs for the build I'm attempting, but here they are. I was trying to find where I can put it on my profile so for any questions etc I have everyone will know my bikes specs. If this is not in the right place, where can I post it on my profile? The attactched pic is the same bike but mine's just a darker blue so you guys have a visual too. Thanks!

    Sizes Available: 16.5, 18, 20, 22"(measured center to center)
    Weight: Frame, 5.12 lbs.; Fork 3.26 lbs.; Bike 29. lbs.
    Frame: True Temper OX Comp triple butted Cro-moly tubing; Rock Shox Quadra 10 fork

    Wheelbase -- 42 in.; 106.68 cm
    Seat tube -- 19.5 in., 49.53 cm (actual, center to top)
    Top tube -- 23 in.; 58.42 cm (effective)
    Head angle -- 71 degrees
    Seat angle -- 73.5 degrees
    Chainstays -- 16.875 in.; 42.86 cm
    Bottom bracket height -- 11.75 in.; 29.84 cm
    Fork rake -- 1.5 in.; 3.81 cm
    Trail --2.89

    Wheels:
    Hubs -- Shimano STX, quick release, 135-mm rear axle spacing
    Spokes -- 32, 14-gauge DT stainless steel, 3 cross
    Rims -- Matrix Single Track Comp
    Tires -- Trek Control Track system, 26x2.1

    Drivetrain:
    Derailleurs -- Shimano STX, Shimano STX Rapid-Fire Plus shifters
    Chain -- Shimano Hyperglide
    Crankset -- Shimano STX, Shimano STX steel rings, 175 mm crankarms
    Bottom bracket -- Shimano Cartridge
    Freewheel -- Shimano 7-speed cassette

    Components:
    Brakes -- Shimano STX
    Pedals -- Trek System 1; nylon clips, nylon straps
    Headset -- Dia-Comp "Aheadset", 1 1/8 Oversize
    Seatpost -- Trek System 1 6061 T6 alloy, 300 mm
    Saddle -- Trek System 2 Gel
    Bar/stem -- Trek System 2 6061 T6 alloy bars, Trek System 2 Cro-Moly 14 cm. stem, Trek System 1 Bar-Ends
