PLEASE HELP!!

Discussion in 'High Performance Bicycle Engine Tips and Motorized' started by Jeff J10, Aug 10, 2019.

  1. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6

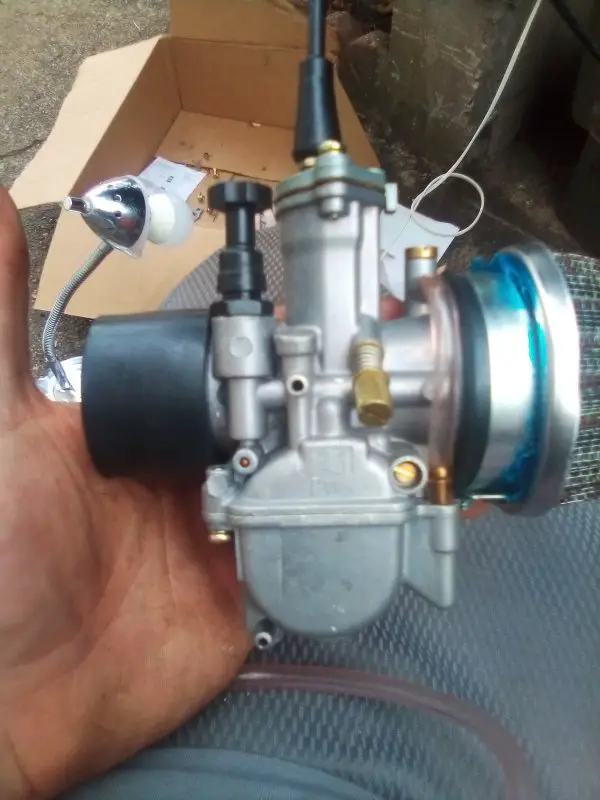

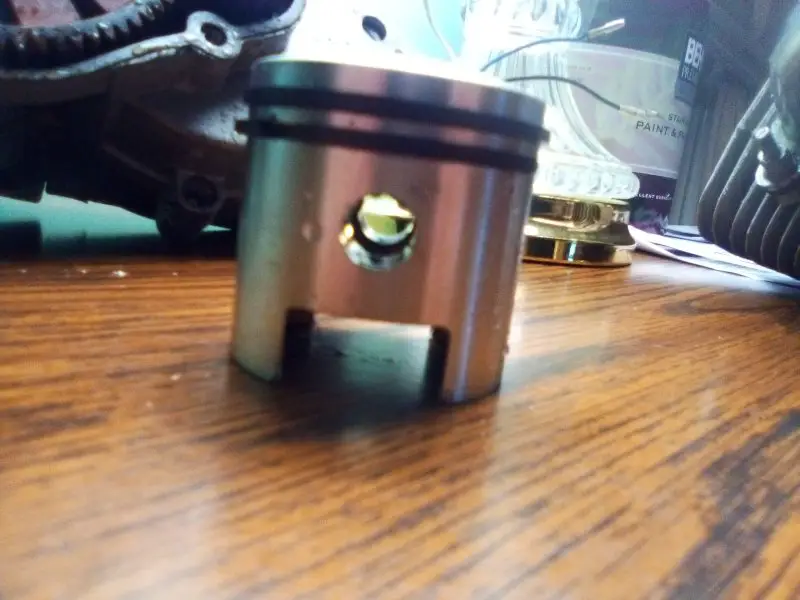

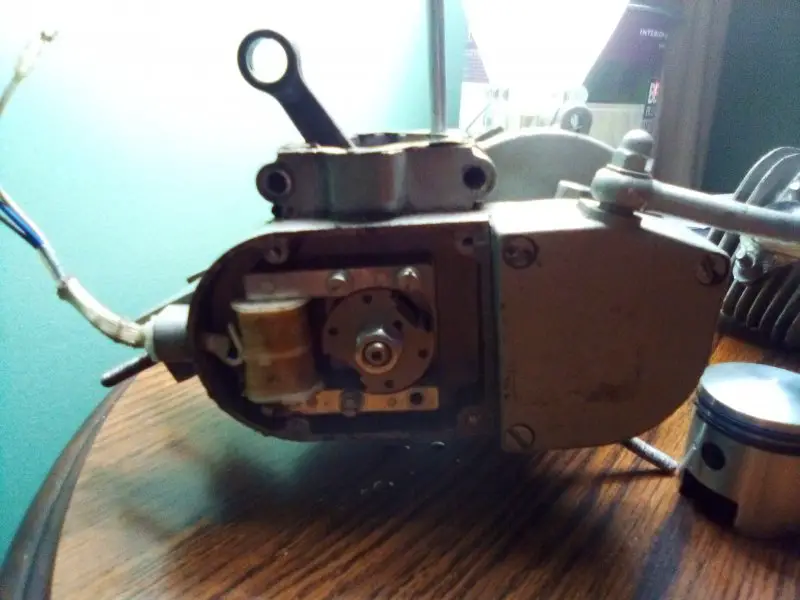

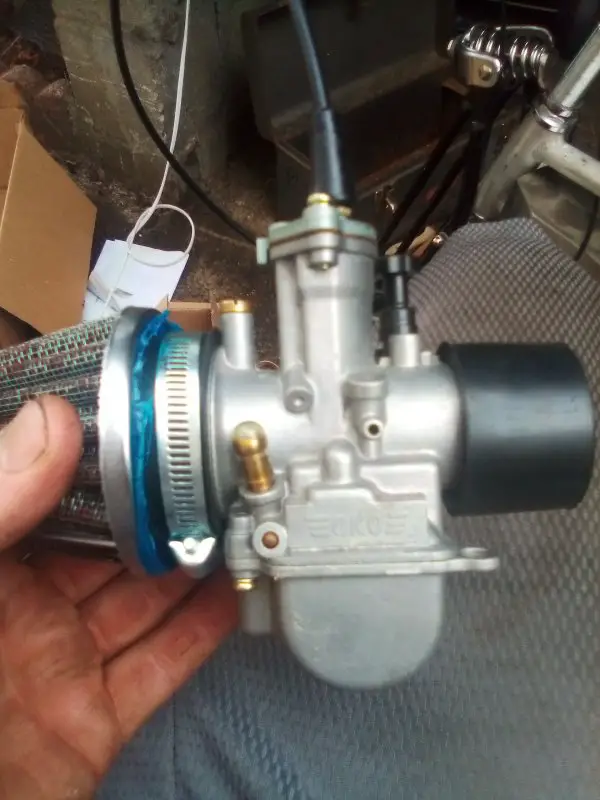

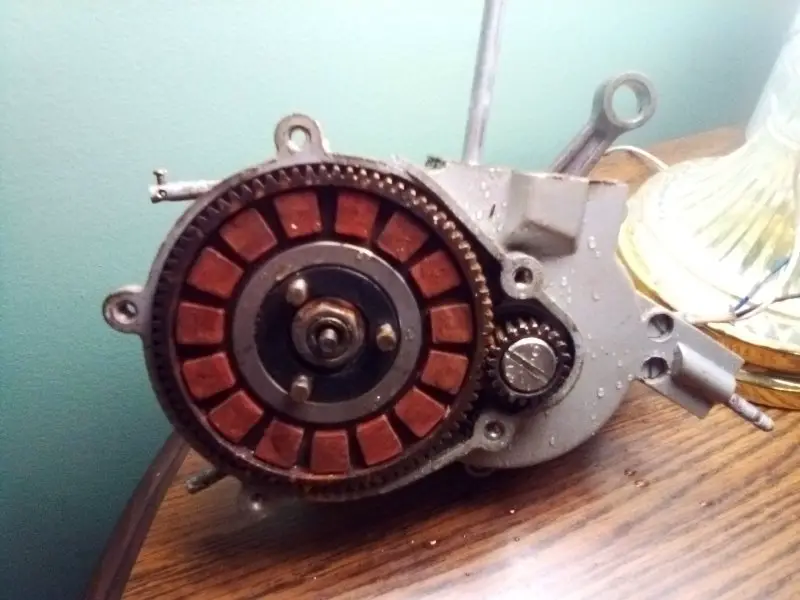

    I purchased motor carb frame and a few other things, the kid I bought it from said it was a BBR motor... I put everything together and realized the the piston wasn't making a complete stroke. So when I took the everything apart I discovered the piston was hitting the crank shaft. So i don't know if I have the wrong piston, wrong rod or what... So if someone could please help point me in the right direction, I would really appreciate it. Thank you.


    Attached Files:

    Tyler6357 likes this.
  2. Tyler6357

    Tyler6357 Well-Known Member

    Joined:
    Mar 15, 2012
    Messages:
    1,050
    Likes Received:
    101
    The wrong piston maybe? They make different types pistons for these little engines. The ones with the shorter connecting rods require pistons with lower wrist pin locations.


    Attached Files:

    allen standley and Greg58 like this.
  3. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564
    Tyler's right, the piston probably doesn't make it to the top of the cylinder either.

  4. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564
  5. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6

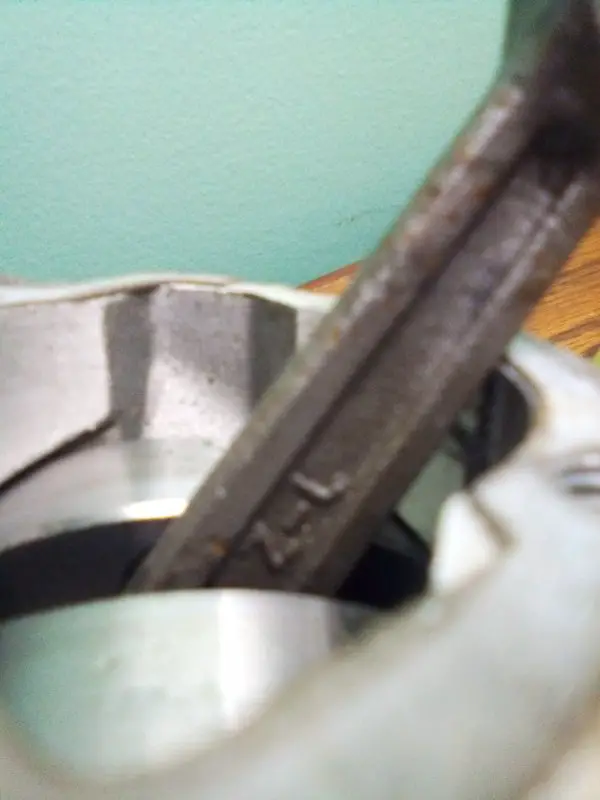

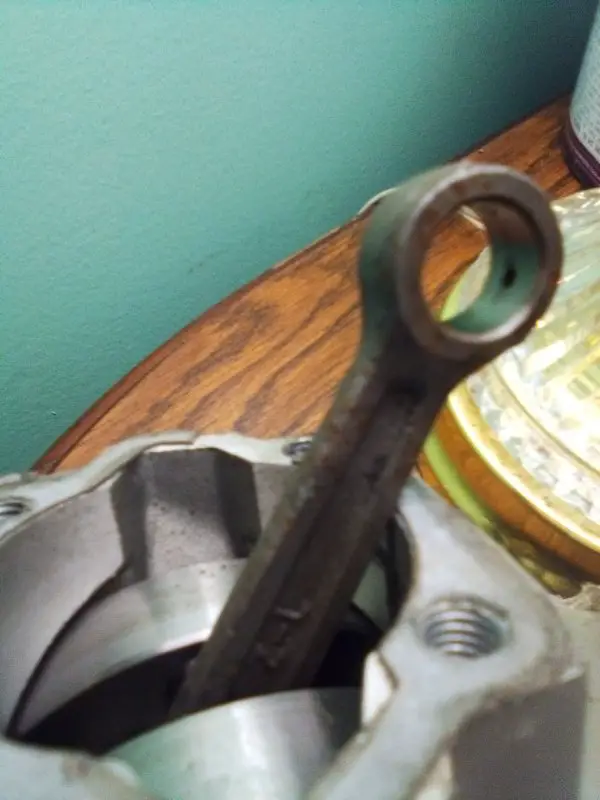

    thank you guys for your input very much... I've seen some videos on youtube noting the lower wrist pin location... I just wasn't sure how many types of pistons there are and if someone could tell me which one i would need. does the marking on my connecting rod tell me what kind of piston i should get?

  6. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6
    so Greg your suggesting the piston in the link is the one i need?

  7. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6
  8. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564

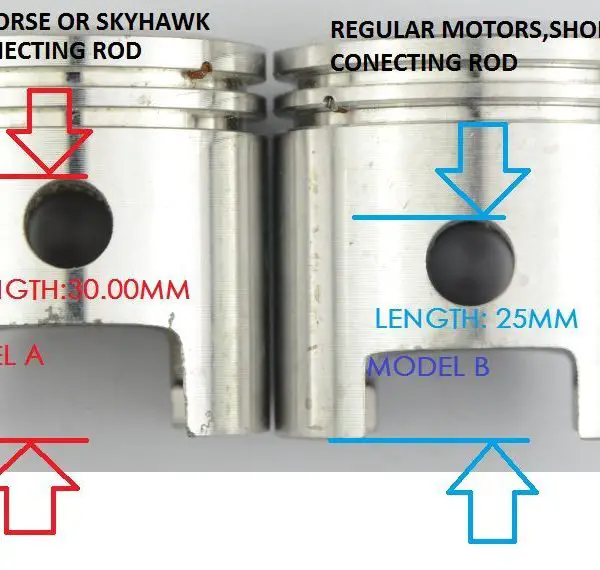

    Jeff put the piston back on the rod without the rings and slide the cylinder on, rotate the crank till the piston is at TDC and see if the piston reaches the top of the cylinder. It probably won't, the piston type A I posted is a low pin type, type B is the high pin type.

  9. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564
    I'm not a expect but have done a lot with them, I've rebuilt them and tuned several in the last 8+ years.

  10. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564
    If you look at the picture Tyler posted and the one I posted they are opposite, just make sure you are buying the right piston. Measure yours and find one that lists the pin height you need. I've only seen 2 types.

  11. Greg58

    Greg58 Well-Known Member

    Joined:
    May 1, 2011
    Messages:
    3,607
    Likes Received:
    564

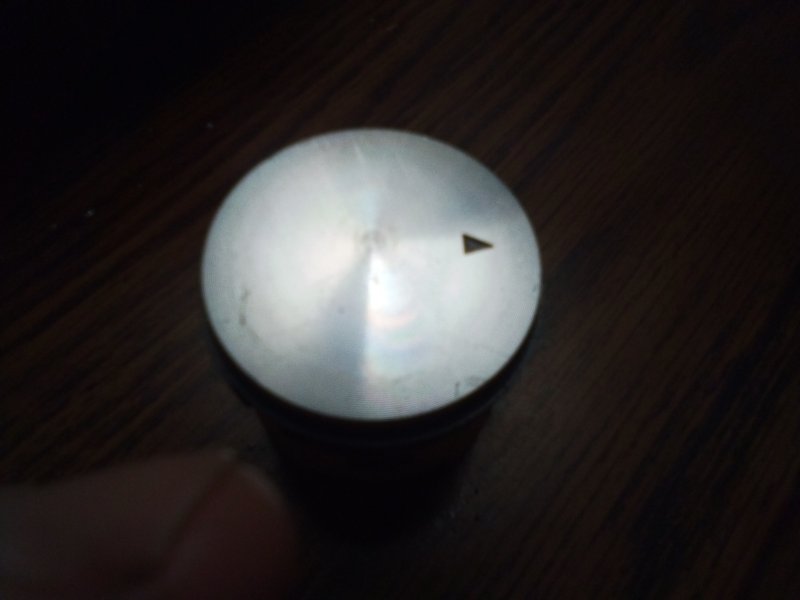

    The arrow on the top of the piston isn't always there, just make sure the ring end pins are to the rear on each side of the intake port.

    javy mcdees likes this.
  12. javy mcdees

    javy mcdees Active Member

    Joined:
    Jul 30, 2018
    Messages:
    134
    Likes Received:
    50

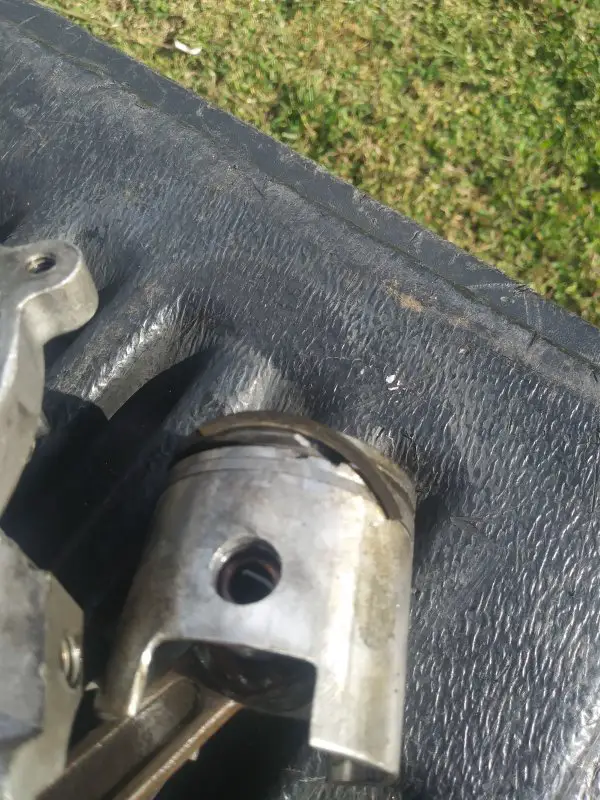

    yea the piston is the wrong one you need the lower wrist pin hole piston. make sure when you get a new one and install it the ring gaps face the intake even if the arrow is opposite. alot of times the arrow is on the wrong side on new pistons. 47mm.piston.jpg.jpg

    allen standley likes this.
  13. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6
    I didn't know that, thank you.

  14. Jeff J10

    Jeff J10 New Member

    Joined:
    Jul 27, 2019
    Messages:
    11
    Likes Received:
    6

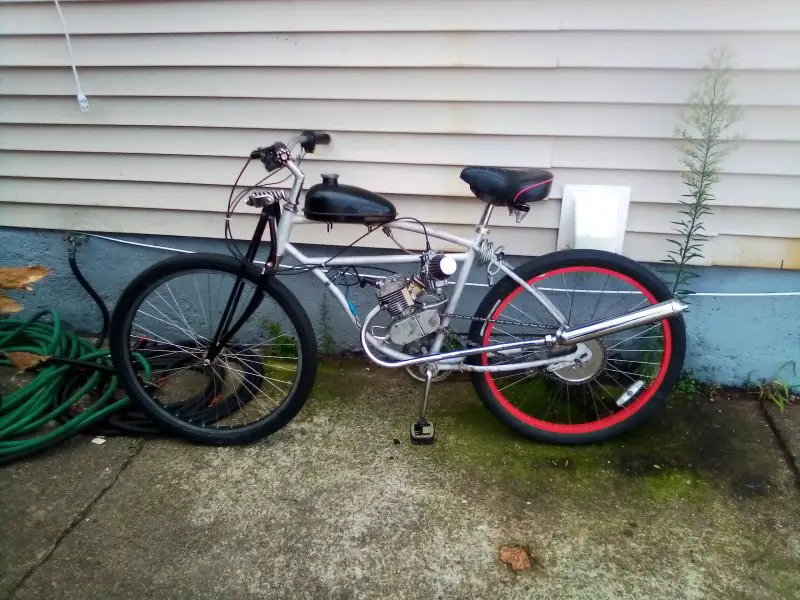

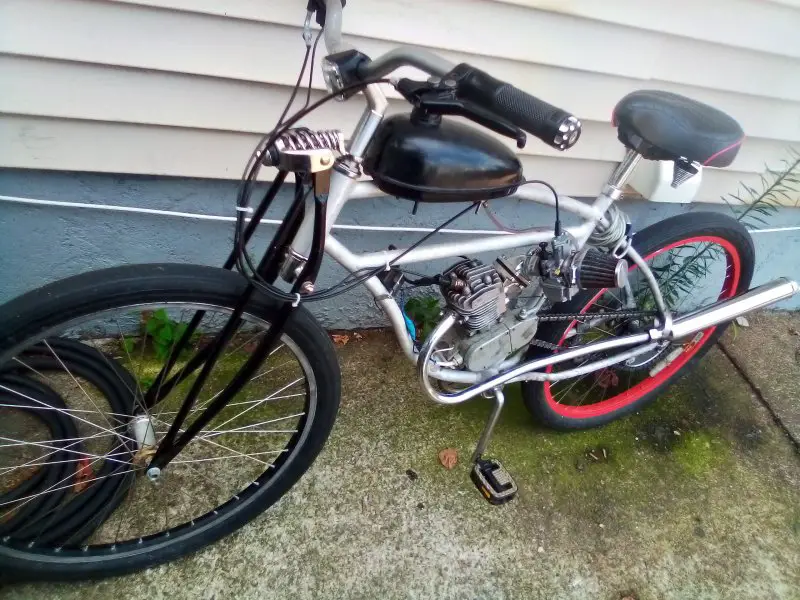

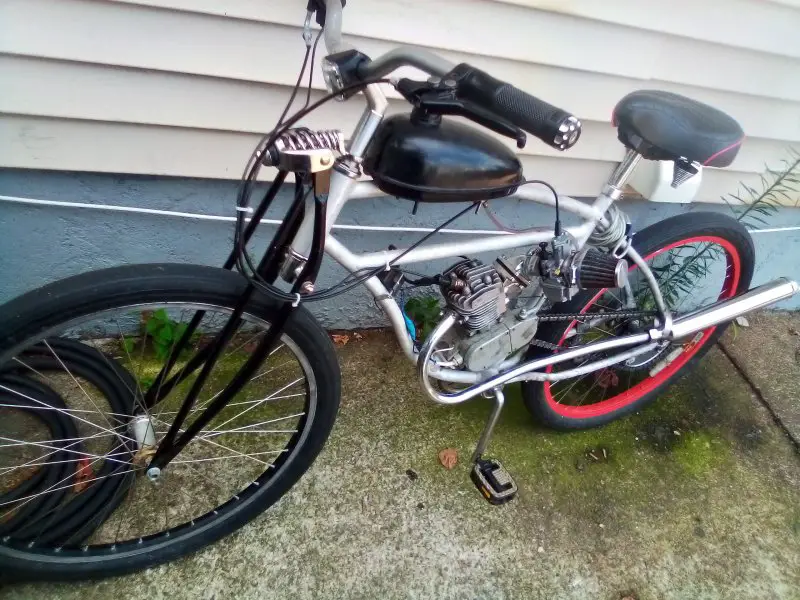

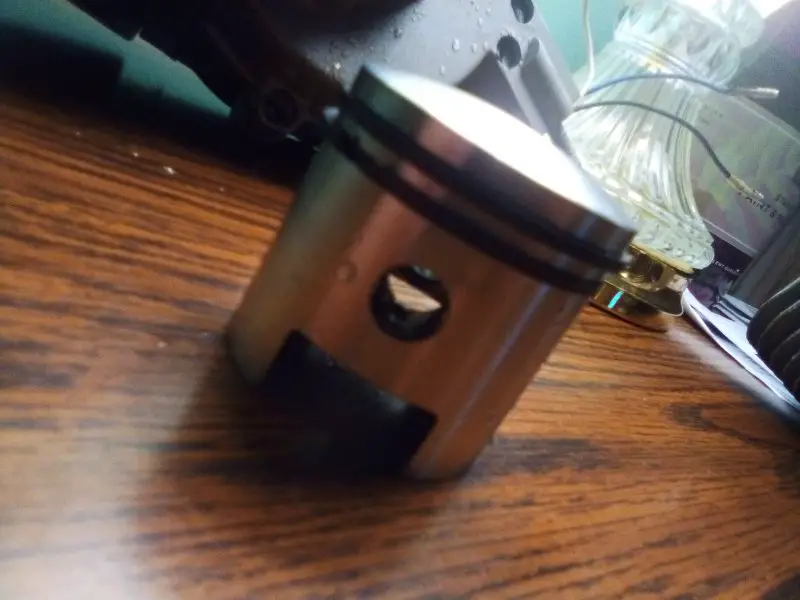

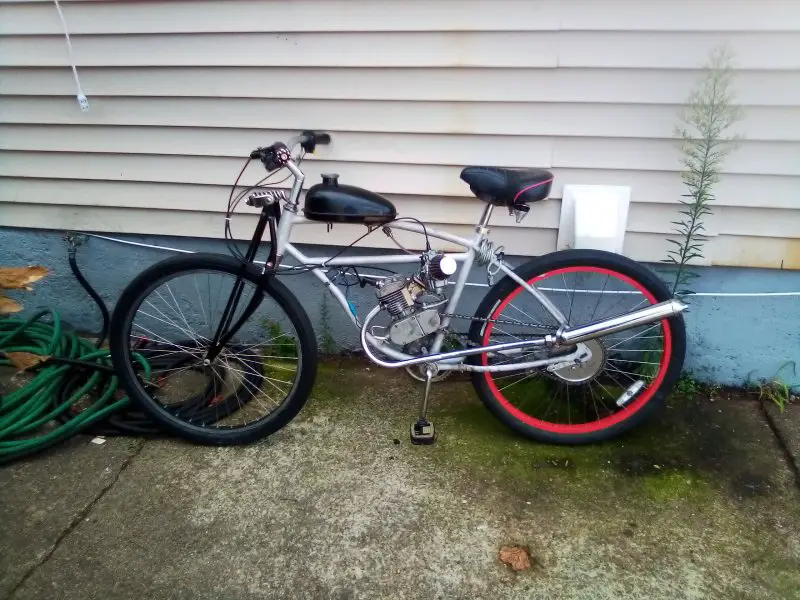

    Finally got the right piston and got her running, some paint next but it's getting there. Thank you everyone for your input. IMG_20190818_131016.jpg IMG_20190818_131016.jpg IMG_20190818_131000.jpg

    allen standley, Greg58 and Tyler6357 like this.
  15. Tyler6357

    Tyler6357 Well-Known Member

    Joined:
    Mar 15, 2012
    Messages:
    1,050
    Likes Received:
    101
    Jeff J10 likes this.
  16. javy mcdees

    javy mcdees Active Member

    Joined:
    Jul 30, 2018
    Messages:
    134
    Likes Received:
    50
    that exhaust will give you some kinda powerband. looks kool too but I would hate to own.
