Motor mount planning- ‘lil help

Discussion in 'Mounting Techniques for Bicycle Motors' started by PsychDoc, Oct 28, 2019.

  1. PsychDoc

    PsychDoc Member

    Joined:
    Sep 8, 2019
    Messages:
    67
    Likes Received:
    70
    briefly- I’m still vacillating between gx120 or gc160 styles (clones are fine to me)
    The two photos are thoughts about mounting- I welcome your input.
    I want to use a cvt- options? And is there a technical drawing of a cvt or at least dimensions?
    Questions? And thanks in advance.


    Attached Files:

  2. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,897
    Likes Received:
    1,118
    Either way i think it will interfere with the pedal chain down that low in the frame......Curt

    indian22 likes this.
  3. PsychDoc

    PsychDoc Member

    Joined:
    Sep 8, 2019
    Messages:
    67
    Likes Received:
    70
    Thank you sir, Yes indeed it will. My thought is to mount another sprocket down low. I may also need to play with sprocket size and shorten the cranks. Maybe this pic helps.
    I may have bought a gc160 I’ll keep y’all posted


    Attached Files:

    indian22 likes this.
  4. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    4,897
    Likes Received:
    1,118
    Also think about a 20" bike sprocket, as only need to be legal, and get to a station or to fix something wrong, if needed. Plus you can get wide cranks to clear the motor........Curt

    indian22 likes this.
  5. MotoMagz

    MotoMagz Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    1,574
    Likes Received:
    521
    Gc Honda looks good...but if you go with Gx tilt it More!


    Attached Files:

    indian22 likes this.
  6. PsychDoc

    PsychDoc Member

    Joined:
    Sep 8, 2019
    Messages:
    67
    Likes Received:
    70
    More tilt you say?- yours looks like the cylinder is 90* to the earth. If that works great, looks better. Here are a couple shots with the CVT. I’m hoping to identify any major issues before purchasing the goods.


    Attached Files:

    indian22 likes this.
  7. MotoMagz

    MotoMagz Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    1,574
    Likes Received:
    521

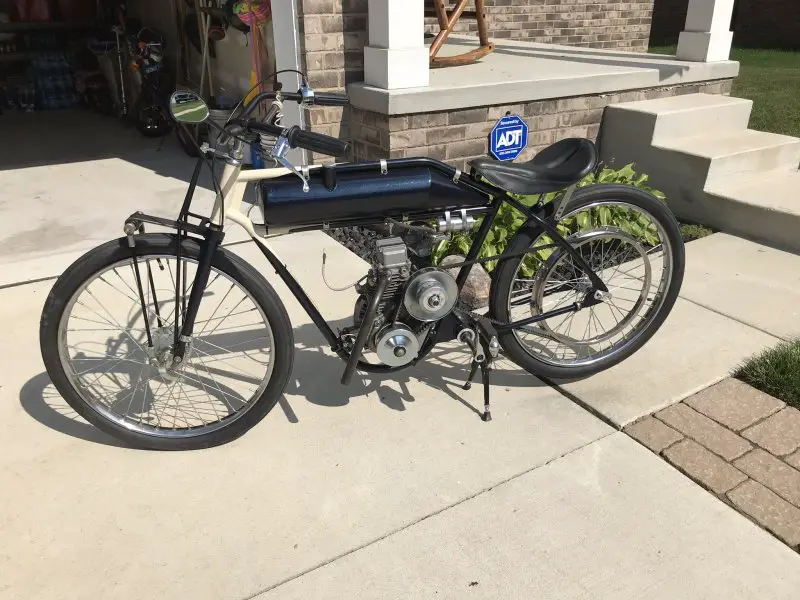

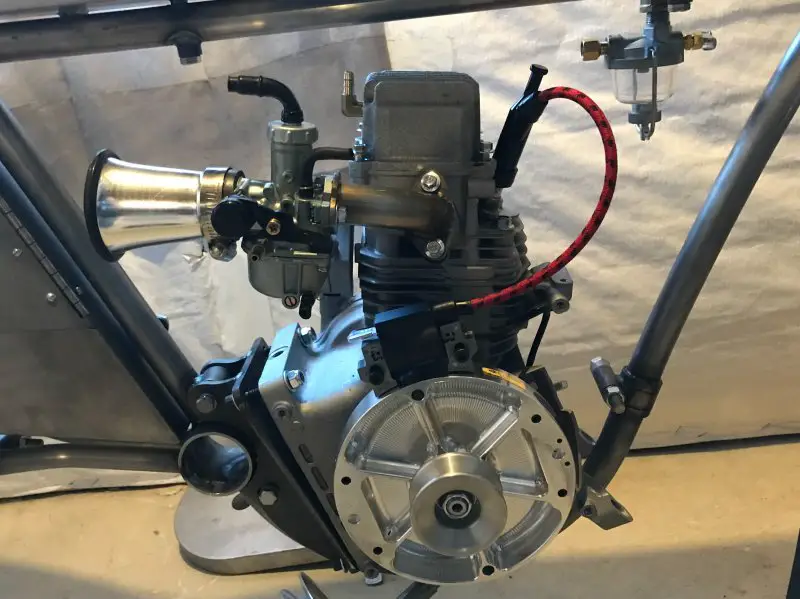

    Yep 90 degrees is ok to run any of the hf motors. The only issue I have with cvt is the plate. But you can switch it out. If it’s a problem. Hers one I did 212 cvt and a WHIZZER sheave


    Attached Files:

    indian22 likes this.
  8. PsychDoc

    PsychDoc Member

    Joined:
    Sep 8, 2019
    Messages:
    67
    Likes Received:
    70
    Moto- first things first- your bikes are absolutely beautiful.
    Now then- what is the plate problem? I suppose it could be oriented vertically if hitting the seat tube is going to be an issue. I prefer the horizontal look

    indian22 likes this.
  9. MotoMagz

    MotoMagz Well-Known Member

    Joined:
    Aug 2, 2010
    Messages:
    1,574
    Likes Received:
    521
    indian22 likes this.
