HF 79cc & Huffy Cranbrook

Discussion in '4 Stroke Bicycle Engines & Kits' started by Skitch, Jun 5, 2017.

  1. Skitch

    Skitch New Member

    Joined:
    Jun 2, 2017
    Messages:
    12
    Likes Received:
    0

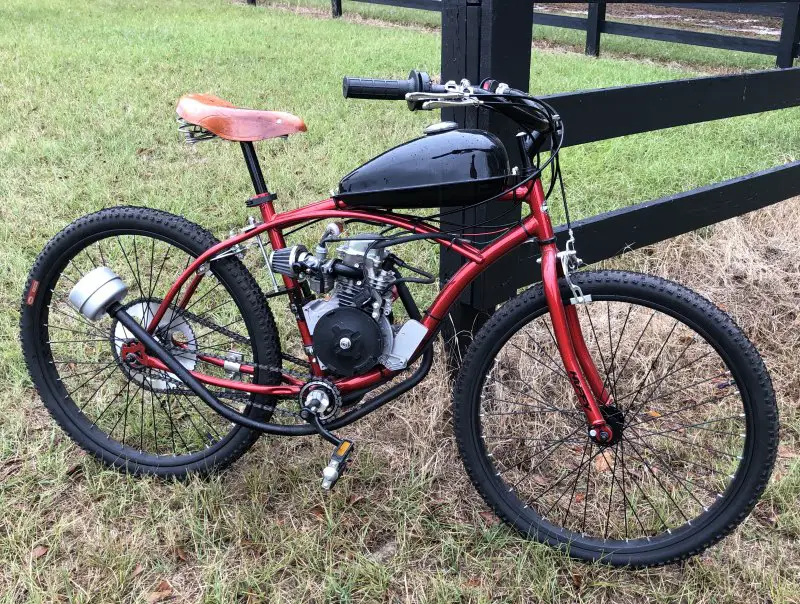

    Brought my bike home from the store today, and laid the motor in place.


    Attached Files:

  2. malatious

    malatious Member

    Joined:
    Sep 23, 2014
    Messages:
    59
    Likes Received:
    10
    Looks like a tight fit. What are your plans for mounting it? I used the Cranbrook for my 49cc four stroke build, seems like a solid frame. Check all the bearings, the factory puts almost no grease in them. People complain about the coaster brake, mine seems good so far, although I use it sparingly. I put suspension forks with disk brake on the front and added a caliper brake on the back.

  3. Skitch

    Skitch New Member

    Joined:
    Jun 2, 2017
    Messages:
    12
    Likes Received:
    0
    I am planning on using industrial tubing clamps and a plate at the back of the motor, and plate coming off the pto surface connecting to an L bracket, and a third tubing clamp in front. A little tight, looks like it was made for it.

  4. malatious

    malatious Member

    Joined:
    Sep 23, 2014
    Messages:
    59
    Likes Received:
    10
    Looks like you are on the right track. Good solid mounting makes all the difference.

  5. Skitch

    Skitch New Member

    Joined:
    Jun 2, 2017
    Messages:
    12
    Likes Received:
    0

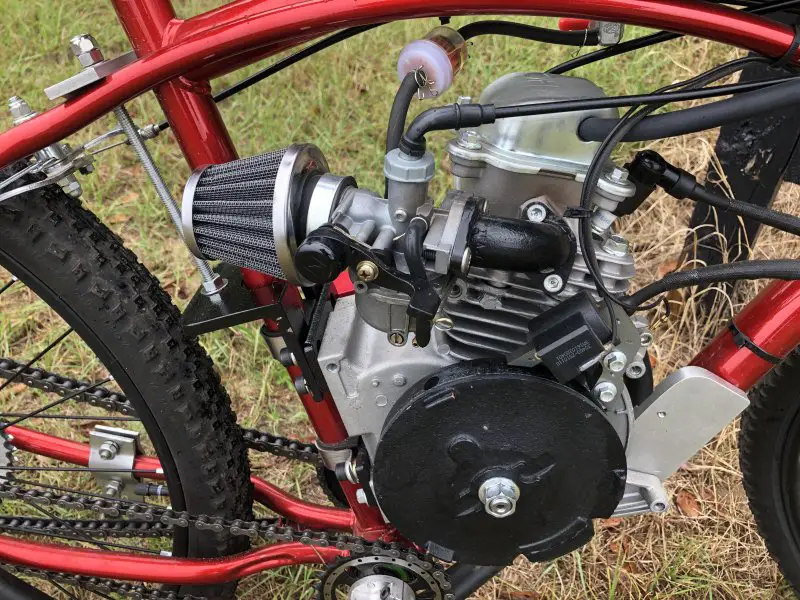

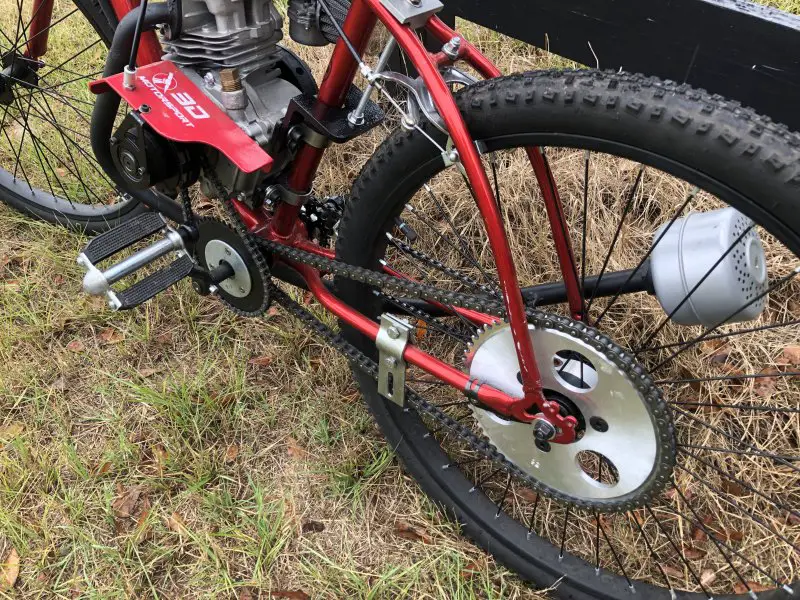

    Some progress. I have the motor temporarily mounted in the frame. I screwed up the offset, so I will need to fix that, and If still needs a front mount. The concept looks good, motor fits just right! Most of the machine work for the gear reduction is done. Just need to press in bearings. My 3D clutch is here, and I have a plan for a 5/8 to 3/4 shaft adapter. As you can see, the gas tank is mocked up. I will use the posterboard as patterns to cut out sheet metal, and weld or braze it up. Planning on two tanks, one on either side of the top tube.


    Attached Files:

  6. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,923
    Likes Received:
    16
    WOW! Looking good, liking it so far...................Curt

  7. msrfan

    msrfan Active Member

    Joined:
    Sep 17, 2010
    Messages:
    1,707
    Likes Received:
    8
    That's the best mounting plate for that motor I've seen.

  8. malatious

    malatious Member

    Joined:
    Sep 23, 2014
    Messages:
    59
    Likes Received:
    10
    Looks like it was made to fit in that frame. Looks like you have some good fab skills and the right tools. It should turn out good.

  9. Tyler6357

    Tyler6357 Member

    Joined:
    Mar 15, 2012
    Messages:
    803
    Likes Received:
    10
    Nice mount!
