Folding Bicycle Advice Wanted

Discussion in 'Pre-Motorized Bicycle Information.' started by markd89, Nov 23, 2016.

  1. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    Hi,

    I have a 7 speed Dahon with 16" wheels that I pedal around. I was thinking of motorizing it to get more range and found the forum.

    I read some threads and found someone who said that a 20" folder was squirrely and that larger wheels were advised. If true, it's a bad idea to try to motorize the 16" Dahon.

    I'd still like to end up with a motorized folding bike. I like the folding aspect because I can put it in my VW Bus without it taking up lots of space.

    All advice is appreciated. I'm sure I don't know all the questions to ask but here's a start:

    1. What folding bike would you recommend I start with? I'd like multiple gears for pedaling and decent quality. (Dahon is made in Taiwan but has been pretty solid, but new ones are spendy...)

    2. What engine? I was thinking about one of the 1.6hp Honda 4 strokes. That should be enough to push me 20-25, I wouldn't need to carry two stroke oil and a 4-stroke honda should be reliable and economical.

    3. How to mount? From the threads I found, it looks like a chain drive system with engine mounted on the rear or friction drive is the way to go to still allow the bike to fold. I would like to have the ability to pedal with the engine disconnected.

    Thanks much!

    Mark

  2. scratchbuilder

    Joined:
    Jan 17, 2015
    Messages:
    544
    Likes Received:
    0
    Check 'Staton inc. They have rack mount friction drive, which would be very controllable.

  3. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    Thanks, I have been looking at their site. Another thread mentioned that their chain-drive system would allow the bike to still fold.

    Any thoughts on wheel size and what bike to use if I shouldn't use my existing Dahon?

    Thanks again,
    Mark

  4. Seabass

    Seabass New Member

    Joined:
    Oct 22, 2016
    Messages:
    76
    Likes Received:
    0
    Never tried a folding bike, make sure you post some pics. Now I've had a few busses, what you driving? I've had a 79 sun roof and a 78 westy. I even got the fuel injection working on the 78. The 79 no because I got it cheap after it caught fire.

  5. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    My bus is a 78 Sunroof, but extensively modified (97 Passat TDI Engine) - I have a thread on TDIClub.com if you're curious. It took a while to work out all of the bugs but it's pretty solid now - 30 mpg+ and 70 MPH+ It's my daily driver. That was lots of work and money at the time. For my bicycle, it better be simpler & less $$ ;-)

    Anyone else with thoughts on folding bikes or how it would work out with 16" wheels, please chime in..

    Mark

  6. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,582
    Likes Received:
    3

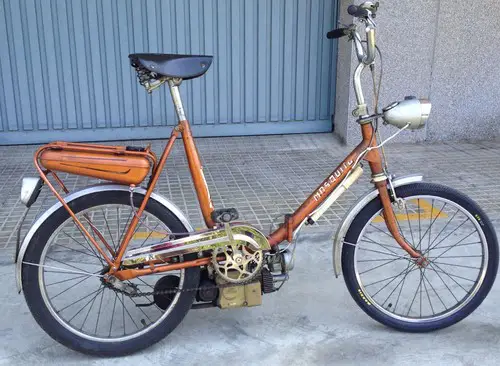

    Bianchi used their Aquilotto engine on a folder. I don't know what size the wheels are.

    [​IMG]

    There was a front wheel drive Zanetti, perhaps a Velosolex could be found for the front wheel?

    [​IMG]

    #6 Ludwig II, Nov 25, 2016
    Last edited: Nov 25, 2016
  7. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,582
    Likes Received:
    3
    Velosolex 5000

    [​IMG]

  8. sbest

    sbest New Member

    Joined:
    Nov 3, 2015
    Messages:
    340
    Likes Received:
    0
    This is what I run and carry around inside my Dodge Caravan:
    [​IMG]

  9. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,582
    Likes Received:
    3
    There's these. Ask around the forum for quality of both the engine and also the supplier. I know nothing apart from they're small and available.

    http://bikebug.net/bikebug-products/

  10. sbest

    sbest New Member

    Joined:
    Nov 3, 2015
    Messages:
    340
    Likes Received:
    0
    I like that electric does not spill or leak smelly fuel and it will charge as I drive. This little folder is remarkably stable and has about 10 miles range, 15mph speed. It is a Schwinn Izip 1020. I also have a full sized 7sp Schwinn Izip (made by Currie) that does 20mph for about 20 miles. Both are excellent city bikes, handle hills well.

  11. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    Thanks, gents.

    I like the electric except for two factors - range and cost. I'm not sure how far I'd go on my motorized bike, but it would be good to have the option to go far. To do that with batteries is spendy.

    Any more ideas, please keep them coming. I'll update the thread with what else I find...

    Thanks again!
    Mark

  12. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,582
    Likes Received:
    3
    Why not drive one wheel from the battery, the other the way nature intended, with an infernal rumbustion engine? Both bases covered.

  13. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    Thanks for all the input!

    I spoke with Bike Bug and Staton.

    Bike Bug is a 26cc 2 stroke Homelite-engine friction system. It's $300 and looks like it would work. They told me 40 mph (!) is possible, although the website says 25-30 mph. I found it strange that no accomodation is made based on wheel size. i.e. there is one size spindle only. The spindle presses down from the engine side only. There is no bearing on the opposite side. They say they have people who have run 5000 miles with their setup. My preference is a 4 stroke but am still considering this option as the cost is low.

    Staton has friction and chain drive systems including one where the engine mounts near the rear axle. The chain systems can be mounted on either side of the bike which is helpful as the engine needs to be on the outside when the bike is folded. With Staton, I would go with the GX35 Honda 4 stroke. I'm still trying to find out what the options are for gearing. It'd be nice to be able to do 25-30 mph but I suspect I would be ~20 most of the time. The geared systems are about $600, more than Bike Bug, but it's 4 stroke and you're getting a gearbox, so there's more "stuff". I'm leaning towards one of these.

    Other stuff - I thought my bike was 16" as the wheels are about that size. I looked at the tires and they say 20x1.5, so I guess that 20" is the correct size. This should allow me to use one of Staton's gear systems if I want. I'm still thinking of getting another folder with more modern brakes and perhaps a little lighter weight.

    Comments?

    Thanks!

  14. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    I picked up a new bike - a Giant 20" Folder. It's a few pounds lighter than the Dahon as it is made of aluminum and has more modern brakes which was my main reason for upgrading. I got a good deal from CL and will sell or give away the Dahon.

    I did more looking at the engine kits and I see problems: In order for the bike to fold, the engine has to be on the right side. This has several implications:

    1. Friction drive isn't going to work as all of those systems mount the engine on the left. Am I missing something?

    2. Staton's axle mount isn't going to work, as it would need to be on the left. It can't be on the right as the sprocket for the pedals is on that side.

    3. This sems to leave me with the only option of Staton's chain drive that mounts above the seat. I lose the rack, which would be too bad. Also it looks like the Staton system, while nicely engineered, weighs 32lbs. I'd be doubling the weight of the bike. Running with the engine that's fine, but seems annoying when pedaling. The friction drive is better in that respect as those all seem to be about half the weight.

    Have I forgotten any other options?

  15. Ludwig II

    Ludwig II Active Member

    Joined:
    Jul 17, 2012
    Messages:
    4,582
    Likes Received:
    3
    It's possible to find old European roller drivers that fit under the bottom bracket, but I don't know if the cost would put you off.

    [​IMG]

    Berini (Dutch) and Velovap (France) are alternatives to the Velosolex for front wheel mounting. Berini:

    [​IMG]

    #15 Ludwig II, Dec 5, 2016
    Last edited: Dec 5, 2016
  16. curtisfox

    curtisfox Active Member

    Joined:
    Dec 29, 2008
    Messages:
    3,762
    Likes Received:
    0
    I think Duane at Thatsdax used to sell a rear mount kit, with a 49cc 4 stroke. Wouldn't hurt to give him a call and see if he may have one yet, less money than staton..................Curt

  17. sbest

    sbest New Member

    Joined:
    Nov 3, 2015
    Messages:
    340
    Likes Received:
    0
    If weight is important, it is hard ignore the 2 stroke motor.
    There are other 2 stroke, some with better reliability than the Happy Time.

    Ludwig has tons and tons of pages of wonderful ideas of how others have hooked a motor onto a bicycle.
    Thanks Ludwig, inspiring. Is there nothing new under the sun? Has it all been tried before?

    Remember too, the 2 stroke can be mounted in any position and even be made to rotate backwards. Stand it on its end behind the seat if it fits!

    Steve

  18. markd89

    markd89 New Member

    Joined:
    Nov 18, 2016
    Messages:
    11
    Likes Received:
    0
    re: Weight. I'll zip tie a milk crate on back and ride around with some weights to see how annoying 30 lbs would be. That should give me a good idea.

    Thanks Curt. I will call Duane and talk to him too.


    Thanks, Steve. That's interesting and I didn't know that. A little googling told me that the timing needs to be adjusted, the starting method (if it is a rope-pull) and the timing needs to be set to advance when going the "wrong" direction. Probably more adventurous of a project than I want right now, but if there's someone selling reverse rotation parts that are already dialed-in, please let me know.

    P.S. What's the Happy Time?

  19. sbest

    sbest New Member

    Joined:
    Nov 3, 2015
    Messages:
    340
    Likes Received:
    0
    In the early days these motors were advertized with interesting Chinese derived names like "Happy Time". Those of us who really love them also like the term "China Girl".

    Reversing is a matter of cutting another keyway in the rotor, especially if starting is by bump start.

    So far I have 3 folders I use for traveling in my van. 2 are electric and 1 is a Dahon 3 speed. When I am traveling, I don't need a huge range, just to get around a city or into or out of town in a country location. I have been quite pleased with the limited speed and range.

    I have also mounted the full sized gas bike on the back of the van on a cheap light trunk mount bike rack for long trips. The fuel fumes are outside and the weight of the 2 stroke HT motor does not stress the rack. The fullsized bike handles speed and gravel roads better. $50 old bike and an inexpensive motor, not the end of the world if it gets stolen or damaged.

    Steve

    #20 sbest, Dec 5, 2016
    Last edited: Dec 5, 2016
