Dolphin powered bike... a different kind of 2 stroke

Discussion in 'Motorized Bicycle General Discussion' started by Johnincali, Oct 13, 2016.

  1. Johnincali

    Johnincali New Member

    Joined:
    Oct 13, 2016
    Messages:
    8
    Likes Received:
    0
  2. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    3,979
    Likes Received:
    25
    WOW! How KOOOOOL is that, Like it a lot................Curt

  3. MEASURE TWICE

    MEASURE TWICE Active Member

    Joined:
    Jul 13, 2010
    Messages:
    2,084
    Likes Received:
    15
    Has anyone come across a good theory of operation of this engine. I noticed that unlike a regular two stroke engine, a spark plug in each cylinder, this kind specifically has a cylinder without a spark plug to I guess draw in and ready a charge mixture that transfers to an second cylinder with a spark plug. It idles slower than a normal two stroke engine that is for sure.

    MT

  4. Allen_Wrench

    Allen_Wrench Resident Mad Scientist

    Joined:
    Feb 6, 2010
    Messages:
    2,787
    Likes Received:
    1
    I like that thing. It's very different to be sure, but really cool. It has a unique sound to it too.

  5. Agreen

    Agreen Member

    Joined:
    Feb 10, 2013
    Messages:
    787
    Likes Received:
    1
    Is that an air compressor you modified into a dolphin replica?! It looks convincing at first, then I realized it doesn't look 100% (still, quite convincing though) like the drawing.

  6. MotorBicycleRacing

    MotorBicycleRacing Active Member

    Joined:
    Jul 28, 2010
    Messages:
    5,674
    Likes Received:
    23
    Hi John
    Where abouts in CA are you located?
    Your bike is very cool, if you bring it out to the Sat Oct 22nd Socal Motor Bicycle Racing event it will be a big hit.

    If you come on Friday 21st you can cruise it around the track at Grange Motor Circuit in Apple Valley, CA

  7. MEASURE TWICE

    MEASURE TWICE Active Member

    Joined:
    Jul 13, 2010
    Messages:
    2,084
    Likes Received:
    15
    So I guess after seeing the post after the first one, I looked for faux. Well guess hose clamps on a rubber hose between cylinders could be OK if it does not get too hot and transfers carb input not exhuast.

    Even if it is faux and this is a 4 stroke engine, does the Dolphin 2 Stroke actually idle slow in reality because of the design?

    MT

  8. Agreen

    Agreen Member

    Joined:
    Feb 10, 2013
    Messages:
    787
    Likes Received:
    1
    It's still a 2 stroke, the 2nd cylinder is a charge chamber. It just doesn't utilize crankcase compression. If it were a 4 stroke it would have valves. The only valve this engine has is a check valve above the power cylinder.

    And I did a little research on that design. There is apparently only one left in existence, and it's not on his bicycle.

  9. Slogger

    Slogger Member

    Joined:
    Sep 8, 2014
    Messages:
    545
    Likes Received:
    3
    It's a converted air compressor (says so in the video header).
    That's quite an achievement, getting it to run at all. You guys are nuts!
    :)

  10. Johnincali

    Johnincali New Member

    Joined:
    Oct 13, 2016
    Messages:
    8
    Likes Received:
    0
    Hello all, Thanks for the comments... if interested you can read about the Dolphin engine here... http://www.oldengine.org/members/diesel/misc/ricardo.htm

    or here.... http://www.oldengine.org/members/diesel/misc/ricardo.htm

    Ricardo designed it in 1904 when he was just 17 years old... it was know for it's smooth running and high torque.. Around 1908 they made a car called a Dolphin that used the engine... it was also popular in boats.. Never hear of one in a motorcycle though...

    The engine operates like any other 2 stroke except that it is uniflow and uses a piston to charge / scavenge the cylinder... I like to build different kinds of engines and I couldn't find any video of a running Dolphin so I thought it would be a neat one to make... yes the engine is made from a 2 cylinder single stage air compressor.. both pistons are on the same crank throw.. I replace the power cylinder with one from a Harley... Agreen, there is actually 2 valves...one near the spark plug and another just behind the carburetor. I've also made some modifications / improvements to the original design like moving the location of the carb and also changed the combustion chamber...

    All the best, John

    #10 Johnincali, Oct 14, 2016
    Last edited: Oct 14, 2016
  11. Johnincali

    Johnincali New Member

    Joined:
    Oct 13, 2016
    Messages:
    8
    Likes Received:
    0

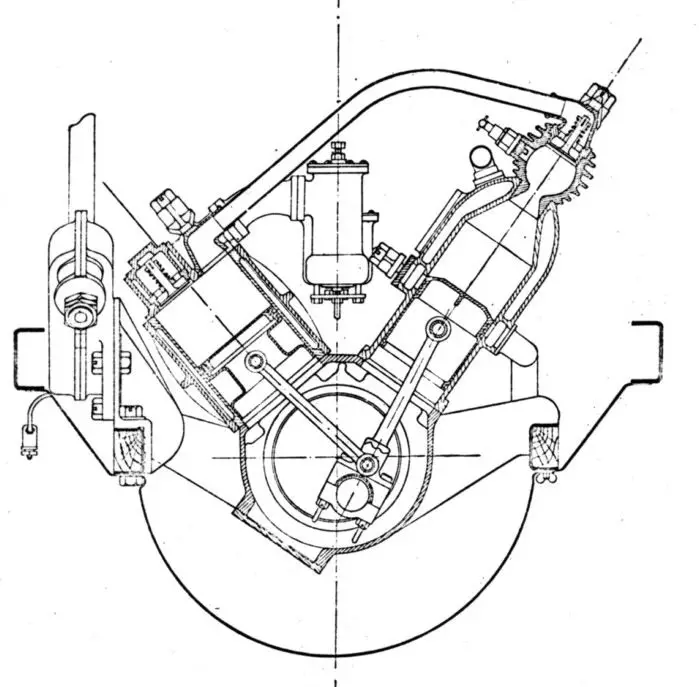

    here's a picture of the original Dolphin...
    [​IMG]

    you can read about the Dolphin engine here... http://www.oldengine.org/members/diesel/misc/ricardo.htm

    or here.... http://www.oldengine.org/members/diesel/misc/ricardo.htm

    Ricardo designed it in 1904 when he was just 17 years old... it was know for it's smooth running and high torque.. Around 1908 they made a car called a Dolphin that used the engine... it was also popular in boats.. Never hear of one in a motorcycle though...

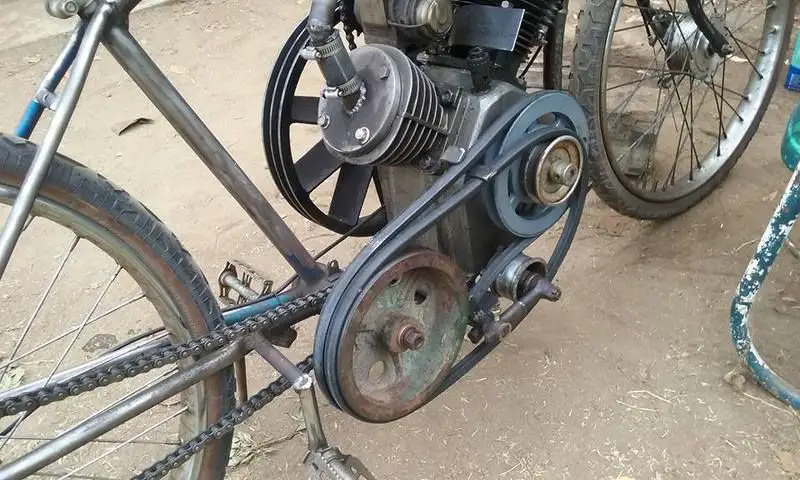

    I also added a 2 speed....
    [​IMG]

    #11 Johnincali, Oct 14, 2016
    Last edited: Oct 14, 2016
  12. MEASURE TWICE

    MEASURE TWICE Active Member

    Joined:
    Jul 13, 2010
    Messages:
    2,084
    Likes Received:
    15
    Thanks for that link.

    https://www.youtube.com/watch?v=BwLQ-Zfk36Y

    A marine version and hear it does idle very slow.

    Most 2 stroke cycle engines have a much higher idle speed.

    I did see another book on Google Books see this at page 16 near the bottom 1/3 of the page.

    https://books.google.com/books?id=6...ustion engines constantine arcoumanis&f=false

    Now on page 16 see the area where it mentions of the rate of burn speed by the changing of turbulence in the cylinder by changing the diameter of the tube between then two cylinders. The more turbulence it was said made faster burn. A compromise between fast and slow burn got a quiet engine with good fuel usage. Maybe this is how I can hear the difference between a normal 2 stroke engine and this type where it can idle very slow.

    MT

    One more Youtube video of one of these engines in a boat.

    https://www.youtube.com/watch?v=zeXplu6kSUE

    #13 MEASURE TWICE, Oct 15, 2016
    Last edited: Oct 15, 2016
  13. Johnincali

    Johnincali New Member

    Joined:
    Oct 13, 2016
    Messages:
    8
    Likes Received:
    0
    Hi MT, Those engines are typical 2 stroke boat engines manufactured by a company called Dolphin in the 1950's and 60's ... They are not the same as the original dolphin type engine that uses a piston to charge the cylinder... http://www.dolphinengines.co.uk/history.php

    Also I think most of the reason the Dolphin runs smooth is because it uses top / down uniflow scavenging... this causes the fuel / air near the spark plug to be in an ideal state for combustion. Ricardo also used a narrow passage to ensure the engine idled smoothly but IMO a narrow passage is also wasteful and not the best answer. I developed a different combustion chamber design which also allows for smooth running.

    Most small carbureted 2 strokes use ether cross or loop scavenging which tends to not idle smooth... they also loose a portion of the unburned fuel out the exhaust which makes them not good from an emissions standpoint.

    http://www.airplanesandrockets.com/motors/inside-the-two-cycle-engine-feb-1968-aam.htm

    Modern low emission engines like the E tech and Orbital use a system that injects the fuel after the exhaust port is covered.

    https://www.youtube.com/watch?v=eu3NEPSBfUs

    #14 Johnincali, Oct 15, 2016
    Last edited: Oct 15, 2016
  14. Johnincali

    Johnincali New Member

    Joined:
    Oct 13, 2016
    Messages:
    8
    Likes Received:
    0
    #15 Johnincali, Oct 15, 2016
    Last edited: Oct 15, 2016
