Dio reed valve issues

[Chris7420]

Zeda 80 Dio Reed & OKO Carb Performance 2 Stroke Bicycle Engine Bike Motor Upgrade Kit

Boost your motorized bike’s power with the Zeda 80 Dio Reed & OKO Carb kit—our top-selling 2 stroke performance upgrade for unmatched speed and reliability.

www.bicycle-engines.com

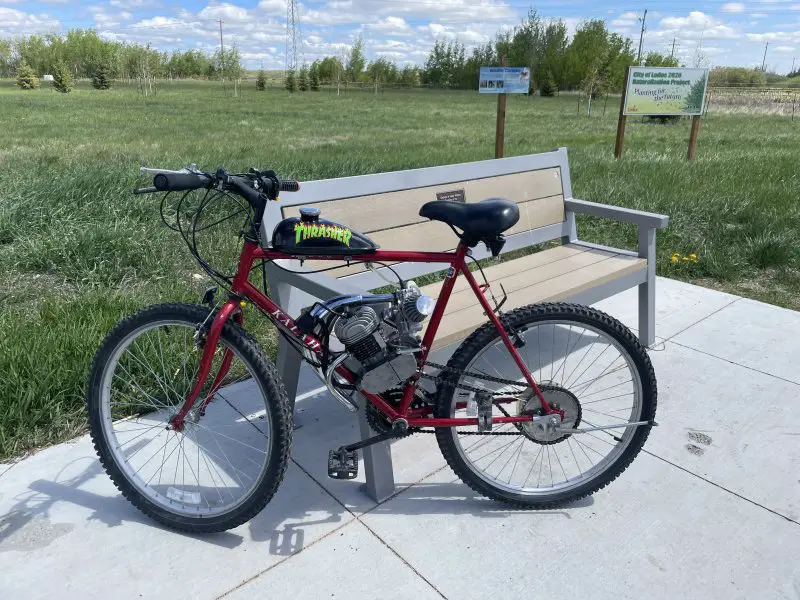

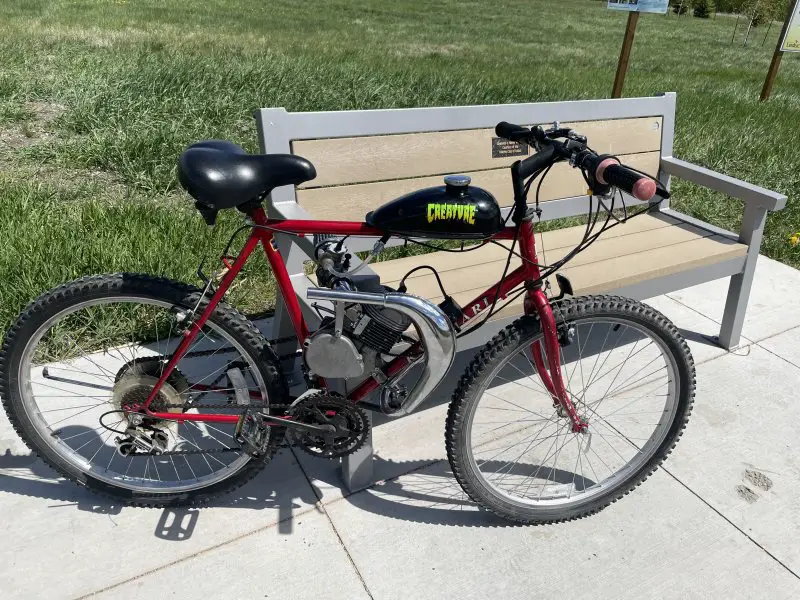

I installed this on my bike and am having troubles getting it running properly, it’s running super rich and 4 strokes a lot when I accelerate and fouls plugs very quick, I have the needle clip set to the leanest position and I tried all the pilot jet sizes that came with it, 0.41 0.39 and 0.38 it ran like crap with all those so I got more jets and went all the way down to 0.32 the smallest I got and it still doesn’t run good and fouls plugs. As you can see in my photos I also have a expansion chamber pipe and a high compression cylinder head and am running a windowed piston as well. I haven’t tried changing the main jet cause if I’m not mistaken the main jet is just for 3/4 - full throttle and I’m trying to get the low end dialed in before I bother with the main jet and the motor still needs to be broken in anyways. Cylinder is tourqed to 140 in/lbs and I’ve tried ngk br5hs br6hs and br7hs plugs and all the same results. I’ve tried adjusting the air/fuel screw to all different settings with all the jets I mentioned but it still wouldn’t run right. Any advice would be appreciated. Do I need to keep going down in jet size?



[Venice Motor Bikes]

Do you have a 'window' piston & 3rd port in the engine?



[Chris7420]

Do you have a 'window' piston & 3rd port in the engine?

Yes I have a window piston it came with the dio reed valve and cylinder. What do you mean by 3rd port?



[Venice Motor Bikes]

Here... third transfer port reed kit and porting 66cc | Motorized Bicycle Engine Kit Forum (motorbicycling.com)

This isn't how I do it... But his video will show you what I'm talking about



[Larry Trotter]

Wondering if the carb isn’t level enough and you are just flooding it with fuel.
