Converting Norman's Headlight

Discussion in 'Motorized Bicycle General Discussion' started by MrLarkins, Sep 9, 2008.

  1. MrLarkins

    MrLarkins HS Math Teacher

    Joined:
    Jun 17, 2008
    Messages:
    487
    Likes Received:
    0
    Norman really has a great headlight that runs off the white wire. But I NEVER ride at night. However, I wonder if something could be rigged to make it a working brake light. You know, turns red when brakes are applied. Stays off when not braking.

    Anybody done this yet?

  2. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    14
    If you would use a brake switch to your brake levers it should work good. Getting one off a motorcycle or scooter is probably the easiest way to go.

    I think I might have one....when I have some time I'll see how difficult it would be to mount. I'll keep you posted

  3. MrLarkins

    MrLarkins HS Math Teacher

    Joined:
    Jun 17, 2008
    Messages:
    487
    Likes Received:
    0
    thank you very much

  4. Dave31

    Dave31 Moderator
    Staff Member

    Joined:
    Mar 1, 2008
    Messages:
    11,207
    Likes Received:
    14
    Sorry Mr. Larkins :(

    The switch I have that I thought was for the brake lever, is a brake switch for the foot pedal type, and will not work on the brake lever.

    I was just at ACE this morning and was looking for a switch that might work, but they did not have much of a selection.

    I'll keep looking :)

  5. BCD

    BCD New Member

    Joined:
    Aug 8, 2008
    Messages:
    13
    Likes Received:
    0
    I've heard that you can use the Mag Switches from alarm systems to turn on the back light. mount the magnet on the brake arm, and the sensor behind it. I've not seen it done but logically it should work.

  6. MrLarkins

    MrLarkins HS Math Teacher

    Joined:
    Jun 17, 2008
    Messages:
    487
    Likes Received:
    0
    yea, i thought so too, just don't know how to put it together and with what parts to use...but i'd light to build one.

  7. jasonh

    jasonh New Member

    Joined:
    Jun 23, 2008
    Messages:
    1,590
    Likes Received:
    0
    I've seen a couple kits that come with brake lights...not sure what type of switches they use.

    Really just a small momentary switch mounted to the brake lever or the brakes themselves would probably work...

  8. VaporKing

    VaporKing New Member

    Joined:
    May 15, 2008
    Messages:
    47
    Likes Received:
    0
    Hi.

    My state requires brake lights on all mopeds. I also desire to live a long life.

    I took my Dremmel and made some stainless steel barrels (from a ball-point pen), and mounted a pair of them on both brake calipers. From each barrel, I coonected a wire into the lighting system. When I squeeze a brake line, the barrels touch, and complete the lighting circuit. The barrels are insulated from the brake cable by aquarium air hose, so they don't short-out. These barrels fit perfectly over the ends of the (2007) Schwinn caliper boots.

    Soldering stainless steel is not easy, so a person could use copper barrels instead (from Home Depot in the cable-TV electronic section). A person may not even need to Dremmel the copper barrels, because they are already pretty close to the right size. However, the stainless steel looks better (my bike is black and silver). The switch looks pretty sharp. It's simple, cheap, reliable, and effective.

    I'll try to upload a picture tomorrow.

    VaporKing

    If it doesn't kill me, it makes me stronger.

  9. DOC BOLM

    DOC BOLM New Member

    Joined:
    Aug 21, 2008
    Messages:
    681
    Likes Received:
    0
    The alarm panel in my house was showing a trouble code,so i was going to look at it myself, before calling the alarm co. and low and behold as i opened the panel door i found a small switch on the door that sets it off .its called a tamper switch,so i took it off and tried it on the frount brake,i think it will work.PLEASE DONT BREAK INTO MY HOUSE TONIGHT. I WILL TELL YOU IF IT WORKS IN THE MORNING. HARLEYS DAD

  10. eDJ

    eDJ New Member

    Joined:
    Jul 8, 2008
    Messages:
    531
    Likes Received:
    0
    I'd think something like a horn button mounted on the left handlebar grip could be used for a braking signal. It's a momentary contact for an electric signal to the lamp.

    I would think a small red light emitting diode could be set up on the handle bar so that anytime the brake lamp is lit the diode will light. If it doesn't it may alert the driver to the brake lamp bulb being burnt out etc.

  11. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,495
    Likes Received:
    50
    That sounds really cool. Am looking forward to pics. Not sure I fully get it.

  12. MrLarkins

    MrLarkins HS Math Teacher

    Joined:
    Jun 17, 2008
    Messages:
    487
    Likes Received:
    0
    i wonder if radio shack would have an appropriate switch

  13. VaporKing

    VaporKing New Member

    Joined:
    May 15, 2008
    Messages:
    47
    Likes Received:
    0
    Here's what works for me:

    [​IMG]

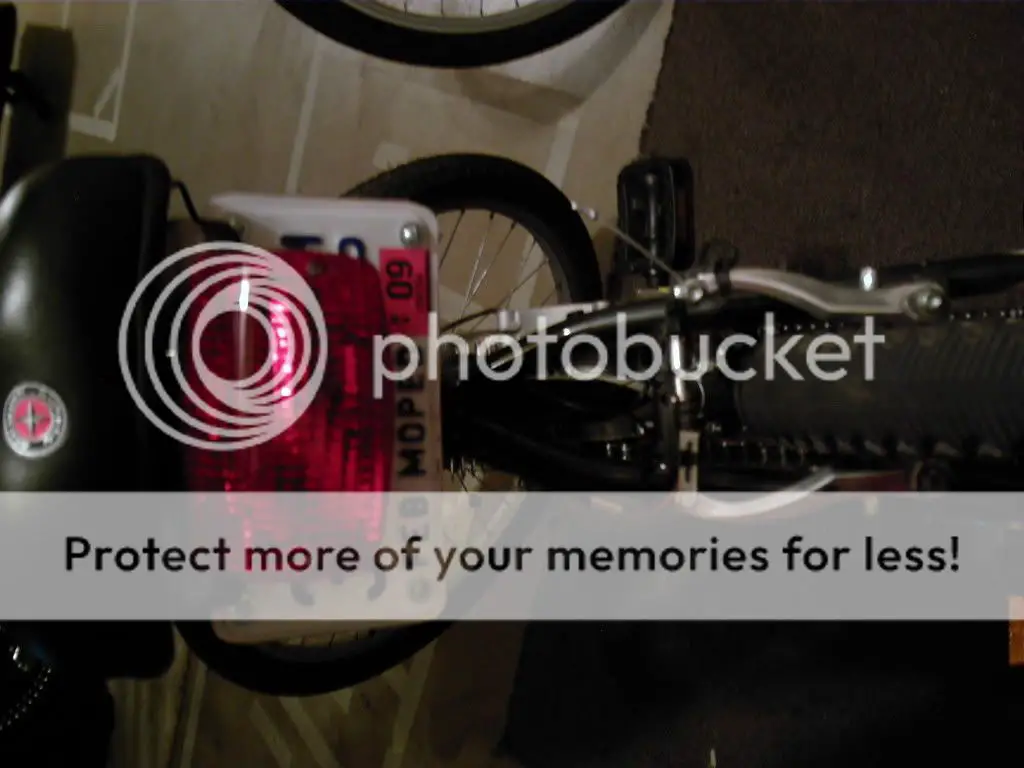

    Notice that the two shiny barrels touch and complete the circuit when the brake calipers move-in. The rubber boots on the ends of the barrels absorb any "slop", and allow full braking force to be applied. I just disected the stock boot, and removed enough of the boot to accomdate the barrels. I'll bet that any geometry teacher would appreciate the inevitability or reliability that two cylinders would provide for colliding and completing a circuit. They basically can't miss each other. The barrels are insulated from the brake cable with aquarium air hose.

    I looked into a solution like Mr. Larkin's door interlock switch earlier this summer, but concluded that the introduction of the interface for the switch to the bike, was convoluted and prone to unreliablity.

    Has worked all summer on my prototype build, and plan to continue using it for build #2 (his and hers 150 MPG moped set). Switching-over to a Honda Magna for next summer.

    Still working on my anti-theft stun electrode seat stinger, but watch for it next spring.

    Just keeping it simple and stupid. Works for me.

    VaporKing

    If it doesn't kill me, it makes me stronger.

  14. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,495
    Likes Received:
    50
    Very cool, simple and clean. Nice job.

    "anti-theft stun electrode seat stinger" Or The Stun-bun.

  15. VaporKing

    VaporKing New Member

    Joined:
    May 15, 2008
    Messages:
    47
    Likes Received:
    0
    Anti-theft "Ball Buzzer"

  16. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,495
    Likes Received:
    50
    rotfl, snork

  17. BCD

    BCD New Member

    Joined:
    Aug 8, 2008
    Messages:
    13
    Likes Received:
    0
  18. Dan

    Dan Staff
    Staff Member

    Joined:
    May 25, 2008
    Messages:
    12,495
    Likes Received:
    50
    BCD, that is awesome! I wish I could email you a beer or coffee. Thank you!!(^)

  19. BCD

    BCD New Member

    Joined:
    Aug 8, 2008
    Messages:
    13
    Likes Received:
    0
    Glad I could help!!! I'm partial to beer, unless of course you were referring to IRISH coffee... I'm all over THAT... but only after we ride!!

  20. BCD

    BCD New Member

    Joined:
    Aug 8, 2008
    Messages:
    13
    Likes Received:
    0
    Oh and for the seat stinger... How about this...Use a 1 Farad capacitor hidden in a water bottle with black anodized plates on your seat. no turn off capacitor?? you'll not only get your bike back, but the theif will be able to be recognized by his/her new walking style...
