1908 Schwinn Indian (schwinndian)

Discussion in 'Motorized Mountain Bikes and Road Bikes' started by Ralph hop, Nov 28, 2019.

  1. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    Attempted to mount the engine today and the frame needs about two more inches of clearance in the down tube around the middle section. planning to make a subtle bend and add some length in the process. Top tube is 1" diameter and the bottom tube is 1.134". I'll make the bend before I cut anywhere and then slug/pin it back together and braze. This modification is out of necessity and will give more room for the tank. It's looking less and less like a 1908 but I hope to keep the old design principals in place.

  2. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,384
    Likes Received:
    3,175
    Ralph very few classic builds presented in this forum actually qualify as anything close to true replicas, including my own bikes. However many turn out well in spite of or maybe because of good changes. The term "theme bike" is appropriate for our vintage style bikes and this term was once used often by members on this forum and others. When adding heavier 4stroke motors while adding torque and power; safety should trump original design parameters. Classic looks coupled with safe design modifications means you can actually enjoy riding your creations.

    Rick C.

    fasteddy and Ralph hop like this.
  3. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    Encouraging and well said as always Rick. Did some eye balling with a piece of tape measure today and marked my three cutting marks. I've decided the top tube will be stretched 11 inches and I'll have to make that happen before I can make the bottom curve. This should have a dramatic effect on the look and feel of the bike. With the rear axle moved back 3 inches, axle to axle will be around 55 inches. Now I can lay over the "torpedo" tank and still reach the pedals.

    fasteddy and indian22 like this.
  4. Tony01

    Tony01 Well-Known Member

    Joined:
    Nov 28, 2012
    Messages:
    1,278
    Likes Received:
    477
    We’re all on the edge of our seats here... keep it comin!

    fasteddy and indian22 like this.
  5. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    Lol, hold on tight..

    fasteddy and indian22 like this.
  6. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    This morning I got up early and took a stare at the bike. Started to wonder how to get square cuts on the frame and the obvious choice was the tubing cutter that hasn't been used in years but kept nicely away. Sprayed some rem oil on the dies, greased up the threads and had the bike cut in half in under ten minutes with clean cuts. After mounting the engine the obvious choice is to build a drop loop. The bottom bracket already has a guide hole in the center for a hole saw with 3/16" of material to weld to. I plan on using schedule 40 pipe for the loop and slide that into the 7" length I left on the head tube. Top tube will get 7/8 solid bar inside the full length but just short of the existing lug pins with between an 8" and 11" long section of 1" tubing to tie it smooth. Drop loop will be formed around a plywood cradle and pipe filled with sand. Plans keep changing as the pieces get put together. I won't set a finish date but I plan to keep at it with some tight spending once every couple of weeks.

    fasteddy, FOG and indian22 like this.
  7. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    For this post I would like to address something that is off topic but first I just want to say that I look up to the builders here and have been a visitor here off and on for a decade. I have forgotten as much as I have learned and I remember old tricks I used to know sometimes when in need but when not in the habit of tinkering it's easy for me to lose my mechanical dexterity for lack of better words. Brain dexterity or flexibility may be closer to what I mean. I have noticed some strange sinchronicities lately in my writing. I've noticed after writing something, when I read an old post I see in shock that my words are almost identical to some older comments of posters here. I need everyone to know that I don't want to harass or repeat ones words to harass. Could be to much self inflection but I feel I have made some people here uneasy and moving forward I will do more building and less flapping my yap.

    fasteddy and indian22 like this.
  8. Tony01

    Tony01 Well-Known Member

    Joined:
    Nov 28, 2012
    Messages:
    1,278
    Likes Received:
    477
    Dude it just happened to me the other day!! I was reading a post from like 2010 and the same exact thing happened... I was absolutely floored at the accuracy of conclusions. I think it just means you learned something, sometime. The first time i read it, it possibly didn’t really make sense from what I thought was the best path but as a noob my own ideas were probably garbage anyway.

    #28 Tony01, Jan 11, 2020
    Last edited: Jan 11, 2020
    fasteddy, Ralph hop and indian22 like this.
  9. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,384
    Likes Received:
    3,175
    Ralph my thought mirrors Tony's, yet I'll take it one more step. I doubt I've ever had an original thought I've just built on the ideas & works of those that led the way and this isn't just about fabricating stuff. I'm talking life skills. Taking personal credit is a bit presumptuous.

    Rick C,

    fasteddy and Ralph hop like this.
  10. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    5,009
    Likes Received:
    1,370
  11. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    The build is still taking shape both physically and mentally. I always take time to set my ducks in a row so to speak and then I binge build, sometimes it bites me in the butt later on but in the end I make it into something positive and even better. So far I've got all the tubes, pipes, electrodes, rods, and even pulled out a 12" X 5/8" garage door/go cart jack shaft, 2 bearings with rings and mounts, also 5 or 6 collars. Not sure about a 5/8 shaft for the reduction though, seems too weak. The gears are 8 and 14 tooth, probably won't use those anyhow. Also, found an old schlitz beer can from the sixties and plan to use that as an oil catch unless it needs vacuum. With some leftover painting supplies from the Jeep, I plan to have this bike finished out in dark brown metal flake, to give you all an idea what it might look like with the tank and everything. If the bike seems worthy enough then I'll put some cursive Indian lettering on it. I'm not good at keeping surprises so I'll just tell my plans as they come.

    #31 Ralph hop, Jan 14, 2020
    Last edited: Jan 15, 2020
    fasteddy and indian22 like this.
  12. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
  13. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,384
    Likes Received:
    3,175
    The 5/8" shaft should work fine for a low powered street bike. You wanna' race 3/4" & bigger chain might be warranted.

    Rick

    ..

    fasteddy and Ralph hop like this.
  14. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321

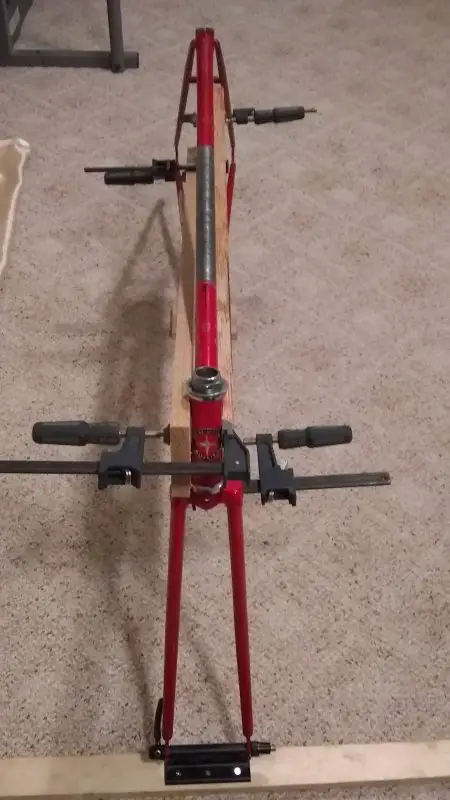

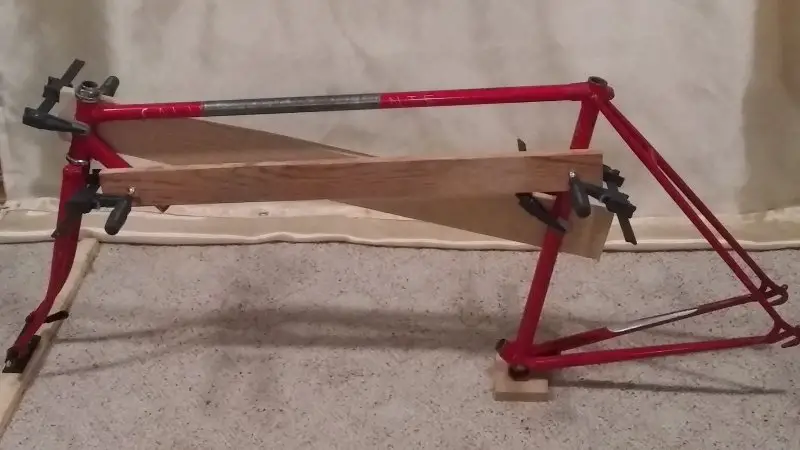

    Got the top tube fitted with 11 inches of stretch and a full length inside. Everything fits good. Kept indoors so it doesn't rust. IMG_20200115_180541532.jpg IMG_20200115_180014698.jpg

    #34 Ralph hop, Jan 15, 2020
    Last edited: Jan 16, 2020
    fasteddy, FOG and indian22 like this.
  15. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321

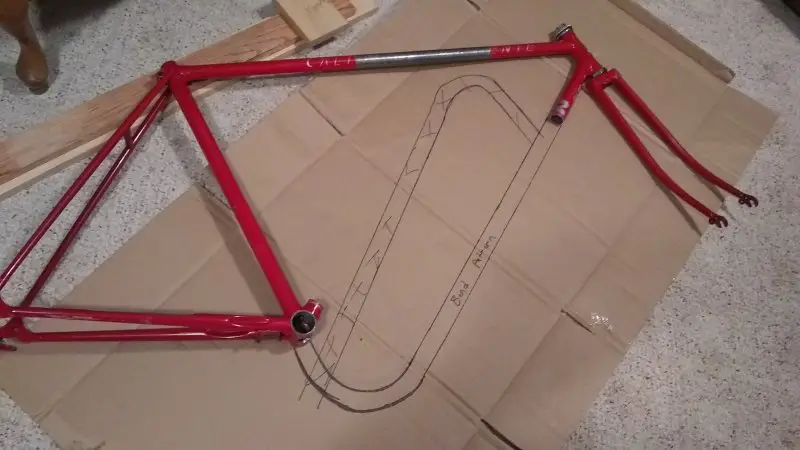

    Drop loop drawn out. Will be bending schedule 80 pipe around an old trailer wheel by hand so had to measure the wheel and draw it out with a compass. Got it the second time. IMG_20200116_183915898.jpg

    PeteMcP, indian22 and FOG like this.
  16. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    Squinting helps to see the shape, I'm bad at drawings. The other drawing was a failed attempt. There will be a tube from the seat post across the bottom bracket and then to the front of the bend.

    #36 Ralph hop, Jan 16, 2020
    Last edited: Jan 16, 2020
    indian22 and fasteddy like this.
  17. Ralph hop

    Ralph hop Well-Known Member

    Joined:
    Nov 14, 2019
    Messages:
    141
    Likes Received:
    321
    Edit..

    #37 Ralph hop, Jan 17, 2020
    Last edited: Jan 17, 2020
  18. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,384
    Likes Received:
    3,175
    Ralph have you decided on tank style & dimensions yet?

    Rick C.

  19. curtisfox

    curtisfox Well-Known Member

    Joined:
    Dec 29, 2008
    Messages:
    5,009
    Likes Received:
    1,370
    I think your bottom loop is to sharp a bend, make it bigger and more gradual, then bend it back to meet the top, sorta S shape......Curt

  20. indian22

    indian22 Well-Known Member

    Joined:
    Dec 31, 2014
    Messages:
    3,384
    Likes Received:
    3,175
    Yes Curt 6" radius die is probably minimal to mount the 4 cycle engine vertically & low in the loop which is necessary to keep COG low and for the engine to clear the tank tube. It take a lot of frame space to mount these motors low.

    Rick C.

    PeteMcP likes this.
