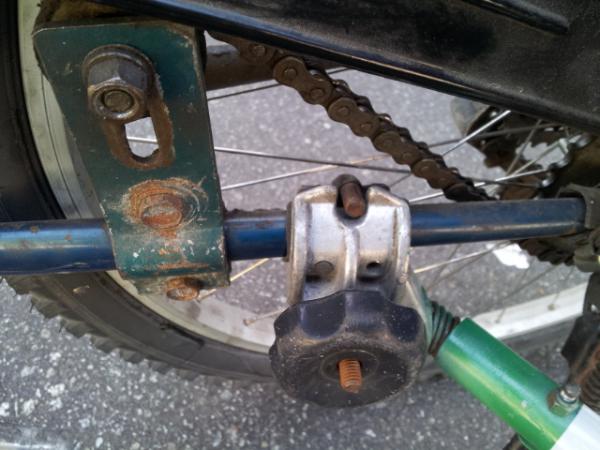

The connector clamped on to my bike. I had to go farther ahead to clear the 36T and chain, putting the trail really close to the back wheel.
Next
Prev
This is my MAB with the trailer on. There is enough clearance to work with, but the trailer arm blocks access to my axle-mounted kickstand.
The middle bar is a larger diameter. These are 1 1/4" brackets. There is a wrap of rubber as a spacer between each bracket and the bar.
The front and back bars of the trailer are smaller in diameter, and set at a slightly different hieght to the middle bar. There is a 1/4" plywood shi
The connector clamped on to my bike. I had to go farther ahead to clear the 36T and chain, putting the trail really close to the back wheel.
Right rear angle.
The deck is 3/4" plywood, triple-coated and sealed. It's held on with conduit clamps and #8 screws.
Back of the trailer, with a bit of reflective tape and some lights (not wired) up on the top rails.
Next
CTripps

The connector clamped on to my bike. I had to go farther ahead to clear the 36T and chain, putting the trail really close to the back wheel.
