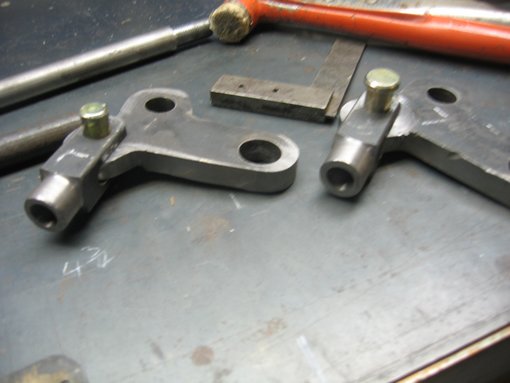

Suspension axle rockers...with adjustable clevis points for the spring rods
Rods from front axle rocker to spring..these are solid 1/2" rod are bent at 45 deg to spring hangers...this is before I cut them to weld to the spring
Leaf spring..hand made by spring maker...dont make your own springs as there is a 3 stage proccess in heating and cooling...Your looking for trouble i
This is a mock set up with the wheel in place to position rocker pivot and the wheel ...had to make the width spacers to center the wheel in forks...
Suspension axle rockers...with adjustable clevis points for the spring rods
Inside of the forks cleaned up with flapper disk
The inside of of fork tubes cut down the middle for wheel and spring lever movement and clearance..shaped 1/8" flat to fill the inside of the fork
Handlebars in place ..these help to keep the forks in alignment...dummy spring in place for lenght before I get the spring made
DareDevil

Suspension axle rockers...with adjustable clevis points for the spring rods
