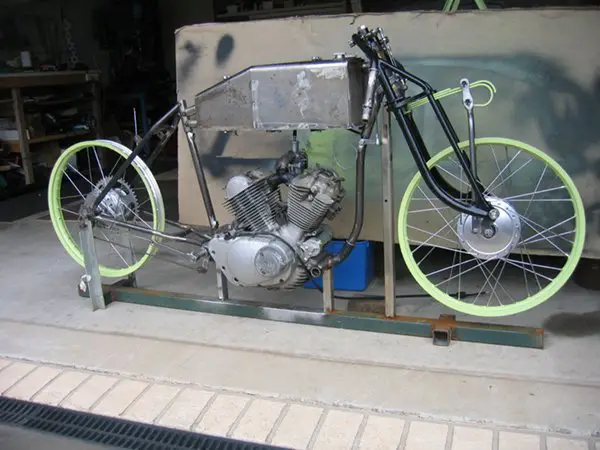

Fitted to bike frame
Next
Prev
Fitted to bike frame
Assembled to make sure all clearances are correct
All the parts to assemble forks
forks assembled not welded
Rods from front axle rocker to spring..these are solid 1/2" rod are bent at 45 deg to spring hangers...this is before I cut them to weld to the spring
Leaf spring..hand made by spring maker...dont make your own springs as there is a 3 stage proccess in heating and cooling...Your looking for trouble i
This is a mock set up with the wheel in place to position rocker pivot and the wheel ...had to make the width spacers to center the wheel in forks...
