Default My mount on honda Schwinn Meridian tricycle

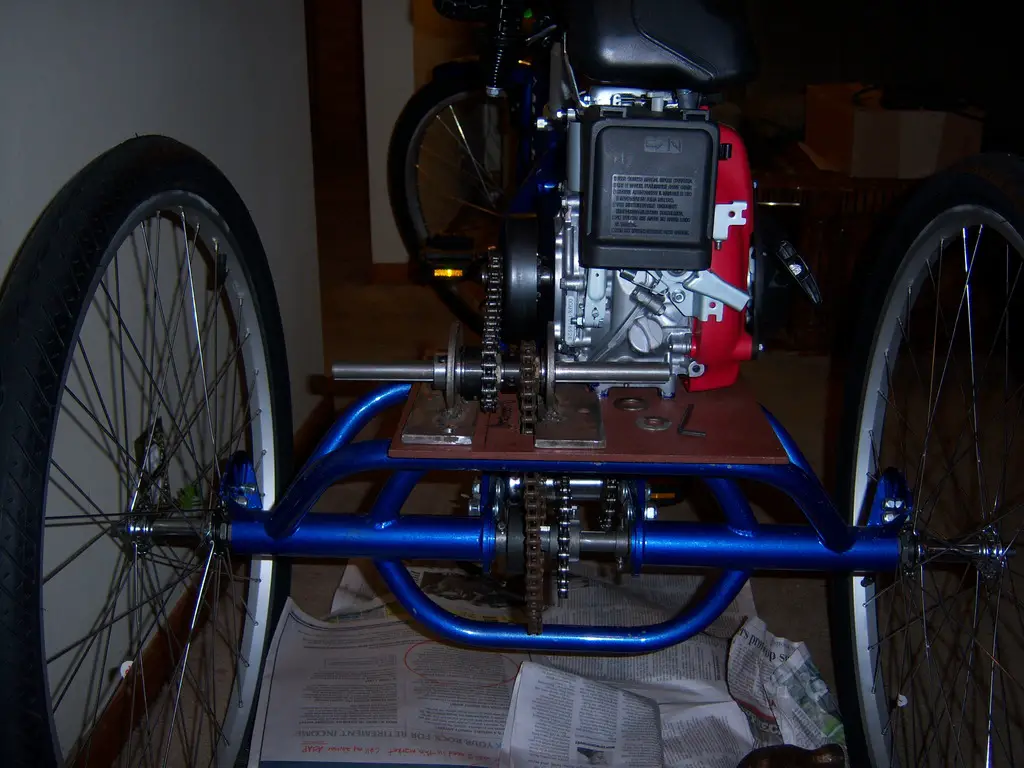

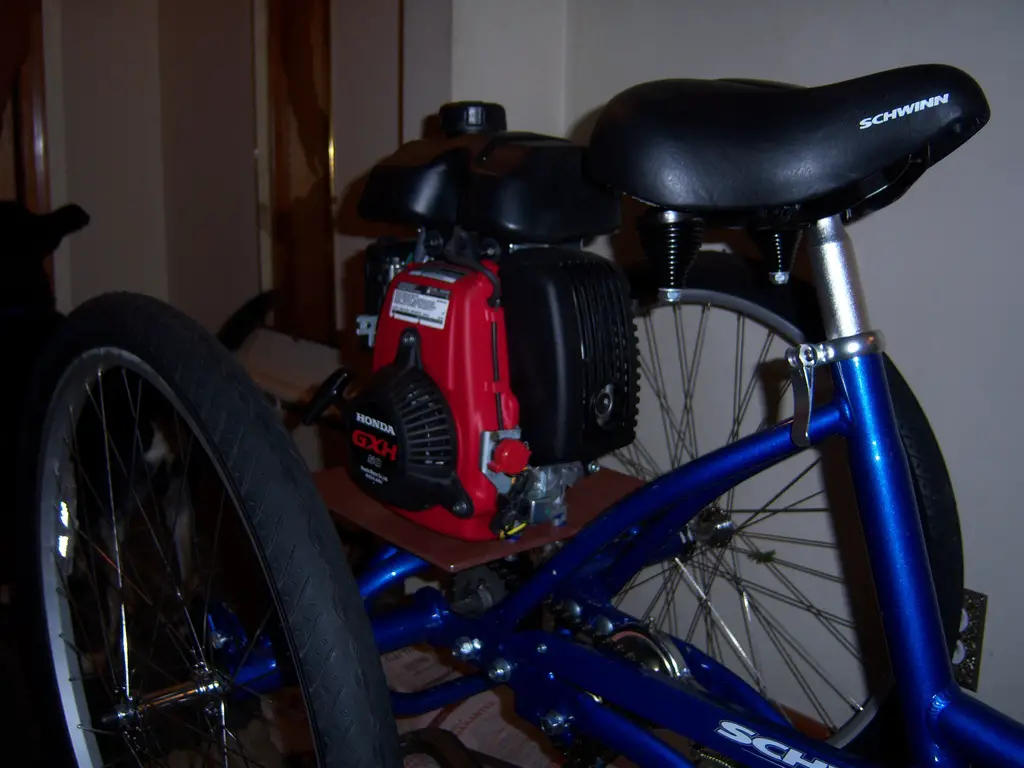

My father used a 1/4 " steel plate,took off the rear basket and mounted this to the frame where the basket was . He then welded the 2 bearing mounts to two small 1/4 steel plates to secure the jack shaft on both ends , he positioned these properly on the mounting plate then bolted them down to allow for chain adjustment.He then cut a hole through the steel plate for the 2nd chain to go from the jack shaft to the final 60 tooth axle gear to turn the wheels.
Here is a rundown of the hookup.
From (clutch) drive gear 11 teeth to jack shaft gear 18 teeth , from other jack shaft gear 13 teeth through the mounting plate to the 60 tooth gear on the axle to turn the 26" wheels.
Motor = Honda 50cc
RPM min=2000
RPM max = 7000
Can anybody from this info tell me the min and max speed of he tricycle?
I will attach pictures to this soon just gotta find my camera.This is going to be sweet.Hope it works as good as it looks.
Attached Thumbnails
Click image for larger version

Name:	016.jpg
Views:	2332
Size:	223.8 KB
ID:	3301   Click image for larger version

Name:	018.jpg
Views:	3973
Size:	253.3 KB
ID:	3302

Last edited by MrMike; 10-31-2008 at 10:49 AM. Reason: Add pictures
Reply With Quote
  #2
Old 10-25-2008, 06:22 PM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 10,504
Thanks: 137
Thanked 94 Times in 84 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

11/18/13/48, @5250 RPMs (3/4 throttle cruising speed) I have you at 67.2 MPH. LOL, I could be mistaken. Index of /ratiocalc Some one will get it right. Great lookin' trike
__________________
=============================

I want 2 ride my bicycle
Reply With Quote
  #3
Old 10-26-2008, 06:43 AM
MrMike's Avatar
MrMike MrMike is offline
Motorized Bicycle Newbie

Join Date: Oct 2008
Location: Michigan
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

Well I just gotta find somene who can figure out the MPH with the gearing you have listed above.Maybe someone will stumble across this thread and post the answer.Keeping my fingers crossed.(LOL)
Reply With Quote
  #4
Old 10-26-2008, 09:36 AM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 10,504
Thanks: 137
Thanked 94 Times in 84 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

Mike, rechecked with a clear head. The ratio you want to use gives you 6.04:1. it wont work well. @ 7000 RPM, will propel bike at 89.6 MPH. (right until the clutch melts) If you swap the second 18 toothed sprocket for another 48, it would give you a ratio of 16.11:1 and a top speed of 33.6 MPH. (25.2@5250 RPM) But I am told 16 to 1 is not high enough. Try playing with that link I gave you. Works wonders on working this stuff. I am just learning it my self.
__________________
=============================

I want 2 ride my bicycle
Reply With Quote
  #5
Old 10-26-2008, 02:43 PM
ocscully ocscully is offline
Motorized Bicycle Elite Member

Join Date: Jan 2008
Location: Orange County, CA
Posts: 374
Thanks: 0
Thanked 2 Times in 2 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

Quote:
Originally Posted by MrMike View Post
Well I just gotta find somene who can figure out the MPH with the gearing you have listed above.Maybe someone will stumble across this thread and post the answer.Keeping my fingers crossed.(LOL)
As you have it currently set-up with the 11t to 18t to 13t to 48t you will never get the thing going/started. You would have to pedal the rig up to 30mph for the motor & clutch to engage properly. You want to get the total reduction into the 20:1 area right now you are at 6:1. here are the mph for your current set-up: 30mph @ 2300 rpm, 38.4 mph @ 3000 rpm, 92.2 mph @ 7200 rpm

ocscully
Reply With Quote
  #6
Old 10-26-2008, 03:22 PM
stude13 stude13 is offline
Motorized Bicycle Elite Member

Join Date: May 2008
Location: north bend wa.
Posts: 404
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

i asked a similar question about a lifan. i came up with 120mph. someone said the engine internally had a 4/1 ratio. making my speed around 30mph.
Reply With Quote
  #7
Old 10-26-2008, 05:33 PM
Dan's Avatar
Dan Dan is offline
Staff

Join Date: May 2008
Location: Moosylvania
Posts: 10,504
Thanks: 137
Thanked 94 Times in 84 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

Quote:
Originally Posted by stude13 View Post
i asked a similar question about a lifan. i came up with 120mph. someone said the engine internally had a 4/1 ratio. making my speed around 30mph.

Stude, if I got you correctly. I think the internal ratio is not important to the equation as the final out put of the drive shaft. The shaft RPM is where you need to start In my humble opinion. A Honda 50cc GX turns much faster then a china girl.

Just saying. Not meaning to be contrary.
__________________
=============================

I want 2 ride my bicycle
Reply With Quote
  #8
Old 10-27-2008, 12:00 PM
MrMike's Avatar
MrMike MrMike is offline
Motorized Bicycle Newbie

Join Date: Oct 2008
Location: Michigan
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

What if I had a 6:1 gear ratio with 26" wheel.How fast would I go ON A 26" wheel at 7000 RPM's
Reply With Quote
  #9
Old 10-27-2008, 12:05 PM
ocscully ocscully is offline
Motorized Bicycle Elite Member

Join Date: Jan 2008
Location: Orange County, CA
Posts: 374
Thanks: 0
Thanked 2 Times in 2 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

Quote:
Originally Posted by MrMike View Post
What if I had a 6:1 gear ratio with 26" wheel.How fast would I go ON A 26" wheel at 7000 RPM's
90.2MPH

ocscully
Reply With Quote
  #10
Old 10-27-2008, 12:30 PM
5-7HEAVEN 5-7HEAVEN is offline
Motorized Bicycle Elite Member

Join Date: Aug 2008
Posts: 1,912
Thanks: 43
Thanked 31 Times in 29 Posts
Default Re: My mount on honda Schwinn Meridian tricycle

What you really need is a 5:1 gear reduction/clutch. Match the drive sprocket here with the first jackshaft sprocket(10t/10t11t/11t, 18t/18t,etc.) Then using the original 13t/48t you get this:

13t/48t-29.3 mph@ 7000rpm

Change that second jackshaft sprocket for

12t/48t-27.1 mph @ "

11t/48t-24.8 mph@ "

10t/48t-22.6 mph @ "

IMO, 29.3 mph is very fast for a trike and especially dangerous on turns. Ya might want to try it, then experiment with smaller jackshaft sprockets. Have your dad fabricate a chain tensioner so you don't have to shorten the chain when you swap sprockets around.

You will need a Staton adaptor to mate the Honda 50 engine to 76mm clutch to use the 5:1 gearbox, so the engine might need to be shifted side-to-side an inch or so.

Last edited by 5-7HEAVEN; 10-27-2008 at 12:38 PM.
