Default ultimate wiring diagram

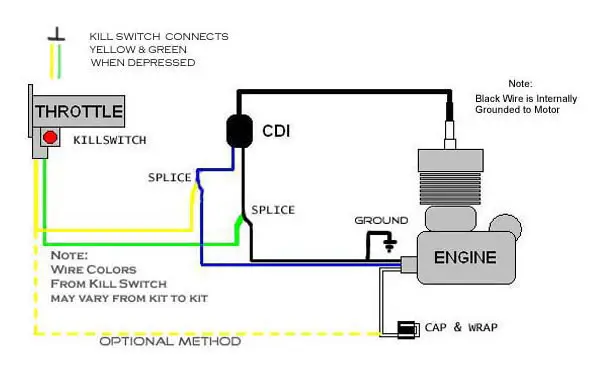

this diagram was provided by rawmotors.com - homepage left hand collumn.
they also have an excellent tutorial all about clutches.

in the mag, the black wire is screwed into the mag frame and is thereby ground

the 2 killswitch wires COULD be ANY 2 colors. i have seen the yellow wire shown have a thin red verticle stripe or a red wire with a thin yellow stripe.
i had one build with a lavender wire and a red wire COMMING OUT OF THE MAG. lol ----inside the mag the colors were correct but they had pigtailed the other 2 colors..... you just had to apply the lavender into the black set the red into blue set. love those chineese.
note the white wire is capped off and not used.

************** sorry, i cant get the pic size down to 19kb
go to the website to view it


stay dry
gubba
Reply With Quote
  #2
Old 05-10-2011, 04:53 AM
DuctTapedGoat's Avatar
DuctTapedGoat DuctTapedGoat is offline
Motorized Bicycle Elite Member

Join Date: Dec 2010
Location: Nampa Idaho
Posts: 1,167
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: ultimate wiring diagram

There is a LOT of topics out there on proper wiring.

A huge symptom of following the china girl kit motor instruction manuals is that of putting the white wire in circuit. Though it can work - a common symptom is that the magneto will drain it's juice into the spark and just give you a low idle when you hit the kill switch instead of actually grounding it out.

The most important thing to remember is to fold back or cap off your white wire unless you plan to adventure in accessory lighting (in which case, keep your wire cap handy for when you're done with the multimeter and you just want to ride).

Basically, all you have to do is match your CDI wires up to the engine wires. If only one matches - match that, and assume the others match (not white, leaves one). Your kill switch can go anywhere (except white), as that just redirects everything into the ground (frame). Don't worry which wires from the kill switch you're using, as they're just two wires with a push button switch in between.

If you don't have a good ground, you can run into issues down the road, so always check for oxidation, especially after winter and rainy seasons.
Reply With Quote
