Default Just how wide is a Wide Pedal Crank?

The title says it all.

I'm looking at mounting a 4-stroke with a centrifugal clutch in the frame. I assume the wide pedal cranks are provided to ensure the crankarms miss the sides of the engine. Anyway, has anybody actually measured the Q-factor of these cranks?

I'm looking to motorize a ten year old GT with a standard UN-72 square taper bottom bracket. It's a triple crank that would be converted to a single ring in the front. I already have a much wider bottom bracket that I could use to put the crank arms out another half inch or more but I need to know how wide is wide enough.
Reply With Quote
  #2
Old 07-13-2008, 08:28 AM
Scotty Scotty is offline
Motorized Bicycle Member

Join Date: Jul 2008
Location: Melbourne Australia
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Just how wide is a Wide Pedal Crank?

I guess it depends on the design and engine placement. I run a wide bb, 127mm, but this doesnt clear the motor. I placed the motor forward and higher so the cranks clear. Most frames dont have room for the motor in this space so you may need an x/large frame or custom made.
Reply With Quote
  #3
Old 07-13-2008, 09:55 PM
cachehiker's Avatar
cachehiker cachehiker is offline
Motorized Bicycle Member

Join Date: Jul 2008
Location: Hyde Park / Logan, UT
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Just how wide is a Wide Pedal Crank?

If 127mm doesn't clear the motor for you, I'm pretty sure I won't make it either. It looks like I can fit a 48cc 2-stroke in there if I can find a clutch actuating mechanism that I like. I don't want two levers on the left side and since I'm a cyclist first, I don't want to get used to braking solely from the right.
Reply With Quote
  #4
Old 07-14-2008, 12:22 PM
ocscully ocscully is offline
Motorized Bicycle Elite Member

Join Date: Jan 2008
Location: Orange County, CA
Posts: 374
Thanks: 0
Thanked 2 Times in 2 Posts
Default Re: Just how wide is a Wide Pedal Crank?

Quote:
Originally Posted by cachehiker View Post
The title says it all.

I'm looking at mounting a 4-stroke with a centrifugal clutch in the frame. I assume the wide pedal cranks are provided to ensure the crankarms miss the sides of the engine. Anyway, has anybody actually measured the Q-factor of these cranks?

I'm looking to motorize a ten year old GT with a standard UN-72 square taper bottom bracket. It's a triple crank that would be converted to a single ring in the front. I already have a much wider bottom bracket that I could use to put the crank arms out another half inch or more but I need to know how wide is wide enough.
The Optional Wide 3-piece crankset offered from GRUBEE and other vendors are designed to clear the Honda GXH50/Clone motor and its attendent gearbox. This set-up is 9.5 inches wide. The wide crankset is designed to clear this with what ever square tapered BB your bike has for its existing crank set. The wide crankset is also a single 44t sprocket. Just changing to a longer spindle isn't even close and would cause chain line problems for the pedal side as well if you could find a spindle long enough.

ocscully

Just
Reply With Quote
  #5
Old 07-14-2008, 12:58 PM
jimraysr jimraysr is offline
Motorized Bicycle Senior Member

Join Date: Apr 2008
Location: Glendale, AZ
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: Just how wide is a Wide Pedal Crank?

My Honda GXH50 plus a GruBee gear box is 232mm (9 1/8") at its widest point. Below the bulge for the bearings it is only 222mm (8.75")

My three piece peddle set clears 229mm (9")

The one piece that I could not use is 225mm (8.75")

I just installed the wide cranks yesterday on the 38mm (1.5) factory lower bracket. The one piece crank requires a 51mm (2) lower bracket to fit through and use the bearings that come with it.

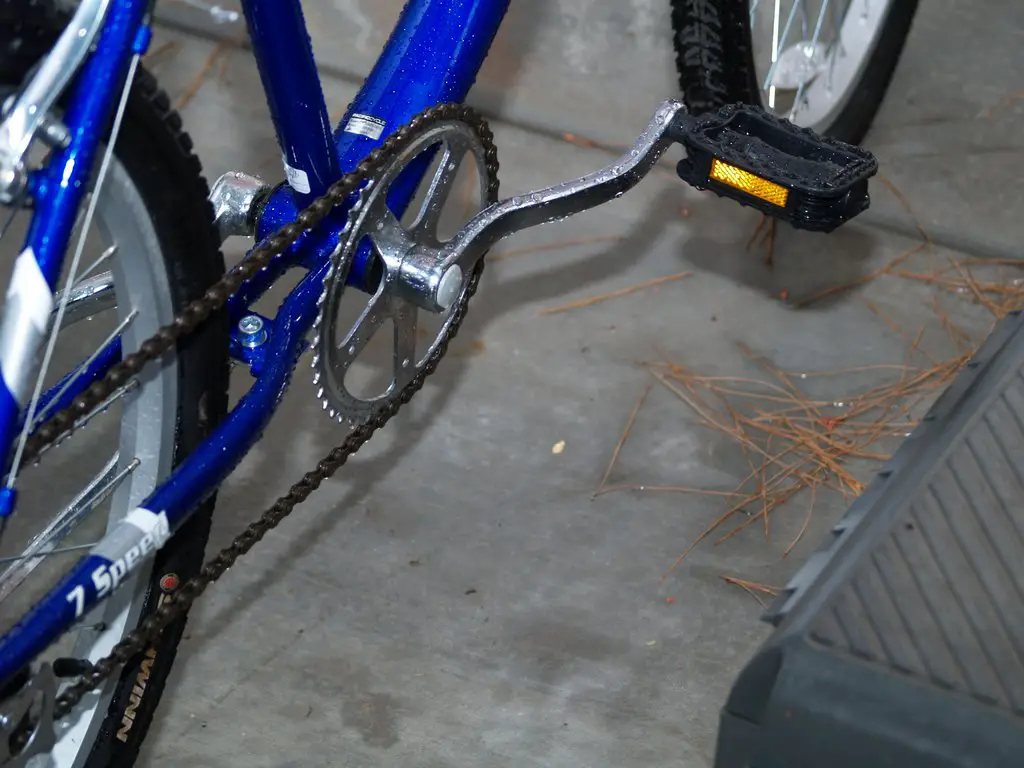

The attachment is a picture of the new wide cranks. Jim
