Default dual freewheel front sprocket drive

Hello folks - I have developed and bench tested a prototype dual freewheel front sprocket system to allow an emotor to power the bicycle through the pedal crank so the shifting system (rear hub or derailleur) can be utilized. One freewheel allows the cranks to remain stationary when under motor power (nothing new there) and the second freewheel allows the motor driven sprocket (on the BB spindle) to remain stationary when under pedal power, reducing drag caused by the motor system to a minimum. I've posted a video on YouTube of the rough first prototype during a bench test. It's at YouTube - Dual Freewheel Front Sprocket System Prototype If others are interested I'll post details. - jd
__________________
_______________________________________
In theory there is no difference between theory and practice. But in practice, there is - Yogi Berra
Reply With Quote
  #2
Old 01-22-2010, 03:02 PM
deacon's Avatar
deacon deacon is offline
minor bike philosopher

Join Date: Jan 2008
Location: north carolina
Posts: 8,122
Default Re: dual freewheel front sprocket drive

Now that's the cat's pajamas. For anyone wanting a chain drive with gears it looks like just the thing.
__________________
My posts have entertainment value only. A bike ain't yours till it has your blood on it. Then it owns you.
Reply With Quote
  #3
Old 01-29-2010, 03:45 AM
Cabinfever1977's Avatar
Cabinfever1977 Cabinfever1977 is offline
Motorized Bicycle Elite Member

Join Date: Mar 2009
Location: Upstate,NY
Posts: 2,292
Default Re: dual freewheel front sprocket drive

They already have something like that for electric bikes and gasbikes.

http://www.cyclone-usa.com/

http://www.nycewheels.com/giant-lite...sted-bike.html

Last edited by Cabinfever1977; 01-29-2010 at 04:07 AM.
Reply With Quote
  #4
Old 01-29-2010, 07:19 AM
jdcburg jdcburg is offline
Motorized Bicycle Elite Member

Join Date: Jul 2009
Location: massachusetts
Posts: 150
Default Re: dual freewheel front sprocket drive

Hi Cabinfever - The system I designed and built is different from the Cyclone systems as well as others that drive through the derailleur/rear hub (SickBikeParts, Elation and Eclipse) in that the freewheel that frees up the motor when under pedal power is on the bottom bracket spindle. All the others have the freewheel on the motor and the motor-driven sprocket (on the BB spindle) is bolted or riveted to the pedal-driven sprocket. In those systems the motor chain is driven by the pedals, causing some excess drag. Also the smallest motor freewheel sprocket is 14T, where my motor sprocket is 9T. The Giant has been discontinued and replaced by the Sanyo Eneloop, a $2300 front hub drive. The Cyclone single chainring system has the motor down in the lower chainline, subject to water, mud and debris. It's all about compromises. Mine can't be used for regen or pedal-start (rules out most 2-cycle CGs) because of the freewheel.

I put a 350W Unite MY1016Z3 (w/built-in gear reduction) and took it out for a short test drive during a break in the weather. There didn't seem to be any problems. I used a little pedal-assist and had good hill-climbing ability in the lower gears and reached an estimated 25 mph in 8th on the flats - jd
__________________
_______________________________________
In theory there is no difference between theory and practice. But in practice, there is - Yogi Berra
Reply With Quote
  #5
Old 01-29-2010, 04:20 PM
Cabinfever1977's Avatar
Cabinfever1977 Cabinfever1977 is offline
Motorized Bicycle Elite Member

Join Date: Mar 2009
Location: Upstate,NY
Posts: 2,292
Default Re: dual freewheel front sprocket drive

Yes i see the diffrences now, Its always great to see new ideas.
Reply With Quote
  #6
Old 03-20-2011, 11:58 AM
roofman6 roofman6 is offline
Motorized Bicycle Newbie

Join Date: Mar 2011
Location: So. Calif.
Posts: 9
Default Re: dual freewheel front sprocket drive

I'd love to see more details on how this freewheel works. Do you intend to sell them? I'm wanting to motorize a recumbent similar to one posted at http://www.motoredbikes.com/showthread.php?t=24643 and will need a freewheel front sprocket.

Thanks,
roofman6
Reply With Quote
  #7
Old 06-04-2011, 10:21 AM
jdcburg jdcburg is offline
Motorized Bicycle Elite Member

Join Date: Jul 2009
Location: massachusetts
Posts: 150
Default Re: dual freewheel front sprocket drive

Roofman6 - you can see more pix and details at Endless-sphere.com • View topic - Dual Freewheel Front Sprocket system. I don't have any intention of manufacturing/marketing the adapter but you are free to copy the design. I had the local voc-tech school fabricate the part to my design. I probably have a thousand miles on it now and it works fine so far (knock on wood). I think the weak link is the Southpaw freewheel as that takes the power of my 350W motor. Using a more powerful motor and/or rough shifting/throttle use may cause it to fail more quickly. PM me if you want more info. jd
__________________
_______________________________________
In theory there is no difference between theory and practice. But in practice, there is - Yogi Berra
Reply With Quote
  #8
Old 11-07-2011, 01:40 PM
savanne savanne is offline
Motorized Bicycle Newbie

Join Date: Nov 2010
Location: AZ
Posts: 3
Default Re: dual freewheel front sprocket drive

I have a 250 w motor and controller, but it has a counter clockwise rotation that can't be reversed. Is it possible for me to fabricate a dual front wheel sprocket drive with the motor driving sprocket on the left crank arm? Thanks.
Reply With Quote
  #9
Old 11-07-2011, 03:49 PM
Russell's Avatar
Russell Russell is offline
Motorized Bicycle Elite Member

Join Date: Apr 2009
Location: MA
Posts: 994
Default Re: dual freewheel front sprocket drive

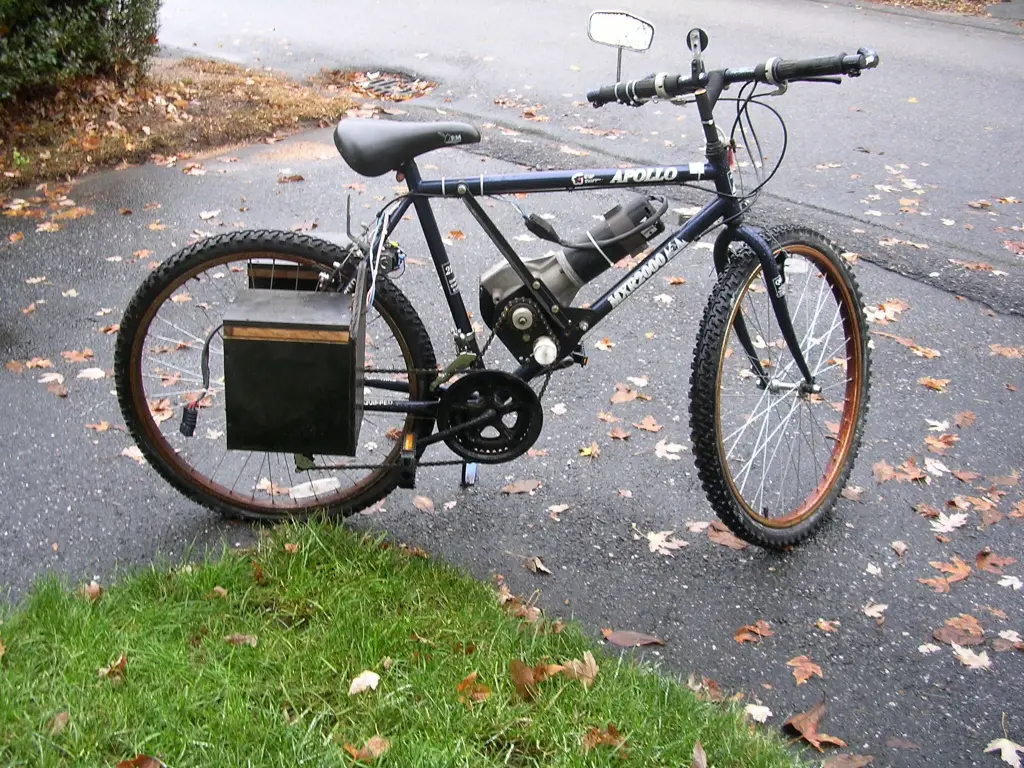

It looks a lot like the one I built several years ago. Freewheel on chainring and motor. Motor freewheels when pedaling and pedals sit still when under motor power. You can utilize seven gears in either mode.
Attached Thumbnails
Click image for larger version

Name:	022_22.JPG
Views:	169
Size:	811.8 KB
ID:	41916
Reply With Quote
  #10
Old 11-19-2011, 09:42 PM
jdcburg jdcburg is offline
Motorized Bicycle Elite Member

Join Date: Jul 2009
Location: massachusetts
Posts: 150
Default Re: dual freewheel front sprocket drive

Very similar Russell, except I put the "motor" freewheel down on the chainring on the BB spindle. That way I was able to use a 9 tooth motor sprocket driving a 36 tooth chainring for a 4:1 reduction. To get the same reduction using a 14 tooth freewheel sprocket on the motor I would have had to use a 56 tooth chainring. Also you have the slight extra drag of driving the motor chain when you pedal. But yours is much simpler at the BB because you just bolted the 2 chainrings together, where I have the 2nd freewheel there. Also I was limited to using the Southpaw for the 2nd freewheel as it needed left hand threads. It's all about choices...
