off set manifold, custom air filter

K.i.p · #1 11-25-2009, 04:50 PM

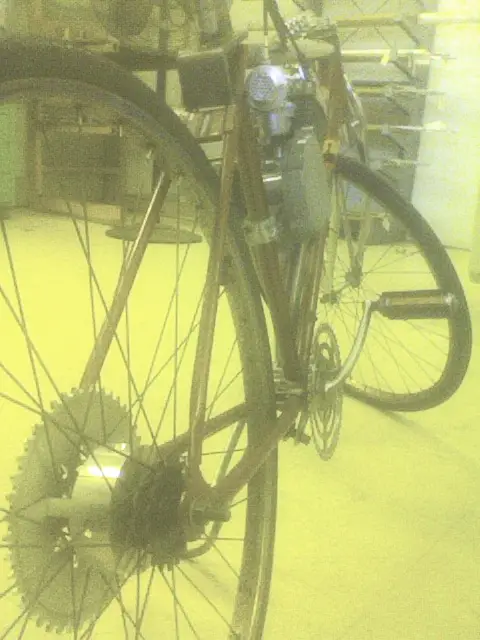

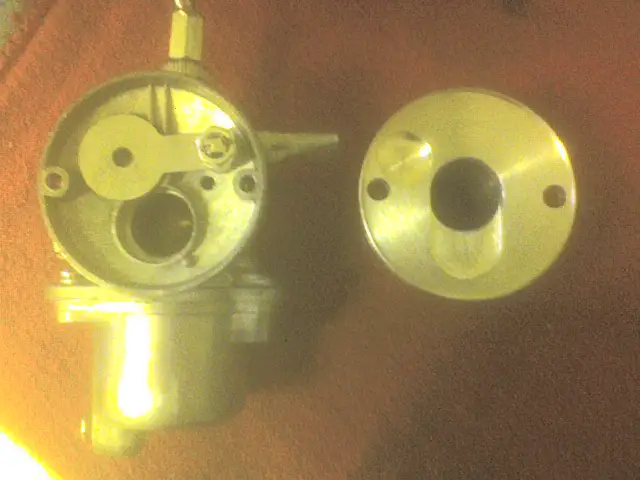

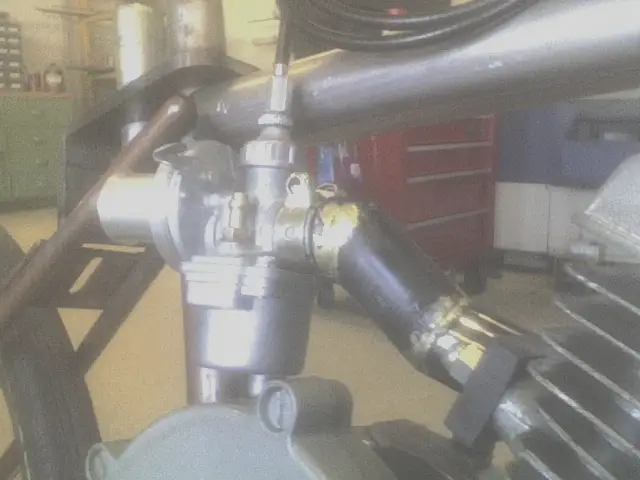

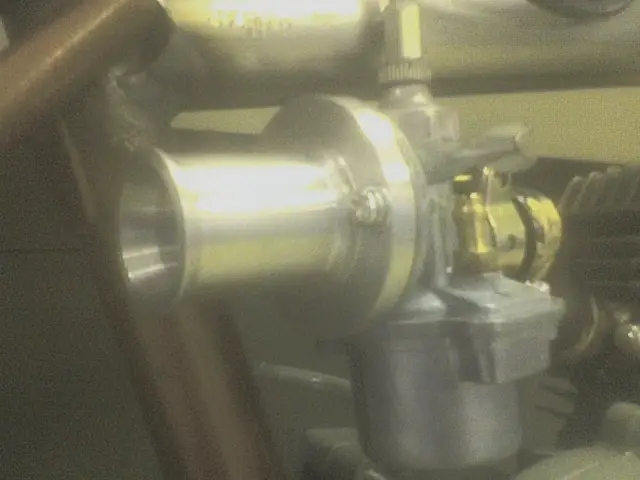

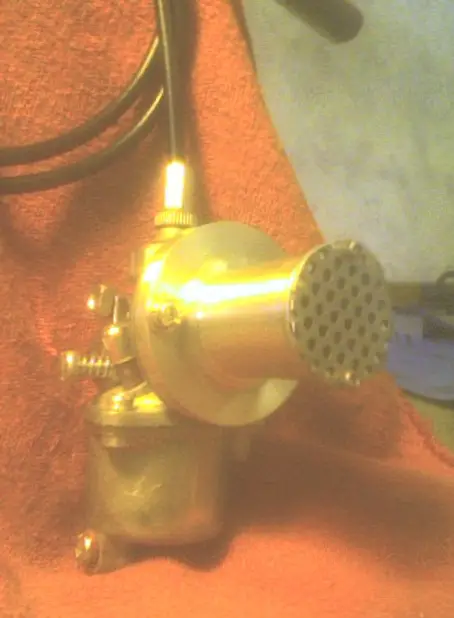

Just thought I would post some pics of my work. I fabricated an off set intake manifold to solve a throttle interference issue. I then ran into some trouble fitting the stock filter next to the down tube. I took a leap, did some math using pi*r-squared and made my own filter housing. The carb orifice is 5/8" and the total of the stock filter's four tubes worked out to be just a little more than that. I bored my housing to around 3/4" to compensate for the resistance of a filter element. I will be cutting up a piece of green foam to put inside. This is not a true velocity stack but I thought the bell mouth would add character and age to the filter.

dmar836 · #2 11-25-2009, 06:57 PM

I like it! Nice engenuity and craftsmanship.

**BarelyAWake** · #3 11-26-2009, 04:37 AM

Very nice!

Your work deserves a better camera tho

bairdco · #4 11-26-2009, 05:33 AM

yeah, i was gonna say clean the lens or somethin...

K.i.p · #5 11-26-2009, 06:07 AM

Sorry about the photo quality, I use my phone camera as it is always near at hand and I need to watch what I spend money on. Everyone has their own priorities. I'll get after the lens and give it a cleaning though! Thanks for the kind words about the parts.

Venice Motor Bikes · #6 11-27-2009, 12:42 PM

All my pics on the 'biker build off' were taken with my cell phone!!

Nice work on your bike too!

FileStyle · #7 12-07-2009, 01:01 PM

does a longer intake effect the performance? I have a build going on that requires a modified intake and the only solution is to bring the carb outside the frame.
